· Lean TheoremAGN obscuration in optical and X-rays: Host properties and the interplay of nuclear and galactic gas and dust in a combined SDSS-XMM sample
Pith reviewed 2026-05-15 13:02 UTC · model grok-4.3
The pith
Obscuration in active galactic nuclei stems from orientation as well as multi-scale gas and dust.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By comparing optical broad-line and narrow-line classifications with X-ray column-density measurements in a sample of 241 AGN at z < 1.9, the study finds agreement in roughly 70 percent of cases. The mismatched broad-line sources with X-ray absorption show higher gas-to-dust ratios, while the mismatched narrow-line sources without X-ray absorption display lower ratios, type-1-like SED fits for nearly half the group, reduced Balmer decrements, and host properties closer to those of unobscured AGN. Host diagnostics at z < 0.8 indicate that the narrow-line population resides in more quiescent systems with lower star-formation rates and less efficient black-hole growth. The mismatched broad-line
What carries the argument
Mismatched populations (BLAbs and NLUnabs) identified by cross-matching optical spectral type, X-ray NH, CIGALE SED fits, and line diagnostics to separate nuclear versus host-scale effects.
If this is right
- Obscuration occurs on host-galaxy scales in addition to the nuclear torus.
- Some narrow-line AGN classifications arise from diluted broad-line regions or host contamination rather than complete obscuration.
- Host star-formation rate and accretion efficiency differ systematically between matched narrow-line AGN and the NLUnabs group.
- Demographic counts in wide-field surveys will require multi-wavelength matching to avoid misclassifying mismatched sources.
- Gas-to-dust ratio serves as a diagnostic to flag sources where absorption is not purely orientation-driven.
Where Pith is reading between the lines
- If host-scale gas and dust contribute substantially, single-epoch optical surveys alone will systematically undercount the true obscured fraction.
- Time-domain monitoring campaigns targeting the mismatched sources could separate variability-driven mismatches from stable structural ones.
- Extending the same cross-match analysis to z > 1.9 would test whether the mismatch fraction evolves with cosmic epoch or galaxy type.
Load-bearing premise
Optical classifications and X-ray NH values correctly isolate intrinsic AGN properties without being dominated by variability, host contamination, or complex absorber geometry.
What would settle it
Repeated optical spectroscopy of the 58 NLUnabs sources that fails to detect any broad-line variability while X-ray data continue to show low NH would indicate that dilution or intrinsically weak broad-line regions, rather than orientation plus multi-scale gas, explain the mismatch.
Figures

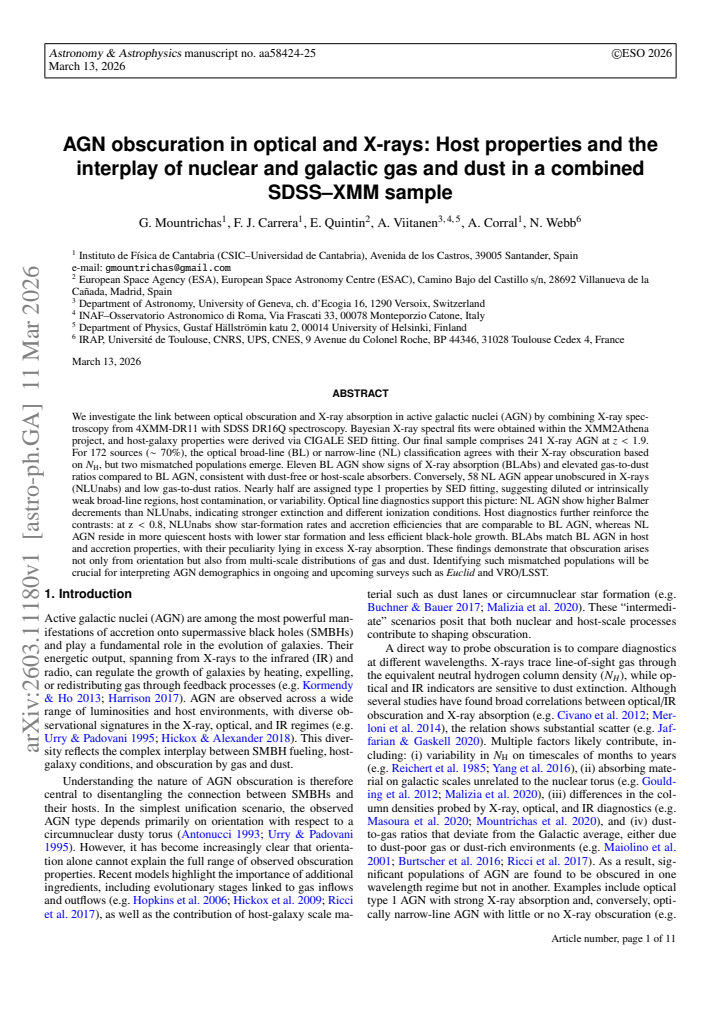

read the original abstract
We investigate the link between optical obscuration and X-ray absorption in active galactic nuclei (AGN) by combining X-ray spectroscopy from 4XMM-DR11 with SDSS DR16Q spectroscopy. Bayesian X-ray spectral fits were obtained within the XMM2Athena project, and host-galaxy properties were derived via \textsc{CIGALE} SED fitting. Our final sample comprises 241 X-ray AGN at $z<1.9$. For 172 sources ($\sim70\%$), the optical broad-line (BL) or narrow-line (NL) classification agrees with their X-ray obscuration based on $N_{\rm H}$, but two mismatched populations emerge. Eleven BL AGN show signs of X-ray absorption (BLAbs) and elevated gas-to-dust ratios compared to BL AGN, consistent with dust-free or host-scale absorbers. Conversely, 58 NL AGN appear unobscured in X-rays (NLUnabs) and low gas-to-dust ratios. Nearly half are assigned type~1 properties by SED fitting, suggesting diluted or intrinsically weak broad-line regions, host contamination, or variability. Optical line diagnostics support this picture: NL AGN show higher Balmer decrements than NLUnabs, indicating stronger extinction and different ionization conditions. Host diagnostics further reinforce the contrasts: at $\rm z<0.8$, NLUnabs show star-formation rates and accretion efficiencies that are comparable to BL AGN, whereas NL AGN reside in more quiescent hosts with lower star formation and less efficient black-hole growth. BLAbs match BL AGN in host and accretion properties, with their peculiarity lying in excess X-ray absorption. These findings demonstrate that obscuration arises not only from orientation but also from multi-scale distributions of gas and dust. Identifying such mismatched populations will be crucial for interpreting AGN demographics in ongoing and upcoming surveys such as \emph{Euclid} and VRO/LSST.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper combines SDSS DR16Q optical spectroscopy with 4XMM-DR11 X-ray data for 241 AGN at z<1.9. Bayesian X-ray spectral fits and CIGALE SED modeling are used to compare optical broad-line (BL) vs. narrow-line (NL) classifications against X-ray NH-based obscuration. Approximately 70% of sources show agreement, but two mismatch populations are identified: 11 BL AGN with X-ray absorption (BLAbs) exhibiting elevated gas-to-dust ratios, and 58 NL AGN that appear X-ray unobscured (NLUnabs) with low gas-to-dust ratios (nearly half SED-classified as type 1). Differences in Balmer decrements, star-formation rates, and accretion efficiencies are reported, leading to the conclusion that obscuration arises from multi-scale gas and dust distributions in addition to orientation effects.
Significance. If the mismatched populations are robustly identified, the work provides statistical evidence that AGN obscuration involves host-scale and multi-scale components beyond the standard unified model, with direct relevance to demographic interpretations in large surveys such as Euclid and LSST. The combination of independent X-ray NH measurements and optical diagnostics offers a concrete path to quantify these effects.
major comments (2)
- [Sample selection and classification] The central claim that the 11 BLAbs and 58 NLUnabs demonstrate multi-scale obscuration (rather than classification errors or variability) rests on the stability of the optical BL/NL labels and the reliability of the X-ray NH classifications from the Bayesian fits. Explicit thresholds for NH (e.g., the precise log NH cutoff separating absorbed/unabsorbed) and propagation of fit uncertainties must be provided, along with any checks for partial covering or changing-look behavior in the NLUnabs subsample.
- [SED fitting and host properties] The statement that nearly half of NLUnabs are assigned type-1 properties by CIGALE SED fitting requires validation against host contamination or dilution; the paper should quantify how the SED fits separate AGN type-1 signatures from host light and report the impact of any assumed priors on the gas-to-dust ratios derived for both mismatch populations.
minor comments (1)
- [Results] The abstract mentions 'elevated gas-to-dust ratios' for BLAbs and 'low gas-to-dust ratios' for NLUnabs; the exact definition and derivation of these ratios (including any assumed dust-to-gas conversion) should be stated explicitly in the methods.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed comments, which help strengthen the robustness of our analysis on AGN obscuration mismatches. We address each major comment below, indicating revisions where the manuscript will be updated to provide additional clarity and validation.
read point-by-point responses
-
Referee: [Sample selection and classification] The central claim that the 11 BLAbs and 58 NLUnabs demonstrate multi-scale obscuration (rather than classification errors or variability) rests on the stability of the optical BL/NL labels and the reliability of the X-ray NH classifications from the Bayesian fits. Explicit thresholds for NH (e.g., the precise log NH cutoff separating absorbed/unabsorbed) and propagation of fit uncertainties must be provided, along with any checks for partial covering or changing-look behavior in the NLUnabs subsample.
Authors: We agree that explicit details on thresholds and uncertainties are essential. In the revised manuscript, we will state the adopted cutoff of log(NH/cm^2) = 22 to separate absorbed and unabsorbed sources, consistent with standard X-ray definitions. Bayesian posterior uncertainties are propagated by classifying sources only when the 16-84 percentile range of the NH posterior lies entirely above or below the threshold; borderline cases are flagged. For partial covering, the baseline model is a simple absorbed power law; we tested more complex partial-covering models on the highest-S/N subset and found no significant improvement, which we will report. For changing-look behavior, we cross-matched the NLUnabs subsample against published catalogs of known changing-look AGN and found zero overlaps; however, we acknowledge that single-epoch SDSS spectra limit a complete search. These clarifications and the cross-match results will be added to Section 3. revision: partial
-
Referee: [SED fitting and host properties] The statement that nearly half of NLUnabs are assigned type-1 properties by CIGALE SED fitting requires validation against host contamination or dilution; the paper should quantify how the SED fits separate AGN type-1 signatures from host light and report the impact of any assumed priors on the gas-to-dust ratios derived for both mismatch populations.
Authors: We will expand the SED-fitting discussion in the revised manuscript to quantify the AGN-to-host luminosity ratio for the NLUnabs population, demonstrating that the type-1 assignment is driven by a dominant AGN power-law component in the UV-optical after host-template subtraction. The CIGALE fits separate type-1 signatures via the combination of a low-extinction AGN template and the presence of a UV excess, with host contamination controlled by the energy-balance constraint and the use of Bruzual & Charlot stellar populations. Regarding priors, we have performed a sensitivity test varying the dust-attenuation law (Calzetti vs. modified starburst) and the AGN fraction prior; the reported differences in gas-to-dust ratios between the mismatch populations remain statistically significant across these variations. A new supplementary table summarizing the prior impact will be included. revision: yes
- Comprehensive checks for changing-look behavior across the entire NLUnabs subsample, as this would require multi-epoch spectroscopic monitoring not available in the archival SDSS and XMM data used for this study.
Circularity Check
No significant circularity; analysis rests on independent data classifications
full rationale
The paper identifies mismatched populations (BLAbs, NLUnabs) directly from cross-comparison of SDSS optical line classifications and independent 4XMM-DR11 Bayesian X-ray NH fits, then derives host properties via CIGALE SED fitting on the same photometry. No equation or claim reduces a prediction to a fitted parameter by construction, no self-citation chain supports a uniqueness theorem, and no ansatz is smuggled in. The central inference that obscuration involves multi-scale gas/dust is an interpretation of observed mismatches rather than a tautological renaming or self-definition. Classifications use separate observables (optical spectra vs. X-ray spectra), satisfying the self-contained criterion.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Standard assumptions in Bayesian X-ray spectral fitting and CIGALE SED modeling hold for the sample
Reference graph
Works this paper leans on
- [1]
- [2]
-
[3]
Arnaud, K. A. 1996, ASPC, 101, 17 Barquín-González, L., Mateos, S., Carrera, F. J., et al. 2024, A&A, 687, A159
work page 1996
-
[4]
Boquien, M., Burgarella, D., Roehlly, Y ., et al. 2019, A&A, 622, A103
work page 2019
- [5]
-
[6]
Buat, V ., Ciesla, L., Boquien, M., Małek, K., & Burgarella, D. 2019, A&A, 632, A79
work page 2019
- [7]
- [8]
- [9]
- [10]
-
[11]
Buchner, J. et al. 2014, A&A, 564, 125
work page 2014
-
[12]
Burtscher, L., Davies, R. I., Graciá-Carpio, J., et al. 2016, A&A, 586, A28 Carrasco Kind, M. & Brunner, R. J. 2013, MNRAS, 432, 1483
work page 2016
- [13]
- [14]
-
[15]
Dale, D. A., Helou, G., Magdis, G. E., et al. 2014, ApJ, 784, 83
work page 2014
-
[16]
Elitzur, M. & Ho, L. C. 2009, ApJ, 701, L91
work page 2009
-
[17]
Georgantopoulos, I., Pouliasis, E., Mountrichas, G., et al. 2023, A&A, 673, A67
work page 2023
-
[18]
Goulding, A. D., Alexander, D. M., Bauer, F. E., et al. 2012, ApJ, 755, 5
work page 2012
-
[19]
Goulding, A. D., Alexander, D. M., Mullaney, J. R., et al. 2011, MNRAS, 411, 1231
work page 2011
-
[20]
L., Danese, L., & Franceschini, A
Granato, G. L., Danese, L., & Franceschini, A. 1997, ApJ, 486, 147
work page 1997
-
[21]
Harrison, C. M. 2017, Nature Astronomy, 1, 0165
work page 2017
-
[22]
Hickox, R. C. & Alexander, D. M. 2018, ARAA, 56, 625
work page 2018
-
[23]
Hickox, R. C. et al. 2009, ApJ, 696, 891
work page 2009
-
[24]
Hon, W. J., Wolf, C., Onken, C. A., Webster, R., & Auchettl, K. 2022, MNRAS, 511, 54
work page 2022
-
[25]
Hopkins, P. F., Hernquist, L., Cox, T. J., et al. 2006, ApJSS, 163, 1
work page 2006
-
[26]
Jaffarian, G. W. & Gaskell, C. M. 2020, MNRAS, 493, 930
work page 2020
-
[27]
Kormendy, J. & Ho, L. C. 2013, ARAA, 51, 511
work page 2013
-
[28]
Koutoulidis, L., Mountrichas, G., Georgantopoulos, I., Pouliasis, E., & Plionis, M. 2022, A&A, 658, A35
work page 2022
-
[29]
LaMassa, S. M., Cales, S., Moran, E. C., et al. 2015, ApJ, 800, 144
work page 2015
-
[30]
Lansbury, G. B., Gandhi, P., Alexander, D. M., et al. 2015, ApJ, 809, 115
work page 2015
-
[31]
2019, ApJ, 877, 5 López-Navas, E., Arévalo, P., Bernal, S., et al
Li, J., Xue, Y ., Sun, M., et al. 2019, ApJ, 877, 5 López-Navas, E., Arévalo, P., Bernal, S., et al. 2023, MNRAS, 518, 1531
work page 2019
-
[32]
Lusso, E. et al. 2012, MNRAS, 425, 623
work page 2012
- [33]
-
[34]
2001, A&A, 365, 28 Małek, K., Buat, V ., Roehlly, Y ., et al
Maiolino, R., Marconi, A., Salvati, M., et al. 2001, A&A, 365, 28 Małek, K., Buat, V ., Roehlly, Y ., et al. 2018, A&A, 620, A50
work page 2001
-
[35]
B., Bazzano, A., & Ubertini, P
Malizia, A., Bassani, L., Stephen, J. B., Bazzano, A., & Ubertini, P. 2020, A&A, 639, A5
work page 2020
-
[36]
A., Georgantopoulos, I., Mountrichas, G., et al
Masoura, V . A., Georgantopoulos, I., Mountrichas, G., et al. 2020, A&A, 638, A45
work page 2020
-
[37]
A., Mountrichas, G., Georgantopoulos, I., & Plionis, M
Masoura, V . A., Mountrichas, G., Georgantopoulos, I., & Plionis, M. 2021, A&A, 646, A167
work page 2021
-
[38]
A., Mountrichas, G., Georgantopoulos, I., et al
Masoura, V . A., Mountrichas, G., Georgantopoulos, I., et al. 2018, A&A, 618, 31
work page 2018
-
[39]
Menzel, M.-L. et al. 2016, MNRAS, 457, 110
work page 2016
-
[40]
Merloni, A., Bongiorno, A., Brusa, M., et al. 2014, MNRAS, 437, 3550
work page 2014
- [41]
- [42]
- [43]
-
[44]
Mountrichas, G., Georgantopoulos, I., Ruiz, A., & Kampylis, G. 2020, MNRAS, 491, 1727
work page 2020
- [45]
-
[46]
Mountrichas, G., Yang, G., Buat, V ., et al. 2023, A&A, 675, A137
work page 2023
-
[47]
Pierre, M. et al. 2016, A&A, 592, 1 Planck Collaboration, Aghanim, N., Akrami, Y ., et al. 2018, A&A, 641, A6
work page 2016
-
[48]
A., Mezcua, M., Fernández-Ontiveros, J
Prieto, M. A., Mezcua, M., Fernández-Ontiveros, J. A., & Tristram, K. R. W. 2014, MNRAS, 442, 2145
work page 2014
-
[49]
A., Georgantopoulos, I., et al
Quintin, E., Webb, N. A., Georgantopoulos, I., et al. 2024, A&A, 687, A250
work page 2024
-
[50]
Reichert, G. A., Mushotzky, R. F., Holt, S. S., & Petre, R. 1985, ApJ, 296, 69
work page 1985
- [51]
- [52]
- [53]
-
[54]
Ruiz, A., Corral, A., Mountrichas, G., & Georgantopoulos, I. 2018, A&A, 618, A52
work page 2018
-
[55]
Scargle, J. D. 1998, ApJ, 504, 405
work page 1998
-
[56]
Scargle, J. D., Norris, J. P., Jackson, B., & Chiang, J. 2013, ApJ, 764, 167
work page 2013
-
[57]
Schulze, A., Bongiorno, A., Gavignaud, I., et al. 2015, MNRAS, 447, 2085
work page 2015
- [58]
-
[59]
Shen, Y ., Richards, G. T., Strauss, M. A., et al. 2011, ApJSS, 194, 45
work page 2011
-
[60]
Stalevski, M., Fritz, J., Baes, M., Nakos, T., & Popovi ´c, L. ˇC. 2012, MNRAS, 420, 2756
work page 2012
-
[61]
Stalevski, M., Ricci, C., Ueda, Y ., et al. 2016, MNRAS, 458, 2288
work page 2016
-
[62]
Tranin, H., Godet, O., Webb, N., & Primorac, D. 2022, A&A, 657, A138
work page 2022
-
[63]
Urry, C. M. & Padovani, P. 1995, PASP, 107, 803
work page 1995
-
[64]
Viitanen, A., Mountrichas, G., Stiele, H., et al. 2025, A&A, 704, A16
work page 2025
-
[65]
A., Buat, V ., Theule, P., Boquien, M., & Burgarella, D
Villa-Velez, J. A., Buat, V ., Theule, P., Boquien, M., & Burgarella, D. 2021, A&A, 654, A153
work page 2021
- [66]
-
[67]
A., Coriat, M., Traulsen, I., et al
Webb, N. A., Coriat, M., Traulsen, I., et al. 2020, A&A, 641, A136
work page 2020
- [68]
- [69]
- [70]
- [71]
- [72]
-
[73]
Zou, F., Yang, G., Brandt, W. N., & Xue, Y . 2019, ApJ, 878, 11 Article number, page 11 of 11
work page 2019
