arxiv: 2603.24630 · v2 · submitted 2026-03-25 · ⚛️ physics.ins-det

Recognition: no theorem link

On peculiarities of the annealing process for highly transparent silica-based aerogel tiles manufactured in Novosibirsk

A.Yu. Barnyakov (1 , Novosibirsk State Technical University , Novosibirsk , Russia) , A.F. Danilyuk (2) , A.A. Kattsin (1 , 3) , E.A. Kravchenko (1

show 5 more authors

A.A. Pochtar (2) A.Yu. Predein (2) ((1) Budker Institute of Nuclear Physics Russia (2) Boreskov Institute of Catalysis (3) Novosibirsk State University

Authors on Pith no claims yet

Pith reviewed 2026-05-15 01:09 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords silica aerogelannealing processRICH detectorsCherenkov radiatorsoptical transparencyproduction yieldrefractive index

0 comments

The pith

Refining the annealing step increases the yield of large transparent silica aerogel tiles for RICH detectors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the annealing stage in the long-running Novosibirsk process for making silica aerogel blocks used as radiators in Cherenkov detectors. By mapping temperature and duration changes during this step, the authors identify adjustments that raise the fraction of finished tiles that meet optical and mechanical specifications for Ring-Imaging Cherenkov detectors. They report the transmission, refractive index, and density values achieved for the largest tiles produced with the revised schedule. These results matter because higher yield directly reduces the cost and time needed to supply radiators for experiments such as LHCb, AMS-02, and CLAS12.

Core claim

The annealing procedure was investigated in detail and optimized to improve the yield of aerogel tiles useful for the RICH detectors. The optical and mechanical parameters of the largest silica aerogel samples produced in Novosibirsk using the new annealing procedure are presented.

What carries the argument

The controlled annealing schedule that removes residual solvents and strengthens the gel network while limiting scattering centers and cracks.

If this is right

Higher fractions of usable large tiles become available for current and future RICH systems.
Optical transmission and refractive-index uniformity reach levels suitable for precise Cherenkov angle reconstruction.
Mechanical integrity remains adequate for detector assembly and operation.
Production throughput rises because fewer tiles are discarded after annealing.
The same process window can be applied to blocks of varying target refractive indices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the new schedule is adopted elsewhere, the same yield gain could appear in aerogel production lines that follow similar sol-gel routes.
The reported parameters provide a concrete benchmark against which other annealing methods can be compared for transmission loss at short wavelengths.
Further size increases may still be limited by heat-transfer uniformity across the tile volume during the ramp phases.

Load-bearing premise

The described annealing optimizations can be reproduced at scale to consistently produce large tiles that meet detector specifications without new defects.

What would settle it

A side-by-side production run in which tiles annealed with the revised schedule show lower light transmission or higher cracking rates than tiles from the prior schedule.

Figures

Figures reproduced from arXiv: 2603.24630 by (2) Boreskov Institute of Catalysis, 3), (3) Novosibirsk State University, A.A. Kattsin (1, A.A. Pochtar (2), A.F. Danilyuk (2), A.Yu. Barnyakov (1, A.Yu. Predein (2) ((1) Budker Institute of Nuclear Physics, E.A. Kravchenko (1, Novosibirsk, Novosibirsk State Technical University, Russia, Russia).

**Figure 2.** Figure 2: The first four-layer sample produced in 2004 (left). The four-layer tile [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: X-ray image and profile of the 461f10 aerogel tile (side view). [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

**Figure 4.** Figure 4: The transmittance of the focusing aerogel tiles 461f5 (blue circles) and [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

**Figure 5.** Figure 5: Thick aerogel tiles: sample 461f13, the quarter-tile ( [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

**Figure 6.** Figure 6: Transmittance of thick aerogel tiles: 461f13 ( [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗

read the original abstract

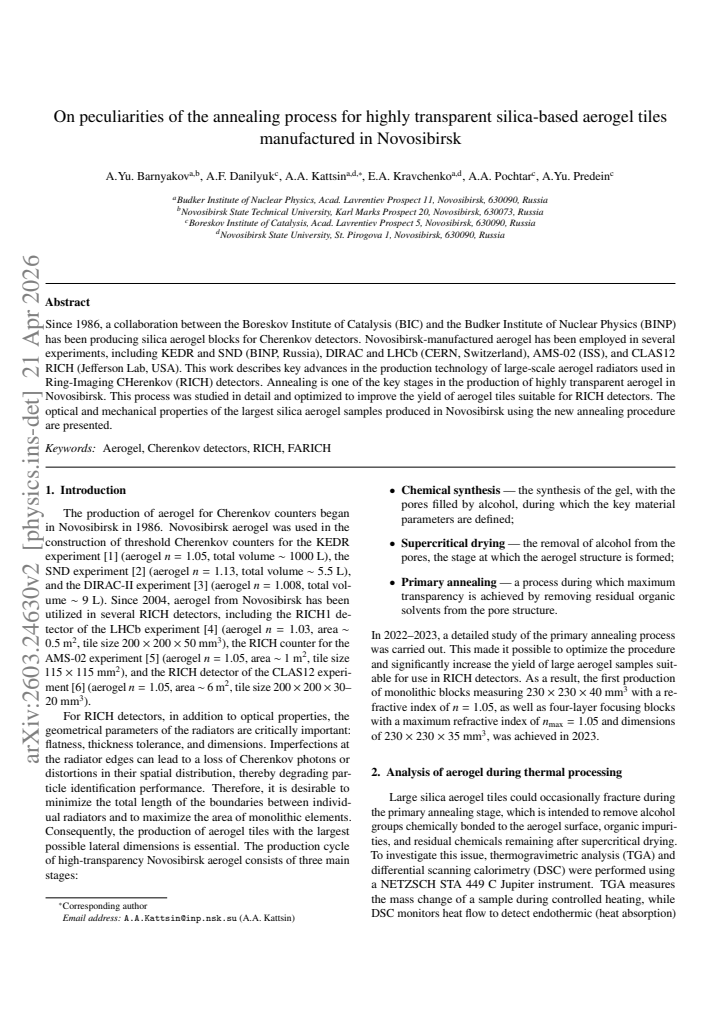

A collaboration between the Boreskov Institute of Catalysis and the Budker Institute of Nuclear Physics (BINP) has been producing silica aerogel blocks for Cherenkov detectors since 1986. Novosibirsk-manufactured aerogel is used in several experiments: KEDR and SND (BINP, Russia), LHCb (CERN, Switzerland), AMS-02 (ISS), and CLAS12 RICH (Jefferson Lab, USA). This work describes key advancements in the production technology for large-scale aerogel radiators used in Ring-Imaging CHerenkov (RICH) detectors. Annealing is one of the major stages of the highly transparent aerogel production in Novosibirsk. Its procedure was investigated in detail and optimized to improve the yield of aerogel tiles useful for the RICH detectors. The optical and mechanical parameters of the largest silica aerogel samples produced in Novosibirsk using the new annealing procedure are presented.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a practical engineering note on annealing tweaks for Novosibirsk aerogel, but the yield improvement claim lacks the before-and-after numbers needed to evaluate it.

read the letter

The paper describes adjustments to the annealing step in the long-running Novosibirsk process for making large silica aerogel tiles aimed at RICH detectors. The group has produced material for KEDR, SND, LHCb, AMS-02, and CLAS12 since 1986, so they bring real production experience. They report the optical and mechanical parameters achieved on the largest tiles made with the revised procedure. That part is straightforward and potentially useful for anyone scaling similar radiators. The central claim is that the changes raise the yield of usable tiles, yet the text gives no direct comparison of defect rates, transmission histograms, or success percentages against the prior method on comparable sizes. Without those controls or statistics, the improvement rests on the assumption that the new steps work better rather than on shown data. The methods appear empirical and tied to their specific setup, which is fine for a process paper but limits how far others can judge reproducibility at scale. Readers in detector instrumentation groups who already know the Novosibirsk baseline would find the parameter values and process notes worth scanning. A referee could check whether the full manuscript supplies the missing quantitative comparisons and enough detail for replication. I would send it to review rather than desk reject, since the topic is narrow but the application is active and the authors have a track record.

Referee Report

2 major / 1 minor

Summary. The manuscript reports on refinements to the annealing stage in the long-standing Novosibirsk process for manufacturing large, highly transparent silica aerogel tiles intended for RICH detectors. It states that the annealing procedure was investigated and optimized to raise the yield of tiles meeting detector specifications, and it presents the optical and mechanical parameters achieved for the largest samples produced with the revised protocol.

Significance. If the reported optimization demonstrably increases the fraction of usable large tiles without compromising optical clarity or mechanical integrity, the work would provide a practical improvement to aerogel radiator production for ongoing and future RICH systems (LHCb, CLAS12, AMS-02). The tabulated parameters for the largest tiles could serve as useful reference values for the community.

major comments (2)

[Abstract and Results] The central claim that the new annealing procedure improves yield is not supported by any quantitative comparison (yield percentages, defect-rate histograms, or statistical tests) against the prior procedure on tiles of comparable size. This comparison is required to substantiate the improvement assertion.
[Results] No error bars, measurement uncertainties, or reproducibility statistics are supplied for the reported optical transmission, refractive index, or mechanical strength values of the largest tiles. Without these, it is impossible to assess whether the parameters meet RICH-detector tolerances with the claimed reliability.

minor comments (1)

[Methods] The manuscript would benefit from a brief schematic or step-by-step table contrasting the old and new annealing schedules (temperatures, durations, atmosphere).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help strengthen the presentation of our work on the optimized annealing procedure for Novosibirsk silica aerogel tiles. We address each major comment below.

read point-by-point responses

Referee: [Abstract and Results] The central claim that the new annealing procedure improves yield is not supported by any quantitative comparison (yield percentages, defect-rate histograms, or statistical tests) against the prior procedure on tiles of comparable size. This comparison is required to substantiate the improvement assertion.

Authors: We agree that a direct quantitative comparison of yields would strengthen the central claim. The optimization was implemented progressively during production campaigns, and systematic, statistically comparable yield data (percentages, histograms) for the largest tile sizes under the prior procedure are not available in our records. We will add a qualitative discussion of observed yield improvements together with any available historical production statistics in a revised manuscript. revision: partial
Referee: [Results] No error bars, measurement uncertainties, or reproducibility statistics are supplied for the reported optical transmission, refractive index, or mechanical strength values of the largest tiles. Without these, it is impossible to assess whether the parameters meet RICH-detector tolerances with the claimed reliability.

Authors: We acknowledge that error bars and reproducibility information are necessary for assessing reliability against detector tolerances. The tabulated values represent typical results for the largest tiles; we will include measurement uncertainties, standard deviations from repeated measurements, and reproducibility statistics in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical process description only

full rationale

The paper is a descriptive experimental report on manufacturing optimizations for silica aerogel tiles, presenting measured optical and mechanical parameters of produced samples without any equations, fitted parameters, predictions, or derivations. No self-citations are used to justify load-bearing claims, and the yield improvement is stated as an empirical result of process changes rather than a constructed prediction. The derivation chain is absent, so no reductions to inputs occur.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced; the paper is an experimental report on process optimization.

pith-pipeline@v0.9.0 · 5553 in / 1019 out tokens · 96379 ms · 2026-05-15T01:09:05.092815+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages

[1]

A. Yu. Barnyakov, et al., ASHIPH counters for the KEDR detector, Nucl. Instr. and Meth. A 494 (2002) 424–429. doi:10.1016/S0168-9002(02)01513-9

work page doi:10.1016/s0168-9002(02)01513-9 2002
[2]

A. Yu. Barnyakov, et al., High density aerogel for ASHIPH SND—test results, Nucl. Instr. and Meth. A 598 (2009) 163–165.doi:10.1016/j.nima.2008.08.018

work page doi:10.1016/j.nima.2008.08.018 2009
[3]

Allkofer, et al., A new aerogel Cherenkov detector for DIRAC-II, Nucl

Y . Allkofer, et al., A new aerogel Cherenkov detector for DIRAC-II, Nucl. Instr. and Meth. A 595 (2008) 84–87. doi:10.1016/j.nima.2008.07.046

work page doi:10.1016/j.nima.2008.07.046 2008
[4]

URL https://cds.cern.ch/record/897981/file s/lhcb-2004-121.pdf

LHCb RICH group, LHCb RICH1 Engineering Design Review Report, LHCb 2004-121 (2004). URL https://cds.cern.ch/record/897981/file s/lhcb-2004-121.pdf

work page 2004
[5]

Buenerd, The AMS02 Cherenkov imager prototype: In-beam tests with high-energy ions, Nucl

M. Buenerd, The AMS02 Cherenkov imager prototype: In-beam tests with high-energy ions, Nucl. Instr. and Meth. A 553 (2005) 264–267. doi:10.1016/j.nima.2005. 08.086

work page doi:10.1016/j.nima.2005 2005
[6]

Contalbrigo, et al., The CLAS12 large area RICH detector, Nucl

M. Contalbrigo, et al., The CLAS12 large area RICH detector, Nucl. Instr. and Meth. A 639 (2011) 302–306. doi:10.1016/j.nima.2010.10.047

work page doi:10.1016/j.nima.2010.10.047 2011
[7]

A. Yu. Barnyakov, et al., Focusing aerogel RICH (FARICH), Nucl. Instr. and Meth. A 553 (2005) 70–75. doi:10.1016/j.nima.2005.08.073

work page doi:10.1016/j.nima.2005.08.073 2005
[8]

A. F. Danilyuk, et al., Recent results on aerogel develop- ment for use in Cherenkov counters, Nucl. Instr. and Meth. A 494 (2002) 491–494. doi:10.1016/S0168-9002(02 )01537-1. 4

work page doi:10.1016/s0168-9002(02 2002
[9]

A. Yu. Barnyakov, et al., Cherenkov Detector with a Focus- ing Aerogel Radiator, in: eConf C0604032, 2006, p. 0045. URL http://www.slac.stanford.edu/econf/C060 4032/papers/0045.PDF

work page 2006
[10]

A. R. Buzykaev, et al., Measurement of optical parameters of aerogel, Nucl. Instr. and Meth. A 433 (1999) 396–400. doi:10.1016/S0168-9002(99)00325-3

work page doi:10.1016/s0168-9002(99)00325-3 1999
[11]

Contalbrigo, et al., Aerogel mass production for the CLAS12 RICH: Novel characterization methods and op- tical performance, Nucl

M. Contalbrigo, et al., Aerogel mass production for the CLAS12 RICH: Novel characterization methods and op- tical performance, Nucl. Instr. and Meth. A 876 (2017) 264–267.doi:10.1016/j.nima.2017.02.068

work page doi:10.1016/j.nima.2017.02.068 2017
[12]

A. Yu. Barnyakov, et al., The production of the large scale aerogel radiators for use in the Ring-imaging Cherenkov detectors, Nucl. Instr. and Meth. A 952 (2020) 162035. doi:10.1016/j.nima.2019.03.090

work page doi:10.1016/j.nima.2019.03.090 2020
[13]

G. N. Abramov, et al., Measurement of the energy of elec- trons extracted from the VEPP-4M accelerator, JINST 11 (2016) P03004. doi:10.1088/1748-0221/11/03/P0 3004

work page doi:10.1088/1748-0221/11/03/p0 2016
[14]

A. Yu. Barnyakov, et al., PID system based on focusing aerogel RICH for the super C- τ factory, Nucl. Instr. and Meth. A 952 (2020) 162247. doi:10.1016/j.nima.2 019.05.088

work page doi:10.1016/j.nima.2 2020
[15]

A. Yu. Barnyakov, et al., R&D status of FARICH option for PID, International Journal of Modern Physics A 39 (26n27) (2024) 2442012.doi:10.1142/S0217751X24420120. 5

work page doi:10.1142/s0217751x24420120 2024
