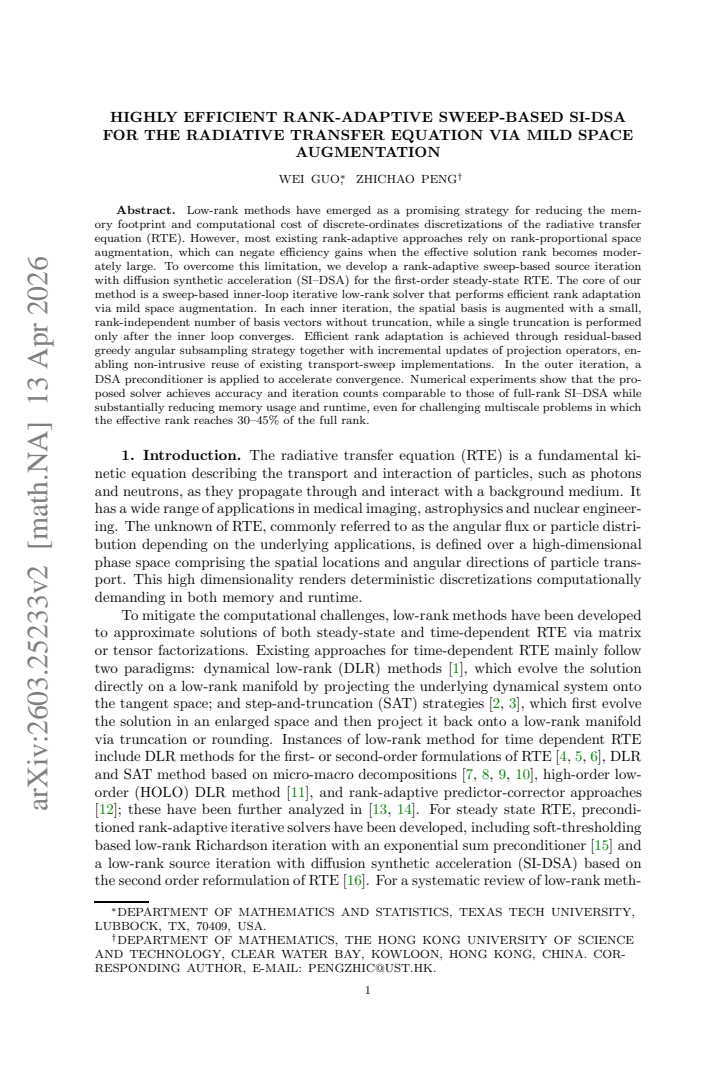

Highly Efficient Rank-Adaptive Sweep-based SI-DSA for the Radiative Transfer Equation via Mild Space Augmentation

Wei Guo , Zhichao Peng

Authors on Pith no claims yet

Pith reviewed 2026-05-15 00:40 UTC · model grok-4.3

classification 🧮 math.NA cs.NA

keywords radiative transfer equationlow-rank methodssource iterationdiffusion synthetic accelerationrank adaptationmild space augmentationdiscrete ordinates

0 comments

The pith

A mild-augmentation approach lets rank-adaptive SI-DSA match full-rank accuracy for the radiative transfer equation while cutting memory and time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a rank-adaptive version of the sweep-based source iteration with diffusion synthetic acceleration for solving the first-order steady-state radiative transfer equation. It replaces rank-proportional space augmentation with mild augmentation that adds only a small fixed number of basis vectors in each inner iteration. A single truncation happens after the inner loop converges, and rank adaptation uses residual-based greedy angular subsampling with incremental projection updates. This design allows non-intrusive use of existing sweep codes. Tests on multiscale problems show the method keeps accuracy and iteration counts close to the full-rank solver but uses much less memory and runs faster even when the effective rank is 30 to 45 percent of the full rank.

Core claim

The method is a sweep-based inner-loop iterative low-rank solver for SI-DSA that achieves efficient rank adaptation through mild space augmentation: the spatial basis is augmented with a small, rank-independent number of vectors without truncation until after convergence, paired with residual-based greedy angular subsampling.

What carries the argument

Mild space augmentation, which augments the spatial basis with a fixed small number of vectors per inner iteration independent of current rank.

If this is right

The solver achieves accuracy and iteration counts comparable to full-rank SI-DSA.
Memory usage and runtime are substantially reduced for multiscale problems.
Existing transport-sweep implementations can be reused without major modifications.
The DSA preconditioner accelerates the outer iteration convergence.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The mild augmentation strategy may extend to other low-rank transport problems where rank grows moderately.
It could reduce costs in three-dimensional or time-dependent radiative transfer simulations.
Verification on a wider range of scattering regimes would test the robustness of the greedy subsampling.

Load-bearing premise

Residual-based greedy angular subsampling together with mild augmentation will keep stability and the same convergence rate for every class of problem without any special tuning.

What would settle it

A test case where the new solver requires many more iterations or loses accuracy compared to full-rank SI-DSA on a multiscale problem with effective rank around 40 percent would show the method does not deliver the claimed efficiency.

Figures

Figures reproduced from arXiv: 2603.25233 by Wei Guo, Zhichao Peng.

**Figure 4.1.** Figure 4.1: Full-rank reference scalar flux for the homogeneous prob [PITH_FULL_IMAGE:figures/full_fig_p018_4_1.png] view at source ↗

**Figure 4.2.** Figure 4.2: Configuration of scattering cross section and scalar fluxe [PITH_FULL_IMAGE:figures/full_fig_p019_4_2.png] view at source ↗

**Figure 4.3.** Figure 4.3: Convergence history, effective rank and oversampling rat [PITH_FULL_IMAGE:figures/full_fig_p019_4_3.png] view at source ↗

**Figure 4.4.** Figure 4.4: Configuration of scattering cross section and scalar fluxe [PITH_FULL_IMAGE:figures/full_fig_p021_4_4.png] view at source ↗

**Figure 4.5.** Figure 4.5: Oversampling ratio during low-rank SI for the variable scatt [PITH_FULL_IMAGE:figures/full_fig_p022_4_5.png] view at source ↗

**Figure 4.6.** Figure 4.6: Configuration of scattering cross section and scalar fluxe [PITH_FULL_IMAGE:figures/full_fig_p023_4_6.png] view at source ↗

**Figure 4.7.** Figure 4.7: Convergence history, effective rank and oversampling rat [PITH_FULL_IMAGE:figures/full_fig_p023_4_7.png] view at source ↗

read the original abstract

Low-rank methods have emerged as a promising strategy for reducing the memory footprint and computational cost of discrete-ordinates discretizations of the radiative transfer equation (RTE). However, most existing rank-adaptive approaches rely on rank-proportional space augmentation, which can negate efficiency gains when the effective solution rank becomes moderately large. To overcome this limitation, we develop a rank-adaptive sweep-based source iteration with diffusion synthetic acceleration (SI-DSA) for the first-order steady-state RTE. The core of our method is a sweep-based inner-loop iterative low-rank solver that performs efficient rank adaptation via mild space augmentation. In each inner iteration, the spatial basis is augmented with a small, rank-independent number of basis vectors without truncation, while a single truncation is performed only after the inner loop converges. Efficient rank adaptation is achieved through residual-based greedy angular subsampling strategy together with incremental updates of projection operators, enabling non-intrusive reuse of existing transport-sweep implementations. In the outer iteration, a DSA preconditioner is applied to accelerate convergence. Numerical experiments show that the proposed solver achieves accuracy and iteration counts comparable to those of full-rank SI-DSA while substantially reducing memory usage and runtime, even for challenging multiscale problems in which the effective rank reaches 30-45% of the full rank.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The mild fixed-size augmentation per sweep is the practical novelty, and the numerics back the efficiency claim for the tested cases, though the truncation step lacks supporting analysis.

read the letter

The main point is that this paper replaces the usual rank-proportional basis growth in low-rank SI-DSA with a mild augmentation step that adds only a small fixed number of vectors each inner iteration and defers truncation until after convergence. That change, combined with residual-driven greedy angular subsampling and incremental projection updates, lets the method reuse standard sweep code while keeping the outer DSA intact. The reported experiments indicate that iteration counts and accuracy stay close to full-rank SI-DSA even when the effective rank reaches 30-45 percent of the full space, with clear drops in memory and runtime on the multiscale examples shown. The non-intrusive implementation detail is useful for anyone already running transport sweeps. The single post-convergence truncation is a straightforward way to control basis size without repeated orthogonalization costs. The soft spot is the absence of any perturbation or spectral analysis around the truncation. The central claim that the DSA contraction rate is preserved rests entirely on the numerical tables; there is no bound showing how the truncated angular projection affects the diffusion operator in regimes where scattering couples all directions. If the full manuscript only summarizes errors without raw residuals or additional stress cases, that leaves the robustness question open. This work is aimed at numerical analysts already working on low-rank discretizations of transport equations who need a concrete way to manage basis growth. A reader who knows SI-DSA and existing rank-adaptive schemes will see the algorithmic shift immediately and can judge the timings for themselves. I would send it to peer review because the algorithmic idea is distinct, the implementation appears practical, and the experiments give referees something concrete to examine even if more theory is eventually needed.

Referee Report

2 major / 1 minor

Summary. The paper proposes a rank-adaptive sweep-based source iteration with diffusion synthetic acceleration (SI-DSA) solver for the first-order steady-state radiative transfer equation. The method employs mild space augmentation (small fixed number of vectors added per inner sweep without truncation until inner convergence) combined with residual-based greedy angular subsampling and incremental projection updates to achieve low-rank efficiency while reusing existing transport sweeps. A DSA preconditioner is retained in the outer iteration. Numerical experiments are reported to show accuracy and outer iteration counts comparable to full-rank SI-DSA, with substantial reductions in memory and runtime, even when the effective rank reaches 30-45% of full rank in multiscale problems.

Significance. If the numerical performance holds under the stated conditions, the approach would offer a practical advance over existing rank-adaptive low-rank RTE solvers by decoupling augmentation cost from rank growth. This could enable efficient solution of large-scale multiscale transport problems without requiring problem-specific tuning of augmentation size, provided the observed stability generalizes.

major comments (2)

[Method description / Numerical experiments] The central claim that single post-inner-loop truncation after residual-greedy subsampling preserves the SI-DSA contraction rate and outer convergence factor at 30-45% effective rank lacks any supporting analysis. No spectral-radius bound, perturbation estimate for the truncated angular projection operators, or proof that the diffusion operator remains an effective preconditioner once angles are subsampled is provided (see the inner-loop description and outer DSA application in the abstract and method sections).
[Numerical experiments] Numerical results are presented only in summarized form without visible detailed error tables, per-rank convergence histories, or residual norms that would allow independent verification of the claim that iteration counts remain indistinguishable from full-rank SI-DSA across the multiscale test cases (abstract and results section).

minor comments (1)

[Abstract / Method] The abstract states that the method is 'non-intrusive' but does not explicitly list which existing sweep kernels are reused or how the incremental projection updates are implemented without modifying the core transport routine.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the careful review and constructive feedback on our manuscript. We address each major comment below and indicate the revisions we will make.

read point-by-point responses

Referee: [Method description / Numerical experiments] The central claim that single post-inner-loop truncation after residual-greedy subsampling preserves the SI-DSA contraction rate and outer convergence factor at 30-45% effective rank lacks any supporting analysis. No spectral-radius bound, perturbation estimate for the truncated angular projection operators, or proof that the diffusion operator remains an effective preconditioner once angles are subsampled is provided (see the inner-loop description and outer DSA application in the abstract and method sections).

Authors: We agree that the manuscript provides no spectral-radius bounds, perturbation estimates, or proofs regarding the effect of post-convergence truncation on the SI-DSA contraction rate or the effectiveness of the diffusion preconditioner under angular subsampling. The method is constructed around mild space augmentation (fixed small number of vectors added without truncation during the inner loop) and a single truncation only after inner convergence, together with residual-driven greedy subsampling and incremental projection updates, to limit the impact on the underlying iteration while reusing existing sweep implementations. Deriving rigorous bounds on the perturbed operators is a substantial theoretical task that lies outside the scope of the present work, which focuses on algorithmic design and empirical performance for large-scale multiscale problems. In the revised manuscript we will expand the method section with a clearer justification of these design choices and add an explicit remark noting the absence of theoretical guarantees as a limitation and topic for future analysis. revision: partial
Referee: [Numerical experiments] Numerical results are presented only in summarized form without visible detailed error tables, per-rank convergence histories, or residual norms that would allow independent verification of the claim that iteration counts remain indistinguishable from full-rank SI-DSA across the multiscale test cases (abstract and results section).

Authors: We accept this criticism. The current presentation summarizes key metrics to emphasize memory and runtime savings. In the revision we will augment the results section with detailed error tables (comparing full-rank and low-rank solutions), per-rank convergence histories, and residual-norm plots for all multiscale test cases. These additions will make the iteration-count and accuracy claims directly verifiable. revision: yes

standing simulated objections not resolved

Deriving a spectral-radius bound or perturbation analysis that rigorously proves preservation of the SI-DSA contraction rate under the proposed truncation and subsampling

Circularity Check

0 steps flagged

No circularity; algorithmic construction is self-contained with external numerical validation

full rationale

The paper defines a new rank-adaptive SI-DSA algorithm via explicit steps (mild augmentation with fixed small number of vectors, residual-greedy angular subsampling, post-convergence truncation, incremental projection updates, and outer DSA preconditioner). These are presented as independent design choices, not derived from or equivalent to the target performance metrics. Numerical experiments supply the accuracy/iteration claims; no equation reduces the claimed efficiency or convergence to a fitted input, self-definition, or self-citation chain. The method reuses existing transport sweeps non-intrusively, keeping the derivation independent of the reported outcomes.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method rests on standard discrete-ordinates discretization and source-iteration convergence assumptions for the RTE; no new physical entities or fitted constants are introduced in the abstract description.

axioms (1)

domain assumption Standard discrete-ordinates discretization and source-iteration framework for the steady-state RTE
The solver is built directly on existing first-order RTE discretization and SI-DSA acceleration.

pith-pipeline@v0.9.0 · 5531 in / 1199 out tokens · 26671 ms · 2026-05-15T00:40:06.996261+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

36 extracted references · 36 canonical work pages

[1]

O. Koch, C. Lubich, Dynamical low-rank approximation, S IAM Journal on Matrix Analysis and Applications 29 (2) (2007) 434–454

work page 2007
[2]

Dektor, A

A. Dektor, A. Rodgers, D. Venturi, Rank-adaptive tensor methods for high-dimensional non- linear PDEs, Journal of Scientiﬁc Computing 88 (2) (2021) 36

work page 2021
[3]

Guo, J.-M

W. Guo, J.-M. Qiu, A low rank tensor representation of lin ear transport and nonlinear Vlasov solutions and their associated ﬂow maps, Journal of Computa tional Physics 458 (2022) 111089

work page 2022
[4]

Z. Peng, R. G. McClarren, M. Frank, A low-rank method for t wo-dimensional time-dependent radiation transport calculations, Journal of Computation al Physics 421 (2020) 109735

work page 2020
[5]

Z. Peng, R. G. McClarren, A sweep-based low-rank method f or the discrete ordinate transport equation, Journal of Computational Physics 473 (2023) 1117 48

work page 2023
[6]

T. Haut, J. Loﬀeld, L. Einkemmer, P. Guthrey, S. Brunner, W. Schill, Eﬃcient SN-like and PN-like Dynamic Low Rank methods for Thermal Radiative Tran sfer, arXiv preprint arXiv:2601.18705 (2026)

work page arXiv 2026
[7]

Einkemmer, J

L. Einkemmer, J. Hu, Y. W ang, An asymptotic-preserving d ynamical low-rank method for the multi-scale multi-dimensional linear transport equation , Journal of Computational Physics 439 (2021) 110353

work page 2021
[8]

Einkemmer, J

L. Einkemmer, J. Hu, J. Kusch, Asymptotic-preserving an d energy stable dynamical low-rank approximation, SIAM Journal on Numerical Analysis 62 (1) (2 024) 73–92

work page
[9]

Frank, J

M. Frank, J. Kusch, C. Patwardhan, Asymptotic-preservi ng and energy stable dynamical low- rank approximation for thermal radiative transfer equatio ns, Multiscale Modeling & Sim- ulation 23 (1) (2025) 278–312

work page 2025
[10]

W. A. Sands, W. Guo, J.-M. Qiu, T. Xiong, High-order adap tive rank integrators for multi- scale linear kinetic transport equations in the hierarchic al Tucker format, arXiv preprint arXiv:2406.19479 (2024)

work page arXiv 2024
[11]

Z. Peng, R. G. McClarren, A high-order/low-order (HOLO ) algorithm for preserving conserva- tion in time-dependent low-rank transport calculations, J ournal of Computational Physics 447 (2021) 110672. 25

work page 2021
[12]

C. D. Hauck, S. Schnake, A predictor-corrector strateg y for adaptivity in dynamical low-rank approximations, SIAM Journal on Matrix Analysis and Applic ations 44 (3) (2023) 971– 1005

work page 2023
[13]

Z. Ding, L. Einkemmer, Q. Li, Dynamical low-rank integr ator for the linear Boltzmann equa- tion: error analysis in the diﬀusion limit, SIAM Journal on N umerical Analysis 59 (4) (2021) 2254–2285

work page 2021
[14]

P. Yin, E. Endeve, C. Hauck, S. Schnake, Towards dynamic al low-rank approximation for neutrino kinetic equations. Part I: Analysis of an idealize d relaxation model, Mathematics of Computation 94 (353) (2025) 1199–1233

work page 2025
[15]

Bachmayr, R

M. Bachmayr, R. Bardin, M. Schlottbom, Low-rank tensor product Richardson iteration for radiative transfer in plane-parallel geometry, arXiv prep rint arXiv:2403.14229 (2024)

work page arXiv 2024
[16]

W. Guo, Z. Peng, An Inexact Low-Rank Source Iteration fo r Steady-State Radiative Transfer Equation with Diﬀusion Synthetic Acceleration, arXiv prep rint arXiv:2509.00805 (2025)

work page arXiv 2025
[17]

Einkemmer, K

L. Einkemmer, K. Kormann, J. Kusch, R. G. McClarren, J.- M. Qiu, A review of low-rank methods for time-dependent kinetic simulations, Journal o f Computational Physics (2025) 114191

work page 2025
[18]

Bachmayr, Low-rank tensor methods for partial diﬀer ential equations, Acta Numerica 32 (2023) 1–121

M. Bachmayr, Low-rank tensor methods for partial diﬀer ential equations, Acta Numerica 32 (2023) 1–121

work page 2023
[19]

M. L. Adams, E. W. Larsen, Fast iterative methods for dis crete-ordinates particle transport calculations, Progress in Nuclear Energy 40 (2002) 3–159

work page 2002
[20]

Bachmayr, R

M. Bachmayr, R. Schneider, Iterative methods based on s oft thresholding of hierarchical tensors, Foundations of Computational Mathematics 17 (4) (2017) 103 7–1083

work page 2017
[21]

Ceruti, J

G. Ceruti, J. Kusch, C. Lubich, A rank-adaptive robust i ntegrator for dynamical low-rank approximation, BIT Numerical Mathematics 62 (4) (2022) 114 9–1174

work page 2022
[22]

E. W. Larsen, J. E. Morel, Advances in discrete-ordinat es methodology, Nuclear computational science: A century in review (2009) 1–84

work page 2009
[23]

G. C. Pomraning, The equations of radiation hydrodynam ics, Courier Corporation, 2005

work page 2005
[24]

M. L. Adams, Discontinuous ﬁnite element transport sol utions in thick diﬀusive problems, Nuclear science and engineering 137 (3) (2001) 298–333

work page 2001
[25]

Guermond, G

J.-L. Guermond, G. Kanschat, Asymptotic analysis of up wind discontinuous Galerkin approxi- mation of the radiative transport equation in the diﬀusive l imit, SIAM Journal on Numer- ical Analysis 48 (1) (2010) 53–78

work page 2010
[26]

Palii, M

O. Palii, M. Schlottbom, On a convergent DSA preconditi oned source iteration for a DGFEM method for radiative transfer, Computers & Mathematics wit h Applications 79 (12) (2020) 3366–3377

work page 2020
[27]

Peng, Reduced order model enhanced source iteration with synthetic acceleration for para- metric radiative transfer equation, Journal of Computatio nal Physics 517 (2024) 113303

Z. Peng, Reduced order model enhanced source iteration with synthetic acceleration for para- metric radiative transfer equation, Journal of Computatio nal Physics 517 (2024) 113303

work page 2024
[28]

Dektor, L

A. Dektor, L. Einkemmer, Interpolatory dynamical low- rank approximation for the 3+ 3d Boltzmann–BGK equation, Journal of Computational Physics (2025) 114515

work page 2025
[29]

D. C. Sorensen, M. Embree, A deim induced cur factorizat ion, SIAM Journal on Scientiﬁc Computing 38 (3) (2016) A1454–A1482

work page 2016
[30]

Appelo, Y

D. Appelo, Y. Cheng, lrAA: Low-Rank Anderson Accelerat ion, arXiv preprint arXiv:2503.03909 (2025)

work page arXiv 2025
[31]

J. W. Daniel, W. B. Gragg, L. Kaufman, G. W. Stewart, Reor thogonalization and stable algorithms for updating the Gram-Schmidt QR factorization , Mathematics of Computation 30 (136) (1976) 772–795

work page 1976
[32]

J. Hu, Y. W ang, An adaptive dynamical low rank method for the nonlinear Boltzmann equation, Journal of Scientiﬁc Computing 92 (2) (2022) 75

work page 2022
[33]

Brunner, L

S. Brunner, L. Einkemmer, T. Haut, Domain decompositio n dynamical low-rank for multi- dimensional radiative transfer equations, arXiv preprint arXiv:2602.14854 (2026)

work page arXiv 2026
[34]

Olivier, W

S. Olivier, W. Pazner, T. S. Haut, B. C. Yee, A family of in dependent Variable Eddington Factor methods with eﬃcient preconditioned iterative solv ers, Journal of Computational Physics 473 (2023) 111747

work page 2023
[35]

R. G. McClarren, T. S. Haut, Data-driven acceleration o f thermal radiation transfer calculations with the dynamic mode decomposition and a sequential singul ar value decomposition, Journal of Computational Physics 448 (2022) 110756

work page 2022
[36]

N. Tang, Z. Peng, Synthetic Acceleration Precondition ers for Parametric Radiative Trans- fer Equations based on Trajectory-Aware Reduced Order Mode ls, arXiv preprint arXiv:2509.05001 (2025). 26

work page arXiv 2025
