Broadband parametric amplification in AlGaAs-on-insulator nanowaveguides

Yanjing Zhao , Chanju Kim , Yi Zheng , Chaochao Ye , Yueguang Zhou , Kresten Yvind , Minhao Pu
Authors on Pith no claims yet

Pith reviewed 2026-05-14 22:13 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords parametric amplificationAlGaAs-on-insulatornanowaveguidesfour-wave mixingbroadband gainon-chip amplifieroptical nonlinearitydispersion engineering
0
0 comments X

The pith

AlGaAs-on-insulator nanowaveguides produce 56.2 dB net parametric gain with over 415 nm bandwidth using four-wave mixing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that AlGaAs-on-insulator nanowaveguides can deliver strong broadband optical parametric amplification when pumped at 1550 nm. High nonlinearity combined with low propagation loss yields an on-off gain of 58.4 dB and a net on-chip gain of 56.2 dB. Dispersion engineering extends the usable gain bandwidth beyond 415 nm, more than twice the width of earlier telecom-band on-chip results. This approach matters because it moves high-performance optical amplification onto compact integrated chips, reducing reliance on separate fiber amplifiers in communication systems.

Core claim

Using a pulsed pump at 1550 nm, the work shows broadband optical parametric amplification based on four-wave mixing in AlGaAs-on-insulator nanowaveguides. The strong nonlinearity supports an on-off gain as high as 58.4 dB while low propagation loss produces a net on-chip gain of 56.2 dB. With additional dispersion engineering the net gain bandwidth exceeds 415 nm, 2.3 times larger than previous reports for telecom-pumped integrated devices, establishing the largest parametric gain and bandwidth achieved in on-chip parametric amplifiers.

What carries the argument

Four-wave mixing phase-matched across a wide band in low-loss, high-nonlinearity AlGaAs-on-insulator nanowaveguides, with dispersion engineering controlling the gain spectrum.

If this is right

  • On-chip parametric amplifiers can now reach gain levels that compete with or exceed traditional fiber amplifiers while remaining fully integrated.
  • Wavelength-division-multiplexed signals can be amplified over wider bands directly on photonic chips without external components.
  • All-optical signal processing functions such as wavelength conversion become feasible with higher efficiency in compact integrated circuits.
  • Further dispersion optimization could push usable bandwidths beyond the 415 nm mark for ultra-broadband applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • These amplifiers could shrink the footprint and power budget of optical communication terminals by embedding gain directly in the chip.
  • The same platform might be adapted to other material systems or pump wavelengths to cover additional spectral regions.
  • Practical deployment would require verifying performance under continuous-wave pumping rather than pulsed operation.
  • Integration with existing silicon or indium-phosphide foundry processes could accelerate adoption in commercial photonic circuits.

Load-bearing premise

The measured gain comes entirely from four-wave mixing with no significant contribution from Raman scattering or thermal effects, and the dispersion profile is known accurately over the full bandwidth.

What would settle it

A measured gain spectrum that deviates from the calculated four-wave-mixing phase-matching curve or that persists when the waveguide dispersion is deliberately shifted away from the engineered profile would falsify the claim.

Figures

Figures reproduced from arXiv: 2603.27050 by Chanju Kim, Chaochao Ye, Kresten Yvind, Minhao Pu, Yanjing Zhao, Yi Zheng, Yueguang Zhou.

Figure 1
Figure 1. Figure 1: Nonlinear photonic chip for optical parametric amplification. (a) Schematic illustration of FWM-based parametric [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Spectra and net on-chip gain for optical parametric amplification. (a) Spectra with the signal on and off, and the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Performance characteristics of optical parametric amplification. (a) Output peak power of signal and idler pulses [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Optical parametric amplification for the waveguide with a [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Net on-chip gain bandwidth of integrated optical parametric amplifiers pumped in the telecom band. Red line: [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

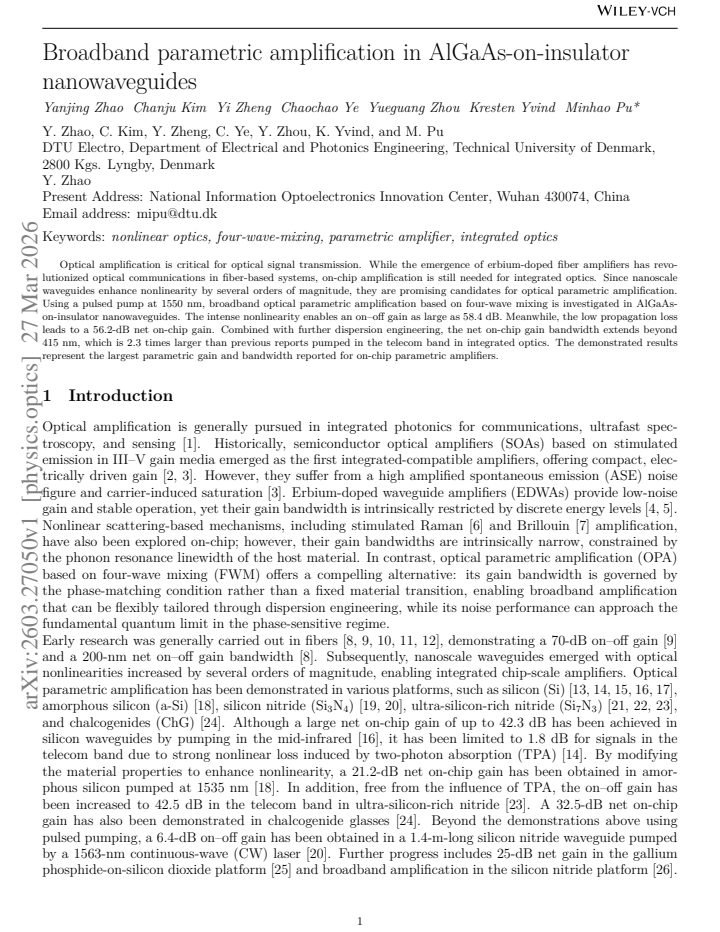

read the original abstract

Optical amplification is critical for optical signal transmission. While the emergence of erbium-doped fiber amplifiers has revolutionized optical communications in fiber-based systems, on-chip amplification remains essential for integrated optics. Nanoscale waveguides enhance nonlinearity by several orders of magnitude, making them promising candidates for optical parametric amplification. Using a pulsed pump at 1550 nm, broadband optical parametric amplification based on four-wave mixing is investigated in AlGaAs-on-insulator nanowaveguides. The strong nonlinearity enables an on-off gain as high as 58.4 dB. Meanwhile, the low propagation loss leads to a net on-chip gain of 56.2 dB. With further dispersion engineering, the net on-chip gain bandwidth extends beyond 415 nm, which is 2.3 times larger than previous reports pumped in the telecom band in integrated optics. These results represent the largest parametric gain and bandwidth reported for on-chip parametric amplifiers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports an experimental demonstration of broadband optical parametric amplification via four-wave mixing in AlGaAs-on-insulator nanowaveguides using a 1550 nm pulsed pump. It achieves a peak on-off gain of 58.4 dB and net on-chip gain of 56.2 dB, and projects that further dispersion engineering can extend the net gain bandwidth beyond 415 nm (2.3 times larger than prior telecom-pumped integrated reports), claiming these as the largest parametric gain and bandwidth values for on-chip amplifiers.

Significance. If the gain measurements are robust and the bandwidth projection is substantiated, the work would represent a substantial advance for integrated optics by delivering record-high on-chip parametric amplification with broad bandwidth in a compact platform, offering potential benefits for telecommunications, signal processing, and nonlinear photonic circuits beyond existing telecom-band devices.

major comments (2)
  1. [Abstract/Results] Abstract and Results section: The central projection that 'with further dispersion engineering, the net on-chip gain bandwidth extends beyond 415 nm' is load-bearing for the 'largest reported' and '2.3 times larger' claims, yet the manuscript provides no explicit dispersion curves, higher-order dispersion coefficients, or phase-matching simulations for the engineered structure that would achieve this bandwidth.
  2. [Methods/Results] Experimental methods and gain characterization: The reported 58.4 dB on-off and 56.2 dB net gains lack details on spectral measurement methodology, error bars, pump-power dependence, and controls to exclude contributions from Raman scattering, two-photon absorption, or thermal nonlinearity, which are required to confirm the amplification arises purely from phase-matched four-wave mixing across the full claimed bandwidth.
minor comments (2)
  1. [Abstract] Abstract: The comparison to 'previous reports pumped in the telecom band' would benefit from explicit citations to the specific prior works and their reported bandwidths to enable direct verification of the 2.3x factor.
  2. [Figures] Figure clarity: Ensure all gain spectra plots include the full wavelength range, pump wavelength marker, and any simulated curves used for the bandwidth projection.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the work's significance. We address each major comment below and will incorporate revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract/Results] Abstract and Results section: The central projection that 'with further dispersion engineering, the net on-chip gain bandwidth extends beyond 415 nm' is load-bearing for the 'largest reported' and '2.3 times larger' claims, yet the manuscript provides no explicit dispersion curves, higher-order dispersion coefficients, or phase-matching simulations for the engineered structure that would achieve this bandwidth.

    Authors: We agree that the bandwidth projection requires supporting simulation details to substantiate the claims. The projection is based on numerical modeling of the waveguide dispersion using the effective-index method, including higher-order terms up to β4, and phase-matching calculations for degenerate four-wave mixing. In the revised manuscript, we will add explicit dispersion curves (β2, β3, β4 vs. wavelength) for the fabricated and optimized geometries, along with simulated gain spectra confirming the >415 nm net-gain bandwidth under the projected dispersion engineering. revision: yes

  2. Referee: [Methods/Results] Experimental methods and gain characterization: The reported 58.4 dB on-off and 56.2 dB net gains lack details on spectral measurement methodology, error bars, pump-power dependence, and controls to exclude contributions from Raman scattering, two-photon absorption, or thermal nonlinearity, which are required to confirm the amplification arises purely from phase-matched four-wave mixing across the full claimed bandwidth.

    Authors: We acknowledge that the original manuscript omitted some characterization details. Gain spectra were acquired with an optical spectrum analyzer by comparing pump-on and pump-off traces; net gain subtracts the measured propagation loss (~0.5 dB/cm). Pump-power dependence exhibits the expected quadratic scaling for on-off gain, consistent with FWM. AlGaAs-on-insulator exhibits negligible two-photon absorption at 1550 nm, and off-phase-matching detuning measurements show no residual gain. In revision we will expand the Methods section with error bars from repeated measurements, explicit pump-power scaling plots, and dedicated controls (including Raman/TPA exclusion via power and wavelength dependence) to rigorously confirm the FWM origin. revision: yes

Circularity Check

0 steps flagged

No circularity: direct experimental measurements of gain and bandwidth

full rationale

The paper reports fabricated-device measurements of on-off gain (58.4 dB) and net on-chip gain (56.2 dB) under 1550 nm pulsed pumping, together with a forward-looking statement that further dispersion engineering could extend bandwidth beyond 415 nm. No equations, fitted parameters, or self-citations are shown that reduce the reported gain values or the bandwidth claim to the inputs by construction. The central results rest on external experimental data (fabrication, loss measurements, and gain spectra) rather than internal redefinitions or self-referential predictions. The projection is presented as a design outlook, not as a derived quantity forced by the present data set.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on experimental measurements of gain in fabricated nanowaveguides rather than theoretical derivation. No free parameters are fitted to produce the reported numbers. Relies on standard nonlinear optics assumptions for the mechanism.

axioms (1)
  • domain assumption Four-wave mixing is the dominant process responsible for the observed parametric amplification under the pulsed 1550 nm pump conditions.
    Invoked to attribute the measured gain and bandwidth to the intended nonlinear interaction.

pith-pipeline@v0.9.0 · 5474 in / 1387 out tokens · 35949 ms · 2026-05-14T22:13:43.850927+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

24 extracted references · 24 canonical work pages

  1. [1]

    M. Pu, L. Ottaviano, E. Semenova, K. Yvind, Optica 2016, 3, 8 823

    work page 2016

  2. [2]

    Stassen, C

    E. Stassen, C. Kim, D. Kong, H. Hu, M. Galili, L. K. Oxenløwe, K. Yvind, M. Pu, Apl Photonics 2019, 4, 10

    work page 2019

  3. [3]

    M. Pu, H. Hu, L. Ottaviano, E. Semenova, D. Vukovic, L. K. Oxenløwe, K. Yvind, Laser & Photonics Reviews 2018, 12, 12 1870054

    work page 2018

  4. [4]

    D. Kong, Y. Liu, Z. Ren, Y. Jung, C. Kim, Y. Chen, N. V. Wheeler, M. N. Petrovich, M. Pu, K. Yvind, et al., Nature Communications 2022, 13, 1 4139

    work page 2022

  5. [5]

    Moille, L

    G. Moille, L. Chang, W. Xie, A. Rao, X. Lu, M. Davanco, J. E. Bowers, K. Srinivasan, Laser & Photonics Reviews 2020, 14, 8 2000022

    work page 2020

  6. [6]

    B. Chen, Y. Zhou, Y. Liu, C. Ye, Q. Cao, P. Huang, C. Kim, Y. Zheng, L. K. Oxenløwe, K. Yvind, et al., Nature Photonics 2024, 18, 6 625

    work page 2024

  7. [7]

    Y. Zhao, C. Ye, Y. Liu, Y. Zhou, K. Yvind, M. Pu, Laser & Photonics Reviews 2025, 19, 7 2401223

    work page 2025

  8. [8]

    Kuyken, M

    B. Kuyken, M. Billet, F. Leo, K. Yvind, M. Pu, Optics letters 2020, 45, 3 603

    work page 2020

  9. [9]

    S. May, M. Clerici, M. Sorel, Scientific Reports 2021, 11, 1 1

    work page 2021

  10. [10]

    S. May, M. Kues, M. Clerici, M. Sorel, Optics letters 2019, 44, 6 1339

    work page 2019

  11. [11]

    Placke, J

    M. Placke, J. Schlegel, F. Mann, P. Della Casa, A. Thies, M. Weyers, G. Tränkle, S. Ramelow, Laser & Photonics Reviews 2024, 18, 9 2301293

    work page 2024

  12. [12]

    R. W. Boyd, Nonlinear optics, Academic press, 2020

    work page 2020

  13. [13]

    Ottaviano, M

    L. Ottaviano, M. Pu, E. Semenova, K. Yvind, Optics Letters 2016, 41, 17 3996

    work page 2016

  14. [14]

    C. Kim, C. Ye, Y. Zheng, E. Semenova, K. Yvind, M. Pu, IEEE Journal of Selected Topics in Quantum Electronics 2022, 29, 1: Nonlinear Integrated Photonics 1

    work page 2022

  15. [15]

    M. E. Marhic, P. A. Andrekson, P. Petropoulos, S. Radic, C. Peucheret, M. Jazayerifar, Laser & photonics reviews 2015, 9, 1 50

    work page 2015

  16. [16]

    Grillanda, F

    S. Grillanda, F. Morichetti, Nature communications 2015, 6, 1 1

    work page 2015

  17. [17]

    A. N. Kamel, M. Pu, K. Yvind, Optics Express 2023, 31, 12 20424

    work page 2023

  18. [18]

    B. Guha, F. Marsault, F. Cadiz, L. Morgenroth, V. Ulin, V. Berkovitz, A. Lemaître, C. Gomez, A. Amo, S. Combrié, et al., Optica 2017, 4, 2 218

    work page 2017

  19. [19]

    Inoue, Optics letters 1994, 19, 16 1189

    K. Inoue, Optics letters 1994, 19, 16 1189

    work page 1994

  20. [20]

    Y. Su, L. Wang, A. Agarwal, P. Kumar, Electronics Letters 2000, 36, 13 1103

    work page 2000

  21. [21]

    Provino, A

    L. Provino, A. Mussot, E. Lantz, T. Sylvestre, H. Maillotte, In Optical Fiber Communication Confer- ence and Exhibit . IEEE, 2002 125–126

    work page 2002

  22. [22]

    Marhic, N

    M. Marhic, N. Kagi, T.-K. Chiang, L. Kazovsky, Optics letters 1996, 21, 8 573

    work page 1996

  23. [23]

    C. Kim, X. Lu, D. Kong, N. Chen, Y. Chen, L. K. Oxenløwe, K. Yvind, X. Zhang, L. Yang, M. Pu, et al., Elight 2024, 4, 1 6

    work page 2024

  24. [24]

    C. Ye, P. Zhao, Y. Liu, X. Lu, C. Kim, K. Yvind, P. A. Andrekson, M. Pu, APL Photonics 2025, 10, 4. 10

    work page 2025
