Hot LO Phonon-Induced RF Nonlinearity in GaN High-Electron-Mobility Transistors

Ankan Ghosh Dastider; Matt Grupen; Nicholas C. Miller; Shaloo Rakheja

arxiv: 2603.27133 · v2 · submitted 2026-03-28 · ⚛️ physics.app-ph

Hot LO Phonon-Induced RF Nonlinearity in GaN High-Electron-Mobility Transistors

Ankan Ghosh Dastider , Matt Grupen , Nicholas C. Miller , Shaloo Rakheja This is my paper

Pith reviewed 2026-05-14 22:31 UTC · model grok-4.3

classification ⚛️ physics.app-ph

keywords GaN HEMThot LO phononsRF nonlinearity1-dB compression pointOIP3transconductance flatnessfull-band transport simulation

0 comments

The pith

Hot LO phonons in GaN HEMTs degrade RF linearity metrics by about 3 dB even at 30 fs lifetimes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses full-band transport simulations of a real fabricated GaN high-electron-mobility transistor to quantify how hot longitudinal optical phonons affect large-signal RF behavior. It finds that these phonons, despite decaying in only 30 fs, lower the output 1-dB compression point and the third-order output intercept power by roughly 3 dB relative to a no-heating reference. The work further shows that making the transconductance curve flatter does not automatically improve RF linearity, because several distinct nonlinear mechanisms interact inside the device. A reader would care because GaN HEMTs are central to high-power RF amplifiers in wireless infrastructure and defense systems, so any intrinsic performance ceiling set by phonons constrains what those systems can achieve.

Core claim

Using full-band transport simulations of a fabricated GaN HEMT, even ultrafast LO phonons with a lifetime of 30 fs degrade the output 1-dB compression point and the third-order output intercept power by ~3 dB compared to the case without LO phonon heating. Improvements in transconductance flatness do not necessarily translate into improved RF linearity because multiple nonlinear mechanisms contribute to the transistor response, and their combined effect cannot be captured by gm flatness alone.

What carries the argument

Full-band transport simulations that track the coupled dynamics of electrons and hot LO phonons inside a real GaN HEMT structure.

If this is right

RF linearity in GaN HEMTs is intrinsically limited by hot LO phonon heating even when phonon decay is ultrafast.
Transconductance flatness cannot serve as a reliable proxy for RF linearity when multiple nonlinear mechanisms are present.
Device-level phonon engineering or heat sinking may be required to reach the full RF performance potential of GaN HEMTs.
Large-signal RF simulations must include phonon heating to predict compression and intercept points accurately.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Design rules that optimize only for DC gm flatness will underperform at RF unless phonon heating is also addressed.
The same simulation framework could be used to test whether other wide-bandgap materials show comparable phonon-induced RF limits.
Experimental verification at millimeter-wave frequencies would reveal if the 3 dB penalty grows with frequency.

Load-bearing premise

The full-band transport simulations accurately capture the hot LO phonon effects and the combined action of multiple nonlinear mechanisms on RF response in the fabricated device.

What would settle it

Direct on-wafer measurements of output 1-dB compression point and OIP3 on the same fabricated GaN HEMT, performed while varying the effective LO phonon lifetime through temperature or optical pumping, would confirm or refute the reported 3 dB degradation.

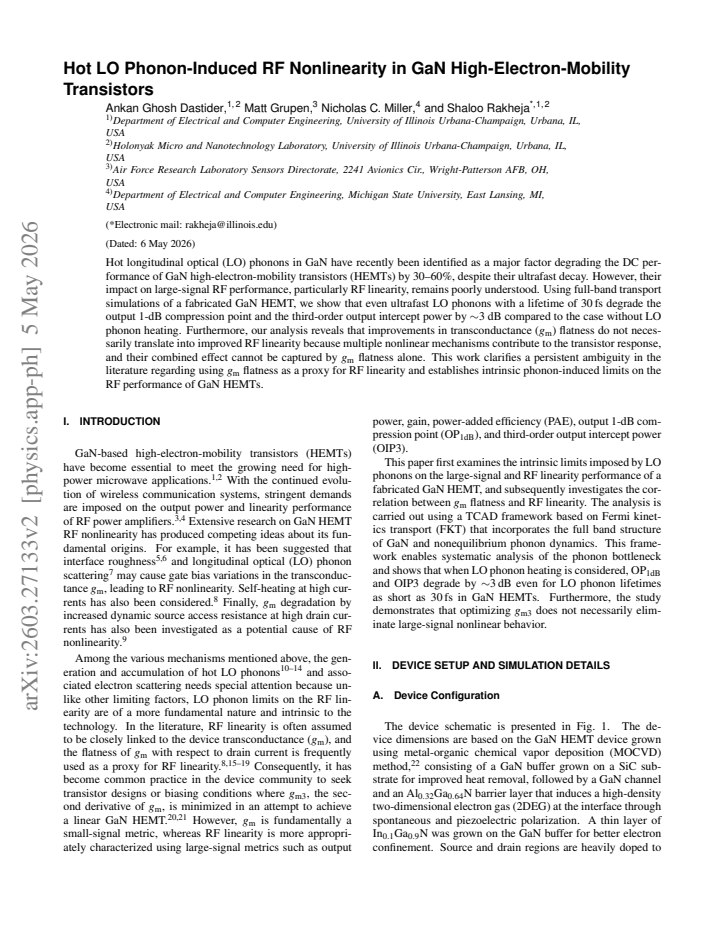

read the original abstract

Hot longitudinal optical (LO) phonons in GaN have recently been identified as a major factor degrading the DC performance of GaN high-electron-mobility transistors (HEMTs) by 30-60%, despite their ultrafast decay. However, their impact on large-signal RF performance, particularly RF linearity, remains poorly understood. Using full-band transport simulations of a fabricated GaN HEMT, we show that even ultrafast LO phonons with a lifetime of 30 fs degrade the output 1-dB compression point and the third-order output intercept power by ~3 dB compared to the case without LO phonon heating. Furthermore, our analysis reveals that improvements in transconductance ($g_\textrm{m}$) flatness do not necessarily translate into improved RF linearity because multiple nonlinear mechanisms contribute to the transistor response, and their combined effect cannot be captured by $g_\mathrm{m}$ flatness alone. This work clarifies a persistent ambiguity in the literature regarding using $g_\mathrm{m}$ flatness as a proxy for RF linearity and establishes intrinsic phonon-induced limits on the RF performance of GaN HEMTs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Simulations tie a 3 dB RF linearity hit in GaN HEMTs to hot LO phonons, but the number stays provisional without measured large-signal benchmarks.

read the letter

The main thing to know is that the simulations put a roughly 3 dB penalty on P1dB and OIP3 from LO phonon heating even at a 30 fs lifetime, and they show why gm flatness by itself is not a reliable stand-in for overall RF linearity. That second part is the clearer contribution. Most device work still leans on gm flatness as a quick check, so spelling out that multiple mechanisms add up and cannot be read off one curve is useful for people who design or model these transistors. The full-band transport run on an actual fabricated structure is a step beyond the usual DC-only phonon studies, and the direct comparison to a no-heating baseline keeps the argument focused. The 3 dB figure itself comes from that controlled difference, which is at least internally consistent. The soft spot is the lack of any reported large-signal RF measurements on the same epitaxial stack and layout. The claim is quantitative, yet it rests entirely on the transport model’s scattering rates and thermal boundary conditions. A modest shift in those inputs moves the degradation number by several dB, and without side-by-side data the result stays model-dependent. The phonon lifetime is also an explicit input, so readers will want to see how sensitive the outcome is to that choice. This paper is aimed at GaN RF device physicists and circuit designers who care about intrinsic limits on linearity. It is worth sending to referees because the question matters for high-power applications and the simulation framework is laid out clearly enough to be checked. A revision that adds measured compression and intercept data would make the 3 dB claim much stronger, but the work is already substantive enough to deserve that review.

Referee Report

2 major / 2 minor

Summary. The manuscript presents full-band transport simulations of a fabricated GaN HEMT showing that hot LO phonons (30 fs lifetime) degrade output 1-dB compression point and third-order output intercept power by ~3 dB relative to a no-phonon-heating baseline. It further argues that transconductance flatness alone does not determine RF linearity because multiple nonlinear mechanisms (phonon scattering, gate capacitance, velocity saturation) interact.

Significance. If the quantitative degradation holds under experimental validation, the result would clarify intrinsic phonon limits on GaN HEMT RF linearity and caution against using gm flatness as a proxy, addressing a noted ambiguity in the literature. The simulation-based comparison to a no-heating reference is a strength, but the absence of measured P1dB/OIP3 benchmarks on the same structure limits immediate impact.

major comments (2)

[Abstract and §3] Abstract and §3 (Simulation Results): The ~3 dB degradation claim rests on full-band simulations of a fabricated device, yet no direct comparison to measured large-signal data (P1dB, OIP3) for the same epitaxial structure and layout is reported. Without such validation, the quantitative difference remains an unverified model output whose magnitude could shift with modest changes in phonon scattering rates or thermal boundary conditions.
[§4] §4 (Nonlinearity Analysis): The assertion that gm flatness improvements do not translate to better RF linearity is load-bearing for the second claim, but the decomposition of contributions from phonon heating versus other mechanisms (e.g., velocity saturation) lacks an explicit sensitivity study or parameter sweep showing how the combined effect produces the reported 3 dB shift.

minor comments (2)

[Abstract] Abstract: Specify the exact device dimensions, bias conditions, and frequency range used for the RF simulations to allow reproducibility.
[Figures] Figure captions: Ensure all simulation parameters (LO phonon lifetime, thermal resistance values) are listed explicitly rather than referenced only in text.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major point below and indicate where revisions have been made.

read point-by-point responses

Referee: [Abstract and §3] Abstract and §3 (Simulation Results): The ~3 dB degradation claim rests on full-band simulations of a fabricated device, yet no direct comparison to measured large-signal data (P1dB, OIP3) for the same epitaxial structure and layout is reported. Without such validation, the quantitative difference remains an unverified model output whose magnitude could shift with modest changes in phonon scattering rates or thermal boundary conditions.

Authors: We agree that direct experimental large-signal measurements on the identical structure would provide the strongest confirmation. Our results are obtained from full-band Monte Carlo simulations calibrated to the fabricated device's measured DC and small-signal RF characteristics; the ~3 dB figure is the direct difference between the complete model (including hot-LO-phonon scattering) and an otherwise identical run with phonon heating disabled. This isolates the phonon contribution within a single, self-consistent framework. In the revised manuscript we have added a dedicated paragraph in §3 that (i) summarizes the model calibration against available DC and small-signal data, (ii) reports a brief sensitivity study varying the LO-phonon lifetime between 20–40 fs and the thermal boundary resistance by ±20 %, and (iii) explicitly states the absence of measured P1dB/OIP3 benchmarks as a limitation of the present study. revision: partial
Referee: [§4] §4 (Nonlinearity Analysis): The assertion that gm flatness improvements do not translate to better RF linearity is load-bearing for the second claim, but the decomposition of contributions from phonon heating versus other mechanisms (e.g., velocity saturation) lacks an explicit sensitivity study or parameter sweep showing how the combined effect produces the reported 3 dB shift.

Authors: We have performed the requested sensitivity analysis. In the revised §4 we now include two additional figures and accompanying text that (i) sweep the LO-phonon scattering rate while holding velocity-field characteristics fixed, (ii) sweep the saturation velocity while holding phonon scattering fixed, and (iii) show the combined effect. These sweeps demonstrate that the 3 dB degradation arises from the simultaneous action of phonon-induced current collapse and velocity saturation; gm flatness alone does not capture the net nonlinearity because the two mechanisms interact through the large-signal load line. The new material directly supports the claim that gm flatness is an incomplete proxy. revision: yes

standing simulated objections not resolved

Direct experimental P1dB and OIP3 data for the specific epitaxial structure and layout used in the simulations are not available.

Circularity Check

0 steps flagged

No significant circularity; simulation outputs are independent of fitted inputs or self-referential definitions

full rationale

The paper derives its central claim (~3 dB degradation in P1dB and OIP3) from full-band transport simulations that explicitly compare a heated-LO-phonon case against a no-heating baseline within the same device model. This difference is generated by the model's scattering-rate and population dynamics rather than by fitting parameters to the target RF metrics or by re-labeling an input as a prediction. No equations or sections reduce the reported nonlinearity to a self-definition, a fitted subset, or a load-bearing self-citation chain; the derivation remains self-contained against the transport framework and external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The claim depends on the accuracy of established full-band transport models and the input phonon lifetime; no new entities are introduced.

free parameters (1)

LO phonon lifetime = 30 fs
Input value of 30 fs used to model ultrafast decay in the simulation.

axioms (1)

domain assumption Full-band transport model correctly represents electron-LO phonon scattering and heating effects in GaN HEMTs
Invoked as the basis for the simulation results in the abstract.
