arxiv: 2603.28954 · v2 · submitted 2026-03-30 · 💻 cs.CC · cs.LO

Near-Optimal Encodings of Cardinality Constraints

Andrew Krapivin , Benjamin Przybocki , Bernardo Subercaseaux This is my paper

Pith reviewed 2026-05-14 00:30 UTC · model grok-4.3

classification 💻 cs.CC cs.LO
keywords cardinality constraintsCNF encodingAtMostOneAtMost_kmonotone circuitslower boundsgrid compressionSAT
0
0 comments X

The pith

A CNF encoding for AtMostOne uses 2n + 2√(2n) + O(n^{1/3}) clauses, refuting the conjectured optimality of Chen's product encoding.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces new CNF encodings for cardinality constraints that require fewer clauses than prior constructions. For the AtMostOne constraint it gives an explicit encoding with 2n + 2√(2n) + O(n^{1/3}) clauses and proves that every encoding needs at least 2n + √(n+1) - 2 clauses. The same construction produces a smaller monotone circuit for the threshold-2 function than the one known for fifty years. For the general AtMost_k constraint a new grid-compression method yields 2n + o(n) clauses whenever k = o(n^{1/3}) and 4n + o(n) clauses whenever k = o(n). These results improve the best-known upper and lower bounds for both the one-sided and the general case.

Core claim

The central discovery is an explicit CNF encoding of AtMostOne(x1,…,xn) that uses only 2n + 2√(2n) + O(∛n) clauses, together with a matching-style lower bound of 2n + √(n+1) − 2 clauses that any encoding must obey. The same technique yields a monotone circuit for the threshold-2 function smaller than Adleman's construction. For AtMost_k the authors introduce grid compression, a hash-table-inspired compression of the auxiliary variables, to obtain encodings of size 2n + o(n) for k = o(n^{1/3}) and 4n + o(n) for k = o(n).

What carries the argument

Grid compression, a technique that compresses the representation of admissible assignments in the encoding by grouping them into a coarser grid structure, thereby reducing the number of clauses needed to forbid forbidden combinations.

If this is right

  • Chen's product encoding is no longer optimal for AtMostOne.
  • The new monotone circuit for threshold-2 improves the best known size after fifty years.
  • Encodings of AtMost_k now scale linearly with n for k up to roughly the cube root of n.
  • Any encoding of AtMostOne must contain at least roughly √n auxiliary clauses.
  • The first unconditional nontrivial lower bound for this constraint is now known.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar compression ideas could be applied to Exactly-k or AtLeast-k constraints to obtain comparable savings.
  • The reduced clause counts may translate directly into faster SAT solving times for optimization problems that encode cardinality bounds.
  • The circuit improvement suggests that other threshold functions may admit smaller monotone circuits than previously known.
  • The grid-compression method might generalize to non-cardinality constraints that involve forbidding certain Hamming-weight patterns.

Load-bearing premise

The algebraic constructions and grid-compression steps produce correct, valid CNF formulas for every sufficiently large n without hidden polynomial factors that would erase the asymptotic savings.

What would settle it

An exhaustive enumeration for n around 100 that either shows the minimal clause count exceeds the stated upper bound or exhibits a concrete assignment that satisfies the proposed clauses yet violates the AtMostOne constraint.

Figures

Figures reproduced from arXiv: 2603.28954 by Andrew Krapivin, Benjamin Przybocki, Bernardo Subercaseaux.

Figure 1

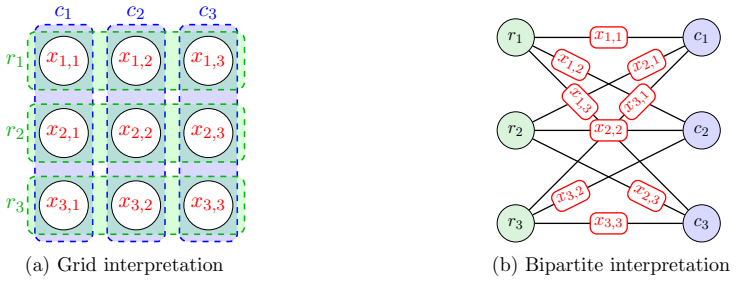

Figure 1. Figure 1: Illustration of our proposed change of perspective on Chen’s product encoding [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

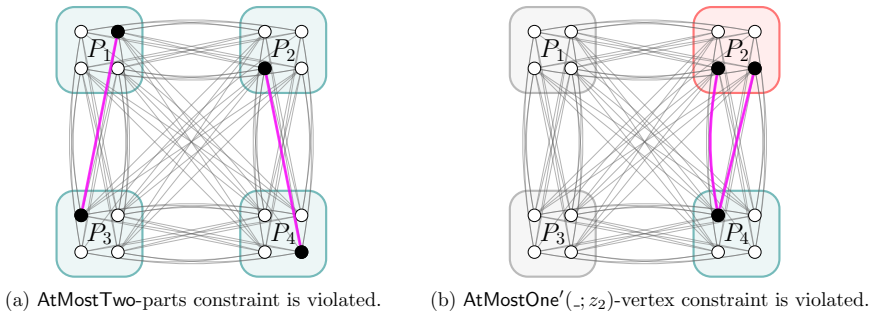

Figure 2. Figure 2: Illustration of the multipartite encoding. Parts violating the [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

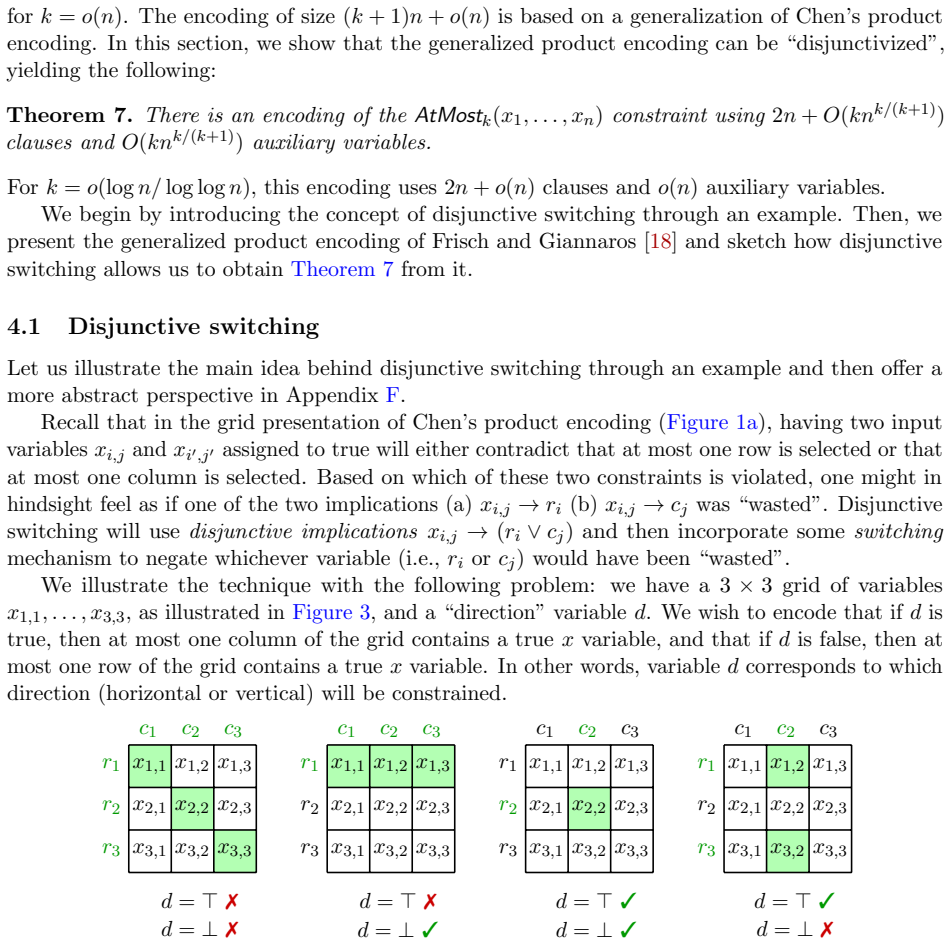

Figure 3. Figure 3: Example for the disjunctive switching technique. True input variables are highlighted in [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

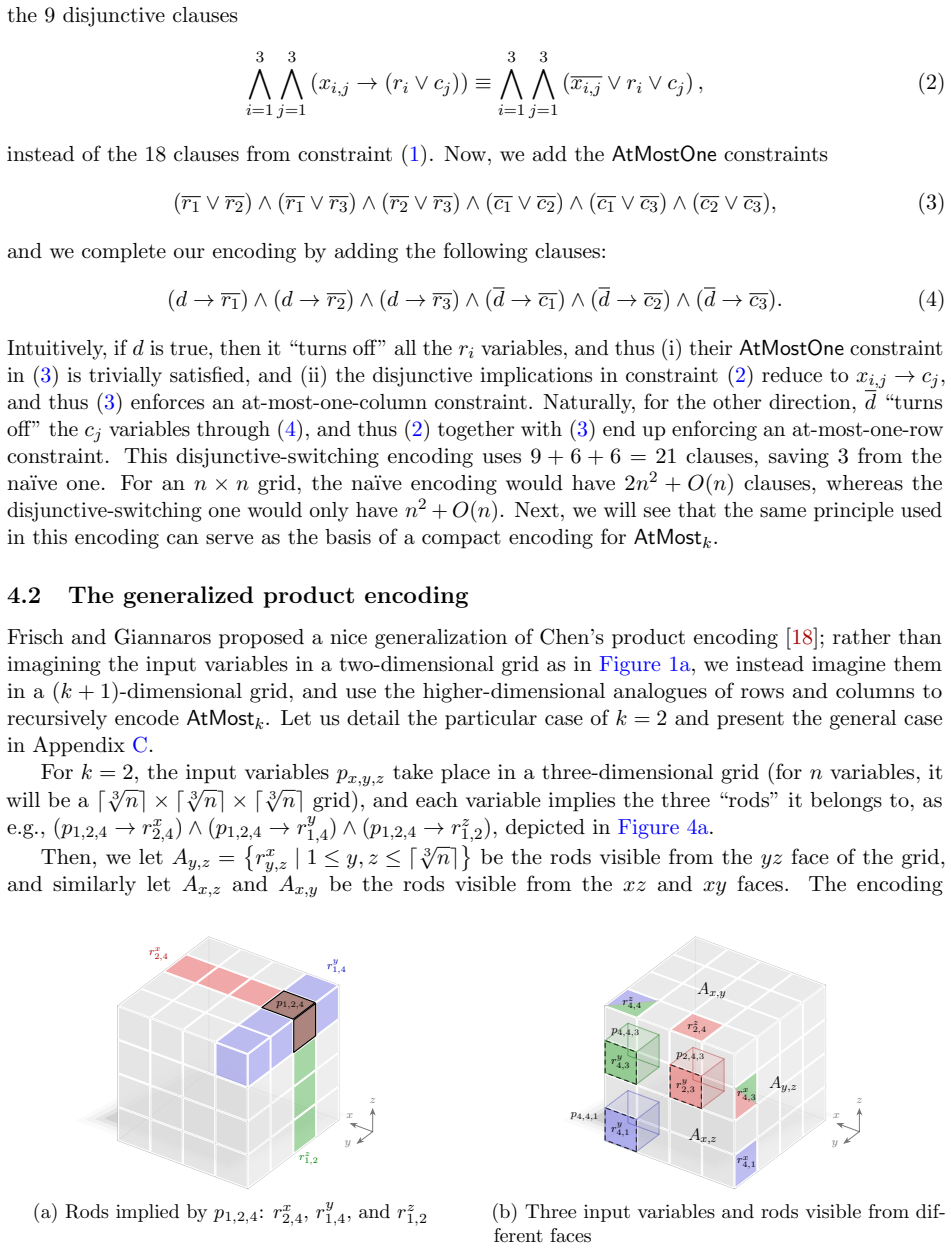

Figure 4. Figure 4: Example of the generalized product encoding for [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Illustration of the grid compression framework [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

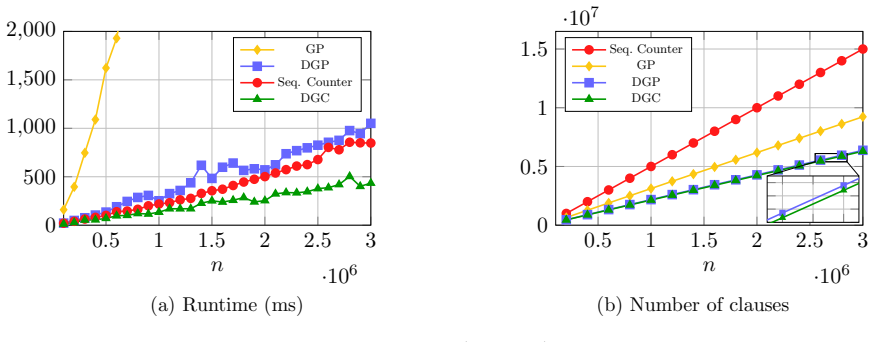

Figure 6. Figure 6: Comparison of encodings for AtMost2 (UNSAT). We abbreviate the generalized product encoding as GP and its disjunctive variant as DGP. smallest propagation-complete encoding of an antitone 2-CNF function is always 2-CNF. While an affirmative answer has some prima facie plausibility, our construction concretely demonstrates how wide clauses can be useful even for AtMostOne, the simplest antitone 2-CNF functi… view at source ↗
read the original abstract

We present several novel encodings for cardinality constraints, which use fewer clauses than previous encodings and, more importantly, introduce new generally applicable techniques for constructing compact encodings. First, we present a CNF encoding for the $\text{AtMostOne}(x_1,\dots,x_n)$ constraint using $2n + 2 \sqrt{2n} + O(\sqrt[3]{n})$ clauses, thus refuting the conjectured optimality of Chen's product encoding. Our construction also yields a smaller monotone circuit for the threshold-2 function, improving on a 50-year-old construction of Adleman and incidentally solving a long-standing open problem in circuit complexity. On the other hand, we show that any encoding for this constraint requires at least $2n + \sqrt{n+1} - 2$ clauses, which is the first nontrivial unconditional lower bound for this constraint and answers a question of Ku\v{c}era, Savick\'y, and Vorel. We then turn our attention to encodings of $\text{AtMost}_k(x_1,\dots,x_n)$, where we introduce "grid compression", a technique inspired by hash tables, to give encodings using $2n + o(n)$ clauses as long as $k = o(\sqrt[3]{n})$ and $4n + o(n)$ clauses as long as $k = o(n)$. Previously, the smallest known encodings were of size $(k+1)n + o(n)$ for $k \le 5$ and $7n - o(n)$ for $k \ge 6$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript presents novel CNF encodings for cardinality constraints. It gives an explicit construction for the AtMostOne(x1,…,xn) constraint using 2n + 2√(2n) + O(n^{1/3}) clauses, refuting the conjectured optimality of Chen's product encoding. It also provides a lower bound of 2n + √(n+1) - 2 clauses. For AtMost_k, it introduces grid compression to achieve 2n + o(n) clauses when k = o(n^{1/3}) and 4n + o(n) when k = o(n). The work additionally improves the monotone circuit size for the threshold-2 function, improving on Adleman's 50-year-old construction.

Significance. If the constructions hold, this is a significant contribution: it supplies the first nontrivial unconditional lower bound for AtMostOne encodings (answering Kučera et al.), refutes a long-standing conjecture on optimal clause counts, and solves an open problem in monotone circuit complexity. The grid compression technique is presented as a general, hash-table-inspired method that yields asymptotically improved encodings for a range of k, with potential impact on both theory and practical SAT encodings.

minor comments (3)
  1. [Abstract] Abstract: standardize the big-O notation from O(∛n) to O(n^{1/3}) for consistency with standard mathematical writing.
  2. [Lower bound section] The lower-bound argument (information-theoretic or counting) would benefit from an explicit statement of the counting measure used to obtain the √(n+1) term.
  3. [Construction section] Include a small concrete example (e.g., n=9 or n=16) illustrating how grid compression produces the auxiliary variables and clauses for AtMostOne.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of our manuscript and for recommending minor revision. The report does not list any specific major comments requiring point-by-point response. We appreciate the recognition of the significance of our results, including the new AtMostOne encoding, the matching lower bound, the grid compression technique, and the improvement to monotone circuit complexity for threshold-2. We will make any minor adjustments as needed in the revised version.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper's central results consist of explicit constructive CNF encodings for AtMostOne and AtMost_k constraints, together with an information-theoretic lower bound. The upper-bound construction relies on grid compression and auxiliary variables to achieve the stated clause counts; the lower bound follows from a direct counting argument on the number of clauses needed to forbid certain assignments. Neither step reduces to a fitted parameter, self-definition, or load-bearing self-citation; both are presented as self-contained combinatorial arguments independent of prior fitted values or author-specific uniqueness theorems.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard mathematical axioms for counting and asymptotic analysis; no free parameters are fitted to data and no new entities are postulated.

axioms (1)
  • standard math Standard properties of asymptotic notation, square roots, and clause counting in CNF formulas.
    Invoked when deriving the O(n^{1/3}) term and the √n lower bound.
