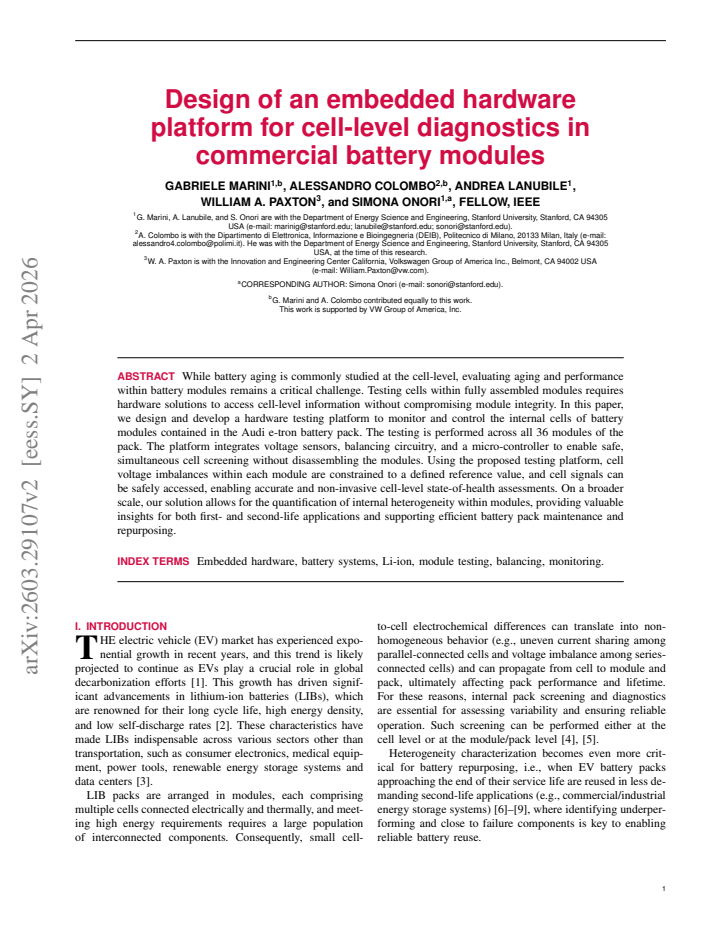

Design of an embedded hardware platform for cell-level diagnostics in commercial battery modules

Gabriele Marini , Alessandro Colombo , Andrea Lanubile , William A. Paxton , Simona Onori This is my paper

Pith reviewed 2026-05-14 00:24 UTC · model grok-4.3

classification 📡 eess.SY cs.SYeess.SP
keywords battery modulescell diagnosticshardware platformstate-of-healthvoltage balancingelectric vehicle batteriesnon-invasive testing
0
0 comments X

The pith

A hardware platform enables safe cell-level diagnostics inside assembled commercial battery modules without disassembly.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Battery aging studies typically focus on individual cells, yet evaluating performance inside fully assembled modules remains difficult because cell signals are hard to reach. This paper designs an embedded testing platform that adds voltage sensors, balancing circuitry, and a microcontroller to commercial modules from the Audi e-tron pack. The system runs across all 36 modules and keeps cell voltage imbalances within a set reference while permitting simultaneous, non-invasive access to cell signals. The result is accurate cell state-of-health assessment plus measurement of internal module heterogeneity that supports maintenance and repurposing decisions.

Core claim

The platform integrates voltage sensors, balancing circuitry, and a microcontroller to monitor and control cells in fully assembled modules. Testing across all 36 modules shows that cell voltage imbalances are constrained to a defined reference value, allowing safe access to cell signals for state-of-health assessments and quantification of internal module heterogeneity.

What carries the argument

Embedded hardware platform integrating voltage sensors, balancing circuitry, and a microcontroller for simultaneous cell screening without module disassembly.

If this is right

  • Cell signals become accessible for accurate non-invasive state-of-health assessments.
  • Internal heterogeneity inside each module can be quantified.
  • Data supports decisions for first-life and second-life battery applications.
  • Battery pack maintenance and repurposing become more efficient.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same integration approach could apply to battery packs from other manufacturers.
  • Further development might allow continuous diagnostics while the vehicle is in operation.
  • Data from many modules could improve long-term aging predictions used in fleet management.

Load-bearing premise

The hardware can be integrated into commercial modules to enable safe, simultaneous cell screening without disassembling the modules or compromising module integrity.

What would settle it

A demonstration that the platform cannot be installed without disassembly or that it damages module integrity would disprove the central claim.

Figures

Figures reproduced from arXiv: 2603.29107 by Alessandro Colombo, Andrea Lanubile, Gabriele Marini, Simona Onori, William A. Paxton.

Figure 1
Figure 1. Figure 1: FIGURE 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIGURE 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIGURE 3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIGURE 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: shows the C/3 discharge capacities (top) and C/3 dis￾charge energies (bottom) for all Cells in the pack, computed using (3), (5) and Algorithm 1. Each module test character￾izes a set of three Cells. On the left-hand side, capacities and energies are plotted according to the Cell position within the pack (following the module ordering) highlighting intrinsic variations. The capacity and energy trends are c… view at source ↗
Figure 6
Figure 6. Figure 6: FIGURE 6 [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIGURE 7 [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIGURE 8 [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

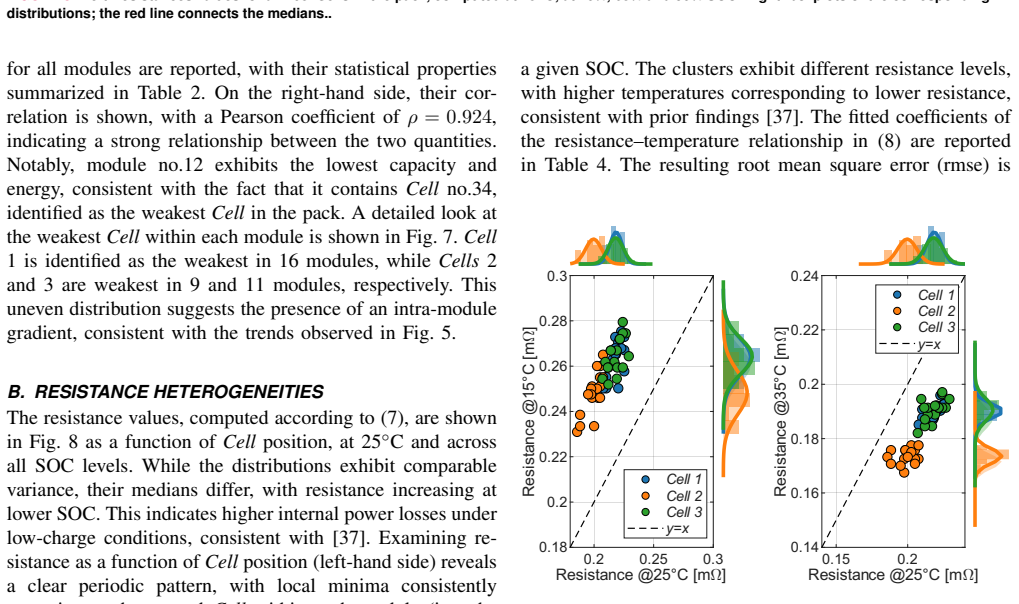

Figure 9
Figure 9. Figure 9: FIGURE 9 [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIGURE 10 [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIGURE 11 [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: shows that the linear correction model (best linear fitting using ordinary least square) yields model residuals smaller than 1 mV across the whole voltage operating range. The model fittings for the three ADC channels are reported in [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIGURE 13 [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: FIGURE 14 [PITH_FULL_IMAGE:figures/full_fig_p013_14.png] view at source ↗
read the original abstract

While battery aging is commonly studied at the cell-level, evaluating aging and performance within battery modules remains a critical challenge. Testing cells within fully assembled modules requires hardware solutions to access cell-level information without compromising module integrity. In this paper, we design and develop a hardware testing platform to monitor and control the internal cells of battery modules contained in the Audi e-tron battery pack. The testing is performed across all 36 modules of the pack. The platform integrates voltage sensors, balancing circuitry, and a micro-controller to enable safe, simultaneous cell screening without disassembling the modules. Using the proposed testing platform, cell voltage imbalances within each module are constrained to a defined reference value, and cell signals can be safely accessed, enabling accurate and non-invasive cell-level state-of-health assessments. On a broader scale, our solution allows for the quantification of internal heterogeneity within modules, providing valuable insights for both first- and second-life applications and supporting efficient battery pack maintenance and repurposing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript describes the design of an embedded hardware platform for cell-level diagnostics in commercial battery modules from the Audi e-tron pack. It integrates voltage sensors, balancing circuitry, and a microcontroller to enable non-invasive monitoring and balancing across all 36 modules without disassembly, claiming that cell voltage imbalances are constrained to a defined reference value and that cell signals can be safely accessed for accurate state-of-health assessments.

Significance. If the performance claims are substantiated with quantitative data, the platform could provide a practical method for assessing module-level heterogeneity, supporting battery repurposing and maintenance in first- and second-life applications.

major comments (3)
  1. [Results] Results section: the central claim that imbalances are constrained to a defined reference value is unsupported by any measured post-balancing voltage spreads (e.g., max/min deviation in mV), statistics across the 36 modules, or explicit reference value; without these metrics the accuracy and constraint assertions cannot be evaluated.
  2. [Experimental validation] Safety verification: the assertion of safe, non-invasive access without compromising module integrity lacks supporting data such as isolation resistance measurements, thermal profiles during balancing, or fault-injection test outcomes.
  3. [Discussion] SoH assessment: the claim of enabling accurate cell-level state-of-health evaluations is not accompanied by any error metrics, comparison to reference methods, or validation against known cell conditions.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'defined reference value' is used without stating its numerical value or derivation method.
  2. [Figures] Figure captions: hardware schematic diagrams would benefit from explicit component labels and pinouts for reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight areas where the manuscript can be strengthened with additional quantitative evidence. We address each major point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Results] Results section: the central claim that imbalances are constrained to a defined reference value is unsupported by any measured post-balancing voltage spreads (e.g., max/min deviation in mV), statistics across the 36 modules, or explicit reference value; without these metrics the accuracy and constraint assertions cannot be evaluated.

    Authors: We agree that the Results section requires quantitative support for the balancing claim. The platform's balancing circuitry is designed to constrain cell voltages to a hardware-defined reference (set via the balancing resistors and control logic). To address this, we will add measured pre- and post-balancing voltage data from all 36 modules, including max/min deviations in mV, mean spreads, and statistics. This will be incorporated into a revised Results section with new figures or tables. revision: yes

  2. Referee: [Experimental validation] Safety verification: the assertion of safe, non-invasive access without compromising module integrity lacks supporting data such as isolation resistance measurements, thermal profiles during balancing, or fault-injection test outcomes.

    Authors: The design incorporates galvanic isolation and automotive-grade components to ensure non-invasive access. However, we acknowledge the lack of explicit verification data. We will add isolation resistance measurements (>1 MΩ) and thermal profiles from balancing tests to the Experimental validation section. Full fault-injection testing was outside the current scope but will be noted as a limitation with discussion of planned follow-up. revision: partial

  3. Referee: [Discussion] SoH assessment: the claim of enabling accurate cell-level state-of-health evaluations is not accompanied by any error metrics, comparison to reference methods, or validation against known cell conditions.

    Authors: The manuscript focuses on the hardware platform for cell access rather than full SoH algorithm validation. We will revise the Discussion to clarify that voltage access enables SoH assessment and include sensor accuracy specs (e.g., <5 mV error) as a basis for potential accuracy. Direct comparisons to reference methods and validation against known conditions will be noted as future work, with the current contribution limited to non-invasive signal access. revision: partial

Circularity Check

0 steps flagged

No circularity: hardware design paper with no derivations or fitted parameters

full rationale

The paper is a pure hardware design and implementation description for a battery module testing platform. It contains no mathematical equations, no parameter fitting, no predictions derived from models, and no derivation chain that could reduce to its inputs. Central claims rest on the physical integration of voltage sensors, balancing circuitry, and a microcontroller, with testing performed across 36 modules. No self-citations are invoked to justify any uniqueness theorem or ansatz. The work is self-contained against external benchmarks as an engineering artifact, with any performance claims (e.g., imbalance constraint) depending on unshown experimental data rather than circular logic. This matches the default expectation for non-circular papers.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical models, free parameters, or invented physical entities are introduced; the work is a practical hardware integration relying on standard engineering components.
