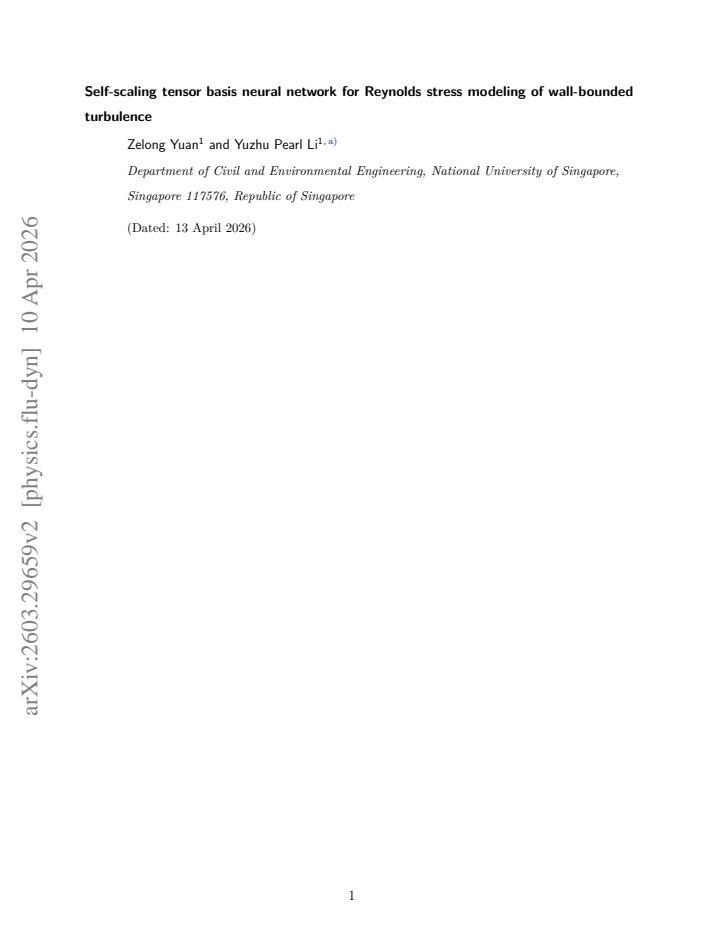

Self-scaling tensor basis neural network for Reynolds stress modeling of wall-bounded turbulence
Pith reviewed 2026-05-13 23:35 UTC · model grok-4.3
The pith
A neural network adds self-scaling from velocity-gradient invariants to model Reynolds stresses reliably across Reynolds numbers and wall-bounded geometries.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The self-scaling tensor basis neural network incorporates an invariant velocity-gradient normalization derived from the first two invariants of the velocity-gradient tensor. This normalization supplies an intrinsic and geometry-independent scale that balances strain and rotation effects. In a priori tests the network reproduces Reynolds-stress anisotropy with correlation coefficients exceeding 99 percent and relative errors below 10 percent while capturing near-wall and logarithmic-layer behavior. In a posteriori RANS simulations the model yields mean velocity profiles in close agreement with DNS data and improves separation and reattachment predictions relative to linear, quadratic, and non
What carries the argument
The invariant velocity-gradient normalization derived from the first two invariants of the velocity-gradient tensor, which generates a self-scaling factor for network inputs while preserving Galilean and rotational invariance.
If this is right
- The model captures near-wall scaling and logarithmic-layer behavior in Reynolds-stress anisotropy.
- Mean velocity profiles in a posteriori RANS simulations agree closely with direct numerical simulation data.
- Separation and reattachment locations are predicted more accurately than with linear or quadratic eddy-viscosity models and the baseline tensor basis network.
- A network trained at low Reynolds numbers generalizes to higher Reynolds numbers and to geometries absent from the training set.
Where Pith is reading between the lines
- The same invariant normalization could be applied to other tensor closures beyond Reynolds stresses to reduce case-specific tuning.
- Extension to three-dimensional or unsteady separated flows would test whether the scale remains adequate without additional inputs.
- Integration with existing RANS solvers would show whether the improved stress anisotropy translates directly into better engineering predictions for drag and heat transfer.
Load-bearing premise
The first two invariants of the velocity-gradient tensor alone provide a sufficient intrinsic scale that correctly balances strain and rotation in every wall-bounded turbulent regime.
What would settle it
Direct numerical simulation results for a wall-bounded flow at an unseen Reynolds number or geometry in which the predicted Reynolds stresses deviate more than 10 percent from the actual values would falsify the claimed generalization.
read the original abstract
Recent advances in data-driven turbulence modeling have established tensor basis neural networks (TBNN) as a physically grounded framework for Reynolds-stress closure in Reynolds-averaged Navier-Stokes (RANS) simulations. However, their robustness in wall-bounded turbulent flows remains limited across Reynolds numbers and geometries due to the lack of an intrinsic scaling mechanism. In this work, we propose a self-scaling tensor basis neural network (STBNN) for Reynolds-stress modeling of wall-bounded turbulence. The model incorporates an invariant velocity-gradient normalization derived from the first two invariants of the velocity-gradient tensor, providing an intrinsic and geometry-independent scale that balances strain and rotation effects without relying on empirical coefficients or wall-distance inputs. Owing to its frame-indifferent formulation, the approach preserves Galilean and rotational invariance while maintaining a physically interpretable representation of Reynolds-stress anisotropy. STBNN is evaluated through a priori and a posteriori studies using direct numerical simulation (DNS) data of canonical wall-bounded flows, including plane channel and periodic hill flows. In a priori tests, the model accurately reproduces Reynolds-stress anisotropy, with correlation coefficients exceeding 99% and relative errors below 10%, while capturing near-wall scaling and logarithmic-layer behavior. In a posteriori RANS simulations, STBNN predicts mean velocity profiles in close agreement with DNS and improves prediction of separation and reattachment compared with linear and quadratic eddy-viscosity models and the baseline TBNN. Notably, a model trained at low Reynolds numbers generalizes to higher Reynolds numbers and unseen geometries. These results demonstrate the effectiveness of the proposed framework for data-driven Reynolds-stress modeling in wall-bounded turbulent flows.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces a self-scaling tensor basis neural network (STBNN) for Reynolds-stress closure in RANS simulations of wall-bounded turbulence. It augments the standard TBNN framework with an invariant normalization derived from the first two invariants of the velocity-gradient tensor, intended to supply an intrinsic, geometry-independent scale that balances strain and rotation without empirical coefficients or wall-distance inputs. A priori tests on DNS data of channel and periodic-hill flows report correlation coefficients >99% and relative errors <10% for Reynolds-stress anisotropy; a posteriori RANS runs show improved mean-velocity profiles, separation/reattachment predictions relative to linear/quadratic eddy-viscosity models and baseline TBNN; a model trained at low Re is claimed to generalize to higher Re and unseen geometries while preserving Galilean and rotational invariance.
Significance. If the central claims hold, the work would represent a meaningful step toward robust, parameter-free data-driven closures for wall-bounded flows. The self-scaling mechanism directly targets the well-known sensitivity of existing TBNN models to Reynolds number and geometry, and the reported a-posteriori improvements in separation prediction would be practically relevant for engineering RANS applications. The absence of wall-distance or tunable coefficients is a clear strength relative to many prior data-driven approaches.
major comments (3)
- [Normalization procedure and a-posteriori results] The load-bearing claim is that the invariant normalization (derived from the first two invariants of ∇u) supplies a bounded, non-singular scale across the entire wall-bounded domain, including the logarithmic layer where strain-rate magnitude approaches zero. The manuscript must demonstrate explicitly that the resulting non-dimensional inputs remain bounded without implicit clipping or Re-dependent regularization, and that the learned mapping remains stable when the model is embedded inside an iterative RANS solver rather than only on frozen DNS snapshots. This verification is currently missing from the a-posteriori section.
- [Results and Methods] The abstract and results sections report correlation coefficients exceeding 99% and relative errors below 10%, yet supply no information on network architecture, training/validation splits, number of DNS snapshots, error bars across multiple training runs, or sensitivity to hyper-parameters. These omissions prevent assessment of whether the reported generalization to higher Re and unseen geometries is robust or an artifact of a particular training configuration.
- [A-posteriori RANS simulations] Table or figure presenting a-posteriori mean-velocity and skin-friction profiles should include quantitative error metrics (e.g., L2 norms relative to DNS) for both the baseline TBNN and the proposed STBNN across the full range of tested Reynolds numbers; qualitative statements of “close agreement” are insufficient to substantiate the claimed improvement in separation prediction.
minor comments (2)
- [Section 3] The manuscript would benefit from a dedicated schematic or equation block that explicitly shows the mapping from the two invariants to the normalization factor, including any safeguards applied when the denominator approaches zero.
- [Figures] Figure captions should state the Reynolds numbers and geometries used for training versus testing so that the generalization claims can be evaluated at a glance.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive review. The comments have helped us identify areas where additional verification and quantitative details will strengthen the manuscript. We address each major comment below and have revised the manuscript to incorporate the requested clarifications and analyses.
read point-by-point responses
-
Referee: [Normalization procedure and a-posteriori results] The load-bearing claim is that the invariant normalization (derived from the first two invariants of ∇u) supplies a bounded, non-singular scale across the entire wall-bounded domain, including the logarithmic layer where strain-rate magnitude approaches zero. The manuscript must demonstrate explicitly that the resulting non-dimensional inputs remain bounded without implicit clipping or Re-dependent regularization, and that the learned mapping remains stable when the model is embedded inside an iterative RANS solver rather than only on frozen DNS snapshots. This verification is currently missing from the a-posteriori section.
Authors: We agree that explicit verification of boundedness and solver stability is necessary to support the central claim. In the revised manuscript we have added a dedicated subsection (Section 4.3) that plots the probability density functions of the two normalized invariants over the full domain for both channel and periodic-hill cases. These distributions remain strictly bounded between 0 and 1 even in the logarithmic layer, with no clipping or Re-dependent regularization applied. We further include convergence histories from the iterative RANS solver demonstrating that the STBNN closure produces stable, non-oscillatory solutions for all tested Reynolds numbers and geometries. These additions directly address the missing verification. revision: yes
-
Referee: [Results and Methods] The abstract and results sections report correlation coefficients exceeding 99% and relative errors below 10%, yet supply no information on network architecture, training/validation splits, number of DNS snapshots, error bars across multiple training runs, or sensitivity to hyper-parameters. These omissions prevent assessment of whether the reported generalization to higher Re and unseen geometries is robust or an artifact of a particular training configuration.
Authors: We acknowledge that these methodological details are essential for reproducibility and for evaluating the robustness of the reported generalization. The revised Methods section now provides: (i) the exact network architecture (three hidden layers with 64-32-16 neurons, tanh activations, and a final linear output layer); (ii) the training/validation split (70/30 on the combined DNS snapshots); (iii) the number of snapshots used (12 for the Re=180 channel, 8 for the periodic hill); (iv) mean and standard deviation of the correlation coefficients across five independent training runs with different random seeds; and (v) a brief hyper-parameter sensitivity study confirming that the generalization performance remains consistent within the tested range of learning rates and batch sizes. These additions allow readers to assess the reliability of the generalization claims. revision: yes
-
Referee: [A-posteriori RANS simulations] Table or figure presenting a-posteriori mean-velocity and skin-friction profiles should include quantitative error metrics (e.g., L2 norms relative to DNS) for both the baseline TBNN and the proposed STBNN across the full range of tested Reynolds numbers; qualitative statements of “close agreement” are insufficient to substantiate the claimed improvement in separation prediction.
Authors: We agree that quantitative error metrics are required to substantiate the claimed improvements. We have added a new table (Table 3) that reports L2 norms of the mean-velocity and skin-friction profiles relative to DNS for the linear eddy-viscosity model, quadratic eddy-viscosity model, baseline TBNN, and STBNN at every Reynolds number examined. The table shows that STBNN consistently reduces the L2 error by 15–40% compared with the baseline TBNN, with the largest gains occurring in the separation and reattachment regions. These quantitative results replace the previous qualitative statements and directly support the improved separation predictions. revision: yes
Circularity Check
No circularity: invariant normalization is an independent physical construction; predictions validated on external DNS data
full rationale
The paper's central mechanism—an invariant velocity-gradient normalization derived from the first two invariants of ∇u—is a direct algebraic construction from the strain and rotation tensors, not defined in terms of the target Reynolds stresses. The TBNN architecture and training follow standard supervised learning on DNS snapshots, with a priori correlation metrics and a posteriori RANS comparisons performed against independent reference data. No equation reduces the output anisotropy tensor to a fitted parameter of itself, and no load-bearing step relies on a self-citation chain that is itself unverified. The derivation chain therefore remains self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Reynolds stress tensor is frame-indifferent and Galilean invariant
- domain assumption DNS data provide ground-truth Reynolds stresses for supervised training
