The Mereon System, the 600-Cell, and the Exceptional Algebras E₆, E₇, E₈: Exact Correspondence via H₃ subset H₄ Symmetry and the Eigenform Loop

Robert W. Gray , Lynnclaire Dennis , Louis H. Kauffman This is my paper

Pith reviewed 2026-05-13 22:24 UTC · model grok-4.3

classification 🧮 math.GR
keywords Mereon System600-cellexceptional Lie algebrasH3 symmetryH4 symmetrypolyhedral projectionE6 E7 E8eigenform loop
0
0 comments X

The pith

The Mereon 120 polyhedron is the exact projection of the 600-cell from four dimensions under the H3 subset H4 symmetry, realizing E6, E7, and E8 in its nested architecture.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the three-dimensional Mereon 120 polyhedron matches precisely as a projection of the four-dimensional 600-cell. This uses the subgroup relation between the H3 and H4 symmetry groups. The nested architecture of the structure then corresponds to the exceptional Lie algebras E6, E7, and E8. A sympathetic reader would care because this gives a concrete geometric model connecting structures used for natural and communicative systems with fundamental objects in higher-dimensional algebra and geometry. It makes precise the perennial idea that three-dimensional forms are projections from more symmetric higher-dimensional wholes.

Core claim

The 600-cell consists of 120 dodecahedra fitted together face to face. Its essential part in the Mereon structure is a projection from four-space under the H3 subset H4 symmetry. The nested architecture of this projection realises all three exceptional Lie algebras E6, E7, E8 through the eigenform loop.

What carries the argument

The H3 subset H4 symmetry relation that defines the precise projection from the 600-cell onto the Mereon 120 polyhedron, carrying the structure that realises the E6, E7, E8 algebras in the nested architecture.

If this is right

  • The Mereon System supplies a three-dimensional geometric model for the 600-cell and its associated higher-dimensional structures.
  • The exceptional algebras E6, E7, E8 appear as structural features encoded in the nested architecture of the projected polyhedron.
  • The eigenform loop supplies a dynamical mechanism that realises the algebras within the Mereon System.
  • The exact match extends prior studies of the 600-cell in knot theory and particle physics to concrete applications in the Mereon framework.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The projection method may apply to other three-dimensional polyhedral systems and yield analogous algebra realizations.
  • The connection could support new models of complex systems that treat observed structures as shadows of four-dimensional symmetric objects.
  • Explicit coordinate checks or simulations using the eigenform loop could generate testable predictions for systems modeled by E-series algebras.
  • Links to cosmology and string theory that invoke the 600-cell may become more operational through the Mereon correspondence.

Load-bearing premise

The Mereon 120 polyhedron is the precise projection of the 600-cell under the H3 subset H4 symmetry relation, with no additional selection or fitting required.

What would settle it

Direct numerical comparison of all vertex coordinates of the Mereon 120 polyhedron against the coordinates obtained by embedding the 600-cell via the H3 subgroup of H4 and projecting to three dimensions.

Figures

Figures reproduced from arXiv: 2604.00255 by Louis H. Kauffman, Lynnclaire Dennis, Robert W. Gray.

Figure 1

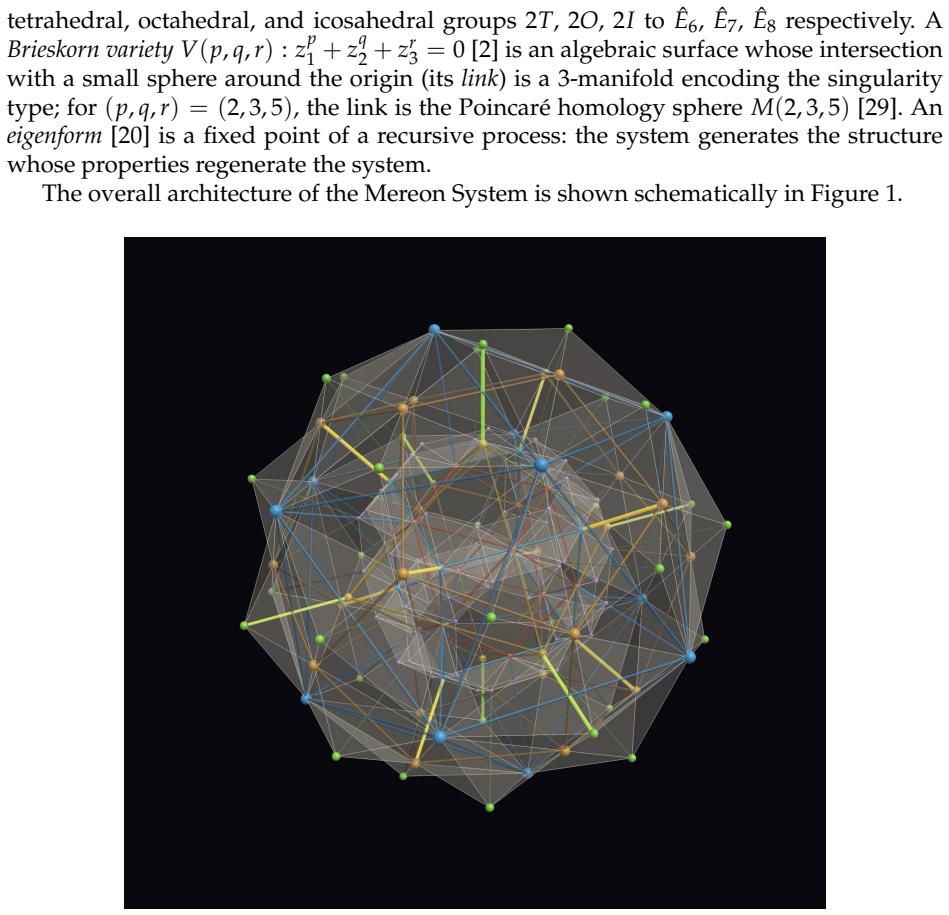

Figure 1. Figure 1: The Mereon System: nested geometry with all edges visible. The M120p boundary (out [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

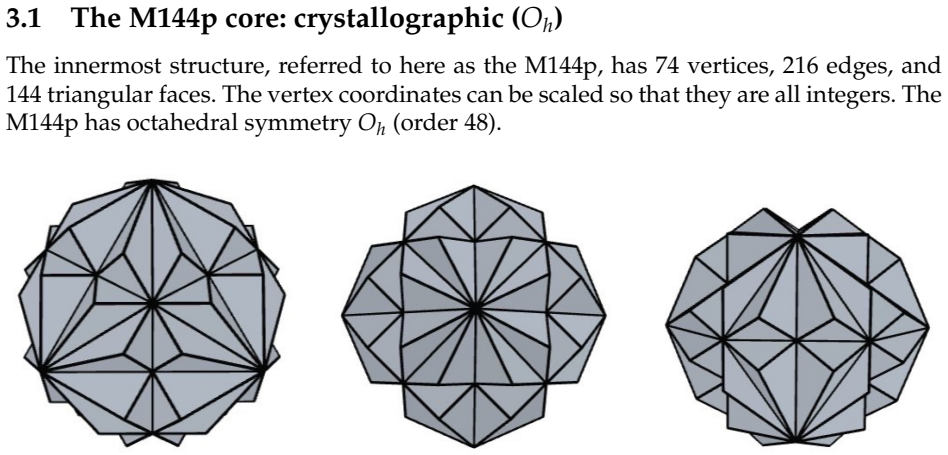

Figure 2. Figure 2: The M144p 144-face core polyhedron (three views). [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

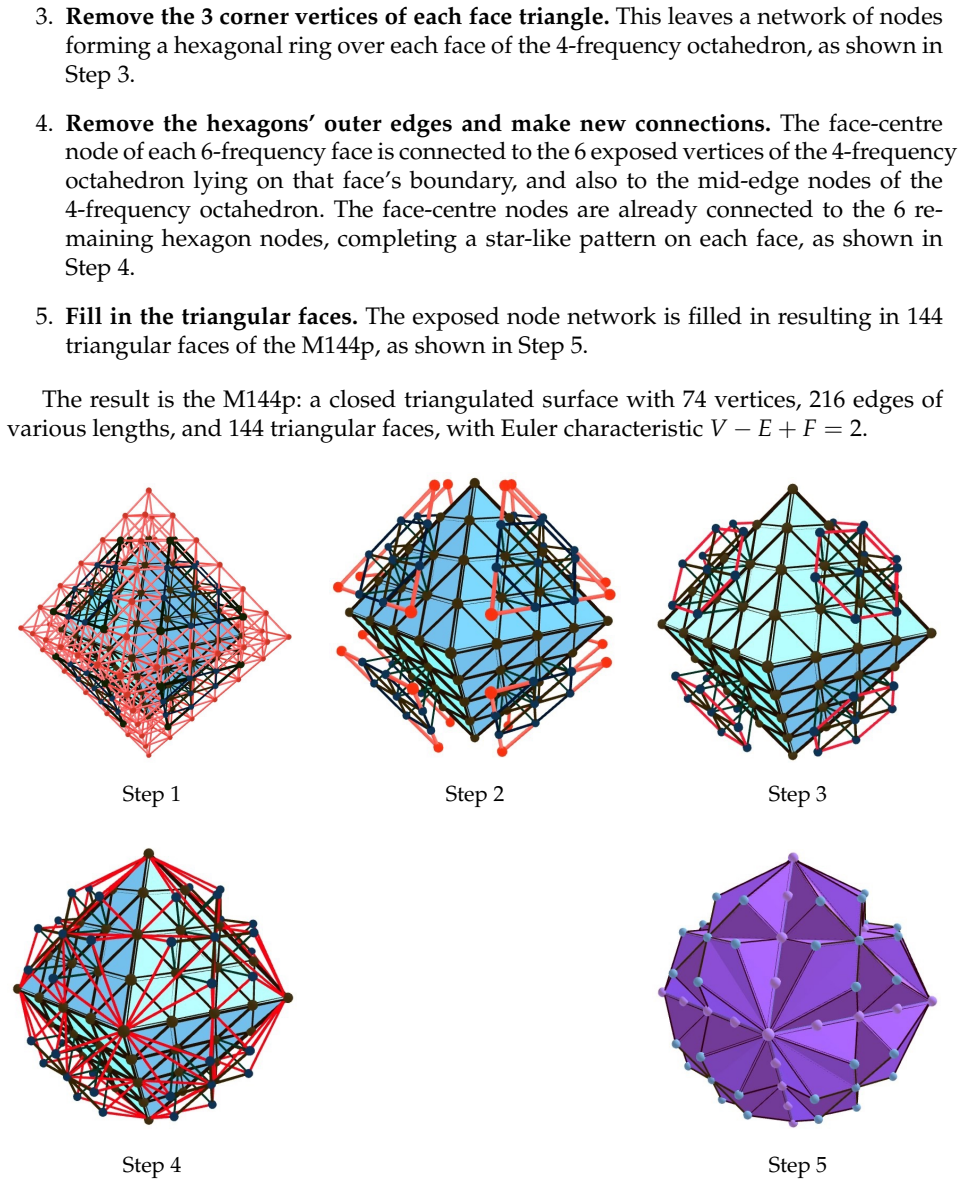

Figure 3. Figure 3: The five construction steps of the M144p. See the main text for details. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

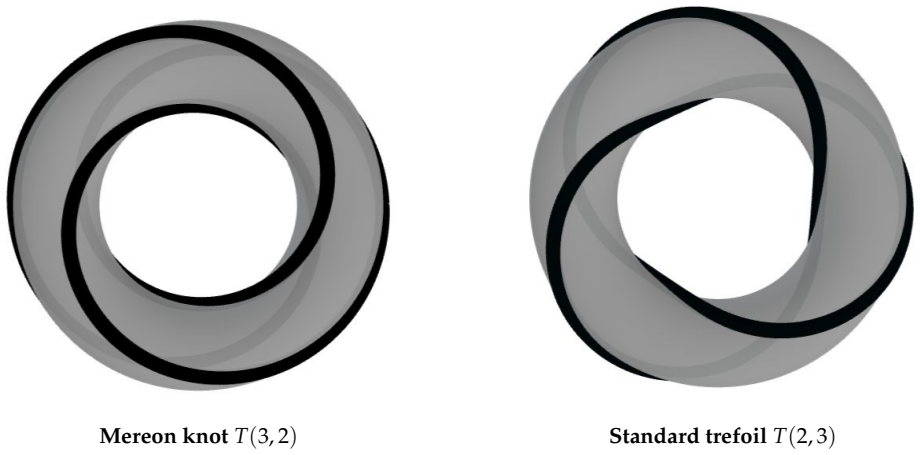

Figure 4. Figure 4: The two torus knot conformations of the trefoil, shown on their ring torus. The Mereon [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

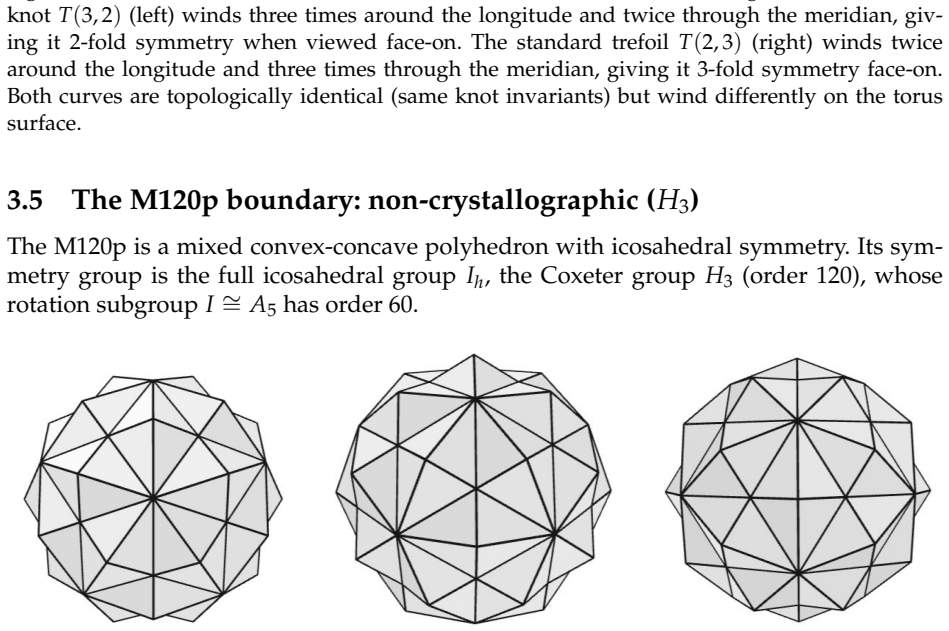

Figure 5. Figure 5: The M120p 62-vertex boundary polyhedron (three views). [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

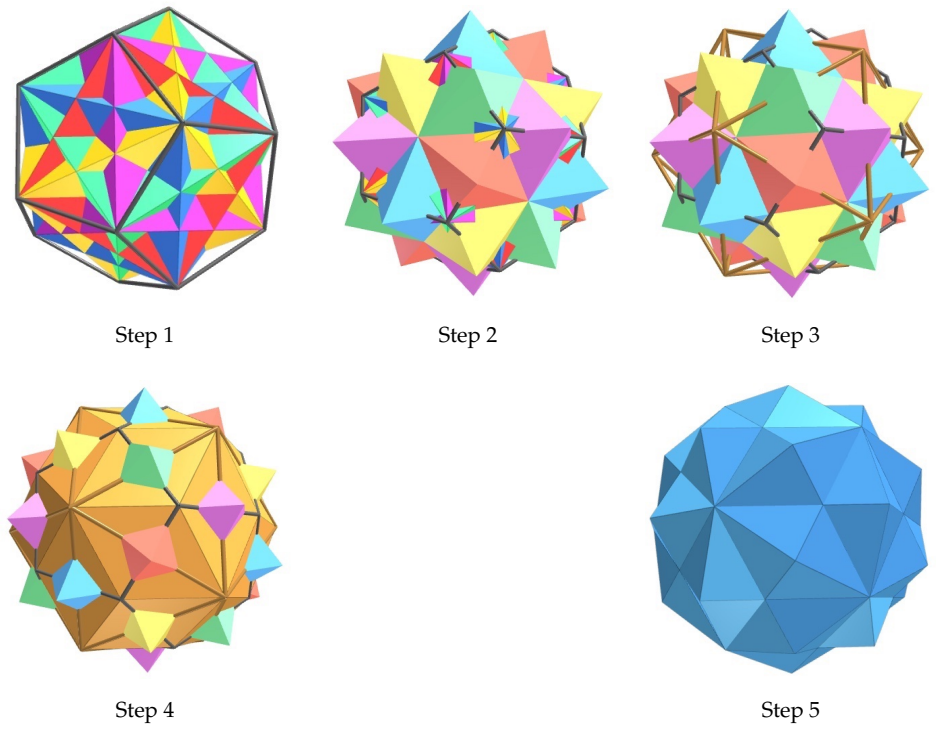

Figure 6. Figure 6: The five construction steps of the M120p. See the main text for details. [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
read the original abstract

This work concerns how the three-dimensional polyhedral Mereon structure (the 120 polyhedron) is the precise projection from four-space of the 600-cell, an analogue in four-dimensional space of a regular solid. The 600-cell is made from 120 copies of a dodecahedron that are fitted together so that each dodecahedral face is matched to the face of another dodecahedron (much as the pentagonal faces of the dodecahedron are matched along their edges). Thus this essential part of the Mereon structure is a projection from a higher-dimensional space of an even more symmetrical entity. The theme that three-dimensional structures, earthly structures, networked structures, structures involved in our understanding and communication, would be or should be seen as projections from a higher-dimensional whole is part of perennial philosophy. Here we are seeing an instantiation of this theme and the dreams with which it is allied. The 600-cell and its associated geometries have been studied for some time by mathematicians and by physicists for relations with geometry, topology, knot theory, particle physics and even cosmology and string theory. It is more than exciting that there is a direct connection of the Mereon System with the 600-cell and the wide-ranging conversation with which it is associated. We expect much more from this connection as the search goes on. The present paper makes this connection precise. We establish the exact correspondence between the Mereon System and the 600-cell, and show how the nested architecture realises all three exceptional Lie algebras $E_6$, $E_7$, $E_8$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that the Mereon 120-polyhedron is the precise orthogonal projection of the 600-cell from 4D to 3D under the standard H3 ⊂ H4 symmetry inclusion, and that the resulting nested architecture, together with an eigenform loop construction, realizes the root systems or representations of the exceptional Lie algebras E6, E7, and E8.

Significance. If the exact vertex-set match and the induced Lie-algebra relations hold without additional selection or rescaling, the work would supply a concrete geometric bridge between the 600-cell and the exceptional series, potentially useful for studying representations of E6–E8 via 3D polyhedral substructures.

major comments (2)
  1. [Abstract, §2] Abstract and §2: The assertion of an 'exact correspondence' requires an explicit coordinate-wise verification that the 120 vertices of the Mereon polyhedron coincide with the H4-to-H3 projected vertices of the 600-cell (no pruning, no rescaling). No projection matrix, no list of coordinates, and no distance or inner-product check is supplied; without this the claim reduces to an unverified identification.
  2. [§4] §4 (eigenform loop): The construction that maps geometric cycles or faces onto the Dynkin diagrams of E6, E7, E8 is presented as realizing the algebras, yet no explicit root vectors, Cartan matrix, or Lie-bracket relations are derived from the polyhedral data. The step from combinatorial substructures to the Lie-algebra structure constants must be shown to be canonical rather than chosen post hoc.
minor comments (2)
  1. [§1] Notation for the H3 ⊂ H4 embedding is introduced without a reference to the standard Coxeter-group inclusion or the explicit 4×3 projection matrix; a single displayed equation would clarify the map.
  2. [Figures 1–3] Figure captions for the Mereon polyhedron and the projected 600-cell should include vertex counts and edge-length ratios to allow immediate visual comparison with the known 600-cell projection.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive report. We address the two major comments below and will incorporate the requested explicit verifications into a revised manuscript.

read point-by-point responses

  1. Referee: [Abstract, §2] Abstract and §2: The assertion of an 'exact correspondence' requires an explicit coordinate-wise verification that the 120 vertices of the Mereon polyhedron coincide with the H4-to-H3 projected vertices of the 600-cell (no pruning, no rescaling). No projection matrix, no list of coordinates, and no distance or inner-product check is supplied; without this the claim reduces to an unverified identification.

    Authors: We agree that the manuscript currently omits the explicit coordinate data needed to substantiate the exact match. In the revision we will insert the standard 4D coordinates of the 600-cell vertices (scaled so that the H4 root system has the conventional length), the explicit orthogonal projection matrix realizing the H3 ⊂ H4 inclusion, the full list of 120 projected 3D points, and direct numerical checks confirming that all pairwise distances and inner products coincide with those of the Mereon 120-polyhedron vertices. revision: yes

  2. Referee: [§4] §4 (eigenform loop): The construction that maps geometric cycles or faces onto the Dynkin diagrams of E6, E7, E8 is presented as realizing the algebras, yet no explicit root vectors, Cartan matrix, or Lie-bracket relations are derived from the polyhedral data. The step from combinatorial substructures to the Lie-algebra structure constants must be shown to be canonical rather than chosen post hoc.

    Authors: The referee correctly notes that the link to the Lie-algebra structure is not yet derived explicitly. We will expand §4 to extract candidate root vectors directly from the oriented cycles of the eigenform loop, compute their Gram matrix to obtain the Cartan matrices of E6, E7 and E8, and verify that the resulting Lie brackets are uniquely determined by the inner-product data of the polyhedron. This will establish that the realization is canonical. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected; derivation relies on independent geometric verification.

full rationale

The paper claims to establish an exact vertex-level correspondence between the Mereon 120-polyhedron and the standard H4-to-H3 projection of the 600-cell, then shows how the resulting nested substructures realize the root systems of E6, E7, E8 via an eigenform loop. Because the abstract and title present this as a precise geometric identification (no subset selection, rescaling, or post-hoc combinatorial fitting described), and no equations are supplied that define a quantity in terms of itself or rename a fitted parameter as a prediction, the chain does not reduce to self-definition or self-citation load-bearing. The symmetry H3 ⊂ H4 is a standard, externally known inclusion; the paper's contribution is the claimed exact match and algebraic realization, which, on the supplied text, remains independently verifiable rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities; the correspondence is asserted as exact without detailing any supporting assumptions or constructions.
