arxiv: 2604.02890 · v1 · submitted 2026-04-03 · 🧮 math.NA · cs.NA

A posteriori error estimates for mixed finite element discretization of the multigroup Neutron Simplified Transport equations with Robin boundary condition

Patrick Ciarlet (POEMS) , Minh-Hieu Do (SERMA) , Mario Gervais (SERMA) , Fran\c{c}ois Madiot (SERMA) This is my paper

Pith reviewed 2026-05-13 18:48 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords a posteriori error estimatesmixed finite elementsSPN equationsRobin boundary conditiondomain decompositionadaptive mesh refinementneutron transport
0
0 comments X

The pith

Guaranteed and locally efficient a posteriori error estimators are derived for mixed finite element discretizations of the multigroup SPN equations with Robin boundary conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives a posteriori error estimates for the mixed finite element discretization of the multigroup neutron simplified transport equations when Robin boundary conditions are imposed. These estimates are shown to be guaranteed upper bounds on the discretization error while also being locally efficient, which supports reliable adaptive mesh refinement. A dedicated estimator component is constructed to control the contribution from the Robin boundary term, and the same framework is extended to a domain decomposition method that incorporates L2 jump terms across subdomain interfaces. The results apply to both simplicial and Cartesian meshes and cover cases with mixed boundary conditions of Dirichlet, Neumann, or Fourier type. If correct, the estimates give practitioners a practical tool to drive mesh adaptation in neutron transport calculations without requiring over-refinement of the entire domain.

Core claim

For the mixed finite element approximation of the multigroup SPN equations with Robin boundary conditions, residual-based estimators are constructed that deliver a guaranteed upper bound on the error in the natural energy norm and locally efficient lower bounds on the same quantity. The estimators include volume residuals, inter-element flux jumps, and an explicit boundary residual term adapted to the Robin condition; the analysis is carried out on both simplicial and Cartesian meshes. The same estimator construction is then applied inside a non-overlapping domain decomposition scheme with L2 jump penalization, yielding an adaptive refinement strategy that remains reliable across subdomain 0

What carries the argument

Residual-based a posteriori error estimators for the mixed formulation that include a dedicated Robin-boundary residual term.

If this is right

  • The estimators directly drive adaptive mesh refinement that reduces the global error at optimal rates.
  • The same estimator construction remains reliable when the domain is split into subdomains with Cartesian meshes and L2 interface jumps.
  • Separate residual terms allow the theory to cover any combination of Dirichlet, Neumann, or Robin boundary conditions on different parts of the boundary.
  • Local efficiency guarantees that the estimator does not over-estimate the error on any single element or subdomain.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The estimator construction could be reused for other first-order transport models that admit a similar mixed variational formulation.
  • Combining the DD+L2 jumps framework with the estimators suggests a route to scalable parallel adaptive solvers for large reactor geometries.
  • The reliance on standard approximation properties implies the method should extend without change to higher-order mixed elements once those properties are verified.
  • Numerical experiments in the paper already illustrate the approach; repeating them with a known exact solution would provide an independent check of the constants appearing in the bounds.

Load-bearing premise

The continuous SPN problem with Robin boundary conditions is assumed to be well-posed and the mixed finite element spaces are assumed to satisfy standard approximation properties on the given meshes.

What would settle it

A concrete numerical counter-example on a single-element or low-refinement mesh where the computed estimator fails to upper-bound the true error measured in the energy norm would falsify the guarantee.

Figures

Figures reproduced from arXiv: 2604.02890 by Fran\c{c}ois Madiot (SERMA), Mario Gervais (SERMA), Minh-Hieu Do (SERMA), Patrick Ciarlet (POEMS).

Figure 1
Figure 1. Figure 1: Description of the AMR process. 25 [PITH_FULL_IMAGE:figures/full_fig_p025_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The benchmark geometry. Source Reflector Core Control rod S 1 f 0. 9.09319 × 10−3 0. S 2 f 0. 2.90183 × 10−1 0 [PITH_FULL_IMAGE:figures/full_fig_p027_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Subdomains and initial mesh for the multi-domain approach. [PITH_FULL_IMAGE:figures/full_fig_p028_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Relative error in the ∥ · ∥S norm (left) and maximum of the total estimator (right) as a function of the total number of mesh elements. Figures 5, 6 and 7 respectively show the final meshes of the mono-domain, DDM-1 and DDM-2 multi-domain configurations. We observe that refinement mostly takes place near the material interfaces. The DDM-based refinement is able to focus on this interface-focused refinement… view at source ↗
Figure 5

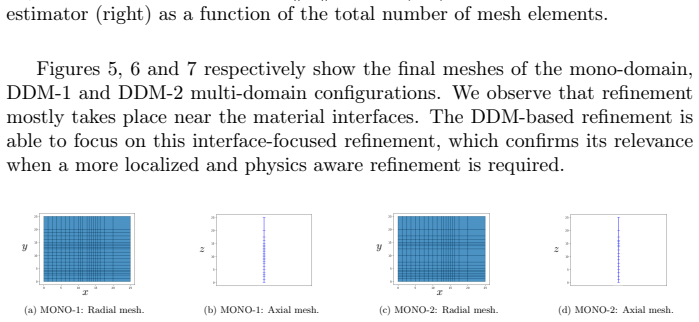

Figure 5. Figure 5: Final mesh for the mono-domain configurations. [PITH_FULL_IMAGE:figures/full_fig_p030_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Final mesh for the DDM-1 multi-domain configuration. [PITH_FULL_IMAGE:figures/full_fig_p031_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Final mesh for the DDM-2 multi-domain configuration. [PITH_FULL_IMAGE:figures/full_fig_p031_7.png] view at source ↗
read the original abstract

We analyse a posteriori error estimates for the discretization with mixed finite elements on simplicial or Cartesian meshes of the multigroup neutron simplified transport (SPN ) equations, in the case where a Robin (or Fourier type) boundary condition is imposed on the boundary. This boundary condition is of particular importance in neutronics, since it corresponds to the well-known vacuum boundary condition. We provide guaranteed and locally efficient estimators. In particular, a specific estimator is designed to handle the Robin boundary condition. We also develop the theory in the case of mixed imposed boundary conditions, of Dirichlet, Neumann or Fourier type. The approach is further extended to a Domain Decomposition Method, the so-called DD+L 2 jumps method. In this framework, the adaptive mesh refinement strategy is implemented for a discretization using Cartesian meshes on each subdomain. Numerical experiments illustrate the theory.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript derives guaranteed and locally efficient a posteriori error estimators for mixed finite element discretizations of the multigroup simplified neutron transport (SPN) equations subject to Robin boundary conditions on simplicial or Cartesian meshes. It also treats mixed Dirichlet/Neumann/Fourier boundary conditions and extends the estimators to a domain decomposition method (DD + L2 jumps) with adaptive refinement on Cartesian subdomains, illustrated by numerical experiments.

Significance. If the reliability proof is complete, the work supplies a practical, computable error control tool for neutronics applications where vacuum (Robin) boundary conditions are standard. The DD extension adds value for large-scale simulations. The contribution is incremental rather than foundational, as it builds on standard residual-based a posteriori techniques for mixed formulations.

major comments (1)
  1. [derivation of the a posteriori upper bound] The reliability (guaranteed upper bound) of the estimators is obtained from the stability of the continuous mixed variational formulation. The manuscript invokes well-posedness of the multigroup SPN problem with Robin boundary conditions without providing a proof, a specific reference, or an explicit stability constant for the coupled system (scattering and fission cross-sections link the groups). Standard single-group arguments do not automatically carry over; if the continuous problem is not stable for some physically relevant data, the reliability constant becomes uncontrolled and the 'guaranteed' claim fails.
minor comments (2)
  1. [Abstract] The abstract introduces the DD+L2 jumps method without a brief parenthetical definition or forward reference; expand on first use for readability.
  2. [Problem formulation] Notation for the multigroup flux and cross-section matrices should be introduced once in a dedicated notation subsection rather than piecemeal.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and for highlighting the need to explicitly justify the well-posedness assumption underlying the reliability proof. We address this point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [derivation of the a posteriori upper bound] The reliability (guaranteed upper bound) of the estimators is obtained from the stability of the continuous mixed variational formulation. The manuscript invokes well-posedness of the multigroup SPN problem with Robin boundary conditions without providing a proof, a specific reference, or an explicit stability constant for the coupled system (scattering and fission cross-sections link the groups). Standard single-group arguments do not automatically carry over; if the continuous problem is not stable for some physically relevant data, the reliability constant becomes uncontrolled and the 'guaranteed' claim fails.

    Authors: We agree that the continuous multigroup SPN problem with Robin boundary conditions requires explicit justification for the reliability result to be fully rigorous. The well-posedness follows from standard coercivity and continuity arguments for the mixed formulation under the usual physical assumptions (non-negative, bounded cross-sections with the fission operator satisfying a spectral radius condition less than one). In the revised version we will (i) cite a specific reference establishing well-posedness for the multigroup SPN system with Robin conditions (e.g., the analysis in the neutronics literature for the diffusion approximation of the transport equation), and (ii) add a short appendix sketching the derivation of the stability constant for the coupled system by viewing the scattering/fission terms as a compact perturbation and applying a Neumann-series argument. This will make the dependence of the reliability constant on the data explicit and controlled for all physically admissible cross-section data. No change to the estimator construction or numerical results is required. revision: yes

Circularity Check

0 steps flagged

No significant circularity; estimators constructed from residuals

full rationale

The derivation constructs guaranteed a posteriori estimators directly from the residuals of the discrete mixed variational formulation plus explicit Robin boundary terms. Reliability follows from the assumed well-posedness of the continuous multigroup SPN problem and standard mixed-FEM approximation properties on simplicial/Cartesian meshes; these are external inputs rather than quantities defined or fitted inside the estimator itself. No self-definitional loops, fitted parameters renamed as predictions, or load-bearing self-citations appear in the central chain. The DD+L2-jumps extension likewise uses the same residual structure. The only minor deduction is the unverified invocation of continuous well-posedness for the coupled multigroup case, which does not create a circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard properties of mixed finite element spaces and the well-posedness of the SPN problem with Robin conditions; no free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (2)
  • domain assumption Well-posedness of the continuous multigroup SPN problem with Robin boundary conditions
    Invoked to guarantee existence of the exact solution against which the discrete error is measured.
  • standard math Approximation properties of mixed finite element spaces on simplicial and Cartesian meshes
    Used to obtain local efficiency and reliability constants independent of mesh size.

pith-pipeline@v0.9.0 · 5471 in / 1352 out tokens · 49471 ms · 2026-05-13T18:48:35.147471+00:00 · methodology
