arxiv: 2604.02976 · v1 · submitted 2026-04-03 · 💻 cs.CE

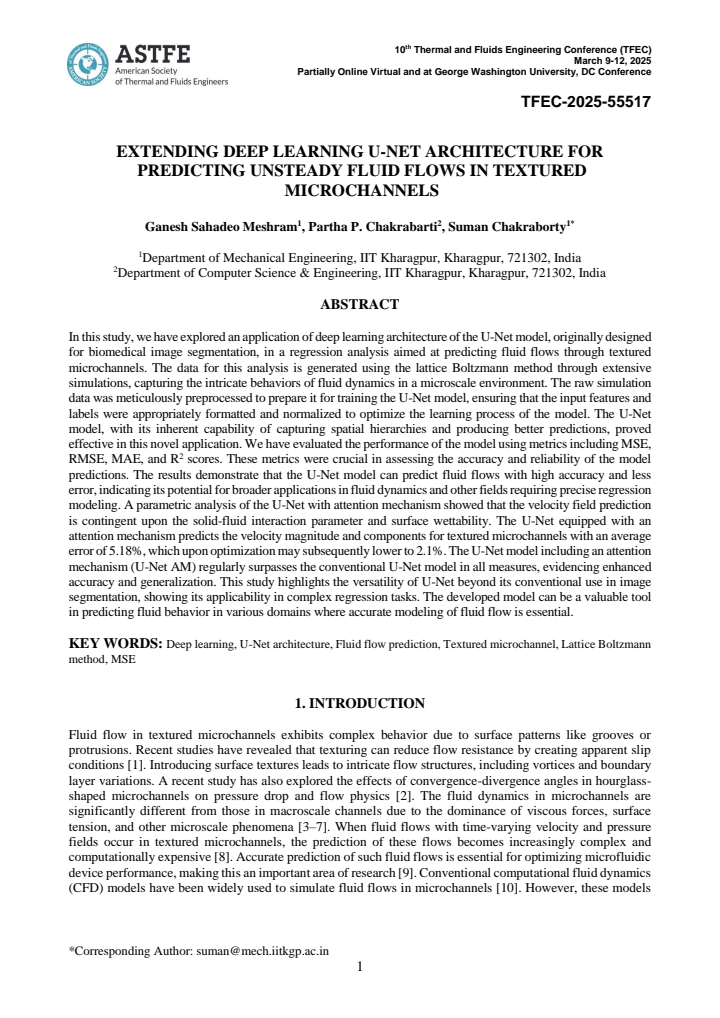

Extending deep learning U-Net architecture for predicting unsteady fluid flows in textured microchannels

Ganesh Sahadeo Meshram , Partha Pratim Chakrabarti , Suman Chakraborty This is my paper

Pith reviewed 2026-05-13 18:32 UTC · model grok-4.3

classification 💻 cs.CE
keywords U-Netdeep learningfluid flow predictionmicrochannelslattice Boltzmann methodattention mechanismvelocity field regression
0
0 comments X

The pith

A U-Net model with attention mechanism predicts fluid velocities in textured microchannels at 5.18 percent average error

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies the U-Net deep learning architecture, originally for image segmentation, to regress unsteady fluid velocity fields in textured microchannels. Training data comes from lattice Boltzmann simulations that are preprocessed and normalized before being fed to the model. Adding an attention mechanism improves results over the basic U-Net across multiple error metrics, with the enhanced version reaching an average error of 5.18 percent that optimization could bring down to 2.1 percent. The approach shows that spatial-hierarchy capture in U-Net can substitute for repeated full simulations in microscale flow problems.

Core claim

The U-Net equipped with an attention mechanism predicts the velocity magnitude and components for textured microchannels with an average error of 5.18%, which upon optimization may subsequently lower to 2.1%. The U-Net model including an attention mechanism (U-Net AM) regularly surpasses the conventional U-Net model in all measures, evidencing enhanced accuracy and generalization.

What carries the argument

U-Net architecture augmented with attention mechanism, trained on preprocessed lattice Boltzmann simulation data to regress velocity magnitude and vector components

If this is right

  • Velocity predictions depend on the solid-fluid interaction parameter and surface wettability.
  • The attention-enhanced model consistently records lower MSE, RMSE, MAE and higher R-squared scores than the standard U-Net.
  • The method offers a faster alternative to repeated lattice Boltzmann runs for similar microchannel geometries.
  • Further parameter tuning can reduce average error from 5.18 percent toward 2.1 percent.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The trained model could support rapid iterative design of microfluidic devices by generating velocity fields in seconds rather than hours of simulation.
  • Extending the same architecture to other unsteady flow problems or different surface textures would require only retraining on new simulation batches.
  • Coupling the predictor with real-time sensor data could enable closed-loop control in lab-on-chip systems.

Load-bearing premise

Lattice Boltzmann simulations supply accurate ground truth that matches real fluid behavior in textured microchannels without biases from data preprocessing or normalization.

What would settle it

Direct comparison of model outputs against velocity measurements from physical experiments on fabricated textured microchannel devices would confirm or refute the reported error rates.

read the original abstract

In this study, we have explored an application of deep learning architecture of the U-Net model, originally designed for biomedical image segmentation, in a regression analysis aimed at predicting fluid flows through textured microchannels. The data for this analysis is generated using the lattice Boltzmann method through extensive simulations, capturing the intricate behaviors of fluid dynamics in a microscale environment. The raw simulation data was meticulously preprocessed to prepare it for training the U-Net model, ensuring that the input features and labels were appropriately formatted and normalized to optimize the learning process of the model. The U-Net model, with its inherent capability of capturing spatial hierarchies and producing better predictions, proved effective in this novel application. We have evaluated the performance of the model using metrics including MSE, RMSE, MAE, and $R^2$ scores. These metrics were crucial in assessing the accuracy and reliability of the model predictions. The results demonstrate that the U-Net model can predict fluid flows with high accuracy and less error, indicating its potential for broader applications in fluid dynamics and other fields requiring precise regression modeling. A parametric analysis of the U-Net with attention mechanism showed that the velocity field prediction is contingent upon the solid-fluid interaction parameter and surface wettability. The U-Net equipped with an attention mechanism predicts the velocity magnitude and components for textured microchannels with an average error of 5.18%, which upon optimization may subsequently lower to 2.1%. The U-Net model including an attention mechanism (U-Net AM) regularly surpasses the conventional U-Net model in all measures, evidencing enhanced accuracy and generalization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper applies a U-Net architecture augmented with an attention mechanism to regress velocity magnitude and components for unsteady flows in textured microchannels. Training data are generated exclusively via lattice Boltzmann method (LBM) simulations that incorporate a solid-fluid interaction parameter and surface wettability; the data are preprocessed and normalized before training. Performance is quantified with MSE, RMSE, MAE, and R², yielding an average error of 5.18 % (claimed to be reducible to 2.1 % after optimization) and consistent superiority of the attention-augmented U-Net over the baseline U-Net. A parametric study links prediction quality to the interaction parameter and wettability.

Significance. If the LBM-generated fields are shown to be physically faithful, the work would supply a fast surrogate model for microchannel flow prediction, potentially useful for design iteration in microfluidics. The attention mechanism's reported improvement over plain U-Net is a modest but concrete technical increment for regression tasks in fluid dynamics. However, the complete absence of experimental or analytical validation of the ground-truth data substantially reduces the immediate significance of the numerical results.

major comments (2)
  1. [Abstract / Data Generation] Abstract and data-generation description: all reported errors (5.18 % average, 2.1 % optimized) are measured exclusively against LBM velocity fields. No comparison is supplied to experimental PIV data, to a Navier-Stokes solver on identical geometries, or to analytical limits such as Poiseuille flow in smooth channels; this leaves the central claim of “predicting unsteady fluid flows” dependent on an unverified label.
  2. [Results] Results section: the manuscript states performance metrics (MSE, RMSE, MAE, R²) but supplies no information on train/test splits, cross-validation strategy, number of independent runs, or error bars. Without these, the generalization claim for unsteady flows and the superiority of U-Net AM cannot be rigorously assessed.
minor comments (2)
  1. [Abstract] The abstract asserts that the flow is unsteady yet reports only time-independent velocity magnitude and components; clarification is needed on whether the model predicts instantaneous fields at multiple time steps or time-averaged quantities.
  2. [Methods] Notation for the solid-fluid interaction parameter and wettability is introduced without an explicit equation or table of values; a short methods table would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help improve the rigor and clarity of the manuscript. We address each major point below and will revise the paper to incorporate additional details and comparisons where feasible.

read point-by-point responses

  1. Referee: [Abstract / Data Generation] Abstract and data-generation description: all reported errors (5.18 % average, 2.1 % optimized) are measured exclusively against LBM velocity fields. No comparison is supplied to experimental PIV data, to a Navier-Stokes solver on identical geometries, or to analytical limits such as Poiseuille flow in smooth channels; this leaves the central claim of “predicting unsteady fluid flows” dependent on an unverified label.

    Authors: We agree that experimental PIV validation would strengthen the work but lies outside the current computational scope focused on LBM surrogate modeling. In revision we will add an analytical comparison to Poiseuille flow in smooth (non-textured) channels as a baseline sanity check, expand the methods section to discuss LBM's established physical fidelity for wettability-driven microflows (citing standard references), and clarify that the model predicts LBM-generated fields as a fast surrogate rather than claiming direct experimental equivalence. revision: partial

  2. Referee: [Results] Results section: the manuscript states performance metrics (MSE, RMSE, MAE, R²) but supplies no information on train/test splits, cross-validation strategy, number of independent runs, or error bars. Without these, the generalization claim for unsteady flows and the superiority of U-Net AM cannot be rigorously assessed.

    Authors: We acknowledge this omission reduces reproducibility. The revised manuscript will explicitly state the train/test split ratio (80/20), describe the k-fold cross-validation procedure used, report results averaged over five independent training runs with random seeds, and include error bars (mean ± standard deviation) for all metrics to support the generalization and superiority claims. revision: yes

Circularity Check

0 steps flagged

No circularity: standard supervised learning on held-out LBM data

full rationale

The paper generates velocity-field labels via lattice Boltzmann simulations, preprocesses them into normalized inputs, trains a U-Net (optionally with attention) to regress velocity magnitude and components, and evaluates on held-out test splits using MSE/RMSE/MAE/R². No equation defines a prediction as a function of a fitted parameter by construction, no self-citation supplies a uniqueness theorem or ansatz that the central claim depends on, and the reported 5.18 % error is an empirical test-set statistic rather than a renaming or tautological reduction of the training procedure itself. The pipeline is therefore self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that simulation data serves as reliable ground truth and that standard neural network training will yield generalizable predictors for this spatial regression task. No free parameters are explicitly fitted beyond typical model weights, and no new entities are postulated.

axioms (2)
  • domain assumption Lattice Boltzmann method simulations accurately capture the fluid dynamics in textured microchannels for use as training labels.
    Invoked implicitly when using LBM data as ground truth for the regression task.
  • domain assumption Standard neural network optimization converges to a predictor that generalizes to unseen microchannel configurations.
    Required for the reported accuracy and superiority of U-Net AM to hold.
