Minimal Information Control Invariance via Vector Quantization

Ege Yuceel , Teodor Tchalakov , Sayan Mitra

Authors on Pith no claims yet

Pith reviewed 2026-05-13 18:56 UTC · model grok-4.3

classification 📡 eess.SY cs.ROcs.SY

keywords control invariancevector quantizationsampled-data systemsquadrotor controlforward invariancecodebook reductionreachability certificationnonlinear control

0 comments

The pith

A vector-quantized autoencoder learns a control codebook that keeps a quadrotor target set forward invariant with 157 times fewer signals than a uniform grid.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper asks how few distinct control inputs are actually needed to keep a compact set of states forward invariant under sampled-data control for a nonlinear system. It connects this to the information-theoretic idea of invariance entropy and shows that a learned partition of the state space paired with a small codebook of controls can achieve the same safety guarantee. On a 12-dimensional quadrotor model the method produces a codebook 157 times smaller than a uniform grid while the certified reachable sets still stay inside the target set. The approach matters because many learning-based controllers use far more distinct signals than safety alone requires, so shrinking the codebook directly lowers sensing and computation demands without sacrificing invariance.

Core claim

The central claim is that jointly learning a state-space partition and a finite control codebook via a vector-quantized autoencoder, followed by iterative Lipschitz-based reachable-set certification and sum-of-squares programming, produces a sampled-data controller that renders the target set forward invariant for the closed-loop quadrotor dynamics, achieving a 157-fold reduction in codebook size relative to a uniform grid baseline while preserving the invariance property.

What carries the argument

The vector-quantized autoencoder that simultaneously partitions the state space and selects a minimal control codebook, certified by an iterative loop of Lipschitz reachable-set enclosures and sum-of-squares forward-invariance checks.

If this is right

Fewer distinct control signals are needed to enforce invariance than a uniform discretization would suggest.
The same certification loop can be reused to validate any other learned codebook against forward invariance.
The minimum sensing resolution required for safe operation can be read off from the size of the learned partition.
The method extends in principle to other nonlinear sampled-data systems once the Lipschitz constants and sum-of-squares relaxations are available.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the codebook size scales with invariance entropy rather than state-space volume, similar reductions should appear in other high-dimensional vehicles or robots.
The learned partition may reveal which state directions matter most for safety, suggesting where to allocate sensors or actuators.
Replacing the sum-of-squares step with a tighter reachable-set tool could further shrink the certified codebook.

Load-bearing premise

The training of the vector-quantized autoencoder together with the iterative certification procedure actually produces a codebook whose closed-loop reachable sets remain inside the target set for the sampled-data system.

What would settle it

Run the learned controller on the 12-dimensional quadrotor from a dense set of initial states inside the target set and measure whether any trajectory ever leaves the set under the certified sampling period.

Figures

Figures reproduced from arXiv: 2604.03132 by Ege Yuceel, Sayan Mitra, Teodor Tchalakov.

**Figure 2.** Figure 2: Codebook size |VTs | and closed-loop invariance vs. codebook pressure λpr. Invariance holds at 100% down to |VTs | = 14 codes, then collapses. Green checkmarks indicate IFC certification success; all controllers at or beyond the collapse point are unverified. A. Codebook Compression We stress-test the pipeline by varying the entropy pressure λpr that penalizes codebook usage [PITH_FULL_IMAGE:figures/full_… view at source ↗

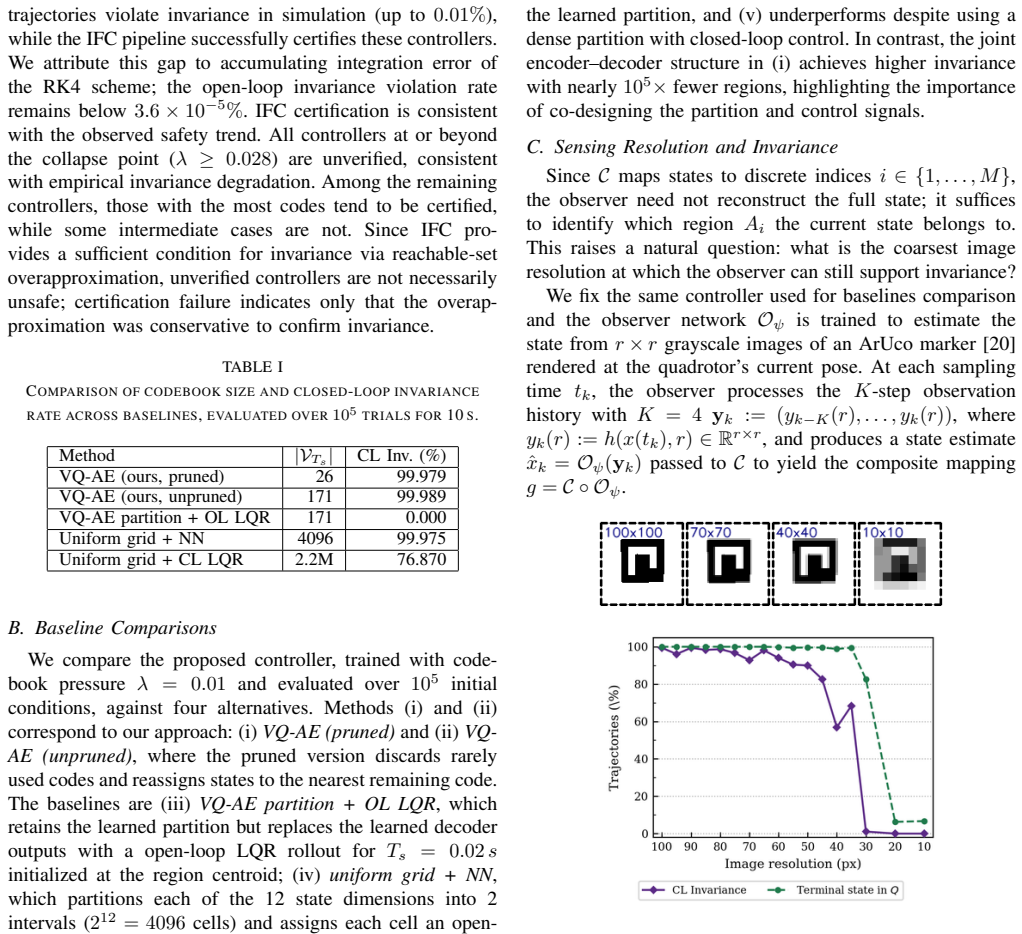

**Figure 3.** Figure 3: Outputs at different resolutions (indicated above). Closed-loop [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

read the original abstract

Safety-critical autonomous systems must satisfy hard state constraints under tight computational and sensing budgets, yet learning-based controllers are often far more complex than safe operation requires. To formalize this gap, we study how many distinct control signals are needed to render a compact set forward invariant under sampled-data control, connecting the question to the information-theoretic notion of invariance entropy. We propose a vector-quantized autoencoder that jointly learns a state-space partition and a finite control codebook, and develop an iterative forward certification algorithm that uses Lipschitz-based reachable-set enclosures and sum-of-squares programming. On a 12-dimensional nonlinear quadrotor model, the learned controller achieves a $157\times$ reduction in codebook size over a uniform grid baseline while preserving invariance, and we empirically characterize the minimum sensing resolution compatible with safe operation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper learns compact invariant control codebooks via vector quantization plus Lipschitz-SOS certification and reports a 157x size cut on a 12D quadrotor, but the over-approximations leave open whether the true sampled-data trajectories stay inside the target set.

read the letter

The core result is a joint vector-quantized autoencoder that produces both a state partition and a small control codebook, then certifies forward invariance of a target set under sampled-data feedback using iterative Lipschitz reachable-set enclosures and sum-of-squares checks. On the 12-dimensional quadrotor this yields a 157-fold reduction versus a uniform grid while the certificate still passes. That combination of learned minimal codebook and external invariance certificate is the genuinely new piece; prior work on invariance entropy or quantized control usually fixes the partition first or skips the joint optimization with certification. The empirical demonstration on a realistic nonlinear model is the strongest part of the paper. It shows the method can scale at least to 12D and gives a concrete number that matters for embedded hardware. The connection to invariance entropy is also handled cleanly without forcing the learning step into an information-theoretic optimization. The main soft spot is the conservatism of the reachable-set enclosures. In 12D the Lipschitz bounds will be loose, so a codebook could receive a positive certificate yet still drive some true trajectories outside the target set. The paper compares against a grid baseline that uses the same certification procedure, which makes the relative improvement fair, but it does not close the gap between enclosure and actual dynamics. Direct forward simulation of the learned closed loop on the original nonlinear model would have strengthened the claim. Training convergence, hyperparameter sensitivity, and certification success rate across random seeds are also not detailed enough in the abstract to judge reproducibility. This work is aimed at people building safety-critical controllers for resource-limited platforms who already use reachability or SOS tools. A reader who needs formal guarantees but cannot afford large lookup tables will find the approach useful even if they later tighten the certificates themselves. It is worth sending to peer review because the empirical reduction is large enough and the method is concrete enough that referees can engage with the certification tightness question directly rather than dismiss the idea outright.

Referee Report

2 major / 2 minor

Summary. The paper proposes a vector-quantized autoencoder that jointly learns a state-space partition and a finite control codebook to minimize the number of distinct control signals needed to render a compact set forward invariant under sampled-data control. It connects the problem to invariance entropy and develops an iterative certification procedure based on Lipschitz reachable-set enclosures combined with sum-of-squares programming. On a 12-dimensional nonlinear quadrotor model the learned codebook achieves a 157× reduction relative to a uniform-grid baseline while receiving a positive invariance certificate.

Significance. If the certification procedure is sufficiently tight, the result would provide a concrete, data-driven route to minimal-information invariant controllers and would strengthen the link between learning-based quantization and information-theoretic safety margins. The empirical scale (12D nonlinear dynamics) is a positive feature; reproducible code or parameter-free derivations are not reported.

major comments (2)

[§4.2] §4.2 (Lipschitz enclosure iteration): the reachable-set over-approximations are necessarily conservative in 12 dimensions; the manuscript does not quantify the gap between the enclosure and the true sampled-data reachable set, nor does it provide a simulation-based falsification check on trajectories that exit the certified region. This directly affects whether the 157× reduction reflects a genuinely invariant controller or merely one that passes a loose certificate.
[§5] §5 (experimental results): the reported 157× reduction is measured against a uniform-grid baseline that is certified by the identical procedure; without reporting certification success rates, training-convergence statistics, or sensitivity to the Lipschitz constant and SOS degree, it is impossible to judge whether the comparison is robust or whether the learned codebook would remain invariant under modest hyperparameter changes.

minor comments (2)

[Abstract] The abstract states that the minimum sensing resolution is 'empirically characterized' but the main text does not specify the exact metric or plot used for this characterization.
[§3] Notation for the codebook cardinality and the invariance-entropy lower bound should be introduced once and used consistently; occasional reuse of the same symbol for different quantities appears in the method section.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major point below and outline the revisions we will make to strengthen the presentation and empirical validation.

read point-by-point responses

Referee: [§4.2] §4.2 (Lipschitz enclosure iteration): the reachable-set over-approximations are necessarily conservative in 12 dimensions; the manuscript does not quantify the gap between the enclosure and the true sampled-data reachable set, nor does it provide a simulation-based falsification check on trajectories that exit the certified region. This directly affects whether the 157× reduction reflects a genuinely invariant controller or merely one that passes a loose certificate.

Authors: We agree that the Lipschitz enclosures are conservative in 12 dimensions. The certification procedure remains sound: any codebook that satisfies the iterative check is guaranteed to render the set forward invariant, even under over-approximation. The 157× reduction is computed against a uniform-grid baseline certified by the identical procedure, preserving fairness of the comparison. Exact quantification of the enclosure gap is intractable for nonlinear 12D dynamics, as it would require exact reachability computation. In revision we will add closed-loop simulation results demonstrating that trajectories under the learned controller remain inside the certified region, together with a discussion of conservatism sources. revision: partial
Referee: [§5] §5 (experimental results): the reported 157× reduction is measured against a uniform-grid baseline that is certified by the identical procedure; without reporting certification success rates, training-convergence statistics, or sensitivity to the Lipschitz constant and SOS degree, it is impossible to judge whether the comparison is robust or whether the learned codebook would remain invariant under modest hyperparameter changes.

Authors: We accept that additional statistics are needed to demonstrate robustness. In the revised manuscript we will include: (i) certification success rates over multiple independent training runs, (ii) training convergence plots (loss and codebook size), and (iii) sensitivity sweeps with respect to the Lipschitz constant estimate and SOS polynomial degree. These additions will allow readers to assess stability of the reported reduction under hyperparameter variation. revision: yes

standing simulated objections not resolved

Exact numerical quantification of the gap between the Lipschitz reachable-set enclosure and the true sampled-data reachable set for the 12D nonlinear quadrotor, which remains computationally intractable.

Circularity Check

0 steps flagged

No significant circularity; derivation uses external certification tools

full rationale

The paper trains a vector-quantized autoencoder to learn a joint state-space partition and finite control codebook, then applies a separate iterative certification procedure based on Lipschitz reachable-set enclosures and sum-of-squares programming to verify forward invariance of the target set. These certification steps invoke standard external methods whose validity does not depend on the learned codebook parameters by construction. The reported 157× codebook-size reduction is an empirical comparison against a uniform-grid baseline on the 12-dimensional quadrotor, with both controllers evaluated under the identical certification procedure. No load-bearing equation or step reduces the invariance claim or the size reduction to a self-definition, a fitted input renamed as prediction, or a self-citation chain. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on standard domain assumptions from nonlinear control; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (2)

domain assumption System dynamics admit Lipschitz constants enabling reachable-set enclosures
Invoked for the iterative forward certification algorithm
standard math Sum-of-squares programming can certify polynomial invariance conditions
Used as the verification backend

pith-pipeline@v0.9.0 · 5437 in / 1229 out tokens · 48144 ms · 2026-05-13T18:56:27.872000+00:00 · methodology
