arxiv: 2604.03284 · v1 · submitted 2026-03-24 · 📊 stat.CO · stat.ME

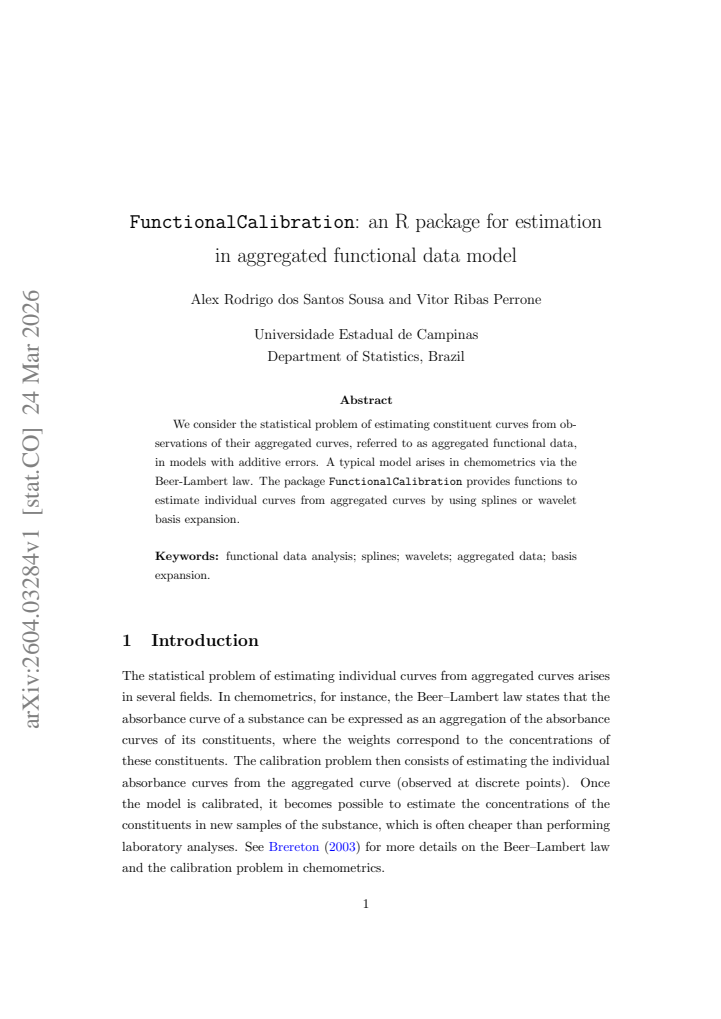

FunctionalCalibration: an R package for estimation in aggregated functional data model

Alex Rodrigo dos Santos Sousa , Vitor Ribas Perrone This is my paper

Pith reviewed 2026-05-15 00:58 UTC · model grok-4.3

classification 📊 stat.CO stat.ME
keywords functional dataaggregated curvesR packagesplineswaveletscurve estimationBeer-Lambert lawadditive errors
0
0 comments X

The pith

The FunctionalCalibration R package estimates individual curves from aggregated functional observations using splines or wavelets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces the FunctionalCalibration package for recovering constituent curves when only their summed aggregates are observed under additive noise. This setup appears in chemometrics through models like the Beer-Lambert law. The package implements the recovery step via spline or wavelet basis expansions. A reader would care because direct measurement of separate curves is often impossible while the aggregate is easy to record, so the method turns composite data into usable component estimates inside standard R workflows.

Core claim

The package FunctionalCalibration provides functions to estimate individual curves from aggregated curves by using splines or wavelet basis expansion in models with additive errors.

What carries the argument

Spline or wavelet basis expansion to approximate and recover the constituent curves from their observed sums.

Load-bearing premise

The observed aggregated curves equal the exact sum of the individual curves plus an additive error term.

What would settle it

Generate simulated aggregates from known individual curves plus noise that matches the model, apply the package, and check whether the recovered curves match the originals within the expected error level.

Figures

Figures reproduced from arXiv: 2604.03284 by Alex Rodrigo dos Santos Sousa, Vitor Ribas Perrone.

Figure 1
Figure 1. Figure 1: Tecator dataset of the R package fda.usc. 2.1.1 Estimation procedures 2.1.2 Wavelet approach Under the wavelet approach, we suppose M = 2J (J ∈ N). The discretized model can be written in matrix form as A = αy + ϵ, (2) where A = (Amn = An(tm))1≤m≤M,1≤n≤N , α = (αml = αl(tm))1≤m≤M,1≤l≤L, y = (yln)1≤l≤L,1≤n≤N and ϵ = (ϵmn = ϵn(tm))1≤m≤M,1≤n≤N . To perform the estimation procedure via wavelets, the functions … view at source ↗
Figure 2
Figure 2. Figure 2: Haar and Daubechies with 10 null moments wavelet functions. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Cubic B-splines. 3 Package Development The proposed methods were implemented in the R language, and a package named FunctionalCalibration was developed. The package is available both on CRAN and on GitHub. It includes a simulated dataset to illustrate and validate the implemented procedures, as well as four main functions for performing the calibration process. The next subsections describe each function o… view at source ↗
Figure 4
Figure 4. Figure 4: First component function [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: α1(x) estimated for the simulated dataset using wavelet-based calibration by the functional calibration wavelets function. −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 −2 −1 0 1 2 3 Estimated alpha 2 x y [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: α1(x) estimated for the simulated dataset us￾ing spline-based calibration by functional calibration splines function. −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 −2 −1 0 1 2 3 Estimated alpha 2 x y [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Example of an aggregated curve with weight 0.7 assigned to [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
read the original abstract

We consider the statistical problem of estimating constituent curves from observations of their aggregated curves, referred to as aggregated functional data, in models with additive errors. A typical model arises in chemometrics via the Beer-Lambert law. The package FunctionalCalibration provides functions to estimate individual curves from aggregated curves by using splines or wavelet basis expansion.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript introduces the R package FunctionalCalibration for estimating individual constituent curves from observations of their aggregated sums under an additive error model. The package implements estimation via spline or wavelet basis expansions, motivated by applications such as the Beer-Lambert law in chemometrics.

Significance. The work provides a convenient software implementation of standard basis-expansion methods for a recurring problem in functional data analysis. If the functions are correctly coded and accompanied by clear documentation and examples, the package could serve as a practical tool for applied researchers. However, the absence of any reported simulation studies, error analysis, or real-data validation substantially reduces the demonstrated utility and reliability of the contribution.

major comments (1)
  1. [Abstract] The manuscript contains no simulation studies, cross-validation results, or real-data applications demonstrating the finite-sample performance of the spline and wavelet estimators. This omission is load-bearing because the central claim is the practical utility of the package functions for recovering individual curves from aggregates.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript describing the FunctionalCalibration R package. We address the major comment below and will revise the manuscript to strengthen the demonstration of the package's utility.

read point-by-point responses

  1. Referee: [Abstract] The manuscript contains no simulation studies, cross-validation results, or real-data applications demonstrating the finite-sample performance of the spline and wavelet estimators. This omission is load-bearing because the central claim is the practical utility of the package functions for recovering individual curves from aggregates.

    Authors: We agree that the absence of simulation studies and real-data examples limits the demonstrated reliability of the package. In the revised manuscript we will add a dedicated section containing Monte Carlo simulations that evaluate the finite-sample performance of both the spline and wavelet estimators under varying noise levels, numbers of aggregated curves, and basis dimensions. We will also include a real-data example drawn from a chemometrics application consistent with the Beer-Lambert motivation. These additions will directly address the practical utility claim. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper describes an R package implementing standard spline and wavelet basis expansions to recover individual curves from aggregated sums plus noise under the externally motivated additive model (Beer-Lambert law). No equations, derivations, fitted-parameter predictions, uniqueness theorems, or self-citation chains are present that reduce the central claim to its own inputs by construction. The contribution is the software functionality itself, which is internally consistent with the stated model and does not rely on any load-bearing step that collapses to a fit or renaming.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the standard assumption of additive errors in aggregated functional observations and the use of established spline and wavelet bases; no free parameters, invented entities, or non-standard axioms are mentioned.

axioms (1)
  • domain assumption Aggregated curves equal the sum of constituent curves plus additive errors.
    Explicitly referenced in the abstract as the typical model arising via the Beer-Lambert law.
