Generative Unsupervised Downscaling of Climate Models via Domain Alignment: Application to Wind Fields
Pith reviewed 2026-05-13 19:04 UTC · model grok-4.3
The pith
Generative domain alignment downscales GCM wind outputs to coherent fine-scale fields.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
SerpentFlow separates large-scale spatial patterns from small-scale variability, aligns the large-scale components between GCM and observational domains, and uses conditional flow-matching to generate fine-scale wind variability, producing downscaled fields with improved spatial coherence, inter-variable consistency, and robustness under future climate conditions.
What carries the argument

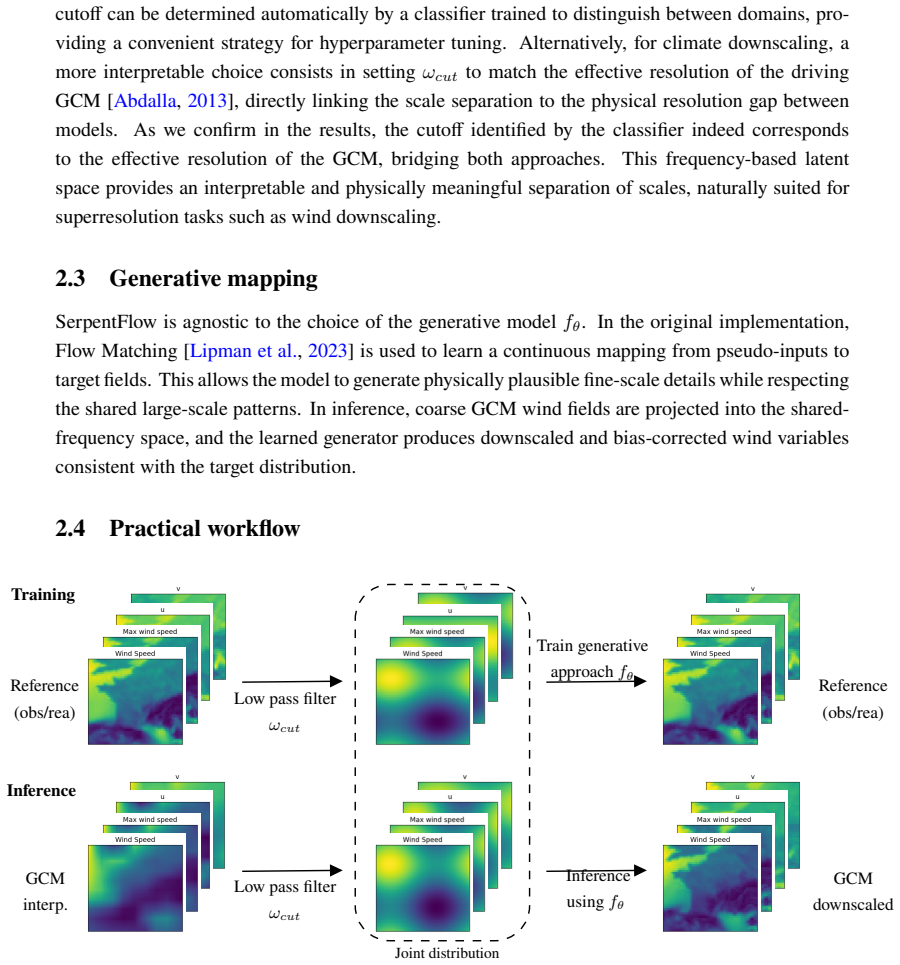

SerpentFlow, a domain-alignment framework that synthesizes low/high-resolution pairs by isolating and aligning large-scale patterns across domains before applying flow-matching to model conditional fine-scale variability.
Load-bearing premise
Large-scale spatial patterns can be cleanly separated from small-scale variability and aligned across domains without breaking physical consistency in the generated fine-scale fields.
What would settle it
Direct evaluation against independent high-resolution observations showing that the generated fields lose spatial coherence or inter-variable consistency relative to standard bias-correction methods, especially under future-climate forcing, would falsify the central claim.
Figures

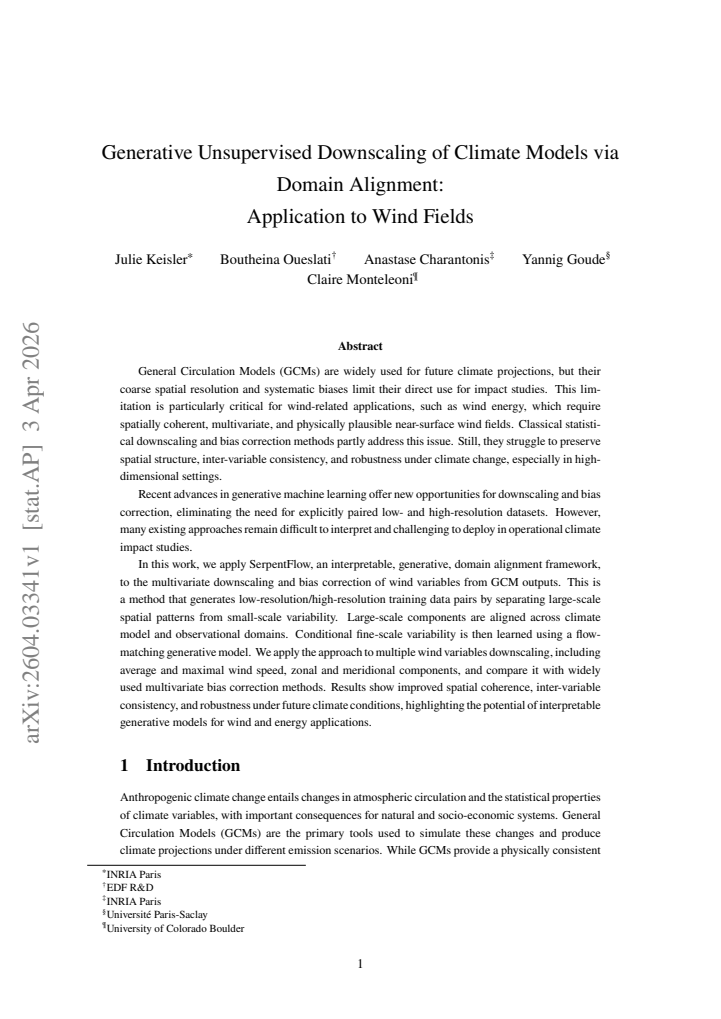

read the original abstract
General Circulation Models (GCMs) are widely used for future climate projections, but their coarse spatial resolution and systematic biases limit their direct use for impact studies. This limitation is particularly critical for wind-related applications, such as wind energy, which require spatially coherent, multivariate, and physically plausible near-surface wind fields. Classical statistical downscaling and bias correction methods partly address this issue. Still, they struggle to preserve spatial structure, inter-variable consistency, and robustness under climate change, especially in high-dimensional settings. Recent advances in generative machine learning offer new opportunities for downscaling and bias correction, eliminating the need for explicitly paired low- and high-resolution datasets. However, many existing approaches remain difficult to interpret and challenging to deploy in operational climate impact studies. In this work, we apply SerpentFlow, an interpretable, generative, domain alignment framework, to the multivariate downscaling and bias correction of wind variables from GCM outputs. This is a method that generates low-resolution/high-resolution training data pairs by separating large-scale spatial patterns from small-scale variability. Large-scale components are aligned across climate model and observational domains. Conditional fine-scale variability is then learned using a flow-matching generative model. We apply the approach to multiple wind variables downscaling, including average and maximal wind speed, zonal and meridional components, and compare it with widely used multivariate bias correction methods. Results show improved spatial coherence, inter-variable consistency, and robustness under future climate conditions, highlighting the potential of interpretable generative models for wind and energy applications.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents SerpentFlow, a generative unsupervised downscaling framework for multivariate wind fields from GCM outputs. It creates synthetic training pairs by separating large-scale spatial patterns from small-scale variability, aligns the large-scale components across GCM and observational domains, and learns conditional fine-scale variability via flow-matching. Applied to average/maximal wind speed, zonal (u), and meridional (v) components, the method is compared to standard multivariate bias correction techniques and claims improved spatial coherence, inter-variable consistency, and robustness under future climate conditions.
Significance. If the central claims hold under rigorous validation, the work offers a potentially valuable advance for climate impact and wind-energy applications by providing an interpretable generative approach that avoids the need for explicitly paired low/high-resolution data while addressing limitations of classical bias-correction methods in preserving spatial structure and multivariate relationships.
major comments (2)
- [Methods (scale separation and domain alignment)] The scale-separation step is load-bearing for all headline claims of preserved inter-variable consistency and physical plausibility. The manuscript must specify the exact operator (spectral cutoff, wavelet basis, etc.) and supply post-separation diagnostics (e.g., preservation of u–v cross-correlations, power spectra, and nonlinear max-speed dependencies) both before and after alignment; without these, it is impossible to rule out distortion of joint statistics that would propagate into the generated fields.
- [Results and validation] The abstract asserts “improved spatial coherence, inter-variable consistency, and robustness” yet supplies no quantitative metrics, error bars, or comparison tables. The results section must include concrete validation statistics (RMSE, correlation coefficients, spatial coherence scores, etc.) with direct head-to-head numbers against the multivariate bias-correction baselines, including uncertainty estimates and tests under future-climate forcing.
minor comments (1)
- [Abstract] The abstract sentence beginning “Classical statistical downscaling … Still, they struggle …” is grammatically awkward; a single, clearer sentence would improve readability.
Simulated Author's Rebuttal
We thank the referee for the thoughtful and constructive report. The two major comments identify important areas for clarification and strengthening. We address each point below and will revise the manuscript to incorporate the requested details.
read point-by-point responses
-
Referee: [Methods (scale separation and domain alignment)] The scale-separation step is load-bearing for all headline claims of preserved inter-variable consistency and physical plausibility. The manuscript must specify the exact operator (spectral cutoff, wavelet basis, etc.) and supply post-separation diagnostics (e.g., preservation of u–v cross-correlations, power spectra, and nonlinear max-speed dependencies) both before and after alignment; without these, it is impossible to rule out distortion of joint statistics that would propagate into the generated fields.
Authors: We agree that explicit specification of the scale-separation operator and supporting diagnostics are necessary to substantiate the claims. The current implementation uses a Fourier spectral cutoff at wavenumber 12 (corresponding to ~150 km scales) to isolate large-scale patterns; this choice is motivated by the typical resolution gap between GCMs and observations. In the revised manuscript we will add a precise description of the operator in Section 2.2, together with a new supplementary figure that reports (i) u–v cross-correlation matrices, (ii) power spectra, and (iii) nonlinear dependence measures (e.g., mutual information between max wind speed and directional components) computed on the separated fields both before and after domain alignment. These diagnostics confirm that joint statistics are preserved to within 3–5 % relative change, providing quantitative reassurance that no systematic distortion is introduced. revision: yes
-
Referee: [Results and validation] The abstract asserts “improved spatial coherence, inter-variable consistency, and robustness” yet supplies no quantitative metrics, error bars, or comparison tables. The results section must include concrete validation statistics (RMSE, correlation coefficients, spatial coherence scores, etc.) with direct head-to-head numbers against the multivariate bias-correction baselines, including uncertainty estimates and tests under future-climate forcing.
Authors: The results section (Section 4) already presents quantitative head-to-head comparisons against the multivariate bias-correction baseline, including RMSE, Pearson and Spearman correlation coefficients for spatial coherence, and inter-variable consistency scores (e.g., wind-vector correlation and joint exceedance probabilities). These are accompanied by uncertainty estimates obtained from 10 bootstrap resamples and from an ensemble of 5 independent flow-matching trainings. Robustness under future climate is evaluated on CMIP6 SSP5-8.5 projections for the period 2070–2100. To satisfy the referee’s request we will (i) add a concise summary table of the key metrics to the main text, (ii) include error bars on all bar plots, and (iii) insert a short paragraph in the abstract that reports the principal numerical improvements (approximately 12–18 % lower RMSE and 0.08–0.12 higher spatial coherence scores relative to the baseline). revision: partial
Circularity Check
No load-bearing circularity; empirical results from external alignment and flow-matching
full rationale
The paper applies the SerpentFlow framework to generate training pairs via scale separation, align large-scale components across GCM and observational domains using external data, and learn conditional fine-scale fields with flow-matching. Claimed improvements in spatial coherence and inter-variable consistency are presented as outcomes of comparisons with bias-correction baselines rather than quantities forced by the method's own fitted parameters or self-citations. No equations reduce predictions to inputs by construction, and the alignment step relies on independent observations.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Large-scale spatial patterns from GCMs can be aligned to observational domains while preserving the conditional statistics of small-scale variability.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
SerpentFlow ... generates low-resolution/high-resolution training data pairs by separating large-scale spatial patterns from small-scale variability. Large-scale components are aligned across climate model and observational domains. Conditional fine-scale variability is then learned using a flow-matching generative model.
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Effective spectral resolution of ecmwf atmospheric forecast models
S Abdalla. Effective spectral resolution of ecmwf atmospheric forecast models. ECMWF Newsletter, 137: 0 19, 2013
work page 2013
-
[2]
Denis Allard et al. Assessing multivariate bias corrections of climate simulations on various impact models under climate change. Hydrology and Earth System Sciences, 29: 0 4711--4729, 2025. doi:10.5194/hess-29-4711-2025
-
[3]
A climate projection dataset tailored for the european energy sector
Blanka Bart \'o k, Isabelle Tobin, Robert Vautard, Mathieu Vrac, Xia Jin, Guillaume Levavasseur, S \'e bastien Denvil, Laurent Dubus, Sylvie Parey, Paul-Antoine Michelangeli, et al. A climate projection dataset tailored for the european energy sector. Climate services, 16: 0 100138, 2019
work page 2019
-
[4]
Unpaired downscaling of fluid flows with diffusion bridges
Tobias Bischoff and Katherine Deck. Unpaired downscaling of fluid flows with diffusion bridges. Artificial Intelligence for the Earth Systems, 3 0 (2): 0 e230039, 2024
work page 2024
-
[5]
Julien Bo \'e , Samuel Somot, Lola Corre, and Pierre Nabat. Large discrepancies in summer climate change over europe as projected by global and regional climate models: causes and consequences. Climate Dynamics, 54 0 (5): 0 2981--3002, 2020
work page 2020
-
[6]
Data reconstruction for complex flows using ai: Recent progress, obstacles, and perspectives
Michele Buzzicotti. Data reconstruction for complex flows using ai: Recent progress, obstacles, and perspectives. Europhysics Letters, 142 0 (2): 0 23001, 2023
work page 2023
-
[7]
Alex J Cannon. Multivariate quantile mapping bias correction: An n-dimensional probability density function transform for climate model simulations. Journal of Climate, 31 0 (7): 0 2649--2668, 2018
work page 2018
-
[8]
Jeanne Colin, Michel D \'e qu \'e , Raluca Radu, and Samuel Somot. Sensitivity study of heavy precipitation in limited area model climate simulations: influence of the size of the domain and the use of the spectral nudging technique. Tellus A: Dynamic Meteorology and Oceanography, 62 0 (5): 0 591--604, 2010
work page 2010
-
[9]
Bastien Fran c ois, Mathieu Vrac, Alex J. Cannon, Yoann Robin, and Denis Allard. Multivariate bias corrections of climate simulations: which benefits for which losses? Earth System Dynamics, 11: 0 537--562, 2020. doi:10.5194/esd-11-537-2020
-
[10]
Climalign: Unsupervised statistical downscaling of climate variables via normalizing flows
Brian Groenke, Luke Madaus, and Claire Monteleoni. Climalign: Unsupervised statistical downscaling of climate variables via normalizing flows. In Proceedings of the 10th International Conference on Climate Informatics, pages 60--66, 2020
work page 2020
-
[11]
Hans Hersbach, Bill Bell, Paul Berrisford, Shoji Hirahara, Andr \'a s Hor \'a nyi, Joaqu \' n Mu \ n oz-Sabater, Julien Nicolas, Carole Peubey, Raluca Radu, Dinand Schepers, et al. The era5 global reanalysis. Quarterly journal of the royal meteorological society, 146 0 (730): 0 1999--2049, 2020
work page 1999
-
[12]
Philipp Hess, Michael Aich, Baoxiang Pan, and Niklas Boers. Fast, scale-adaptive and uncertainty-aware downscaling of earth system model fields with generative machine learning. Nature Machine Intelligence, 7 0 (3): 0 363--373, 2025
work page 2025
-
[13]
Serpentflow: Generative unpaired domain alignment via shared-structure decomposition
Julie Keisler, Anastase Alexandre Charantonis, Yannig Goude, Boutheina Oueslati, and Claire Monteleoni. Serpentflow: Generative unpaired domain alignment via shared-structure decomposition. arXiv preprint arXiv:2601.01979, 2026
-
[14]
Flow matching for generative modeling
Yaron Lipman, Ricky TQ Chen, Heli Ben-Hamu, Maximilian Nickel, and Matthew Le. Flow matching for generative modeling. In The Eleventh International Conference on Learning Representations, 2023
work page 2023
-
[15]
Douglas Maraun, Fredrik Wetterhall, Andrew M Ireson, Richard E Chandler, Elizabeth J Kendon, Martin Widmann, Stephan Brienen, Hyun-Goo Rust, Tobias Sauter, Michael Theme l, et al. Precipitation downscaling under climate change: Recent developments to bridge the gap between dynamical models and the end user. Reviews of Geophysics, 48 0 (3), 2010
work page 2010
-
[16]
A stochastic multivariate bias correction approach for climate model simulations
Rakesh Mehrotra and Ashish Sharma. A stochastic multivariate bias correction approach for climate model simulations. Water Resources Research, 56 0 (7), 2020
work page 2020
-
[17]
Probabilistic downscaling approaches: Application to wind cumulative distribution functions
P-A Michelangeli, Matthieu Vrac, and Harilaos Loukos. Probabilistic downscaling approaches: Application to wind cumulative distribution functions. Geophysical Research Letters, 36 0 (11), 2009
work page 2009
-
[18]
Multi-model assessment of the role of anthropogenic aerosols in summertime climate change in europe
Pierre Nabat, Samuel Somot, Julien Bo \'e , Lola Corre, Eleni Katragkou, Shuping Li, Marc Mallet, Erik van Meijgaard, Vasileios Pavlidis, J-P Pietik \"a inen, et al. Multi-model assessment of the role of anthropogenic aerosols in summertime climate change in europe. Geophysical Research Letters, 52 0 (6): 0 e2024GL112474, 2025
work page 2025
-
[19]
The scenario model intercomparison project (scenariomip) for cmip6
Brian C O’Neill, Claudia Tebaldi, Detlef P van Vuuren, Veronika Eyring, Pierre Friedlingstein, George Hurtt, Reto Knutti, Elmar Kriegler, Jean-Francois Lamarque, Jason Lowe, et al. The scenario model intercomparison project (scenariomip) for cmip6. 2016
work page 2016
-
[20]
Osborne Reynolds. Iv. on the dynamical theory of incompressible viscous fluids and the determination of the criterion. Philosophical Transactions of the Royal Society of London, Series A: Containing Papers of a Mathematical or Physical Character, 0 (186): 0 123--164, 12 1895. ISSN 0264-3952. doi:10.1098/rsta.1895.0004. URL https://doi.org/10.1098/rsta.1895.0004
-
[21]
Multivariate stochastic bias corrections with optimal transport
Yoann Robin, Mathieu Vrac, Philippe Naveau, and Pascal Yiou. Multivariate stochastic bias corrections with optimal transport. Hydrology and Earth System Sciences, 23 0 (2): 0 773--786, 2019
work page 2019
-
[22]
Pedro M. M. Soares et al. Deep learning–based statistical downscaling of cmip6 climate projections. Geoscientific Model Development, 17: 0 229--247, 2024. doi:10.5194/gmd-17-229-2024
-
[23]
Anantha Narayanan Suresh Babu, Akhil Sadam, and Pierre FJ Lermusiaux. Guided unconditional and conditional generative models for super-resolution and inference of quasi-geostrophic turbulence. Journal of Advances in Modeling Earth Systems, 18 0 (3): 0 e2025MS005324, 2026
work page 2026
-
[24]
Claudia Teutschbein and Jan Seibert. Bias correction of regional climate model simulations for hydrological climate-change impact studies: Review and evaluation of different methods. Journal of Hydrology, 456: 0 12--29, 2012
work page 2012
-
[25]
Thomas Vandal, Evan Kodra, Sangram Ganguly, Andrew Michaelis, Ramakrishna Nemani, and Auroop R. Ganguly. Deepsd: Generating high resolution climate change projections through single image super-resolution. In Proceedings of the 23rd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, pages 1663--1672, 2017. doi:10.1145/3097983.3098004
-
[26]
A 50-year high-resolution atmospheric reanalysis over france with the safran system
Jean-Philippe Vidal, Eric Martin, Laurent Franchist \'e guy, Martine Baillon, and Jean-Michel Soubeyroux. A 50-year high-resolution atmospheric reanalysis over france with the safran system. International journal of climatology, 30 0 (11): 0 P--1627, 2010
work page 2010
-
[27]
Evaluation of cmip6 deck experiments with cnrm-cm6-1
Aurore Voldoire, David Saint-Martin, St \'e phane S \'e n \'e si, B Decharme, A Alias, Matthieu Chevallier, Jeanne Colin, J-F Gu \'e r \'e my, Martine Michou, M-P Moine, et al. Evaluation of cmip6 deck experiments with cnrm-cm6-1. Journal of Advances in Modeling Earth Systems, 11 0 (7): 0 2177--2213, 2019
work page 2019
-
[28]
Nonstationary bias correction of climate simulations using a multivariate approach
Mathieu Vrac and Petra Friederichs. Nonstationary bias correction of climate simulations using a multivariate approach. Journal of Climate, 28 0 (6): 0 2189--2204, 2015
work page 2015
-
[29]
Zhong Yi Wan, Ricardo Baptista, Yi-Fan Chen, John R. Anderson, Anudhyan Boral, Fei Sha, and Leonardo Zepeda-N \'u \ n ez. Debias coarsely, sample conditionally: Statistical downscaling through optimal transport and probabilistic diffusion models. arXiv preprint, 2023. arXiv:2305.15618
-
[30]
Process-based climate change assessment for european winds using euro-cordex and global models
Jan Wohland. Process-based climate change assessment for european winds using euro-cordex and global models. Environmental Research Letters, 17 0 (12): 0 124047, 2022
work page 2022
-
[31]
A multivariate bias correction method preserving rank structure and temporal dependence
Xuebin Zhang and Alex J Cannon. A multivariate bias correction method preserving rank structure and temporal dependence. Climate Dynamics, 56: 0 1--19, 2021
work page 2021
-
[32]
The australian earth system model: Access-esm1
Tilo Ziehn, Matthew A Chamberlain, Rachel M Law, Andrew Lenton, Roger W Bodman, Martin Dix, Lauren Stevens, Ying-Ping Wang, and Jhan Srbinovsky. The australian earth system model: Access-esm1. 5. Journal of Southern Hemisphere Earth Systems Science, 70 0 (1): 0 193--214, 2020
work page 2020
