arxiv: 2604.03522 · v1 · submitted 2026-04-04 · 💻 cs.CE

Recognition: no theorem link

Physics-Informed Transformer for Real-Time High-Fidelity Topology Optimization

Aaron Lutheran , Srijan Das , Alireza Tabarraei

Authors on Pith no claims yet

Pith reviewed 2026-05-13 17:15 UTC · model grok-4.3

classification 💻 cs.CE

keywords topology optimizationphysics-informed transformerreal-time structural designoperator learningfinite element analysismachine learning in engineeringstructural connectivity

0 comments

The pith

A physics-informed transformer learns a direct non-iterative mapping from boundary conditions and loads to optimized structural topologies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reframes topology optimization as an operator-learning task solved by a single forward pass through a transformer instead of repeated finite-element iterations. Traditional methods are limited by their iterative nature, which prevents real-time use and large-scale exploration of designs. The model encodes global parameters via conditioning tokens and physical fields as patch tokens, then applies auxiliary losses to enforce volume, load adherence, and connectivity constraints. Global self-attention captures long-range mechanical interactions that local convolutional models miss. If the approach holds, high-fidelity, manufacturable topologies become available instantly across static and dynamic loading cases.

Core claim

The proposed physics-informed transformer directly maps boundary conditions, loading configurations, and derived stress and strain energy fields to optimized topologies, achieving higher fidelity than diffusion models while using only one forward pass and auxiliary differentiable losses to satisfy volume, load, and connectivity requirements.

What carries the argument

Vision Transformer with conditioning tokens for global parameters and spatially distributed physical-field patch tokens, plus auxiliary losses enforcing physical and manufacturability constraints.

If this is right

Topology optimization becomes feasible as a real-time operation without iterative analysis.
Large-scale design exploration and dynamic loading cases are enabled through frequency-domain encoding and transfer learning.
Single-pass inference removes the computational bottleneck of repeated finite-element solves.
Structural connectivity and load adherence are maintained directly in the output without separate post-processing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The model could support interactive engineering tools in which loads are adjusted live and updated topologies appear immediately.
Patch-based encoding may scale to three-dimensional problems if training data and memory permit.
Routine optimization tasks could shift away from dedicated finite-element packages toward learned operators.

Load-bearing premise

The learned non-iterative mapping generalizes accurately to unseen boundary conditions, loading configurations, and problem sizes while the auxiliary losses enforce constraints without degrading solution quality or introducing artifacts.

What would settle it

Verification on a held-out set of novel boundary conditions showing that the generated topology violates equilibrium or connectivity when re-analyzed with a conventional finite-element solver.

Figures

Figures reproduced from arXiv: 2604.03522 by Aaron Lutheran, Alireza Tabarraei, Srijan Das.

**Figure 1.** Figure 1: Processing for the inputs of the structural optimization problem for a given problem with boundary conditions [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗

**Figure 2.** Figure 2: Transformer block architecture, which maps a set of input [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

**Figure 3.** Figure 3: Full proposed transformer architecture, including a separate treatment of the loading conditions and volume fraction from the stress and [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

**Figure 4.** Figure 4: Plot of the time sequence (a) and FFT amplitude transfor [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

**Figure 5.** Figure 5: Validation samples from the ViT Small model. From left to [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

**Figure 6.** Figure 6: Stress and strain over an optimized sample after loading. [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗

**Figure 7.** Figure 7: Peak stress and strain scatter plots for model topology and [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗

**Figure 8.** Figure 8: Select samples from the post-processing results for the ViT [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

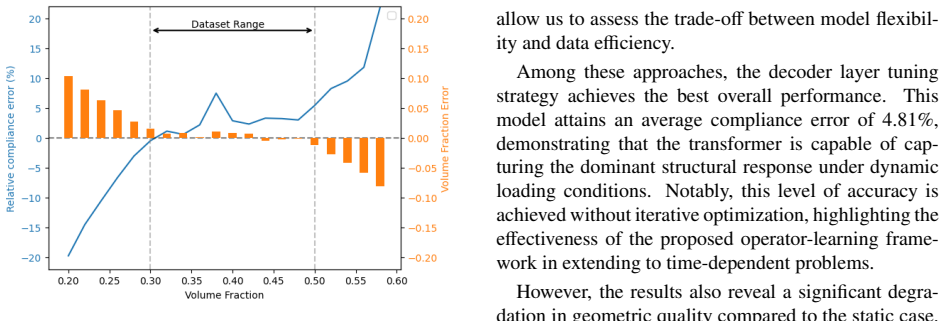

**Figure 9.** Figure 9: Within the training range (0.3–0.5), the model exhibits strong performance, with volume fraction errors remaining within 1–3% and compliance errors generally below 8%. This indicates that the model accurately tracks changes in prescribed material usage and produces structurally consistent designs when operating within the distribution it has learned. Outside the training range, however, systematic devi… view at source ↗

**Figure 9.** Figure 9: Compliance and volume fraction error results for the static [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗

**Figure 10.** Figure 10: Example topology with an out of distribution load condi [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗

**Figure 11.** Figure 11: Validation samples from the ViT Small model finetuned [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗

read the original abstract

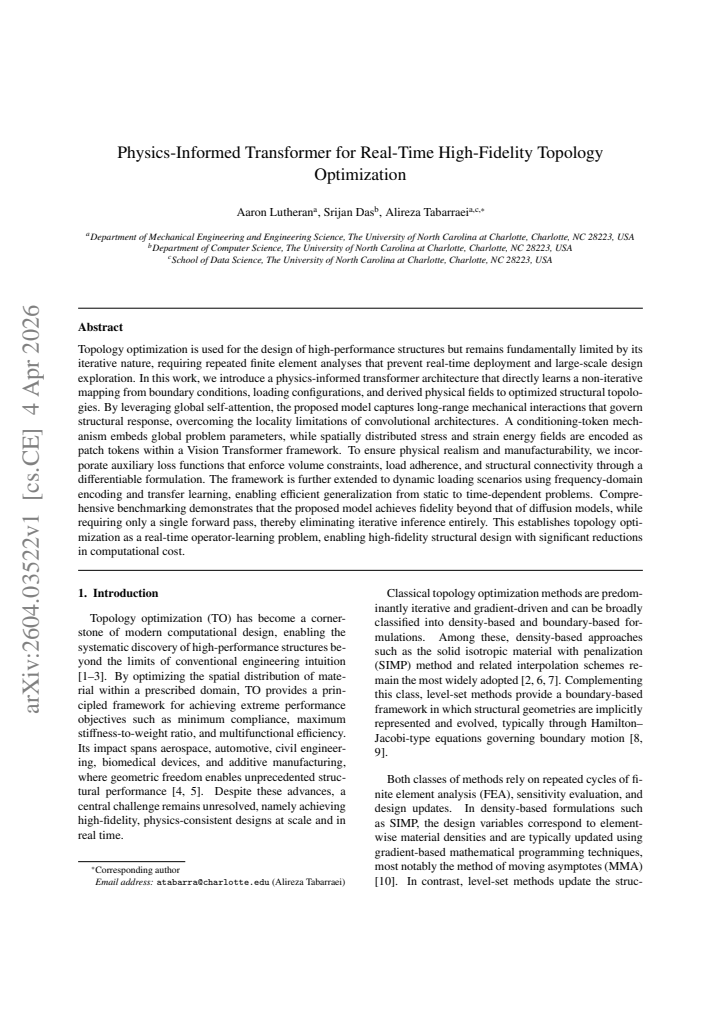

Topology optimization is used for the design of high-performance structures but remains fundamentally limited by its iterative nature, requiring repeated finite element analyses that prevent real-time deployment and large-scale design exploration. In this work, we introduce a physics-informed transformer architecture that directly learns a non-iterative mapping from boundary conditions, loading configurations, and derived physical fields to optimized structural topologies. By leveraging global self-attention, the proposed model captures long-range mechanical interactions that govern structural response, overcoming the locality limitations of convolutional architectures. A conditioning-token mechanism embeds global problem parameters, while spatially distributed stress and strain energy fields are encoded as patch tokens within a Vision Transformer framework. To ensure physical realism and manufacturability, we incorporate auxiliary loss functions that enforce volume constraints, load adherence, and structural connectivity through a differentiable formulation. The framework is further extended to dynamic loading scenarios using frequency-domain encoding and transfer learning, enabling efficient generalization from static to time-dependent problems. Comprehensive benchmarking demonstrates that the proposed model achieves fidelity beyond that of diffusion models, while requiring only a single forward pass, thereby eliminating iterative inference entirely. This establishes topology optimization as a real-time operator-learning problem, enabling high-fidelity structural design with significant reductions in computational cost.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper's conditioned Vision Transformer for single-pass topology optimization has a coherent architecture but the performance claims rest on missing quantitative evidence.

read the letter

The main thing here is an attempt to turn topology optimization into a learned single-forward-pass operator using a Vision Transformer that takes boundary conditions, loads, and derived stress/strain fields as input. The architecture adds global conditioning tokens and patch tokens for the physical fields, then layers on differentiable auxiliary losses for volume, load adherence, and connectivity. It also sketches an extension to dynamic problems via frequency encoding and transfer learning from static cases. That combination is the concrete new piece relative to prior physics-informed networks or plain diffusion approaches for the same task. The framing around long-range interactions via self-attention is reasonable and directly addresses a known limitation of convolutional baselines in mechanics problems. The loss formulation is a practical way to keep outputs manufacturable without separate post-processing steps. The soft spots sit in the validation. The abstract asserts higher fidelity than diffusion models and complete removal of iterative inference, yet supplies no error metrics, no ablation on the auxiliary terms, no scaling behavior with domain size, and no explicit checks on unseen load patterns or boundary conditions. If the auxiliary losses trade off against compliance or introduce artifacts outside the training distribution, the claimed real-time advantage does not hold. The stress-test concern about generalization therefore still stands on the evidence given. This is aimed at computational mechanics groups already using topology optimization who want faster design loops, or at scientific ML researchers looking for operator-learning examples in engineering. A reader with background in both areas can pull the tokenization and loss ideas even if the results section needs more work. I would bring it to a reading group to discuss the conditioning mechanism and loss weighting choices. It deserves peer review because the problem is genuine and the architecture is a coherent attempt, though any referee will almost certainly ask for the missing quantitative benchmarks and extrapolation tests.

Referee Report

3 major / 2 minor

Summary. The paper introduces a physics-informed transformer that learns a direct, non-iterative mapping from boundary conditions, loads, and derived stress/strain fields to optimized topologies. It uses global self-attention, conditioning tokens, patch-encoded physical fields in a ViT-style backbone, and auxiliary differentiable losses for volume, load adherence, and connectivity. The method is extended to dynamic problems via frequency-domain encoding and transfer learning, with the central claim that it delivers higher fidelity than diffusion models in a single forward pass.

Significance. If the performance claims are substantiated, the work would be significant for computational mechanics: it reframes topology optimization as a real-time operator-learning task, potentially enabling interactive design loops and large-scale exploration that are currently blocked by iterative FEA. The combination of global attention with physics-informed auxiliary losses offers a concrete route to enforce manufacturability without post-processing, and the transfer-learning extension to dynamics broadens applicability.

major comments (3)

[Abstract and §4] Abstract and §4 (Benchmarking): the assertion that the model 'achieves fidelity beyond that of diffusion models' is unsupported by any quantitative metrics (compliance error, volume deviation, structural similarity index, or runtime comparisons) or error bars; without these numbers the headline superiority claim cannot be evaluated.
[§3.3 and §4.2] §3.3 (Auxiliary Losses) and §4.2 (Generalization Tests): no ablation is presented that isolates the effect of the volume/load/connectivity losses versus a pure data-driven baseline, nor are extrapolation results shown for domain sizes, load patterns, or boundary conditions outside the training distribution; this directly bears on whether the single-pass advantage survives on unseen instances.
[§4.1] §4.1 (Training Details): the manuscript provides no dataset size, hyperparameter values for the loss weights, number of training epochs, or validation curves, leaving open the possibility that reported performance reflects overfitting or post-hoc selection rather than robust generalization.

minor comments (2)

[§3.2] §3.2: the precise definition and dimensionality of the global conditioning token relative to the patch tokens is not stated explicitly, which complicates reproduction of the architecture.
[Figure 3] Figure 3 caption: axis labels and color scales for the stress-field patches are missing, reducing clarity of the input encoding.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The comments highlight important areas for clarification and strengthening of the manuscript. We address each major comment below and will make the corresponding revisions.

read point-by-point responses

Referee: [Abstract and §4] Abstract and §4 (Benchmarking): the assertion that the model 'achieves fidelity beyond that of diffusion models' is unsupported by any quantitative metrics (compliance error, volume deviation, structural similarity index, or runtime comparisons) or error bars; without these numbers the headline superiority claim cannot be evaluated.

Authors: We agree that the superiority claim requires quantitative support. In the revised manuscript we will add a dedicated comparison table in §4 reporting compliance error, volume deviation, SSIM, and runtime metrics versus diffusion models, together with mean values and standard deviations computed over the test set. revision: yes
Referee: [§3.3 and §4.2] §3.3 (Auxiliary Losses) and §4.2 (Generalization Tests): no ablation is presented that isolates the effect of the volume/load/connectivity losses versus a pure data-driven baseline, nor are extrapolation results shown for domain sizes, load patterns, or boundary conditions outside the training distribution; this directly bears on whether the single-pass advantage survives on unseen instances.

Authors: We acknowledge that isolating the contribution of the auxiliary losses and testing extrapolation are necessary. We will add an ablation study in §4.2 that compares the full model against a pure data-driven baseline (identical architecture without the physics losses). We will also include new experiments on out-of-distribution cases (larger domains, unseen load patterns, and altered boundary conditions) with quantitative performance metrics. revision: yes
Referee: [§4.1] §4.1 (Training Details): the manuscript provides no dataset size, hyperparameter values for the loss weights, number of training epochs, or validation curves, leaving open the possibility that reported performance reflects overfitting or post-hoc selection rather than robust generalization.

Authors: We will expand §4.1 to report the exact training dataset size, the numerical values of all loss-weight hyperparameters, the number of training epochs, and will add validation-loss curves (either as a new figure or in the supplementary material) to document convergence behavior. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper presents an empirical machine-learning approach: a transformer is trained to learn a direct mapping from boundary conditions, loads, and physical fields to topologies, using auxiliary losses for constraints. No mathematical derivation chain exists that reduces any claimed prediction or result to its inputs by construction. There are no self-definitional equations, fitted parameters renamed as predictions, or load-bearing self-citations that force the central claims. Benchmarking results are presented as evidence rather than tautological outputs. The architecture and losses are standard empirical techniques without circular reduction.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The framework assumes standard supervised learning on data generated by conventional topology optimizers plus the existence of a learnable mapping from given fields to optimal topologies; no new physical entities are introduced.

free parameters (2)

loss weighting coefficients
Relative weights on fidelity, volume, load-adherence, and connectivity terms must be chosen or tuned to balance the objectives.
transformer hyperparameters
Number of layers, attention heads, patch size, and embedding dimension are selected to fit the training regime.

axioms (2)

domain assumption Precomputed stress and strain-energy fields plus boundary conditions contain sufficient information to determine the optimal topology.
Core premise enabling the direct mapping learned by the model.
domain assumption Differentiable formulations of volume, load adherence, and connectivity constraints can be enforced via auxiliary losses without compromising solution fidelity.
Assumption required for the physics-informed training to produce manufacturable designs.
