arxiv: 2604.04432 · v1 · submitted 2026-04-06 · 💻 cs.HC

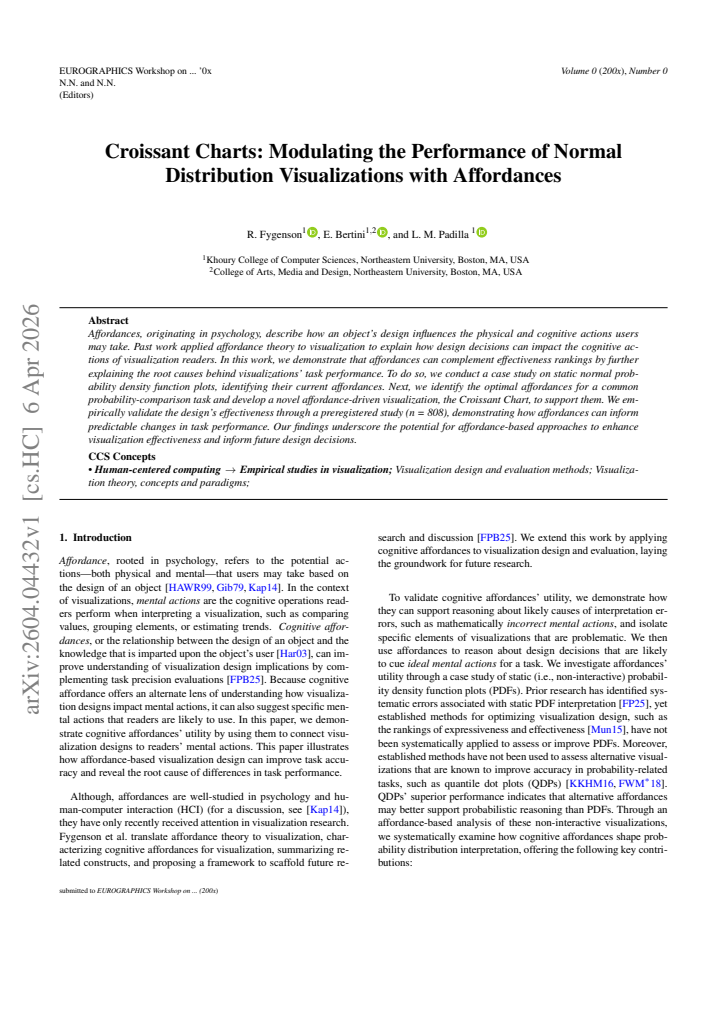

Croissant Charts: Modulating the Performance of Normal Distribution Visualizations with Affordances

Racquel Fygenson , Enrico Bertini , Lace M. Padilla This is my paper

Pith reviewed 2026-05-10 19:43 UTC · model grok-4.3

classification 💻 cs.HC
keywords affordancesvisualization designnormal distributionsprobability comparisonCroissant Charttask performancehuman-computer interactionempirical study
0
0 comments X

The pith

Affordances from psychology can be used to redesign normal distribution plots so that people compare probabilities more accurately and predictably.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that affordance theory, which explains how object design shapes possible actions, can explain and improve visualization performance beyond simple effectiveness rankings. After mapping the current affordances of static normal probability density plots, the authors identify the optimal affordances needed for a probability-comparison task and create a new design called the Croissant Chart to provide them. A preregistered study with 808 participants then tests whether this affordance-driven change produces measurable, predictable shifts in task performance. The results support the idea that deliberate affordance choices can modulate how well visualizations support specific cognitive actions. This case study illustrates a method for using affordance analysis to guide future visualization design decisions.

Core claim

By diagnosing the affordances present in conventional normal distribution visualizations and replacing them with affordances matched to a probability-comparison task, the Croissant Chart produces predictable improvements in reader performance, as confirmed by a large-scale preregistered experiment.

What carries the argument

The Croissant Chart, a static visualization that implements a specific set of affordances identified as optimal for comparing probabilities between normal distributions.

If this is right

  • Affordance analysis can be added to existing visualization evaluation methods to explain why particular designs succeed or fail on specific tasks.
  • Visualization designers can use affordance identification as a systematic step before creating or revising charts for common tasks such as probability comparison.
  • Changes to a visualization's affordances can be expected to produce corresponding, measurable changes in task performance.
  • The approach demonstrated here can be applied to other visualization types and tasks to produce more targeted design improvements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Affordance-driven redesign might reduce the need for purely empirical trial-and-error in visualization creation by offering a theory-based starting point.
  • The method could help unify separate lines of work on visualization effectiveness and cognitive psychology by treating affordances as a shared explanatory layer.
  • If the pattern holds, guidelines for common tasks could eventually list recommended affordances rather than prescribing fixed chart types.

Load-bearing premise

That the affordances diagnosed as optimal for the probability-comparison task from prior work are correctly identified and that the Croissant Chart implements them without introducing new unintended cognitive costs or mismatches.

What would settle it

A direct replication of the 808-participant study in which the Croissant Chart shows no improvement or even worse accuracy and response times compared with standard normal density plots would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.04432 by Enrico Bertini, Lace M. Padilla, Racquel Fygenson.

Figure 1
Figure 1. Figure 1: Top: The task we test. Bottom: PDFs’ afforded mental actions from our pilot study. Some actions yield correct results for equal-area PDFs (left), but not for equal-height PDFs (right). See Section 3.1 for more detail. tions are much narrower (i.e., have lower standard deviation) than others (see [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Why would someone scale PDFs to equal-heights? (a) different variances can cause overlap and occlusion (b) separating them requires more space (c) equal-height scaling yields a com￾pact, statistically correct figure. vated by these results, we examine the utility of affordance theory, as discussed in Section 2.1, in evaluating equal-height PDFs and designing alternate visualizations. To do so, we proceeded… view at source ↗
Figure 3
Figure 3. Figure 3: QDPs’ afforded mental actions from our pilot study. submitted to EUROGRAPHICS Workshop on ... (200x) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Croissant charts’ intended affordances. PDF shape for expressiveness. Minimal slices with gaps afford continuity and parts of a whole. Dots afford counting and equality across slices. Affording counting parts of a whole. To afford counting strate￾gies, we used two approaches: spatial subdivision and marks that encourage counting. Subdivision cuts single shapes into multiple parts to communicate that the pa… view at source ↗
Figure 5
Figure 5. Figure 5: Stimuli overview. Left: Between-subjects; different visu￾alization techniques (PDF, QDP, Croissant-10, Croissant-20) un￾der two scaling conditions (Equal Area, Equal Height). Right: within-subjects; standard deviation pairs and position variations. 3.5. Experimental Design We designed a 4 (Visualization) × 2 (Scaling) × 4 (SD Pairs) × 2 (Position) mixed-subjects design (see [PITH_FULL_IMAGE:figures/full_f… view at source ↗
Figure 6
Figure 6. Figure 6: Posteriors of Eq. 1 show that QDPs are robust to equal￾height scaling and perform best across most conditions except the 4.5 v 5 SD comparison, where they perform the worst. Equal￾height croissant charts outperform equal-height PDFs. Distribu￾tions show posterior predicted probabilities of correct responses, transformed from log-odds for interpretability. Black dots and lines show mean predicted probabilit… view at source ↗
Figure 7
Figure 7. Figure 7: Equal-height Croissant-10s and QDPs with an SD of 4.5 (tops) and an SD of 5 (bottoms). Results show that Croissant-10s afford inter-edge interpolation much more than QDPs. submitted to EUROGRAPHICS Workshop on ... (200x) [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Percent of each visualization that led to each strategy (columns) across tested visualizations (rows). Strategies are not mutually exclusive so rows and columns may not equal 100%. submitted to EUROGRAPHICS Workshop on ... (200x) [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
read the original abstract

Affordances, originating in psychology, describe how an object's design influences the physical and cognitive actions users may take. Past work applied affordance theory to visualization to explain how design decisions can impact the cognitive actions of visualization readers. In this work, we demonstrate that affordances can complement effectiveness rankings by further explaining the root causes behind visualizations' task performance. To do so, we conduct a case study on static normal probability density function plots, identifying their current affordances. Next, we identify the optimal affordances for a common probability-comparison task and develop a novel affordance-driven visualization, the Croissant Chart, to support them. We empirically validate the design's effectiveness through a preregistered study (n = 808), demonstrating how affordances can inform predictable changes in task performance. Our findings underscore the potential for affordance-based approaches to enhance visualization effectiveness and inform future design decisions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper claims that affordance theory from psychology can be applied to visualization design to explain and predict task performance differences in normal probability density function plots. It identifies current affordances in such plots, determines optimal affordances for a probability-comparison task, introduces a novel 'Croissant Chart' visualization designed to support those affordances, and validates the approach via a preregistered user study with n=808 participants showing predictable performance modulation.

Significance. If the empirical validation holds and the performance changes can be causally attributed to the targeted affordances, this work could meaningfully extend visualization research by offering a complementary theoretical lens to effectiveness rankings, enabling more principled design decisions for common statistical visualizations. The preregistered study with substantial sample size is a positive indicator of rigor in the empirical component.

major comments (3)
  1. [Methods] Methods section (study design and stimuli): The description does not include sufficient detail on control conditions, baseline visualizations, or explicit validation steps confirming that the Croissant Chart implements the diagnosed optimal affordances without introducing confounding visual or structural differences (e.g., altered curve shapes or added elements). This leaves open alternative explanations for any observed task-performance shifts.
  2. [Results] Results and analysis: The reported performance changes lack accompanying tests or comparisons (such as effect size breakdowns or ablation-style controls) that would isolate the contribution of the specific affordances from incidental design changes, undermining the central claim that affordances 'inform predictable changes' rather than other factors.
  3. [Design] Design rationale section: There is no explicit, itemized mapping between the affordances identified from prior work and the specific visual elements of the Croissant Chart, making it difficult to assess whether the implementation accurately targets the intended cognitive actions or risks task mismatches.
minor comments (2)
  1. [Abstract] The abstract could more precisely define the probability-comparison task and the exact performance metrics (e.g., accuracy, response time) used in the study.
  2. [Figures] Figure captions for the Croissant Chart and baseline plots should include more detail on how they differ visually to aid reader comprehension.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. We appreciate the opportunity to clarify aspects of our work and strengthen the manuscript. Below we respond point-by-point to the major comments, indicating planned revisions where appropriate.

read point-by-point responses

  1. Referee: [Methods] Methods section (study design and stimuli): The description does not include sufficient detail on control conditions, baseline visualizations, or explicit validation steps confirming that the Croissant Chart implements the diagnosed optimal affordances without introducing confounding visual or structural differences (e.g., altered curve shapes or added elements). This leaves open alternative explanations for any observed task-performance shifts.

    Authors: We agree that additional methodological detail will improve transparency. In the revised manuscript we will expand the study design and stimuli subsection to explicitly describe the control conditions (standard normal PDF plots) and baseline visualizations. We will also add a dedicated paragraph on validation steps, including pilot testing and review procedures used to confirm that the Croissant Chart targets the intended affordances while preserving curve shape and avoiding extraneous structural changes. These additions will help address potential alternative explanations. revision: yes

  2. Referee: [Results] Results and analysis: The reported performance changes lack accompanying tests or comparisons (such as effect size breakdowns or ablation-style controls) that would isolate the contribution of the specific affordances from incidental design changes, undermining the central claim that affordances 'inform predictable changes' rather than other factors.

    Authors: We acknowledge the value of stronger isolation of effects. The preregistered study already includes direct comparisons against baseline visualizations, which supports attribution to the targeted design changes. In revision we will add effect-size breakdowns (Cohen’s d and confidence intervals) for all reported performance differences. A full ablation study was outside the original preregistered scope and would require new data collection; we will therefore note this limitation while clarifying how the existing between-condition contrasts help separate affordance-driven effects from incidental factors. revision: partial

  3. Referee: [Design] Design rationale section: There is no explicit, itemized mapping between the affordances identified from prior work and the specific visual elements of the Croissant Chart, making it difficult to assess whether the implementation accurately targets the intended cognitive actions or risks task mismatches.

    Authors: We will revise the design rationale section to include an explicit itemized mapping. This will take the form of a structured table or numbered list that directly connects each affordance drawn from prior work to the corresponding visual element(s) in the Croissant Chart (e.g., the asymmetric curve shape supporting probability-comparison actions). The addition will make the alignment with intended cognitive actions transparent and allow readers to evaluate potential task mismatches. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical validation is independent of design inputs

full rationale

The paper's chain consists of (1) identifying affordances in existing normal-distribution plots from prior literature, (2) selecting optimal affordances for a probability-comparison task, (3) constructing the Croissant Chart to realize those affordances, and (4) testing the resulting design in a preregistered between-subjects study (n=808). None of these steps reduces to a fitted parameter, self-referential definition, or self-citation chain that is itself unverified; the performance claims rest on fresh participant data collected after the design was fixed. No equations, predictions, or uniqueness theorems are invoked that loop back to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the applicability of affordance theory from psychology to visualization design and on the assumption that the chosen probability-comparison task is representative; no free parameters or invented physical entities are involved.

axioms (1)
  • domain assumption Affordance theory from psychology can be directly applied to explain and predict cognitive actions in visualization reading.
    Invoked in the opening paragraphs to justify identifying current affordances of normal PDF plots and designing the Croissant Chart.
invented entities (1)
  • Croissant Chart no independent evidence
    purpose: A novel static visualization that implements optimal affordances for probability comparison tasks on normal distributions.
    Introduced as the main design contribution; no independent evidence outside the paper is provided.
