arxiv: 2604.04538 · v1 · submitted 2026-04-06 · ⚛️ physics.soc-ph

Disentangling Large-Scale Supply Networks: f-HiCoNE Framework for Flow-Hierarchical Clustering via Combinatorial Hodge Decomposition

Taiyo Nakatani , Takaaki Aoki This is my paper

Pith reviewed 2026-05-10 19:31 UTC · model grok-4.3

classification ⚛️ physics.soc-ph
keywords supply chain networksflow-hierarchical clusteringcombinatorial Hodge decompositioninter-firm transactionsacyclic gradient flowindustrial ecosystemsnetwork partitioning
0
0 comments X

The pith

Combinatorial Hodge decomposition isolates acyclic flows in transaction networks to extract flow-hierarchical supply chain clusters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces the f-HiCoNE framework to handle the fact that real inter-firm transaction networks contain many cycles even though supply chains are conceptually hierarchical. Combinatorial Hodge decomposition separates the network flow into an acyclic gradient component that quantifies upstream-downstream order. This component is then used to partition the graph into clusters. When applied to a dataset covering roughly 650,000 firms, the resulting clusters show clear hierarchical organisation captured by local scalar potentials and correspond to geographically localised industrial ecosystems. A reader would care because the method supplies a concrete way to recover latent hierarchy from otherwise entangled large-scale transaction data.

Core claim

By applying combinatorial Hodge decomposition to inter-firm transaction graphs, the f-HiCoNE framework isolates the acyclic gradient flow, quantifies the flow-hierarchical parts, and partitions the graph into functional supply-chain clusters. In a nationwide dataset of approximately 650,000 firms these clusters exhibit strong flow-hierarchical organisation, with upstream-downstream positioning of firms accurately captured by local scalar potentials, revealing distinct geographically localised industrial ecosystems.

What carries the argument

combinatorial Hodge decomposition on the transaction graph, which isolates the acyclic gradient flow component used to quantify hierarchy and perform the partitioning.

If this is right

  • The framework partitions massive cyclic transaction networks into clusters that preserve upstream-downstream order.
  • Scalar potentials derived from the gradient flow give a quantitative measure of each firm's position in the hierarchy.
  • The resulting clusters correspond to geographically localised industrial ecosystems.
  • The approach supplies firms with a map of their position within the larger inter-firm network.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same decomposition could be applied to other large directed networks where an underlying acyclic structure is suspected beneath cycles.
  • If the scalar potentials prove stable under removal of individual edges, the hierarchy may reflect robust economic dependencies rather than data noise.
  • Extending the method to time-varying transaction data could reveal how hierarchical clusters evolve during economic shocks.

Load-bearing premise

That the acyclic gradient flow isolated by the decomposition corresponds to meaningful real-world supply-chain hierarchy rather than an artifact of preprocessing or the decomposition itself.

What would settle it

Check whether the extracted local scalar potentials correlate with independent indicators of firm position such as known production stages or supplier-customer links in a held-out validation subset of firms.

Figures

Figures reproduced from arXiv: 2604.04538 by Taiyo Nakatani, Takaaki Aoki.

Figure 1
Figure 1. Figure 1: (A) The concept of supply chain emphasizes a hierarchical, ordered flow from upstream suppliers through intermediate stages to downstream assemblers. (B) Real-world inter-firm data rarely resembles an acyclic, flow-hierarchical structure. (C) We propose flow-Hierarchical clustering to recover the hierarchical tiers and upstream–downstream positioning of individual firms within the clusters. However, supply… view at source ↗
Figure 2
Figure 2. Figure 2: Combinatorial Hodge decomposition isolates the acyclic component from a given inter-firm [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The flow-Hierarchical Community Network Extraction (f-HiCoNE) algorithm. The process consists of three stages: (Step 1) Quantifying the connection strength of firms with the acyclic flow to define new edge weights wij ; (Step 2) Partitioning the graph G(V, E, W) into clusters dominated by the acyclic flow using these weights; and (Step 3) Calculating the scalar potential within each extracted cluster to de… view at source ↗
Figure 4
Figure 4. Figure 4: Characteristics of extracted flow-hierarchical clusters. (A) Cluster sizes (number of firms). (B) Distribution of the coefficient of determination, R2 . The red vertical line indicates the R2 of the entire network. gradient component obtained this decomposition. By replacing the original edge flows Y with W, we obtain an undirected, weighted graph G′(V, E, W). Step 2 extracts flow-hierarchical clusters fro… view at source ↗
Figure 5
Figure 5. Figure 5: Industrial and geographical characteristics of Cluster 1. (A) Industrial composition visualised as a treemap, grouped by JSIC 2-digit sectors. Rectangle area is proportional to the sector’s total transaction amount within the cluster, and colour represents the median of the scalar potentials (red: upstream/high potential; blue: downstream/low potential). (B) Relative geographical density of firm headquarte… view at source ↗
Figure 6
Figure 6. Figure 6: Industrial and geographic characteristics of Cluster 2. Panels (A)–(B) and the visual encodings are defined as in [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Industrial and geographic characteristics of Cluster 3. Panels (A)–(B) and the visual encodings are defined as in [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Industrial and geographic characteristics of Cluster 4. Panels [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Industrial and geographic characteristics of Cluster 5. Panels [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Industrial and geographic characteristics of Cluster 6. Panels [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Industrial and geographic characteristics of Cluster 7. Panels [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Industrial and geographic characteristics of Cluster 8. Panels [PITH_FULL_IMAGE:figures/full_fig_p017_12.png] view at source ↗
Figure 13

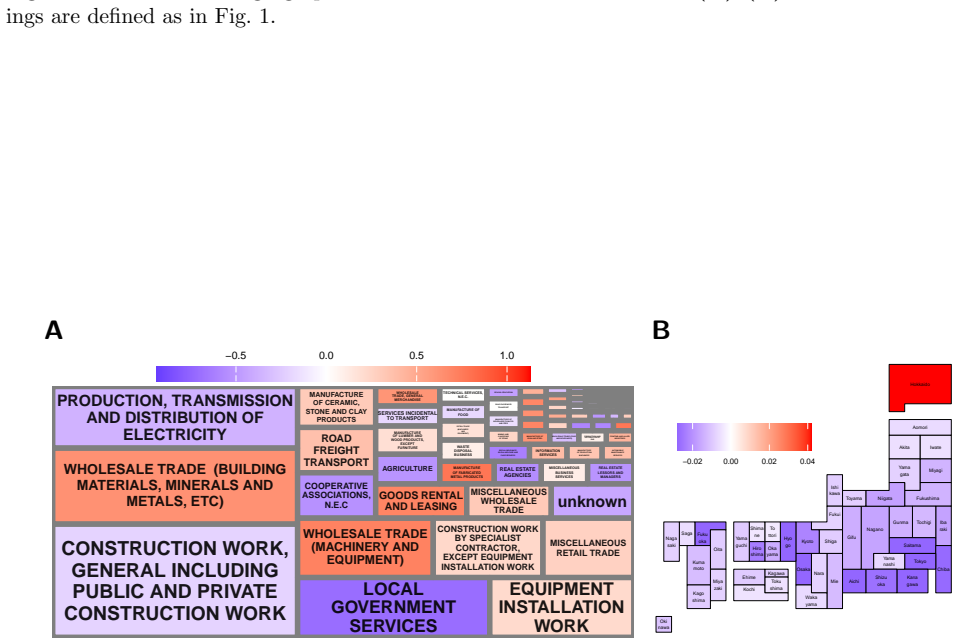

Figure 13. Figure 13: Industrial and geographic characteristics of Cluster 9. Panels [PITH_FULL_IMAGE:figures/full_fig_p017_13.png] view at source ↗
Figure 14

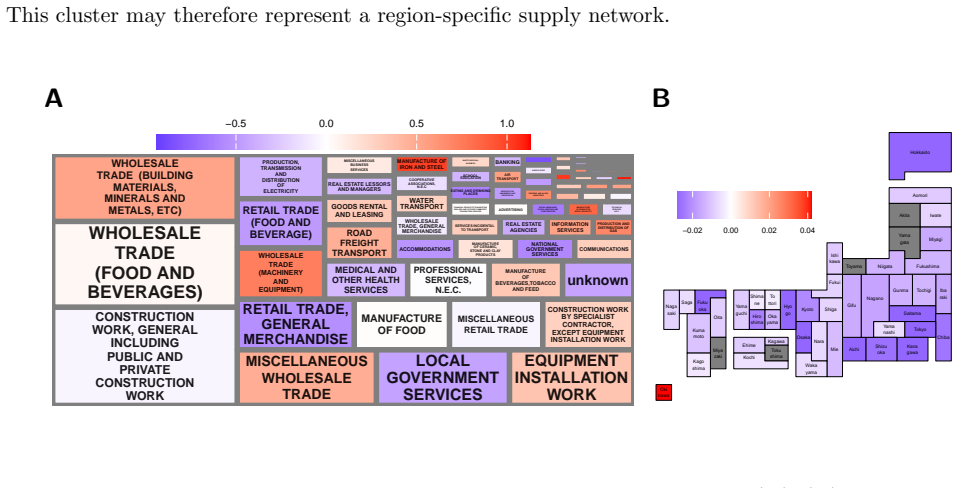

Figure 14. Figure 14: Industrial and geographic characteristics of Cluster 10. Panels [PITH_FULL_IMAGE:figures/full_fig_p018_14.png] view at source ↗
Figure 15

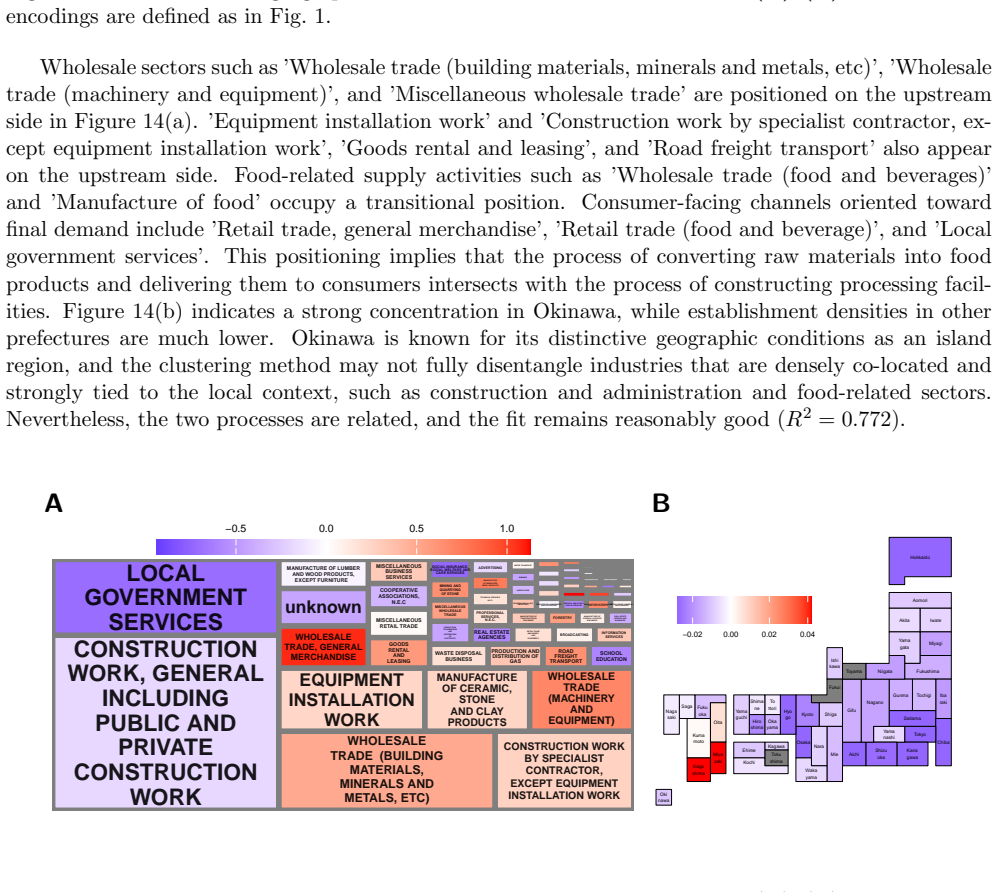

Figure 15. Figure 15: Industrial and geographic characteristics of Cluster 11. Panels [PITH_FULL_IMAGE:figures/full_fig_p018_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Industrial and geographic characteristics of Cluster 12. Panels [PITH_FULL_IMAGE:figures/full_fig_p019_16.png] view at source ↗
Figure 17

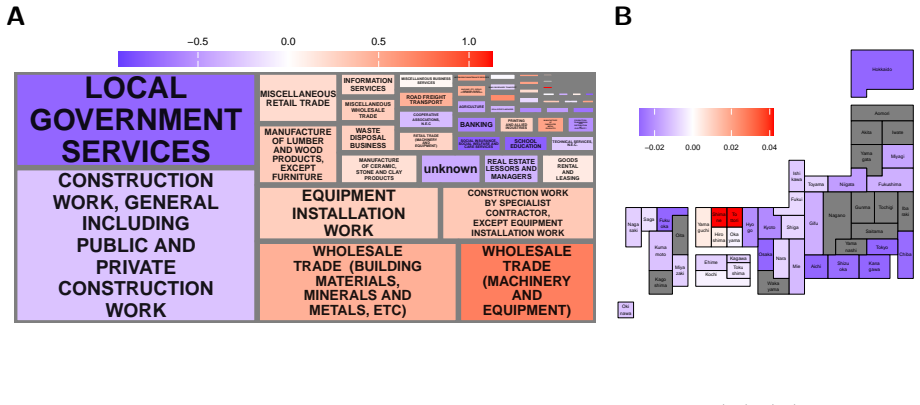

Figure 17. Figure 17: Industrial and geographic characteristics of Cluster 13. Panels [PITH_FULL_IMAGE:figures/full_fig_p020_17.png] view at source ↗
Figure 18

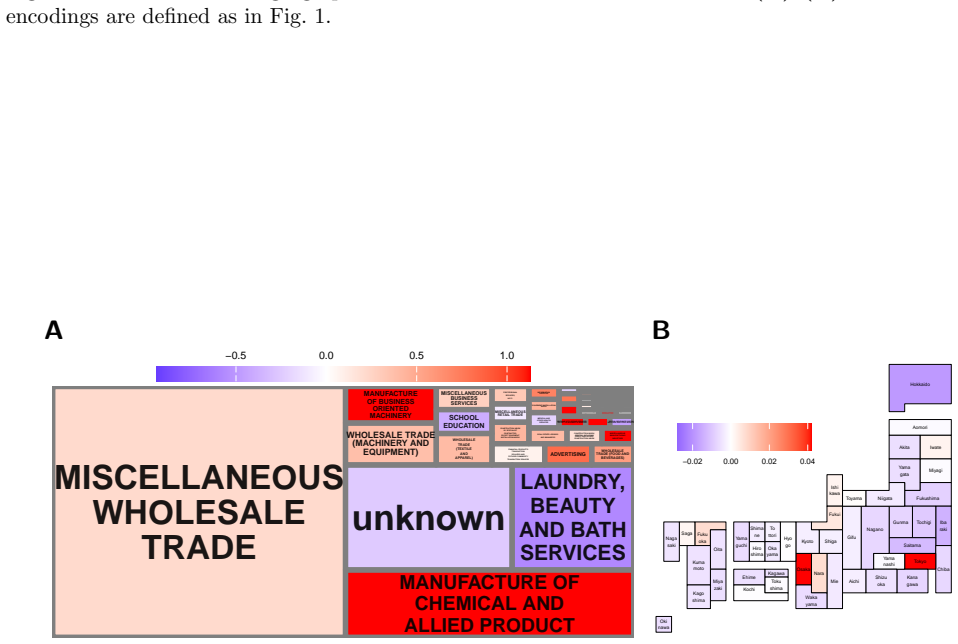

Figure 18. Figure 18: Industrial and geographic characteristics of Cluster 14. Panels [PITH_FULL_IMAGE:figures/full_fig_p020_18.png] view at source ↗
Figure 19

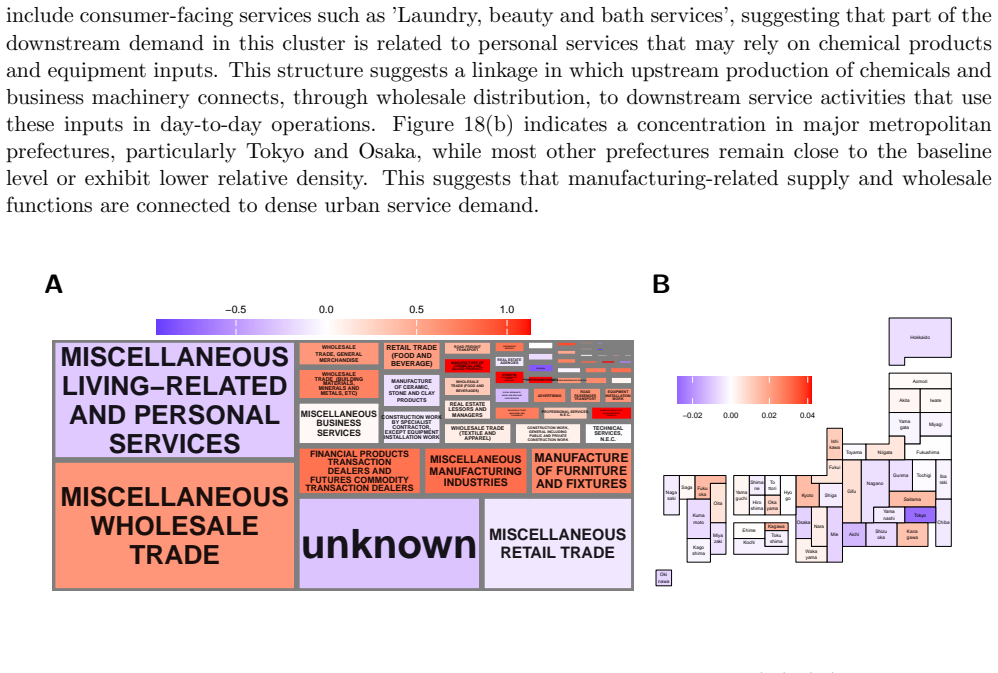

Figure 19. Figure 19: Industrial and geographic characteristics of Cluster 15. Panels [PITH_FULL_IMAGE:figures/full_fig_p021_19.png] view at source ↗
Figure 20

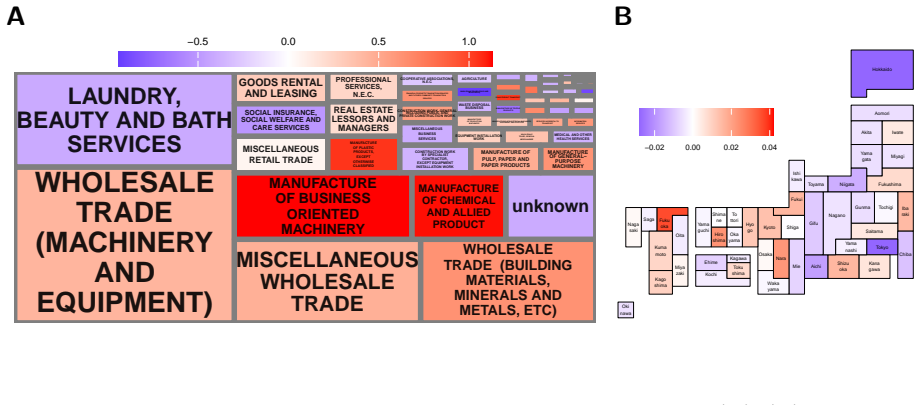

Figure 20. Figure 20: Industrial and geographic characteristics of Cluster 16. Panels [PITH_FULL_IMAGE:figures/full_fig_p022_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Industrial and geographic characteristics of Cluster 17. Panels [PITH_FULL_IMAGE:figures/full_fig_p022_21.png] view at source ↗
Figure 22

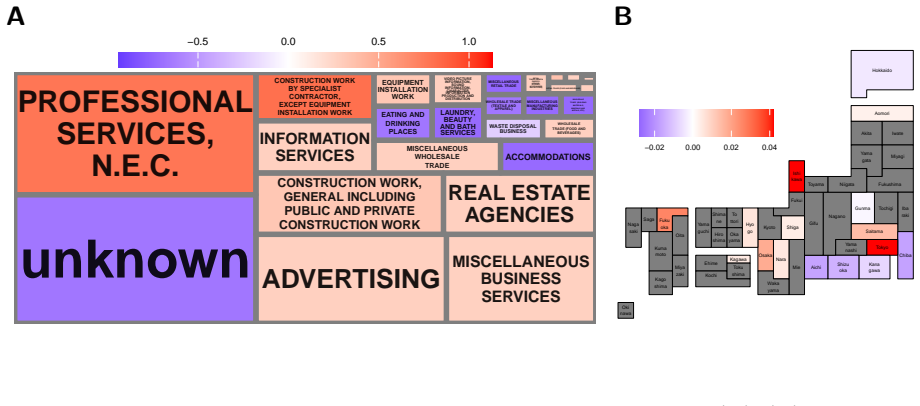

Figure 22. Figure 22: Industrial and geographic characteristics of Cluster 18. Panels [PITH_FULL_IMAGE:figures/full_fig_p023_22.png] view at source ↗
Figure 23

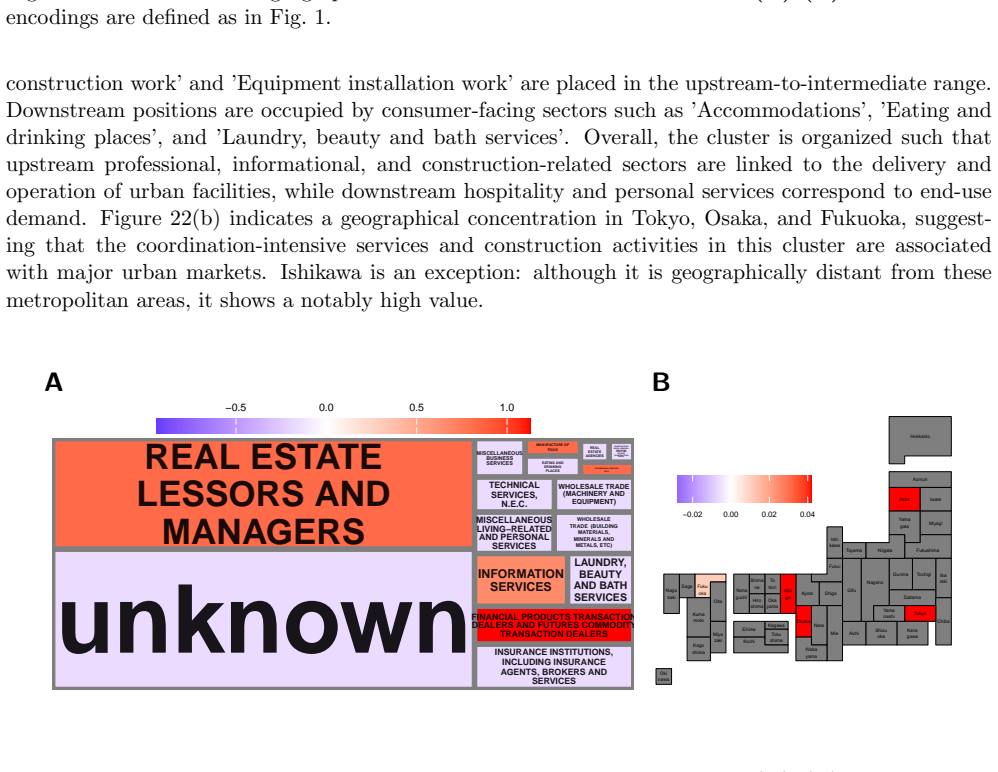

Figure 23. Figure 23: Industrial and geographic characteristics of Cluster 19. Panels [PITH_FULL_IMAGE:figures/full_fig_p023_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: Industrial and geographic characteristics of Cluster 20. Panels [PITH_FULL_IMAGE:figures/full_fig_p024_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: Industrial and geographic characteristics of Cluster 21. Panels [PITH_FULL_IMAGE:figures/full_fig_p024_25.png] view at source ↗
Figure 26
Figure 26. Figure 26: Industrial and geographic characteristics of Cluster 22. Panels [PITH_FULL_IMAGE:figures/full_fig_p025_26.png] view at source ↗
Figure 27
Figure 27. Figure 27: Industrial and geographic characteristics of Cluster 23. Panels [PITH_FULL_IMAGE:figures/full_fig_p025_27.png] view at source ↗
Figure 28
Figure 28. Figure 28: Industrial and geographic characteristics of Cluster 24. Panels [PITH_FULL_IMAGE:figures/full_fig_p026_28.png] view at source ↗
Figure 29
Figure 29. Figure 29: Industrial and geographic characteristics of Cluster 25. Panels [PITH_FULL_IMAGE:figures/full_fig_p026_29.png] view at source ↗
Figure 30
Figure 30. Figure 30: Industrial and geographic characteristics of Cluster 26. Panels [PITH_FULL_IMAGE:figures/full_fig_p027_30.png] view at source ↗
Figure 31

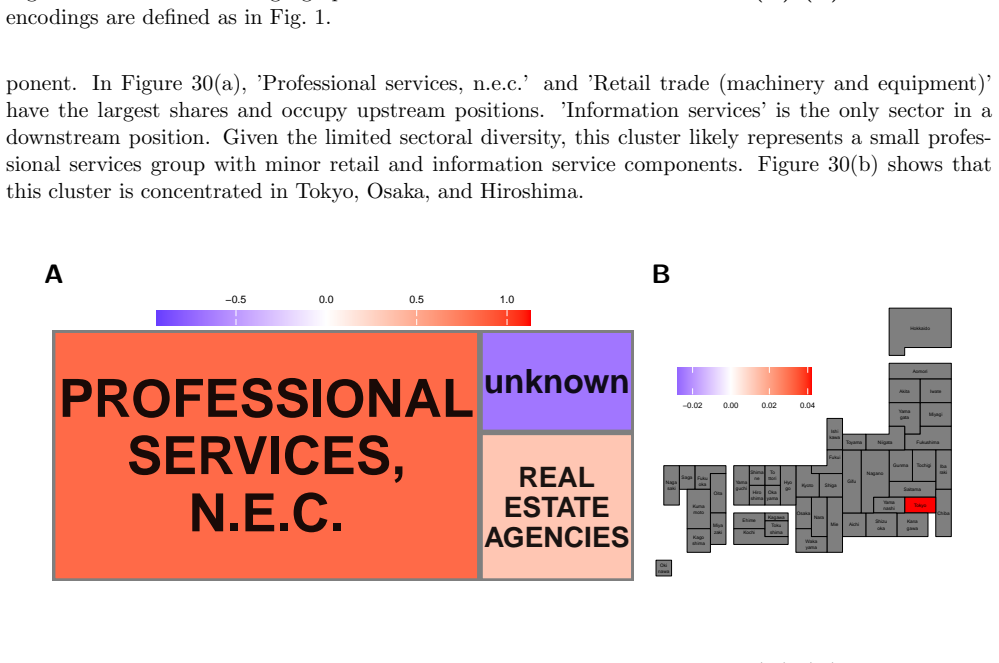

Figure 31. Figure 31: Industrial and geographic characteristics of Cluster 27. Panels [PITH_FULL_IMAGE:figures/full_fig_p027_31.png] view at source ↗
read the original abstract

Modern society relies on complex supply chains to sustain the flow of goods and services that are essential to daily life. While traditional supply chain theory assumes a clear, hierarchical flow from upstream suppliers to downstream customers, observable real-world transaction networks rarely exhibit this acyclic structure. Instead, detailed inter-firm data reveal that interwoven networks are heavily entangled by cyclic flows. Consequently, without appropriate partitioning of these massive inter-firm networks, the latent flow-hierarchical structures that are central to supply chain concepts remain obscure. To address this analytical challenge, we introduce the flow-Hierarchical Community Network Extraction (f-HiCoNE) framework. By applying combinatorial Hodge decomposition, this approach disentangles the complex inter-firm network by isolating the acyclic gradient flow to quantify the flow-hierarchical parts and partition the graph. By applying f-HiCoNE to a nationwide transaction dataset of approximately 650,000 firms, we successfully extracted functional supply-chain clusters. These clusters demonstrated strong flow-hierarchical organisation, wherein the upstream-downstream positioning of firms was accurately captured by local scalar potentials, revealing distinct geographically localised industrial ecosystems. This study provides a map that helps firms understand their surrounding environment and locate their position within an inter-firm network and opens a new research avenue focused on flow-hierarchy clustering in supply chain analysis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The paper introduces the f-HiCoNE framework, which applies combinatorial Hodge decomposition to large directed transaction graphs to isolate the acyclic gradient flow component. This yields a scalar potential used to quantify flow hierarchy and extract supply-chain clusters. Applied to a nationwide dataset of ~650,000 firms, the authors claim the resulting clusters exhibit strong flow-hierarchical organization, with local potentials accurately capturing upstream-downstream firm positioning and revealing geographically localized industrial ecosystems.

Significance. If externally validated, the framework would supply a mathematically principled method for disentangling cyclic flows in economic networks and recovering latent hierarchy, extending combinatorial Hodge theory to supply-chain analysis and offering practical mapping tools for firms. The scale of the real-world application is a positive feature, but the current lack of quantitative validation metrics or baseline comparisons substantially limits demonstrated significance.

major comments (3)
  1. Abstract: the central claim that 'the upstream-downstream positioning of firms was accurately captured by local scalar potentials' is presented without any validation metrics, baseline comparisons, error analysis, or description of how post-decomposition clustering decisions were made. This absence directly undermines assessment of the 'successful extraction' and 'strong flow-hierarchical organisation' assertions.
  2. The gradient component is acyclic by construction of the orthogonal decomposition; the manuscript therefore needs to show that the resulting potentials align with independent economic indicators of hierarchy (e.g., known supplier-customer relations or industry classifications) rather than reflecting an imposed feature of the projection or preprocessing. No such external alignment test is described.
  3. The weakest assumption—that the isolated acyclic gradient flow corresponds to meaningful real-world supply-chain hierarchy—is load-bearing for the interpretation of the clusters as 'functional' and 'geographically localised industrial ecosystems,' yet remains untested against alternative explanations such as data encoding choices (gross vs. net volumes).

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which highlight important aspects of validation and interpretation. We agree that additional quantitative support and explicit discussion of assumptions will strengthen the manuscript. We will incorporate revisions to address these points while preserving the core contribution of applying combinatorial Hodge decomposition to disentangle supply networks. Our point-by-point responses follow.

read point-by-point responses

  1. Referee: Abstract: the central claim that 'the upstream-downstream positioning of firms was accurately captured by local scalar potentials' is presented without any validation metrics, baseline comparisons, error analysis, or description of how post-decomposition clustering decisions were made. This absence directly undermines assessment of the 'successful extraction' and 'strong flow-hierarchical organisation' assertions.

    Authors: We acknowledge that the abstract is highly condensed and does not reference the supporting analyses. The full manuscript presents the alignment through visualizations of scalar potentials overlaid on transaction flows, cluster coherence based on intra-cluster flow directionality, and geographic consistency checks. To address the concern directly, we will revise the abstract to include a brief statement on the validation approach and clustering procedure (e.g., potential thresholding and modularity on the gradient component). We will also expand the methods section with a short description of how post-decomposition decisions were made. revision: yes

  2. Referee: The gradient component is acyclic by construction of the orthogonal decomposition; the manuscript therefore needs to show that the resulting potentials align with independent economic indicators of hierarchy (e.g., known supplier-customer relations or industry classifications) rather than reflecting an imposed feature of the projection or preprocessing. No such external alignment test is described.

    Authors: We agree that alignment with external indicators is necessary to establish economic meaning beyond the mathematical construction. The manuscript already shows that the extracted potentials produce geographically localized clusters consistent with known industrial districts and that potential values correlate with firm attributes such as sector and transaction volume. However, we did not report explicit quantitative correlations with independent supplier lists. In revision we will add a dedicated subsection presenting Spearman correlations between local potentials and industry classifications plus a comparison against a simple baseline (e.g., degree-based ranking), thereby providing the requested external validation. revision: yes

  3. Referee: The weakest assumption—that the isolated acyclic gradient flow corresponds to meaningful real-world supply-chain hierarchy—is load-bearing for the interpretation of the clusters as 'functional' and 'geographically localised industrial ecosystems,' yet remains untested against alternative explanations such as data encoding choices (gross vs. net volumes).

    Authors: This is a fair observation on the interpretive step. The framework isolates the gradient component precisely to recover the hierarchical signal that traditional cycle-heavy graphs obscure; the resulting clusters' strong geographic localization and flow-direction consistency provide supporting evidence for the supply-chain interpretation. We performed robustness checks on edge thresholding but did not explicitly contrast gross versus net transaction volumes. We will add a limitations paragraph discussing this assumption, including why the orthogonal decomposition mitigates preprocessing artifacts, and note that gross/net sensitivity can be explored in future work with alternative datasets. We therefore revise partially by expanding the discussion rather than performing an entirely new experiment. revision: partial

Circularity Check

1 steps flagged

Scalar potentials from Hodge decomposition define flow hierarchy by construction

specific steps
  1. self definitional [Abstract]
    "These clusters demonstrated strong flow-hierarchical organisation, wherein the upstream-downstream positioning of firms was accurately captured by local scalar potentials, revealing distinct geographically localised industrial ecosystems."

    The local scalar potentials are obtained directly from the gradient component of the combinatorial Hodge decomposition applied to the same transaction graph. By the properties of the decomposition, this component is always acyclic and equals the discrete gradient of a scalar function; therefore the claim that the potentials 'accurately capture' upstream-downstream positioning is equivalent to the mathematical definition of the extracted flow rather than a separate validation.

full rationale

The paper's central result applies combinatorial Hodge decomposition to isolate an acyclic gradient flow on the transaction graph and interprets the resulting node potentials as capturing real upstream-downstream supply-chain positioning. Because the gradient component is mathematically guaranteed to be acyclic and exactly representable as potential differences (by the definition of the orthogonal decomposition), the reported 'accurate capture' of hierarchy reduces directly to the input projection rather than an independent empirical finding. The abstract provides the load-bearing claim but no external alignment check against known supply-chain data is quoted. This produces moderate circularity confined to the interpretation step; the clustering algorithm itself remains a non-circular application of the decomposition.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the applicability of combinatorial Hodge decomposition to directed transaction graphs and on the interpretation of the resulting gradient potentials as upstream-downstream positions; no explicit free parameters, ad-hoc axioms, or new entities are stated in the abstract.

pith-pipeline@v0.9.0 · 5544 in / 1141 out tokens · 59599 ms · 2026-05-10T19:31:37.793999+00:00 · methodology
