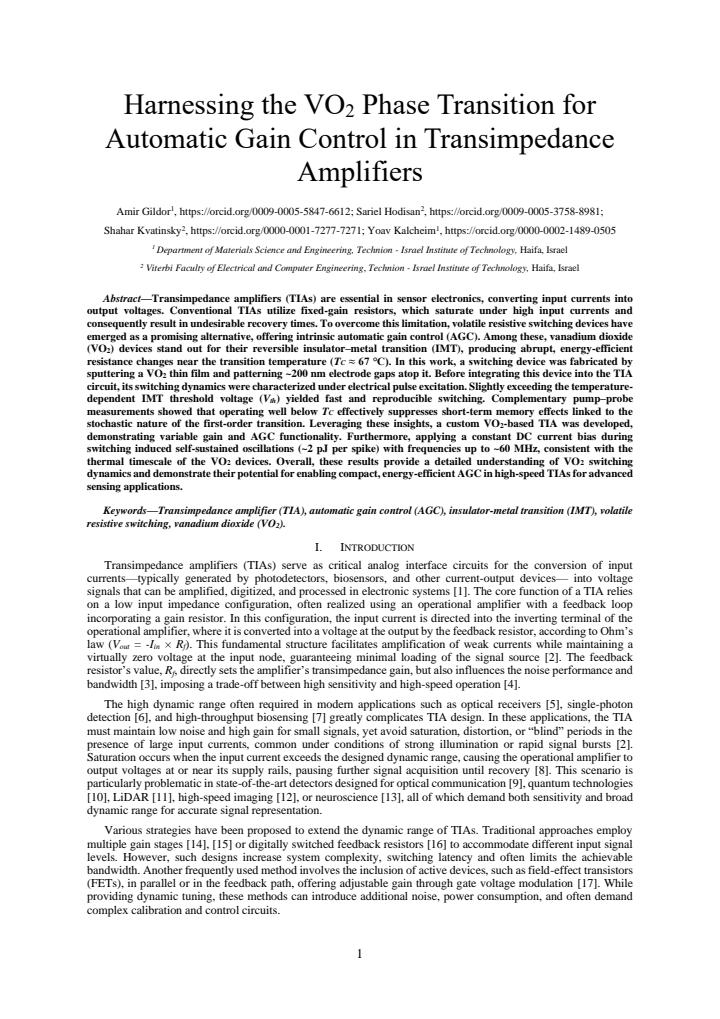

Harnessing the VO2 Phase Transition for Automatic Gain Control in Transimpedance Amplifiers

Amir Gildor , Sariel Hodisan , Shahar Kvatinsky , Yoav Kalcheim

Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:26 UTC · model grok-4.3

classification ❄️ cond-mat.str-el

keywords VO2insulator-metal transitiontransimpedance amplifierautomatic gain controlphase transitionself-oscillationsresistive switching

0 comments

The pith

Vanadium dioxide devices enable automatic gain control in transimpedance amplifiers through their phase transition.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that vanadium dioxide's phase transition can be used to create transimpedance amplifiers with built-in automatic gain control. By switching resistance sharply at a threshold, the device prevents output saturation under large input currents and shortens recovery times compared to fixed-resistor designs. Detailed electrical and optical measurements identify conditions for fast, repeatable switching without lingering memory effects. The resulting circuit also produces self-sustained oscillations when biased with constant current, reaching 60 MHz at 2 picojoules per cycle. This points to simpler, more efficient electronics for sensors that encounter fluctuating signals.

Core claim

The central discovery is that a VO2-based transimpedance amplifier exhibits variable gain and automatic gain control by exploiting the insulator-to-metal transition, with the device fabricated by sputtering VO2 and patterning 200 nm gaps. Pump-probe experiments confirm that operation below the critical temperature eliminates memory effects, enabling fast and reliable switching. Under constant DC bias, the circuit produces self-sustained oscillations consuming 2 pJ per spike at frequencies reaching 60 MHz, matching the thermal response time of the material.

What carries the argument

The reversible insulator-metal transition in a thin-film vanadium dioxide switching device that changes resistance abruptly near 67 C in response to temperature or voltage.

If this is right

Sensor electronics can avoid saturation and long recovery times when input currents vary widely.
High-speed TIAs become more compact and energy-efficient by embedding gain control directly in the material.
Self-sustained oscillations open routes to integrated spiking or oscillatory sensor readouts.
The approach reduces the need for additional AGC circuitry in advanced sensing applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar phase-transition materials could replace VO2 for different operating temperatures or speeds.
Integration with silicon electronics may require addressing thermal management to maintain the transition point.
The low energy per oscillation suggests potential use in low-power neuromorphic or event-driven sensing systems.
Field tests under real sensor conditions would reveal if variability affects long-term reliability.

Load-bearing premise

The switching in the VO2 device stays consistent and does not degrade or vary significantly when placed inside an operating amplifier circuit over many cycles or long periods.

What would settle it

Measurement of the TIA output showing loss of automatic gain adjustment or increased switching voltage thresholds after repeated high-current inputs over hours or days.

read the original abstract

Transimpedance amplifiers (TIAs) are essential in sensor electronics, converting input currents into output voltages. Conventional TIAs utilize fixed-gain resistors, which saturate under high input currents and consequently result in undesirable recovery times. To overcome this limitation, volatile resistive switching devices have emerged as a promising alternative, offering intrinsic automatic gain control (AGC). Among these, vanadium dioxide (VO2) devices stand out for their reversible insulator-metal transition (IMT), producing abrupt, energy-efficient resistance changes near the transition temperature (67 C). In this work, a switching device was fabricated by sputtering a VO2 thin film and patterning 200 nm electrode gaps atop it. Before integrating this device into the TIA circuit, its switching dynamics were characterized under electrical pulse excitation. Slightly exceeding the temperature-dependent IMT threshold voltage (Vth) yielded fast and reproducible switching. Complementary pump-probe measurements showed that operating well below TC effectively suppresses short-term memory effects linked to the stochastic nature of the first-order transition. Leveraging these insights, a custom VO2-based TIA was developed, demonstrating variable gain and AGC functionality. Furthermore, applying a constant DC current bias during switching induced self-sustained oscillations (2 pJ per spike) with frequencies up to 60 MHz, consistent with the thermal timescale of the VO2 devices. Overall, these results provide a detailed understanding of VO2 switching dynamics and demonstrate their potential for enabling compact, energy-efficient AGC in high-speed TIAs for advanced sensing applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

VO2 TIA demo shows AGC and 60 MHz oscillations after some pre-integration characterization, but the paper gives almost no numbers on variability or long-term stability.

read the letter

The key takeaway is that this work integrates a VO2 device into a transimpedance amplifier to provide automatic gain control through the material's phase transition, and it also produces self-oscillations under DC bias. They fabricated the VO2 thin film devices with small electrode gaps, characterized the switching speed and reproducibility with pulses, and used pump-probe to show that staying below the transition temperature cuts down on memory effects from the stochastic transition. Then they built the custom TIA and observed variable gain plus the AGC behavior, along with oscillations reaching 60 MHz at low energy per cycle. This combination of material characterization followed by circuit demonstration is what makes the result stand out. It moves beyond just studying the IMT in isolation and shows a functional use case in sensor electronics. The paper does a decent job laying out the motivation from conventional TIA limitations and how the volatile switching can help avoid saturation and long recovery times. On the downside, the description stays at a high level without the actual data. There are no mentioned plots of gain versus input current with variability, no numbers on how many devices were tested or their consistency, and nothing on performance after repeated switching or under the heat from the amplifier circuit. Those gaps make it difficult to assess whether the AGC holds up in practice, which is the main point of the stress-test note. If the full paper has those details, they aren't highlighted in the abstract or the summary. This kind of paper would interest people working on hybrid material-circuit systems for high-speed sensing or photonics. A reader looking for new ways to handle dynamic range in amplifiers might find the approach useful as a starting point. I think it deserves peer review. The core idea is practical and the experiments are described enough to be evaluated, even if more quantitative evidence on stability would be needed before publication.

Referee Report

3 major / 1 minor

Summary. The manuscript reports fabrication of VO2 thin-film switching devices with 200 nm electrode gaps, electrical pulse characterization showing fast reproducible switching above the temperature-dependent threshold voltage, pump-probe measurements demonstrating suppression of short-term memory effects below the transition temperature, and integration of such a device into a custom transimpedance amplifier (TIA) that exhibits variable gain, automatic gain control (AGC) functionality, and self-sustained oscillations up to 60 MHz (2 pJ per spike) under constant DC current bias.

Significance. If the circuit-level results prove robust and reproducible, the work could enable compact, low-power AGC in high-speed TIAs by exploiting the abrupt, volatile IMT in VO2, addressing saturation and recovery issues in conventional fixed-gain designs for sensor applications. The inclusion of pulse and pump-probe characterization provides useful dynamical insights, though the absence of quantitative circuit metrics currently limits assessment of practical advantage over existing approaches.

major comments (3)

[Abstract] Abstract (TIA demonstration paragraph): the claim that the custom VO2-based TIA demonstrates 'variable gain and AGC functionality' is presented without any supporting quantitative data such as gain versus input-current curves, saturation recovery times, or statistics across multiple devices, which are required to substantiate the central application claim.
[Abstract] Abstract (oscillations sentence): the reported self-sustained oscillations (frequencies up to 60 MHz, 2 pJ per spike) are stated without error bars, device-to-device variability, or endurance data after repeated cycles, leaving open whether the behavior remains stable when the VO2 element is embedded in the TIA feedback loop under realistic bias and thermal conditions.
[Circuit demonstration] The integration and circuit demonstration section: no data or discussion is provided on key load-bearing issues for the AGC claim, including thermal crosstalk from the amplifier circuitry, drift in Vth or oscillation frequency after 10^5–10^6 switching events, or recovery behavior after saturation events, all of which directly affect whether the VO2 IMT remains functional in the integrated device.

minor comments (1)

[Abstract] The abstract would benefit from explicit reference to the number of devices tested and any statistical measures (e.g., standard deviation on frequency or energy values) to strengthen the reproducibility statements.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript. We have addressed each major comment below and indicate the revisions we will make to strengthen the presentation of our results.

read point-by-point responses

Referee: [Abstract] Abstract (TIA demonstration paragraph): the claim that the custom VO2-based TIA demonstrates 'variable gain and AGC functionality' is presented without any supporting quantitative data such as gain versus input-current curves, saturation recovery times, or statistics across multiple devices, which are required to substantiate the central application claim.

Authors: We agree that the abstract claim would benefit from direct reference to quantitative metrics. The device-level pulse and pump-probe data in the main text provide the physical basis for the variable-gain and AGC behavior, but we acknowledge that explicit circuit-level curves and multi-device statistics are not currently shown. In the revised manuscript we will add gain-versus-input-current curves, saturation recovery times, and statistics from multiple devices to the circuit demonstration section and will update the abstract to cite these additions. revision: yes
Referee: [Abstract] Abstract (oscillations sentence): the reported self-sustained oscillations (frequencies up to 60 MHz, 2 pJ per spike) are stated without error bars, device-to-device variability, or endurance data after repeated cycles, leaving open whether the behavior remains stable when the VO2 element is embedded in the TIA feedback loop under realistic bias and thermal conditions.

Authors: The oscillation frequencies and energy per spike are taken from our DC-bias measurements. We agree that error bars, variability, and endurance information would improve confidence in the embedded-circuit stability. In revision we will include available statistical measures (standard deviations where measured) and a short discussion of observed device-to-device variability and short-term endurance. Long-term endurance beyond the tested cycle counts will be noted as a limitation with plans for future characterization. revision: partial
Referee: [Circuit demonstration] The integration and circuit demonstration section: no data or discussion is provided on key load-bearing issues for the AGC claim, including thermal crosstalk from the amplifier circuitry, drift in Vth or oscillation frequency after 10^5–10^6 switching events, or recovery behavior after saturation events, all of which directly affect whether the VO2 IMT remains functional in the integrated device.

Authors: We recognize that thermal crosstalk, long-term drift, and post-saturation recovery are important for assessing practical AGC performance. Our present experiments emphasized short-term dynamics and basic circuit functionality. In the revised manuscript we will expand the circuit section with (i) temperature monitoring data to address thermal crosstalk, (ii) observed Vth and frequency stability during the performed cycles, and (iii) recovery characteristics drawn from the pump-probe results. For endurance at 10^5–10^6 events we will state the current experimental limit and its implications. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration with no derivations or fitted predictions

full rationale

The paper is an experimental work describing VO2 device fabrication (200 nm gaps), pulse characterization of IMT switching, pump-probe measurements to suppress memory effects, and integration into a custom TIA circuit to demonstrate variable gain, AGC, and DC-bias oscillations up to 60 MHz. No mathematical derivations, equations, or predictions are present that could reduce to inputs by construction. All claims rest on direct physical measurements and observed circuit behavior rather than any self-referential fitting, self-citation chains, or ansatz smuggling. The work is self-contained against external benchmarks of device performance.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on established properties of VO2 and standard microfabrication techniques; no new free parameters, ad-hoc axioms, or invented entities are introduced beyond the fabricated device itself.

axioms (1)

domain assumption VO2 undergoes a reversible insulator-metal transition near 67 C that produces abrupt resistance change.
Invoked as the physical basis for the switching behavior and AGC function throughout the abstract.

pith-pipeline@v0.9.0 · 5581 in / 1314 out tokens · 52999 ms · 2026-05-10T19:26:41.269564+00:00 · methodology
