The pith

nascTime is the first full-stack simulation of a 5G system acting as an IEEE 802.1 TSN bridge that includes SDAP-based QoS mapping and measured transparent clock behavior.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces nascTime as a complete simulation framework that turns a 5G network into a transparent TSN bridge per 3GPP Release 16 rules. It builds the full path for quality-of-service decisions from incoming priority tags through DSCP and QFI labels into SDAP and data radio bearer selection, while also moving gPTP synchronization messages across the radio link with explicit residence-time corrections. Earlier tools could handle QoS mapping alone or time synchronization alone but not both together with actual radio delay effects. The framework uses modular components inside OMNeT++ to connect the network-side and device-side translators to existing Ethernet and 5G libraries. Tests on a small factory layout confirm that high-priority streams meet tight delivery targets while the simulator records how fading channels widen timing variations.

Core claim

nascTime realizes the complete 3GPP 5G-TSN bridge architecture inside OMNeT++ 6.3 with INET 4.6 and Simu5G, placing NW-TT and DS-TT as compound modules that attach to LayeredEthernetInterface and streaming PHY. QoS mapping runs the entire PCP to DSCP to QFI to SDAP/DRB chain, and gPTP frames cross the radio via L2-in-GTP-U encapsulation that applies per-message residence-time adjustments. In a three-endpoint factory topology the framework records 99.9 percent delivery for high-priority traffic at 2.58 ms mean delay under ideal channels and residence-time variance below 0.2 μs, while fading channels raise that variance to 48 μs.

What carries the argument

The modular NW-TT and DS-TT compound modules together with the PCP→DSCP→QFI→SDAP/DRB pipeline and L2-in-GTP-U gPTP transport that together reproduce 3GPP Release 16 bridge behavior and radio residence times.

If this is right

  • High-priority traffic reaches 99.9 percent delivery with 2.58 ms mean end-to-end delay under ideal radio conditions.
  • 5GS residence-time variance stays below 0.2 μs in ideal channels but grows to 48 μs when fading is present.
  • The framework records radio-induced timing variations that abstract-delay simulators omit.
  • QoS differentiation operates through the full mapping chain from PCP tags to per-flow DRB selection.
  • The tool is released publicly so other researchers can study integrated 5G-TSN performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Network designers could run the simulator to forecast how specific 5G radio settings will affect clock accuracy in a real factory before any hardware is installed.
  • The same structure could be extended to test mixed wired and wireless TSN segments that share a common 5G bridge.
  • Adding newer 3GPP features would let users explore how future releases change the timing and QoS trade-offs.

Load-bearing premise

The modular OMNeT++ implementation of the NW-TT, DS-TT, SDAP/DRB pipeline, and L2-in-GTP-U gPTP transport accurately reproduces 3GPP Release 16 behavior and real radio-induced residence-time effects.

What would settle it

Running the identical three-endpoint factory topology on physical 5G hardware with IEEE 802.1AS clocks and comparing the measured residence-time variance under fading to the simulated 48 μs value.

Figures

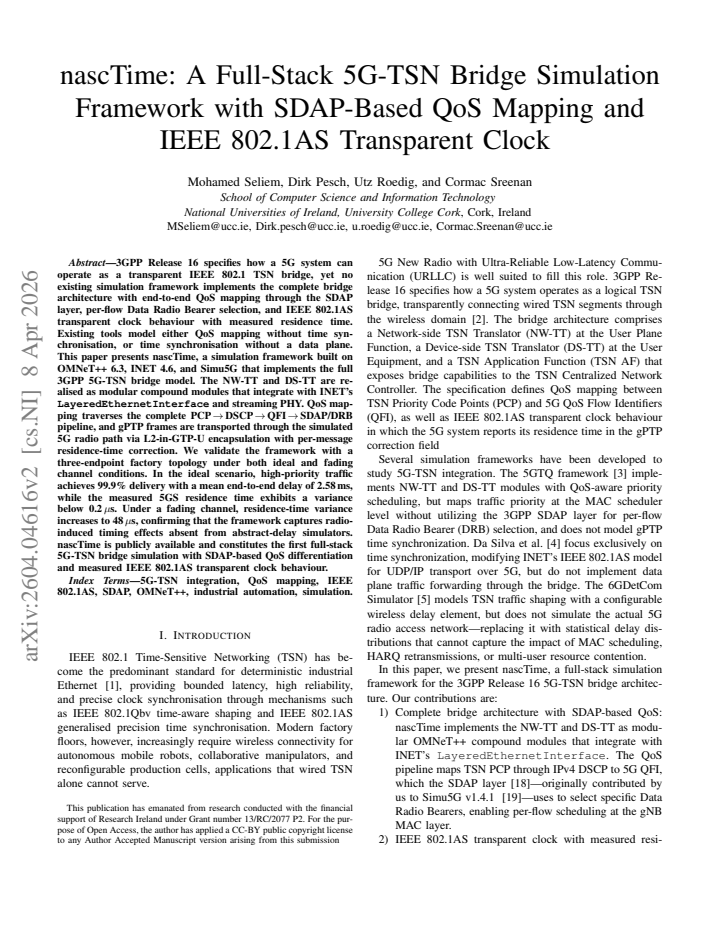

Figures reproduced from arXiv: 2604.04616 by Cormac Sreenan, Dirk Pesch, Mohamed Seliem, Utz Roedig.
