Compact Reconfigurable Intelligent Surface with Phase-Gradient Coded Beam Steering and Controlled Substrate Loss

Mahendra Kheti , Debapratim Ghosh , Soumya P. Dash This is my paper

Pith reviewed 2026-05-10 19:30 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords reconfigurable intelligent surfacebeam steeringphase gradient codingPIN diodeFR4 substrateair gap5G n78 bandwireless channel
0
0 comments X

The pith

A compact 10-by-10 RIS built on FR4 with an air gap and PIN-diode cells delivers 9 dB reflected gain while steering beams up to 30 degrees at 3.5 GHz.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how a low-cost three-layer RIS can be made by inserting a controlled air gap into a standard FR4 stack to cut dielectric losses. Each unit cell uses a PIN diode with a simplified biasing circuit to switch between two clear reflection phases. A phase-gradient coding pattern then steers the reflected beam, and bench measurements confirm the surface adds roughly 9 dB to the reflected signal strength over a 60-degree angular window. The same hardware also passes QPSK-modulated symbols through the assisted wireless link, all while fitting inside a 2.9-wavelength square footprint and working across the 3.38–3.67 GHz band.

Core claim

The authors fabricate and test a 1-bit RIS whose unit cells are realized on a three-layer manual stackup that includes an optimized air gap on FR4. Each cell contains a PIN diode driven through a compact biasing network that keeps the ON and OFF reflection phases distinct at 0° and 180° within ±20°. When the 10-by-10 array is programmed with a phase-gradient code, the measured reflected power increases by about 9 dB for incident angles out to ±30° in both anechoic and noisy rooms; the same surface also relays QPSK symbols successfully.

What carries the argument

The phase-gradient coding scheme applied across the 1-bit PIN-diode unit cells, combined with the air-gap layer that reduces effective substrate loss.

If this is right

  • Beam steering up to ±30° is achieved with a single low-cost board and simple digital control.
  • The surface improves reflected signal strength by 9 dB over the full steering range in both quiet and noisy settings.
  • QPSK-modulated data can be relayed through the RIS-assisted channel without additional hardware.
  • The design occupies only 2.9 by 2.9 wavelengths and operates inside the 3.5 GHz 5G n78 band.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same air-gap technique could be reused at nearby frequencies by resizing the patch and gap spacing.
  • Because the control is handled by an Arduino-style interface, the surface can be reprogrammed on the fly for changing traffic directions.
  • Lower material cost may allow RIS panels to be installed on many more surfaces than current high-end versions permit.

Load-bearing premise

The fabricated cells keep their two reflection phases reliably separated by 180° and the air gap reduces losses without adding extra reflections or manufacturing variations that would degrade the array performance.

What would settle it

A direct measurement of the reflection coefficient of single unit cells showing phase error larger than ±20° between states, or a full-array test in which the reflected gain stays below 6 dB across the ±30° range.

Figures

Figures reproduced from arXiv: 2604.04625 by Debapratim Ghosh, Mahendra Kheti, Soumya P. Dash.

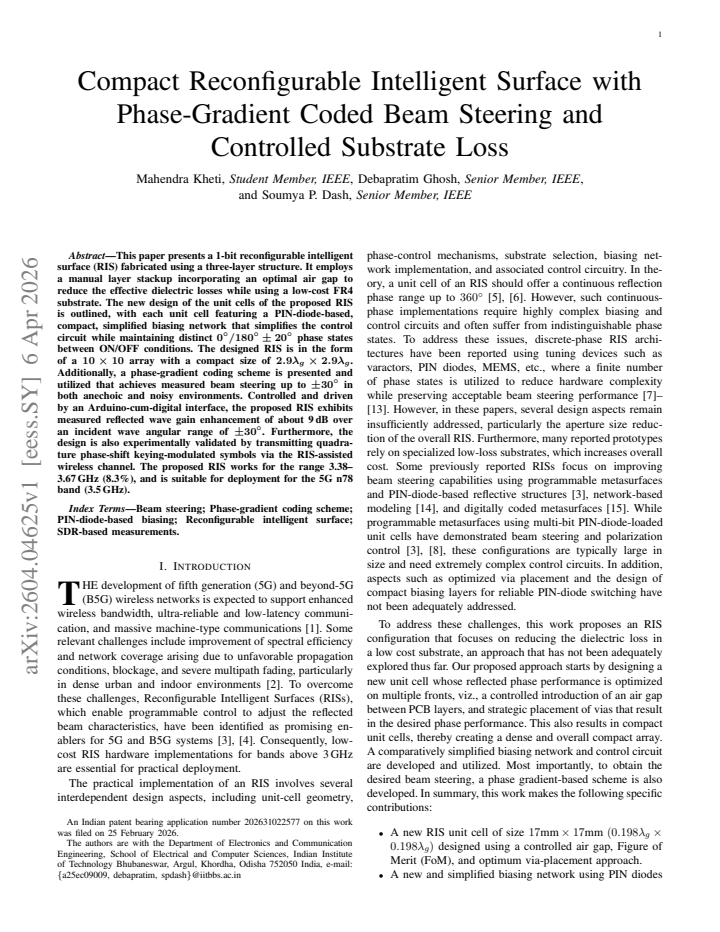

Figure 1
