A Novel Electrically Small Antenna Array Employing Opposite-Handed Chiral Parasitic Elements

Oleksandr Malyuskin This is my paper

Pith reviewed 2026-05-10 19:14 UTC · model grok-4.3

classification ⚛️ physics.app-ph
keywords electrically small antennaschiral elementsparasitic antennasmutual couplingbeam steeringmonopole arraycompact arrays
0
0 comments X

The pith

Opposite-handed chiral parasitic elements can mitigate mutual coupling effects in compact electrically small antenna arrays, enabling full 360-degree beam steering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a design for electrically small antenna arrays that uses chiral parasitic elements with opposite handedness to reduce the harmful impacts of electromagnetic mutual coupling. In standard arrays, close spacing causes a 180-degree phase shift between elements, degrading performance. By employing these opposite-handed parasites, the design counters that shift. Experimental tests on a seven-element monopole array, kept very small with elements less than one-sixth wavelength apart, demonstrate effective operation with good matching, bandwidth, gain, and complete azimuthal steering. This matters for applications needing small, steerable antennas like mobile communications or sensors.

Core claim

The paper claims that a novel configuration of opposite-handed chiral parasitic elements in an electrically small antenna array successfully mitigates the 180-degree phase shift between adjacent antenna currents caused by mutual coupling at spacings below half a wavelength. This is shown through experimental validation on a compact seven-element monopole array with cross-sectional dimensions below half-wavelength and vertical dimensions one-sixth to one-fourth wavelength, achieving a -10 dB return loss, fractional bandwidth of 5 to 15 percent, realized gain of 5 to 9 dBi, and full 360 degrees of azimuthal beam steering.

What carries the argument

Opposite-handed chiral parasitic elements that cancel the mutual coupling induced 180-degree phase shift in closely spaced array elements.

If this is right

  • The array can achieve full 360-degree azimuthal beam steering despite compact size.
  • Realized gain reaches 5 to 9 dBi with elements spaced less than one-sixth wavelength.
  • Fractional bandwidth of 5-15% is obtained along with -10 dB return loss.
  • Performance is maintained in arrays with footprint much smaller than conventional designs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach could be adapted to other antenna types like dipoles or patches for further miniaturization.
  • Potential applications in satellite communications or wearable devices where space is limited.
  • Further research might explore the frequency scalability of the chiral element design.

Load-bearing premise

That the opposite-handed chiral parasitic elements inherently cancel the 180-degree phase shift from mutual coupling in arrays with element spacing less than half a wavelength.

What would settle it

A direct measurement of the phase difference between currents on adjacent monopole elements in the array, both with and without the chiral parasites, at the operating frequency; persistence of the 180-degree shift would falsify the mitigation claim.

Figures

Figures reproduced from arXiv: 2604.04713 by Oleksandr Malyuskin.

Figure 1
Figure 1. Figure 1: Fig.1. Antenna array geometry (top), fabricated ESAA [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Fig.3. ESAA retrodirective radiation patterns in ab [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

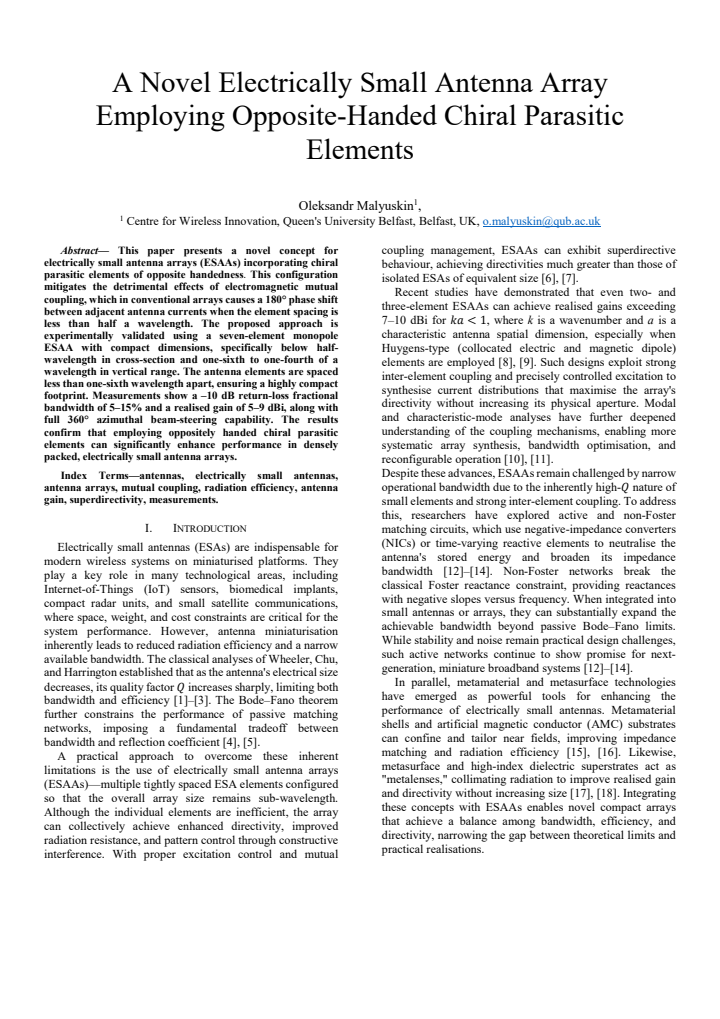

read the original abstract

This paper presents a novel concept for electrically small antenna arrays incorporating chiral parasitic elements of opposite handedness. This configuration mitigates the detrimental effects of electromagnetic mutual coupling, which in conventional arrays causes a 180 degree phase shift between adjacent antenna currents when the element spacing is less than half a wavelength. The proposed approach is experimentally validated using a seven-element monopole ESAA with compact dimensions, specifically below half-wavelength in cross-section and one-sixth to one-fourth of a wavelength in vertical range. The antenna elements are spaced less than one-sixth wavelength apart, ensuring a highly compact footprint. Measurements show a minus 10 dB return loss, a fractional bandwidth of 5 to 15 per cent, and a realised gain of 5 to 9 dBi, along with full 360 degrees of azimuthal beam steering. The results confirm that employing oppositely handed chiral parasitic elements can significantly enhance performance in densely packed, electrically small antenna arrays.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims to introduce a novel electrically small antenna array (ESAA) design employing opposite-handed chiral parasitic elements to counteract the 180-degree phase shift induced by strong mutual coupling in arrays with element spacing less than λ/2. It reports experimental validation on a compact seven-element monopole array (cross-section below λ/2, height λ/6 to λ/4, inter-element spacing < λ/6), with measured performance of -10 dB return loss, 5–15% fractional bandwidth, 5–9 dBi realized gain, and full 360° azimuthal beam steering.

Significance. If the reported measurements are reproducible and the performance gains can be unambiguously attributed to the chiral parasitic mechanism rather than array geometry or feed network alone, the work could offer a passive, compact solution for mitigating mutual coupling in electrically small arrays, with potential applications in mobile communications, IoT devices, and phased-array systems where size constraints preclude conventional spacing.

major comments (2)
  1. [Abstract] The abstract asserts that opposite-handed chiral parasitic elements specifically cancel the 180° current phase shift from mutual coupling at d < λ/2, yet the manuscript provides neither an analytic model (e.g., induced-EMF or equivalent-circuit derivation) nor full-wave current-phase plots comparing chiral versus non-chiral cases; without this link the measured metrics cannot be attributed to the proposed mechanism.
  2. [Experimental validation] The experimental validation section reports specific performance numbers (-10 dB return loss, 5–15% bandwidth, 5–9 dBi gain, 360° steering) for the seven-element array but supplies no measurement protocols, error bars, S-parameter or pattern data, or direct comparison to an otherwise identical array lacking the opposite-handed chiral elements.
minor comments (1)
  1. [Abstract] The abstract uses the nonstandard phrasing 'minus 10 dB return loss'; standard notation is '-10 dB'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review, which has helped us strengthen the manuscript. We address each major comment below and have revised the paper accordingly to provide the requested analytic support, experimental details, and comparisons.

read point-by-point responses

  1. Referee: [Abstract] The abstract asserts that opposite-handed chiral parasitic elements specifically cancel the 180° current phase shift from mutual coupling at d < λ/2, yet the manuscript provides neither an analytic model (e.g., induced-EMF or equivalent-circuit derivation) nor full-wave current-phase plots comparing chiral versus non-chiral cases; without this link the measured metrics cannot be attributed to the proposed mechanism.

    Authors: We agree that an explicit analytic link would strengthen the attribution of the observed performance to the chiral mechanism. The original manuscript relies on full-wave simulations to illustrate current distributions, but lacks a dedicated analytic derivation or direct comparative plots. In the revised manuscript we have added a new subsection deriving an equivalent-circuit model based on the induced-EMF method that shows how opposite-handed chirality compensates the 180° phase shift. We also include full-wave current-phase plots for both the chiral and a non-chiral reference configuration, confirming the specific role of the handedness. revision: yes

  2. Referee: [Experimental validation] The experimental validation section reports specific performance numbers (-10 dB return loss, 5–15% bandwidth, 5–9 dBi gain, 360° steering) for the seven-element array but supplies no measurement protocols, error bars, S-parameter or pattern data, or direct comparison to an otherwise identical array lacking the opposite-handed chiral elements.

    Authors: We acknowledge that the original experimental section was concise and omitted detailed protocols and comparative data. The revised manuscript now includes a complete description of the measurement setup (anechoic chamber, VNA calibration, far-field range, and uncertainty analysis), error bars derived from repeated measurements, and the full set of measured S-parameters and radiation patterns. In addition, we have fabricated and measured an otherwise identical seven-element array without the opposite-handed chiral parasitic elements; the comparison shows clear degradation in return loss, bandwidth, and gain, supporting the contribution of the chiral elements. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental prototype measurements independent of any derivation

full rationale

The paper advances a concept for chiral parasitic elements in an electrically small antenna array and supports it solely via physical prototype measurements on a seven-element monopole array. Reported outcomes (–10 dB return loss, 5–15 % bandwidth, 5–9 dBi gain, 360° steering) are direct experimental data with no intervening equations, fitted parameters, self-citations, or analytic model that could reduce to the inputs by construction. Because no derivation chain exists, none of the enumerated circularity patterns apply; the result is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an experimental antenna design with no explicit mathematical modeling, free parameters, axioms, or newly postulated physical entities described.

pith-pipeline@v0.9.0 · 5461 in / 1188 out tokens · 36233 ms · 2026-05-10T19:14:26.515967+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages

  1. [1]

    The radiansphere around a small ant enna,

    H. A. Wheeler, "The radiansphere around a small ant enna," Proceedings of the IRE , vol. 47, no. 8, pp. 1325–1331, Aug. 1959

    work page 1959

  2. [2]

    Physical limitations of omnidirectional antennas,

    L. J. Chu, "Physical limitations of omnidirectional antennas," Journal of Applied Physics , vol. 19, no. 12, pp. 1163–1175, Dec. 1948

    work page 1948

  3. [3]

    Effect of antenna size on gain, bandwidth, and efficiency,

    R. F. Harrington, "Effect of antenna size on gain, bandwidth, and efficiency," Journal of Research of the National Bureau of Standards, Section D: Radio Propagation , vol. 64D, no. 1, pp. 1–12, Jan.–Feb. 1960

    work page 1960

  4. [4]

    Theoretical limitations on the broadba nd matching of arbitrary impedances,

    R. M. Fano, "Theoretical limitations on the broadba nd matching of arbitrary impedances," Journal of the Franklin Institute , vol. 249, no. 1, pp. 57–83, Jan. 1950

    work page 1950

  5. [5]

    R. C. Hansen, Electrically Small, Superdirective, and Superconducting Antennas . Hoboken, NJ, USA: Wiley, 2006

    work page 2006

  6. [6]

    Electrically small supergain end-fire arrays,

    A. D. Yaghjian, T. H. O'Donnell, E. E. Altshuler, a nd S. R. Best, "Electrically small supergain end-fire arrays," Radio Science , vol. 43, RS3002, 2008

    work page 2008

  7. [7]

    Superdirective circular arrays o f electric and Huygens dipole elements,

    R. W. Ziolkowski, "Superdirective circular arrays o f electric and Huygens dipole elements," Electromagnetic Science , vol. 2, art. 0050072, 2024

    work page 2024

  8. [8]

    Electrically small antenna arrays and supergain performance,

    R. W. Ziolkowski and A. D. Yaghjian, "Electrically small antenna arrays and supergain performance," IEEE Antennas and Propagation Magazine , vol. 64, no. 3, pp. 33–48, Jun. 2022

    work page 2022

  9. [9]

    Super realised gain antenna array,

    D. P. Lynch, M. M. Tentzeris, V. Fusco, and S. D. A simonis, "Super realised gain antenna array," IEEE Transactions on Antennas and Propagation , vol. 72, no. 9, pp. 7030–7040, Sep. 2024

    work page 2024

  10. [10]

    Characteristic-mode analysis of compa ct antenna arrays,

    M. Manteghi, "Characteristic-mode analysis of compa ct antenna arrays," IEEE Transactions on Antennas and Propagation , vol. 66, no. 1, pp. 200–213, Jan. 2018

    work page 2018

  11. [11]

    Mutual coupling and m odal effects in compact antenna arrays,

    J. B. Yan and D. R. Jackson, "Mutual coupling and m odal effects in compact antenna arrays," IEEE Transactions on Antennas and Propagation , vol. 67, no. 8, pp. 5212–5224, Aug. 2019

    work page 2019

  12. [12]

    Non-Foster im pedance matching of electrically small antennas,

    S. E. Sussman-Fort and R. M. Rudish, "Non-Foster im pedance matching of electrically small antennas," IEEE Transactions on Antennas and Propagation , vol. 57, no. 8, pp. 2230–2241, Aug. 2009

    work page 2009

  13. [13]

    Beyond Chu's limit w ith Floquet impedance matching,

    H. Li, A. Mekawy, and A. Alù, "Beyond Chu's limit w ith Floquet impedance matching," Physical Review Letters , vol. 123, no. 16, 164102, Oct. 2019

    work page 2019

  14. [14]

    Parametric enhancement of radiation from electrically small antennas,

    A. Mekawy, H. Li, Y. Radi, and A. Alù, "Parametric enhancement of radiation from electrically small antennas," Physical Review Applied , vol. 15, no. 5, 054063, May 2021

    work page 2021

  15. [15]

    Metamaterial-insp ired efficient electrically small antennas,

    A. Erentok and R. W. Ziolkowski, "Metamaterial-insp ired efficient electrically small antennas," IEEE Transactions on Antennas and Propagation , vol. 56, no. 3, pp. 691–707, Mar. 2008

    work page 2008

  16. [16]

    Investigation of gain enhancement of electrically small antennas using double-negative or mu-negative metamaterial shells,

    B. Ghosh, S. Ghosh, S. Bhattacharyya, and K. V. Sri vastava, "Investigation of gain enhancement of electrically small antennas using double-negative or mu-negative metamaterial shells," Physical Review E, vol. 78, 026611, 2008

    work page 2008

  17. [17]

    Broadband metasurface superstrate for polarisation-independent wave focus ing and gain enhancement at Ka-band,

    K. Lee, H.-Y. Hong, W. Lee, et al. , "Broadband metasurface superstrate for polarisation-independent wave focus ing and gain enhancement at Ka-band," Scientific Reports , vol. 12, 16037, 2022

    work page 2022

  18. [18]

    A metasurface- based gain- enhanced dual-band patch antenna using SRRs with de fected ground structure,

    D. Samantaray and S. Bhattacharyya, "A metasurface- based gain- enhanced dual-band patch antenna using SRRs with de fected ground structure," Radio Science , vol. 56, no. 2, e2020RS007192, 2021

    work page 2021

  19. [19]

    Ultracompact Retrodirect ive Antenna Arrays With Superdirective Radiation Patterns,

    O. Malyuskin, & V. Fusco, "Ultracompact Retrodirect ive Antenna Arrays With Superdirective Radiation Patterns," IEEE Transactions on Antennas and Propagation , 64(7), 2923 – 2935, 2016

    work page 2016

  20. [20]

    Experimental Study o f Electrically Compact Retrodirective Monopole Antenna Arrays,

    O. Malyuskin and V. F. Fusco, "Experimental Study o f Electrically Compact Retrodirective Monopole Antenna Arrays," in IEEE Transactions on Antennas and Propagation , vol. 65, no. 5, pp. 2339- 2347, May 2017

    work page 2017
