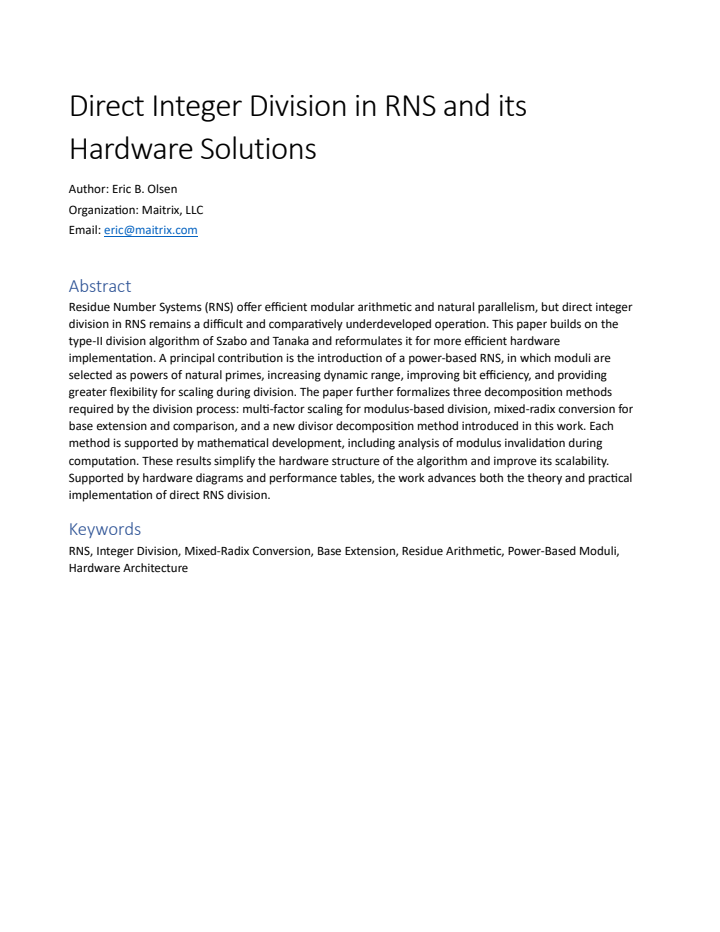

Direct Integer Division in RNS and its Hardware Solutions

Eric B. Olsen

arxiv: 2604.04796 · v1 · submitted 2026-04-06 · 💻 cs.AR

Direct Integer Division in RNS and its Hardware Solutions

Eric B. Olsen This is my paper

Pith reviewed 2026-05-10 18:45 UTC · model grok-4.3

classification 💻 cs.AR

keywords residue number systeminteger divisionhardware implementationpower-based modulidecomposition methodsRNS arithmetictype-II division

0 comments

The pith

Selecting moduli as powers of primes simplifies hardware for direct integer division in residue number systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reformulates the type-II division algorithm for residue number systems to enable more efficient hardware implementation. It introduces a power-based RNS where moduli are chosen as powers of natural primes to increase dynamic range, improve bit efficiency, and ease scaling during division. Three decomposition methods are formalized: multi-factor scaling for modulus-based division, mixed-radix conversion for base extension and comparison, and a new divisor decomposition method, each supported by analysis of modulus invalidation. These changes reduce hardware complexity and enhance scalability. A sympathetic reader would care because RNS provides natural parallelism for modular arithmetic, and making division practical removes a key barrier to its wider hardware use.

Core claim

By adopting a power-based residue number system with moduli as powers of primes and developing the required decomposition methods, the type-II algorithm performs direct integer division with simplified hardware structures and greater scalability than prior approaches.

What carries the argument

Power-based RNS with moduli as powers of natural primes, which enables the three decomposition methods to handle scaling, base extension, and divisor breakdown while managing modulus invalidation.

If this is right

Hardware diagrams demonstrate reduced structural complexity for the full division process.
Performance tables report gains in dynamic range and bit efficiency during scaling steps.
The approach extends the practical range of RNS to computations requiring frequent division.
Scalability improves as bit widths increase without proportional hardware growth.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar power-based selections could apply to other RNS operations like multiplication to gain consistent efficiency.
The methods might integrate into existing RNS processors for applications such as signal processing or cryptography.
Testing on actual FPGA or ASIC platforms would measure real-world latency and area savings beyond the paper's tables.

Load-bearing premise

The choice of moduli as powers of primes preserves pairwise coprimeness and allows the decomposition methods to complete division without breaking the algorithm or demanding excessive additional hardware.

What would settle it

A working hardware implementation that produces incorrect division results for valid inputs due to modulus invalidation or that shows no reduction in resource use compared to standard RNS would disprove the claimed simplification.

read the original abstract

Residue Number Systems (RNS) offer efficient modular arithmetic and natural parallelism, but direct integer division in RNS remains a difficult and comparatively underdeveloped operation. This paper builds on the type-II division algorithm of Szabo and Tanaka and reformulates it for more efficient hardware implementation. A principal contribution is the introduction of a power-based RNS, in which moduli are selected as powers of natural primes, increasing dynamic range, improving bit efficiency, and providing greater flexibility for scaling during division. The paper further formalizes three decomposition methods required by the division process: multi-factor scaling for modulus-based division, mixed-radix conversion for base extension and comparison, and a new divisor decomposition method introduced in this work. Each method is supported by mathematical development, including analysis of modulus invalidation during computation. These results simplify the hardware structure of the algorithm and improve its scalability. Supported by hardware diagrams and performance tables, the work advances both the theory and practical implementation of direct RNS division.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper delivers a hardware-oriented reformulation of RNS division using power-of-prime moduli and a new decomposition method, supported by diagrams but with room for stronger performance comparisons.

read the letter

This paper focuses on making integer division work directly in residue number systems with better hardware support. It takes the type-II algorithm from Szabo and Tanaka and reformulates it around a power-based set of moduli plus a new divisor decomposition step. The power-based RNS picks moduli like 2^a, 3^b, 5^c and so on. That choice keeps them pairwise coprime and gives more room to adjust the range during division. The new decomposition method is presented as original, and they walk through three methods total with checks for modulus invalidation. Hardware diagrams and performance tables are included to show the resulting circuits. The work does a decent job on the implementation side. The diagrams should help someone trying to build this, and the invalidation analysis addresses a real practical issue in these algorithms. The claims about simpler hardware and better scalability follow from the math they lay out. A minor soft spot is that the gains in hardware simplicity and scalability would be easier to judge with more quantitative comparisons in the tables, such as area or delay numbers against previous RNS dividers. The paper stays focused on its own approach. This kind of paper is aimed at hardware designers working with RNS for parallel arithmetic in embedded or high-speed systems. It is incremental on the theory but adds useful implementation details. I would recommend sending it to peer review. The hardware focus and the concrete diagrams give referees something specific to evaluate even if the overall impact stays narrow.

Referee Report

0 major / 2 minor

Summary. The paper reformulates the Szabo-Tanaka type-II division algorithm for more efficient hardware implementation of direct integer division in Residue Number Systems (RNS). A principal contribution is the introduction of power-based RNS, where moduli are selected as powers of distinct natural primes to increase dynamic range, improve bit efficiency, and provide greater flexibility for scaling. The work formalizes three decomposition methods—multi-factor scaling for modulus-based division, mixed-radix conversion for base extension and comparison, and a new divisor decomposition—each supported by mathematical development including analysis of modulus invalidation. Hardware diagrams and performance tables are provided to demonstrate simplified hardware structures and improved scalability.

Significance. If the derivations and hardware simplifications hold, the result is significant for RNS arithmetic, an area where division has lagged behind addition and multiplication. The power-based RNS construction maintains pairwise coprimeness by elementary number theory and the explicit modulus-invalidation analysis addresses a key practical concern. Credit is due for the mathematical development of the three decomposition methods, the introduction of the divisor decomposition, and the inclusion of hardware diagrams and performance tables, which together support direct implementation and scalability claims.

minor comments (2)

[Performance tables] The performance tables would benefit from explicit baseline comparisons against standard (non-power) RNS implementations to quantify the claimed improvements in area, latency, and scalability.
[Introduction] Notation for the power-based moduli (e.g., how p_i^{k_i} are denoted and selected) could be introduced earlier and used consistently to aid readers unfamiliar with the variant.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and constructive review of our manuscript on direct integer division in RNS. The recognition of the power-based RNS construction, the three decomposition methods, and the hardware simplifications is appreciated, as is the recommendation for minor revision. No specific major comments were provided in the report, so we have no individual points to address. We are happy to incorporate any minor editorial or clarification changes during revision.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper builds explicitly on the external Szabo-Tanaka type-II division algorithm and introduces a power-based RNS whose pairwise coprimeness follows directly from elementary number theory (distinct primes). The three decomposition methods are accompanied by explicit mathematical development and modulus-invalidation analysis that does not reduce to fitted parameters, self-citations, or ansatzes imported from the authors' own prior work. No load-bearing step equates a claimed prediction or result to its own inputs by construction; the hardware simplifications rest on independently verifiable properties of the chosen moduli set.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on standard RNS properties holding for power-of-prime moduli and on the new decomposition methods correctly managing invalidation without additional unstated costs.

axioms (1)

domain assumption Standard RNS properties (pairwise coprimeness, unique representation) hold when moduli are chosen as powers of distinct primes.
Invoked implicitly when claiming increased dynamic range and flexibility for the division algorithm.

invented entities (1)

Power-based RNS no independent evidence
purpose: To increase dynamic range, bit efficiency, and scaling flexibility during division.
New selection rule for moduli introduced in this work.
