arxiv: 2604.04980 · v1 · submitted 2026-04-04 · 💻 cs.RO

COMB: Common Open Modular robotic platform for Bees

Pranav Kedia , Marie Messerich , Tim Landgraf This is my paper

Pith reviewed 2026-05-13 16:48 UTC · model grok-4.3

classification 💻 cs.RO
keywords honeybeeroboticsmodular platformin-hive experimentsobservation hivemechatronicsbee behavior
0
0 comments X p. Extension

The pith

COMB is a modular open-source robotic platform for repeatable experiments inside honeybee hives.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents COMB, a compact mechatronic system built to operate within standard observation-hive frames. It integrates an XY positioning stage, a sealed movable access window, interchangeable payload modules, and embedded controls for precise trajectories and signals. The design targets in-hive sensing and actuation tasks such as dance signaling, comb scanning, and localized wing stimulation without requiring new hardware for each experiment. Demonstrations track waggle trajectories, stitch comb images, and analyze actuator vibrations to show engineering performance. If the approach holds, it replaces task-specific custom robots with one reusable base that supports varied colony studies.

Core claim

COMB is a reusable experimental robotics platform that integrates an XY positioning stage, a Movable Access Window for sealed boundary access, and swappable payload modules under embedded control, enabling repeatable trajectory execution and signal generation for sensing and actuation inside live honeybee hives.

What carries the argument

The XY positioning stage paired with the Movable Access Window (MAW) and interchangeable modules, which together provide sealed tool access and consistent positioning within the limited space of an observation hive.

If this is right

  • Researchers can run multiple distinct experiments on the same colony by swapping only the payload modules instead of redesigning the robot.
  • Precise, repeatable trajectories support controlled tests of bee responses to biomimetic signals and localized vibrations.
  • Open-source hardware and control architecture allow community reuse and adaptation for new in-hive sensing tasks.
  • Multi-image stitching and spectral analysis provide quantitative validation that the platform meets engineering requirements for data collection.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The platform could be adapted to other social insect colonies that fit similar frame dimensions.
  • Long-term use might enable studies of colony dynamics over days or weeks without repeated hardware installation.
  • Adding real-time feedback sensors to the existing control loop could close the loop on adaptive stimulation during experiments.

Load-bearing premise

The hardware can reliably tolerate the confined space, fouling, and environmental conditions of a real honeybee hive while maintaining positioning accuracy and module interchangeability.

What would settle it

A multi-week deployment of the full COMB system inside a live observation hive that measures whether trajectory repeatability, image stitching quality, and actuator performance stay consistent after exposure to wax, propolis, and bee activity.

Figures

Figures reproduced from arXiv: 2604.04980 by Marie Messerich, Pranav Kedia, Tim Landgraf.

Figure 1
Figure 1. Figure 1: COMB in dance-signaling configuration platform in engineering terms through trajectory tracking, image mosaicing, spectral analysis of the flapping actuator, and seasonal in-hive deployment observations. The open-source release of the hardware and software stack is intended to support reuse and reproducibility [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: COMB configured in comb-scanning mode. Top: in-hive deployment [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Movable Access Window (MAW) inserted with dance-signal bee [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

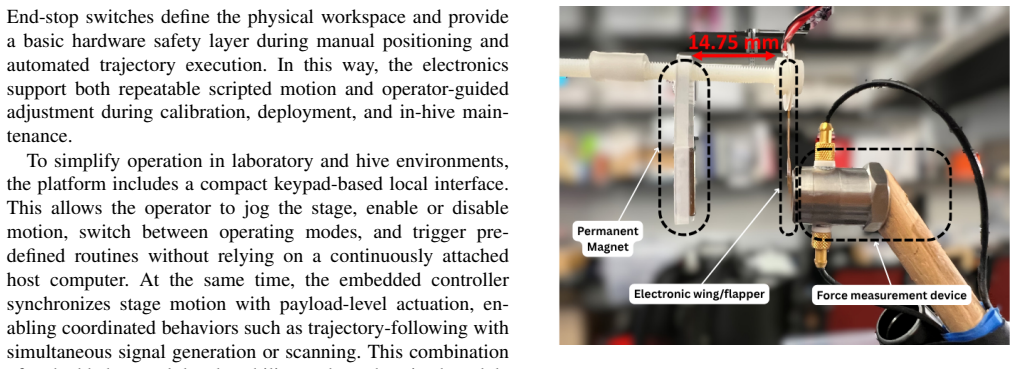

Figure 4. Figure 4: Electronic Wing Actuator separated from the permanent magnet, being [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

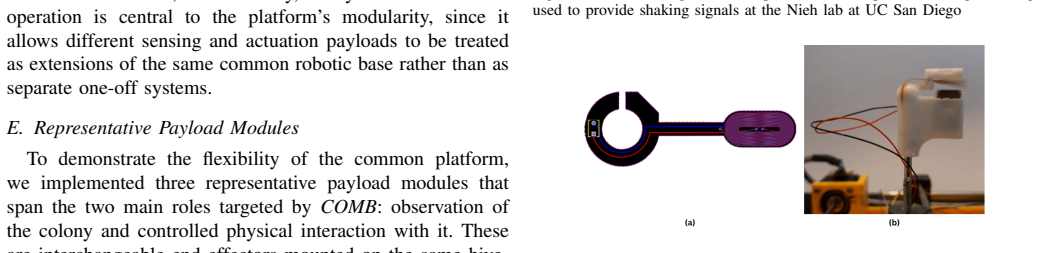

Figure 5. Figure 5: (a) Electronic Wing PCB, (b) The bee-dummy with the flapping wing [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Tracked bee-dummy trajectory during waggle execution [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 10

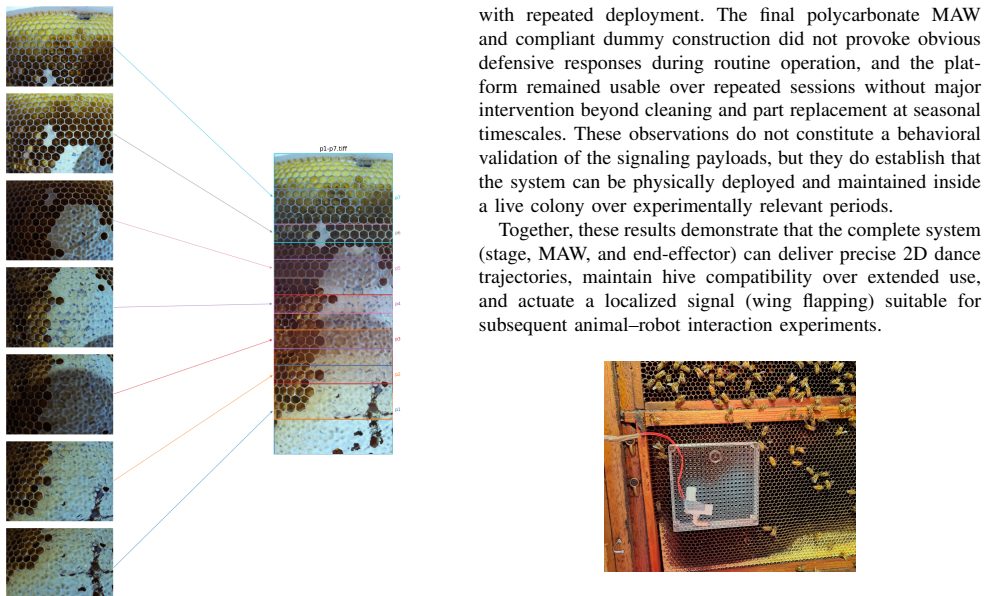

Figure 10. Figure 10: Bee dummy and flapper fixed to the comb for hive-scent acquisition [PITH_FULL_IMAGE:figures/full_fig_p006_10.png] view at source ↗
Figure 9

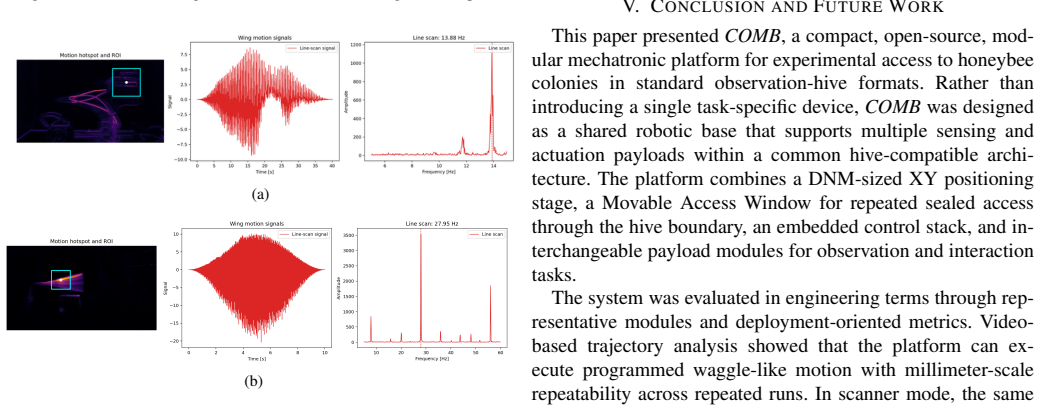

Figure 9. Figure 9: Wing-actuator frequency analysis (a) 13 Hz (b) 28 Hz. [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
read the original abstract

Experimental access to real honeybee colonies requires robotic systems capable of operating within limited spatial constraints, tolerating hive-specific fouling and environmental conditions, and supporting both sensing and localized actuation without frequent hardware redesign. This paper introduces COMB, a compact, open-source, modular mechatronic platform designed for in-hive experiments within standard observation-hive frames. The platform integrates a XY positioning stage, a Movable Access Window (MAW) for sealed tool access through the hive boundary, interchangeable payload modules, and an embedded control architecture that enables repeatable trajectory execution and signal generation. The platform's capabilities are demonstrated through three representative modules: a biomimetic dance-and-signaling payload, a close-range comb scanner, and an electromagnetic wing actuator for localized oscillatory stimulation. This paper details the hardware and software design of COMB, outlines its operational capabilities, and describes the supporting infrastructure for conducting real-world in-hive experiments. The platform is characterized in engineering terms through tracking waggle-trajectory executions, performing multi-image stitching for repeated comb mosaics, and conducting video-based spectral analysis of the wing actuator. These results position COMB as a reusable experimental robotics platform for controlled in-hive sensing and actuation, and as a compact, generalized successor to earlier task-specific honeybee robotic systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces COMB, a compact open-source modular mechatronic platform for in-hive honeybee experiments within standard observation-hive frames. It integrates an XY positioning stage, a Movable Access Window (MAW) for sealed tool access, interchangeable payload modules, and an embedded control architecture. Capabilities are demonstrated through three modules—a biomimetic dance-and-signaling payload, a close-range comb scanner, and an electromagnetic wing actuator—with engineering characterizations consisting of waggle-trajectory tracking executions, multi-image stitching for comb mosaics, and video-based spectral analysis of the wing actuator.

Significance. If the platform's reliability under hive conditions is established, COMB would provide a reusable, generalized experimental tool for controlled sensing and actuation in live colonies, extending prior task-specific honeybee robotic systems and enabling repeatable in-hive studies in robotics and apiculture.

major comments (2)
  1. [Demonstrations and Characterization] Demonstrations section: The reported characterizations (trajectory tracking accuracy, image stitching quality, and spectral analysis) are performed exclusively in laboratory conditions. No quantitative data on position drift, actuator degradation, or failure rates due to hive-specific factors such as propolis/wax fouling, humidity, or bee contact are provided, leaving the central claim of reliable long-term in-hive operation unsupported.
  2. [Hardware Design] Hardware Design section: The MAW sealing mechanism and XY stage tolerances are described at a high level, but no metrics (e.g., ingress protection ratings, measured drift under simulated fouling, or multi-day repeatability tests) are given to substantiate tolerance to hive environmental conditions.
minor comments (2)
  1. [Abstract] Abstract: The phrase 'reusable experimental robotics platform' is used without defining reuse criteria or maintenance intervals; add a brief qualifier.
  2. [Figures] Figure captions: Ensure all engineering characterization plots include error bars or standard deviations for the reported metrics.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback and the recommendation for major revision. We address each major comment below, acknowledging the need for clearer distinction between laboratory validation and in-hive claims. Revisions will focus on adding a limitations section and clarifying scope without introducing unsubstantiated data.

read point-by-point responses

  1. Referee: [Demonstrations and Characterization] Demonstrations section: The reported characterizations (trajectory tracking accuracy, image stitching quality, and spectral analysis) are performed exclusively in laboratory conditions. No quantitative data on position drift, actuator degradation, or failure rates due to hive-specific factors such as propolis/wax fouling, humidity, or bee contact are provided, leaving the central claim of reliable long-term in-hive operation unsupported.

    Authors: We agree that all reported characterizations were conducted under controlled laboratory conditions to establish baseline engineering performance of the platform components. The manuscript's central claim is that COMB provides a modular, reusable hardware and software foundation enabling repeatable in-hive experiments, rather than asserting that long-term reliability under hive conditions has already been quantitatively demonstrated. We will revise the Demonstrations and Characterization sections to explicitly state this scope, add a dedicated Limitations and Future Work subsection outlining planned hive-deployment studies (including metrics for drift, fouling, and degradation), and temper language around 'reliable long-term in-hive operation' to reflect the current evidence base. No new hive-specific quantitative data can be added, as such experiments were outside the scope of this design-focused study. revision: partial

  2. Referee: [Hardware Design] Hardware Design section: The MAW sealing mechanism and XY stage tolerances are described at a high level, but no metrics (e.g., ingress protection ratings, measured drift under simulated fouling, or multi-day repeatability tests) are given to substantiate tolerance to hive environmental conditions.

    Authors: The Hardware Design section prioritizes description of the modular architecture, integration of the XY stage with the MAW, and payload interchangeability to support the paper's focus on a generalized platform. We acknowledge that the absence of specific quantitative metrics such as ingress protection ratings or simulated-fouling repeatability tests leaves the environmental tolerance claims at a high level. We will revise this section to incorporate any available development-stage measurements on sealing performance and stage repeatability, add explicit discussion of the design choices intended to mitigate propolis and humidity effects, and include a forward-looking statement on required environmental validation. Where measured metrics do not exist, we will note this limitation directly rather than implying unsubstantiated robustness. revision: partial

standing simulated objections not resolved
  • Quantitative data on position drift, actuator degradation, and failure rates under actual hive conditions (propolis/wax fouling, humidity, bee contact) are not available from the current study and cannot be supplied in revision.

Circularity Check

0 steps flagged

No circularity: direct hardware design description with no derivations or fitted predictions

full rationale

The paper is a self-contained engineering design report describing the COMB platform's hardware (XY stage, MAW, modular payloads) and software architecture, along with lab-based characterizations such as trajectory tracking, image stitching, and spectral analysis. No equations, fitted parameters, or predictive models appear that could reduce to inputs by construction. All content consists of direct specifications and empirical measurements without self-citation chains or ansatz smuggling for load-bearing claims. This matches the default case of an honest non-finding for a non-mathematical design paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central contribution is an engineering integration of existing mechatronic components into a hive-compatible form; no new physical entities, free parameters, or ad-hoc axioms beyond standard assumptions about mechanical tolerances and environmental robustness.

axioms (1)
  • domain assumption Standard mechatronic components and control methods remain functional under hive temperature, humidity, and fouling conditions
    Invoked when claiming reliable operation without frequent redesign

pith-pipeline@v0.9.0 · 5524 in / 1303 out tokens · 51586 ms · 2026-05-13T16:48:11.345647+00:00 · methodology
