arxiv: 2604.05062 · v1 · submitted 2026-04-06 · 💻 cs.RO

GaussFly: Contrastive Reinforcement Learning for Visuomotor Policies in 3D Gaussian Fields

Pith reviewed 2026-05-10 18:52 UTC · model grok-4.3

classification 💻 cs.RO
keywords visuomotor policies3D Gaussian Splattingcontrastive learningreinforcement learningsim-to-real transferautonomous aerial vehiclesmonocular visionrepresentation learning
0
0 comments X

The pith

GaussFly reconstructs scenes with constrained 3D Gaussian Splatting and pre-trains contrastive features to let visuomotor policies learn efficiently in simulation and transfer zero-shot to real aerial vehicles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces GaussFly to learn monocular visuomotor policies for autonomous aerial vehicles. It first reconstructs real training scenes into photorealistic simulations using 3D Gaussian Splatting with added geometric constraints. A contrastive encoder is then trained on the rendered images to produce compact, noise-resistant latent features. These features feed into a reinforcement learning policy, reducing the policy's input dimension and improving its robustness. The result is higher sample efficiency during training and direct deployment on unseen real environments with complex textures.

Core claim

By decoupling representation learning from policy optimization in a real-to-sim-to-real pipeline, GaussFly first builds high-fidelity training environments through 3D Gaussian Splatting augmented with explicit geometric constraints, then extracts robust low-dimensional features via contrastive learning on the rendered views. Feeding these features to the visuomotor policy yields superior sample efficiency and asymptotic performance in simulation while enabling robust zero-shot transfer to physical settings.

What carries the argument

The real-to-sim-to-real paradigm that reconstructs scenes via constrained 3D Gaussian Splatting and applies contrastive representation learning to obtain compact features for the reinforcement learning policy.

If this is right

  • Visuomotor policies require far fewer environment interactions to reach high performance than direct image-to-action baselines.
  • The same policy achieves better final returns in simulation than methods that map raw pixels straight to controls.
  • A policy trained only in the reconstructed scenes executes successfully on real hardware in entirely new locations with complex textures.
  • Low-dimensional contrastive features lower the computational cost of policy training and inference.
  • The learned features remain stable under visual noise that would degrade raw-pixel policies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same pre-trained encoder could be reused across multiple different tasks or vehicle platforms within similar visual domains without retraining.
  • Relaxing the geometric constraints during scene reconstruction would likely increase the remaining sim-to-real gap and reduce zero-shot success.
  • Extending the approach to dynamic scenes or moving objects would require updating the Gaussian reconstruction step to handle time-varying geometry.
  • The method suggests that explicit 3D reconstruction is more effective than purely image-based domain randomization for achieving texture-invariant features.

Load-bearing premise

The 3D Gaussian Splatting models with geometric constraints create simulated images close enough to real ones that contrastive features learned from them will generalize directly to physical environments with unseen complex textures.

What would settle it

Train a policy with GaussFly on a set of reconstructed scenes, then deploy it without any adaptation on a real aerial vehicle flying in an environment whose textures, lighting, and geometry were never part of the original reconstructions, and check whether success rate remains comparable to simulation.

Figures

Figures reproduced from arXiv: 2604.05062 by Chao Yan, Jiaping Xiao, Mingsheng Li, Mir Feroskhan, Yuhang Zhang, Yujing Shang, Zhuoyuan Yu.

Figure 1

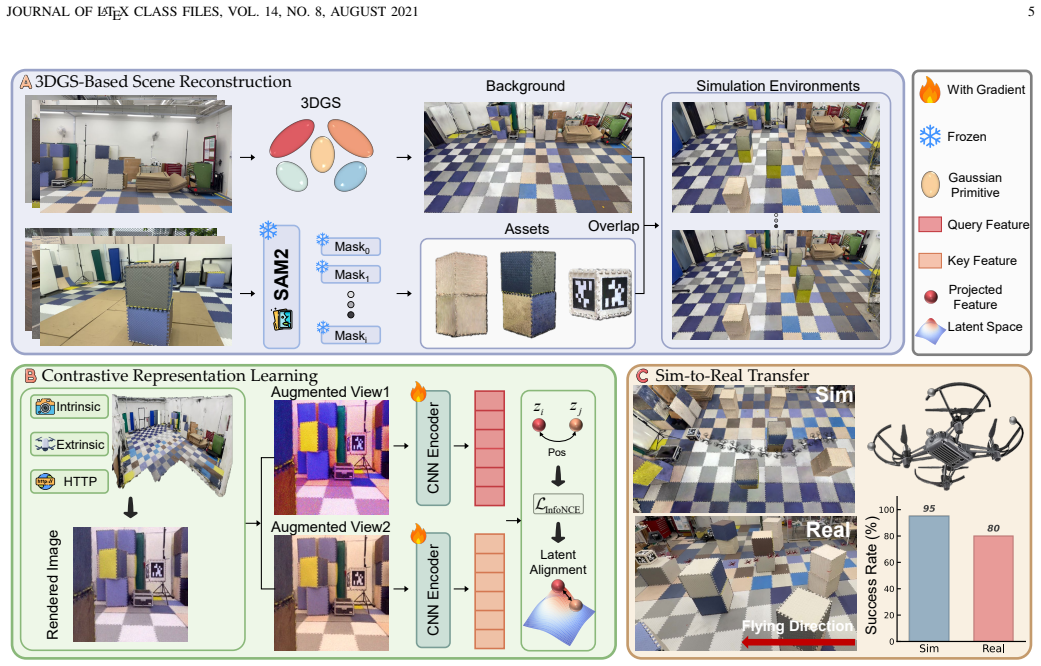

Figure 1. Figure 1: The framework of GaussFly. (A) 3DGS-Based Scene Reconstruction. Background environments and foreground assets [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

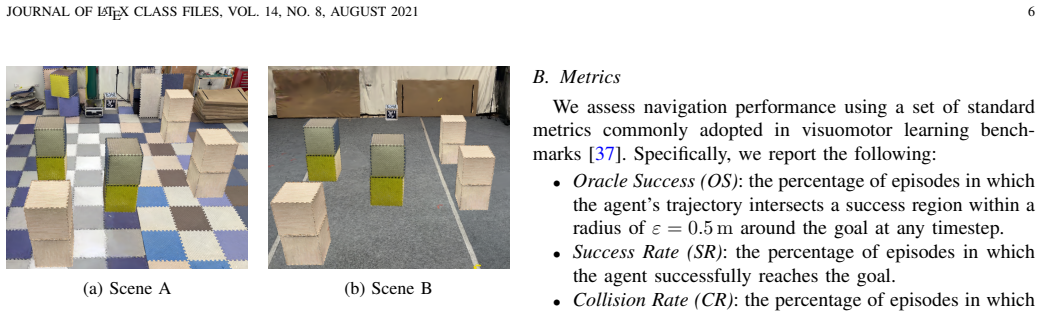

Figure 2. Figure 2: Illustration of the simulation environments. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

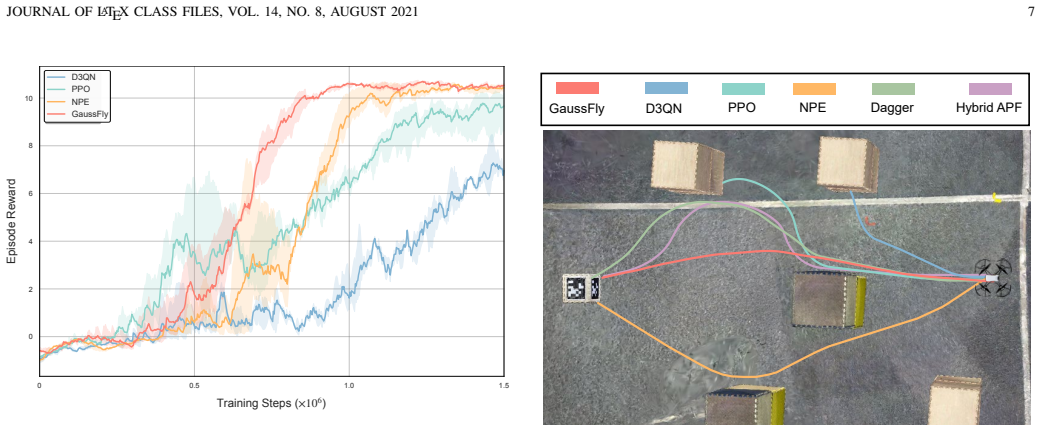

Figure 3. Figure 3: Training reward curves. GaussFly achieves comparable [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 5

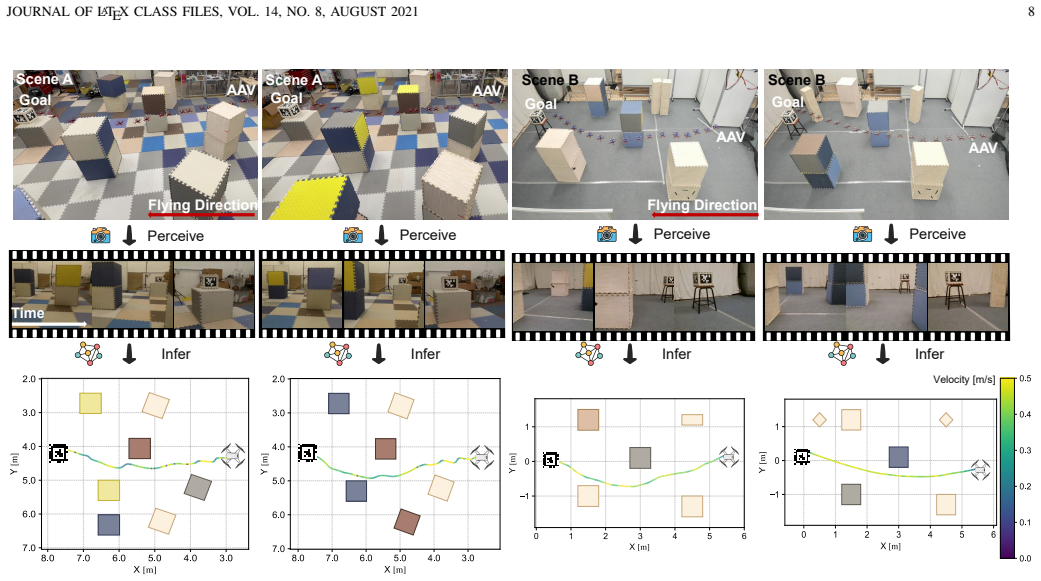

Figure 5. Figure 5: Representative real-world flight trajectories in two indoor environments. Top: Third-person views of the AAV navigating [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

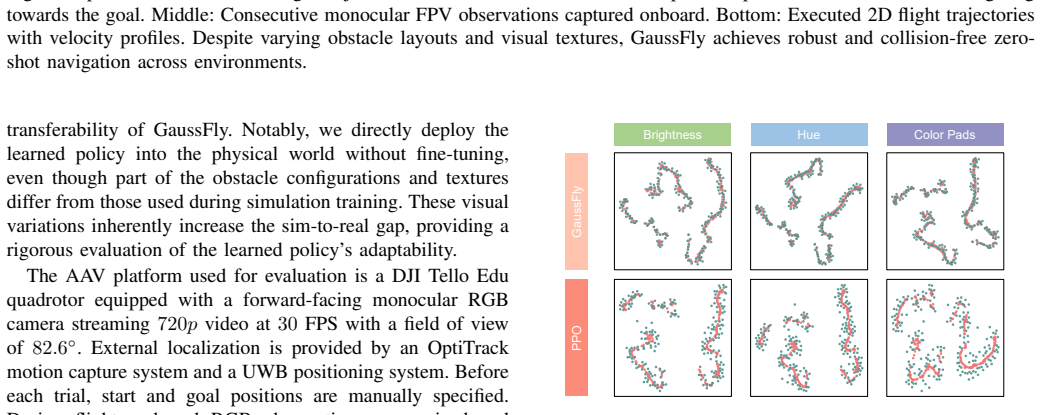

Figure 6. Figure 6: t-SNE visualization under visual interference. Red and [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 8

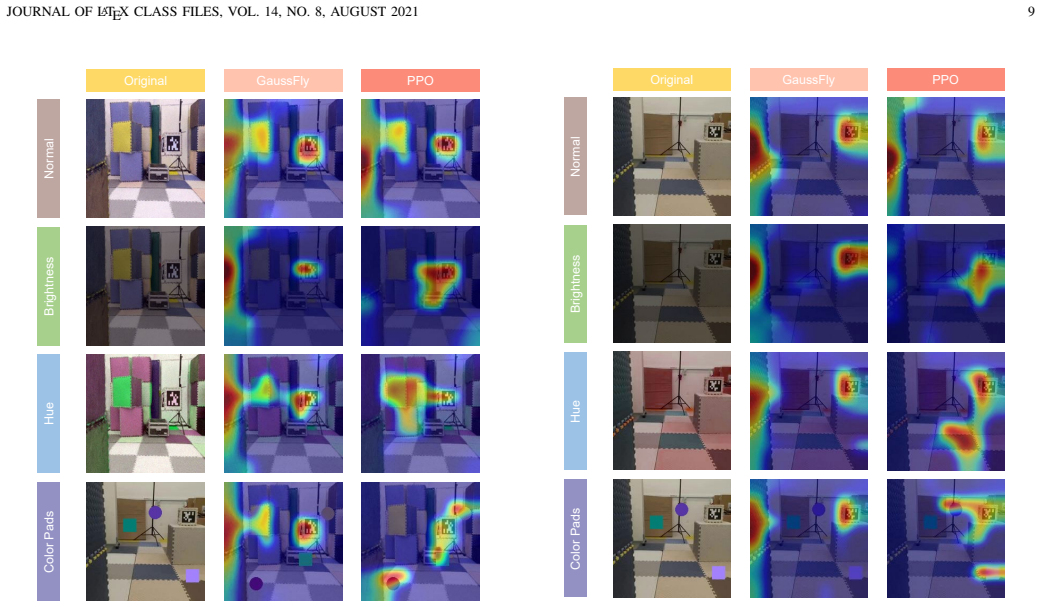

Figure 8. Figure 8: Attention visualization in real-world environments. By [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

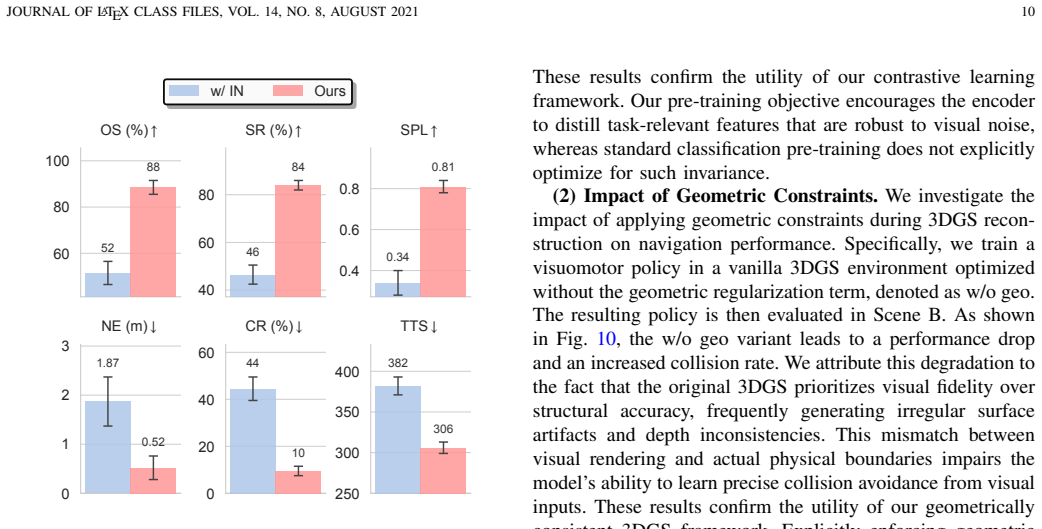

Figure 9. Figure 9: Ablation study on contrastive pre-training. We eval [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10

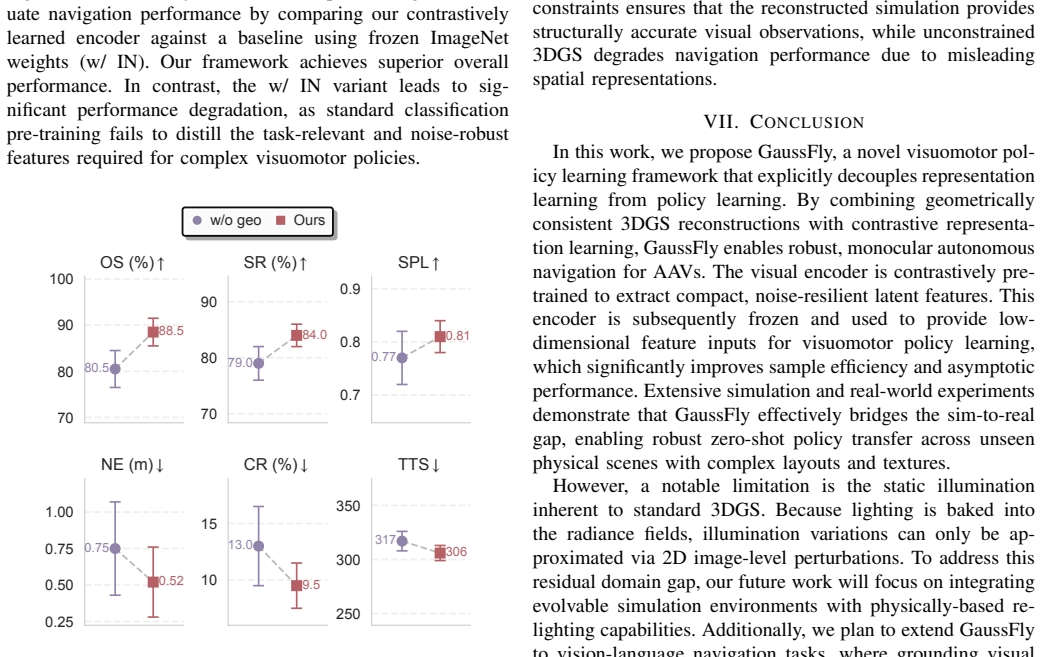

Figure 10. Figure 10: Ablation study on geometric constraints. We evaluate [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
read the original abstract

Learning visuomotor policies for Autonomous Aerial Vehicles (AAVs) relying solely on monocular vision is an attractive yet highly challenging paradigm. Existing end-to-end learning approaches directly map high-dimensional RGB observations to action commands, which frequently suffer from low sample efficiency and severe sim-to-real gaps due to the visual discrepancy between simulation and physical domains. To address these long-standing challenges, we propose GaussFly, a novel framework that explicitly decouples representation learning from policy optimization through a cohesive real-to-sim-to-real paradigm. First, to achieve a high-fidelity real-to-sim transition, we reconstruct training scenes using 3D Gaussian Splatting (3DGS) augmented with explicit geometric constraints. Second, to ensure robust sim-to-real transfer, we leverage these photorealistic simulated environments and employ contrastive representation learning to extract compact, noise-resilient latent features from the rendered RGB images. By utilizing this pre-trained encoder to provide low-dimensional feature inputs, the computational burden on the visuomotor policy is significantly reduced while its resistance against visual noise is inherently enhanced. Extensive experiments in simulated and real-world environments demonstrate that GaussFly achieves superior sample efficiency and asymptotic performance compared to baselines. Crucially, it enables robust and zero-shot policy transfer to unseen real-world environments with complex textures, effectively bridging the sim-to-real gap.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The manuscript proposes GaussFly, a framework for visuomotor policy learning in autonomous aerial vehicles that decouples representation learning from policy optimization via a real-to-sim-to-real pipeline. Scenes are reconstructed using 3D Gaussian Splatting augmented with explicit geometric constraints to create high-fidelity simulations; contrastive representation learning is then applied to rendered RGB images to obtain compact, noise-resilient latent features. These features serve as low-dimensional inputs to a reinforcement learning policy trained in simulation, with the goal of achieving superior sample efficiency, asymptotic performance, and zero-shot transfer to unseen real-world environments with complex textures.

Significance. If the empirical claims hold, the work offers a coherent approach to mitigating the sim-to-real gap in high-dimensional visual control by leveraging photorealistic 3DGS reconstructions and contrastive pre-training. The explicit separation of representation learning from policy optimization reduces computational burden on the policy while enhancing robustness to visual noise, which could improve sample efficiency in robotics applications. The real-to-sim-to-real paradigm and use of established 3DGS and contrastive techniques are presented without internal contradictions.

minor comments (1)
  1. Abstract: the claims of superior sample efficiency, asymptotic performance, and zero-shot transfer are stated without any quantitative metrics, baseline names, or effect sizes; adding one or two key numerical results would make the summary self-contained and proportionate to the experimental emphasis in the full text.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision for our manuscript on GaussFly. The description accurately reflects the framework's decoupling of representation learning via 3D Gaussian Splatting and contrastive features from policy optimization, along with the real-to-sim-to-real pipeline for improved sample efficiency and zero-shot transfer.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents a pipeline that applies established 3D Gaussian Splatting for scene reconstruction, contrastive representation learning on rendered images, and standard reinforcement learning for visuomotor policies. No derivation, equation, or claim reduces to its own inputs by construction; the central claims rest on empirical validation of the combined pipeline rather than self-referential definitions or fitted parameters renamed as predictions. The method section describes sequential stages without internal loops that would force results tautologically.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim depends on two domain assumptions about reconstruction fidelity and feature robustness; no free parameters or invented entities are introduced in the abstract description.

axioms (2)
  • domain assumption 3D Gaussian Splatting augmented with explicit geometric constraints achieves high-fidelity real-to-sim scene reconstruction
    Invoked as the first step to create photorealistic training environments.
  • domain assumption Contrastive representation learning extracts compact, noise-resilient latent features from rendered RGB images that support effective policy learning
    Invoked to justify reduced policy input dimensionality and improved sim-to-real robustness.
