Analyzing Persistent Alltoallv RMA Implementations for High-Performance MPI Communication

Evelyn Namugwanya This is my paper

Pith reviewed 2026-05-10 18:33 UTC · model grok-4.3

classification 💻 cs.DC
keywords persistent MPIRMA Alltoallvcollective communicationHPC performancefence synchronizationirregular communicationmetadata reuse
0
0 comments X

The pith

Persistent RMA Alltoallv variants reduce runtime up to 44% for large messages by reusing metadata and window state.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper designs persistent MPI RMA versions of Alltoallv that use fence or lock synchronization to separate a one-time initialization phase from repeated execution phases. This structure allows reuse of communication metadata and window state across iterations instead of rebuilding it each time. Benchmarks on LLNL's Dane supercomputer show the fence-persistent version consistently beats the standard non-persistent baseline for large messages, with speedups that grow as message size and process count increase. The work also tests irregular sparse patterns, compares fence versus lock designs, and supplies a break-even model showing when the approach becomes worthwhile. Such improvements matter for HPC applications that call Alltoallv repeatedly with uneven data sizes, where repeated setup costs can add up.

Core claim

Persistent MPI RMA Alltoallv implementations based on fence and lock synchronization separate initialization from per-iteration execution to enable reuse of communication metadata and window state. Benchmarks demonstrate that the fence-persistent variant outperforms the non-persistent baseline for large messages, achieving up to 44% runtime reduction and better scalability with process count, including a drop from 2.49s to 1.54s at 448 processes. Message-size sweeps and a break-even model establish that persistence provides immediate payoff for messages of 32,768 bytes or larger while smaller messages show limited benefit due to amortization costs.

What carries the argument

Persistent RMA Alltoallv, which splits one-time setup from repeated execution phases to reuse metadata and window state across epochs.

If this is right

  • Persistence delivers immediate benefits once messages reach or exceed 32,768 bytes as runtime becomes dominated by data movement rather than setup.
  • Time savings increase with larger message sizes and higher process counts, improving overall scalability.
  • Fence-based synchronization shows stronger gains than lock-based in the tested scenarios, including under irregular sparse communication patterns.
  • Hierarchical extensions of the designs remain practical for workloads with large messages.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same separation of initialization and execution could be applied to other MPI collectives that involve irregular or repeated communication.
  • Application developers working with repeated Alltoallv patterns could adopt the persistent interface with minimal code changes to gain the reported speedups.
  • The break-even model may help predict performance on systems where metadata costs differ from those measured on Dane.
  • Similar persistence techniques might extend to non-MPI communication libraries that support remote memory access primitives.

Load-bearing premise

The measured runtime reductions are caused by the persistence mechanism and metadata reuse rather than unstated details of the MPI library, compiler effects, or specific characteristics of the Dane supercomputer hardware.

What would settle it

Running identical benchmarks on a different supercomputer with a different MPI implementation and finding no comparable runtime reduction for the persistent variant would indicate the improvements are not due to persistence itself.

Figures

Figures reproduced from arXiv: 2604.05099 by Evelyn Namugwanya.

Figure 2
Figure 2. Figure 2: Varying Message size per process (bytes) on 8 nodes, [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: hugetrace-00020 (47,997,626 nnz), performance com [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

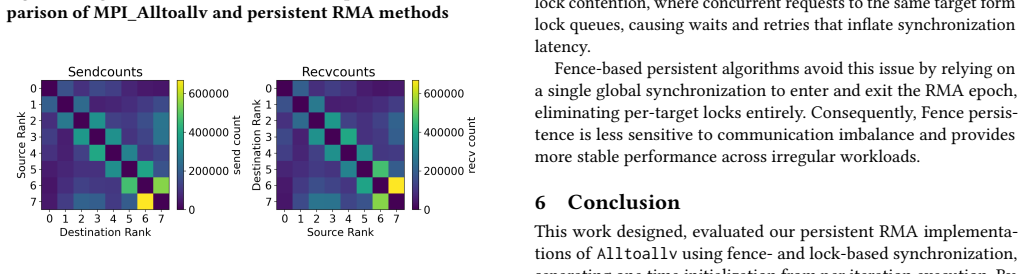

Figure 4
Figure 4. Figure 4: 8 Nodes 8 Processes, analyzing the suite sparse [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

Collective communication operations such as MPI_Alltoallv are central to many HPC applications, particularly those with irregular message sizes. We design, implement, and evaluate persistent MPI RMA variants of Alltoallv based on fence and lock synchronization, separating a one time initialization phase from per iteration execution to enable reuse of communication metadata and window state across repeated epochs. Our benchmarks tested on LLNL's Dane supercomputer show that the fence-persistent variant consistently outperforms the non-persistent baseline for large message sizes, achieving up to 44% reduction in runtime and improving scalability with increasing process counts; at 448 processes the runtime decreases from 2.49s to 1.54s (38% faster). We further evaluate the algorithms under irregular sparse communication patterns and compare fence- and lock-based designs, including hierarchical extensions. Message-size sweeps and a break-even model demonstrate that persistence provides immediate payoff for messages greater or equal to 32,768 bytes, while smaller messages show limited benefit due to metadata amortization costs. These results indicate that persistent RMA Alltoallv is a practical approach for workloads with large messages, where removing repeated metadata processing leaves runtime dominated by data movement, as evidenced by the increasing time savings with message size, and they clarify the trade-offs between fence and lock synchronization on modern HPC systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript designs and evaluates persistent MPI RMA variants of Alltoallv using fence and lock synchronization. By separating a one-time initialization phase from repeated execution epochs, the approach enables reuse of communication metadata and window state. Benchmarks on LLNL's Dane supercomputer show the fence-persistent variant outperforming the non-persistent baseline for large messages (up to 44% runtime reduction), with improved scalability at higher process counts (e.g., runtime dropping from 2.49s to 1.54s at 448 processes, a 38% improvement). The work also examines irregular sparse patterns, compares fence vs. lock designs, and presents a break-even model indicating benefits for messages >= 32 KB.

Significance. If the performance gains are confirmed to stem from metadata reuse, the results would offer practical guidance for optimizing repeated collective operations in HPC applications with irregular communication. The message-size sweeps and synchronization trade-off analysis could inform MPI library implementations and encourage broader use of persistent RMA primitives where data movement dominates runtime.

major comments (1)
  1. Abstract and benchmarks section: The central performance claims (e.g., 38% reduction from 2.49s to 1.54s at 448 processes and up to 44% overall) are reported without error bars, the number of repetitions per measurement, warm-up details, or statistical tests for significance. This absence directly affects verification that the observed speedups are attributable to persistence and metadata reuse rather than measurement variability or unstated factors.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comment below and will incorporate the suggested improvements in the revised version.

read point-by-point responses

  1. Referee: Abstract and benchmarks section: The central performance claims (e.g., 38% reduction from 2.49s to 1.54s at 448 processes and up to 44% overall) are reported without error bars, the number of repetitions per measurement, warm-up details, or statistical tests for significance. This absence directly affects verification that the observed speedups are attributable to persistence and metadata reuse rather than measurement variability or unstated factors.

    Authors: We agree that the manuscript would benefit from additional details on the benchmark methodology to strengthen the claims. In the revised version, we will expand the abstract and benchmarks section to include the number of repetitions per measurement, warm-up iterations, error bars on the reported timings (e.g., standard deviation), and a description of any statistical tests applied to assess significance. This will better demonstrate that the performance improvements arise from the persistent RMA approach rather than variability. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

This is a pure empirical benchmarking paper that reports direct runtime measurements, message-size sweeps, and scalability comparisons between persistent and non-persistent MPI RMA Alltoallv implementations on LLNL's Dane supercomputer. It contains no equations, derivations, fitted parameters presented as predictions, or self-citation chains that reduce the central claims to inputs by construction. The reported speedups (e.g., 44% for large messages) and break-even observations are straightforward empirical outcomes from the described experiments, not logical reductions of the paper's own premises.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work is implementation-driven and relies on the correctness of the underlying MPI standard and hardware rather than new theoretical constructs.

axioms (1)
  • domain assumption MPI RMA fence and lock synchronization primitives behave according to the MPI standard specification.
    The persistent variants are built directly on these primitives.
