Evolution of SPI-induced disruptions in ASDEX Upgrade

P. Heinrich (1) , G. Papp (1) , S. Jachmich (2) , J. Artola (2) , M. Bernert (1) , P. de Marn\'e (1) , M. Dibon (2) , R. Dux (1)
show 36 more authors
T. Eberl (1) O. Ficker (3) P. Halldestam (1) J. Hobirk (1) M. Hoelzl (1) F. Klossek (1) M. Lehnen (2) T. Lunt (1) M. Maraschek (1) A. Patel (1) T. Peherstorfer (4) N. Schwarz (5) U. Sheikh (6) B. Sieglin (1) J. Svoboda (3) W. Tang (1) the ASDEX Upgrade Team the EUROfusion Tokamak Exploitation Team ((1) Max Planck Institute for Plasma Physics Garching Germany (2) ITER Organization St. Paul-lez-Durance France (3) Institute of Plasma Physics of the CAS CZ-18200 Praha 8 Czech Republic (4) Institute for Applied Physics Wien Austria (5) Commissariat \'a l'\'Energie Atomique CEA Institute for Magnetic Fusion Research IRFM F-13108 St. Paul-lez-Durance (6) Ecole Polytechnique F\'ed\'erale de Lausanne - EPFL Swiss Plasma Center - SPC Lausanne Switzerland)
This is my paper

Pith reviewed 2026-05-10 19:03 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords disruption mitigationshattered pellet injectionneon assimilationcurrent quenchtokamak plasmathermal quenchmitigation efficiency
0
0 comments X

The pith

Higher assimilated neon in SPI disruptions shifts the current quench from convex to concave shape.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper maps out how shattered pellet injection triggers and mitigates disruptions through a sequence of phases that depend on how much neon reaches the plasma core. As neon assimilation rises, mainly from higher neon fractions in the pellet and changes in fragment size and speed, the entire disruption process evolves in a continuous manner rather than jumping between discrete regimes. The clearest signature is the plasma current trace during the current quench, which moves from a convex shape typical of poorly mitigated cases to a concave shape seen in radiation-dominated, well-mitigated events, accompanied by shorter pre-thermal-quench and early current-quench intervals. This matters because it supplies concrete experimental guidance on tuning injection parameters to reduce thermal loads and vessel forces in large tokamaks. A sympathetic reader would treat the work as evidence that mitigation performance can be dialed continuously by controlling the delivered impurity quantity.

Core claim

With increasing assimilated neon in the plasma, primarily set by the neon content of the pellet and the shattering parameters, SPI-induced disruptions evolve continuously; the most visible change is the current-quench plasma-current time trace shifting from convex to concave while pre-TQ durations drop from roughly 15 ms to 0.5 ms and early CQ durations fall from 13.3 ms to 8.2 ms, indicating a transition from poorly mitigated to radiation-dominated behavior.

What carries the argument

The quantity of assimilated neon, set by pellet neon fraction and shattering parameters, which determines the timing and character of each disruption phase including the shape of the current-quench trace.

If this is right

  • Pre-thermal-quench durations can be shortened to 0.5 ms and early current-quench intervals to 8.2 ms under high neon assimilation.
  • Convex current-quench traces correspond to poorly or unmitigated cases while concave traces mark radiation-dominated mitigation.
  • Individual disruption phases such as the MARFE or vertical displacement event can be shortened, lengthened, or eliminated by changing the injection settings.
  • The evolution is continuous, so intermediate neon levels produce intermediate time scales and trace shapes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The continuous dependence implies that pellet design can be used to target specific mitigation thresholds rather than relying on binary on/off behavior.
  • If the neon-driven transition holds across devices, it supplies a practical benchmark for validating radiation-transport models used in ITER predictions.
  • Independent scans that hold neon assimilation fixed while varying plasma elongation or impurity mix would test whether the assumption of neon dominance survives.

Load-bearing premise

The observed sequence of phases and the convex-to-concave transition in the current quench are controlled mainly by the amount of assimilated neon rather than by uncontrolled differences in plasma shape, other impurities, or diagnostic timing.

What would settle it

A set of discharges in which assimilated neon is measured high yet the current-quench trace remains convex, or low neon yields a concave trace, would falsify the claimed primary dependence.

Figures

Figures reproduced from arXiv: 2604.05488 by (2) ITER Organization, (3) Institute of Plasma Physics of the CAS, (4) Institute for Applied Physics, (5) Commissariat \'a l'\'Energie Atomique CEA, (6) Ecole Polytechnique F\'ed\'erale de Lausanne - EPFL, A. Patel (1), Austria, B. Sieglin (1), CZ-18200 Praha 8, Czech Republic, F-13108 St. Paul-lez-Durance, F. Klossek (1), France, Garching, Germany, G. Papp (1), Institute for Magnetic Fusion Research IRFM, J. Artola (2), J. Hobirk (1), J. Svoboda (3), Lausanne, M. Bernert (1), M. Dibon (2), M. Hoelzl (1), M. Lehnen (2), M. Maraschek (1), N. Schwarz (5), O. Ficker (3), P. de Marn\'e (1), P. Halldestam (1), P. Heinrich (1), R. Dux (1), S. Jachmich (2), St. Paul-lez-Durance, Swiss Plasma Center - SPC, Switzerland), T. Eberl (1), the ASDEX Upgrade Team, the EUROfusion Tokamak Exploitation Team ((1) Max Planck Institute for Plasma Physics, T. Lunt (1), T. Peherstorfer (4), U. Sheikh (6), Wien, W. Tang (1).

Figure 1

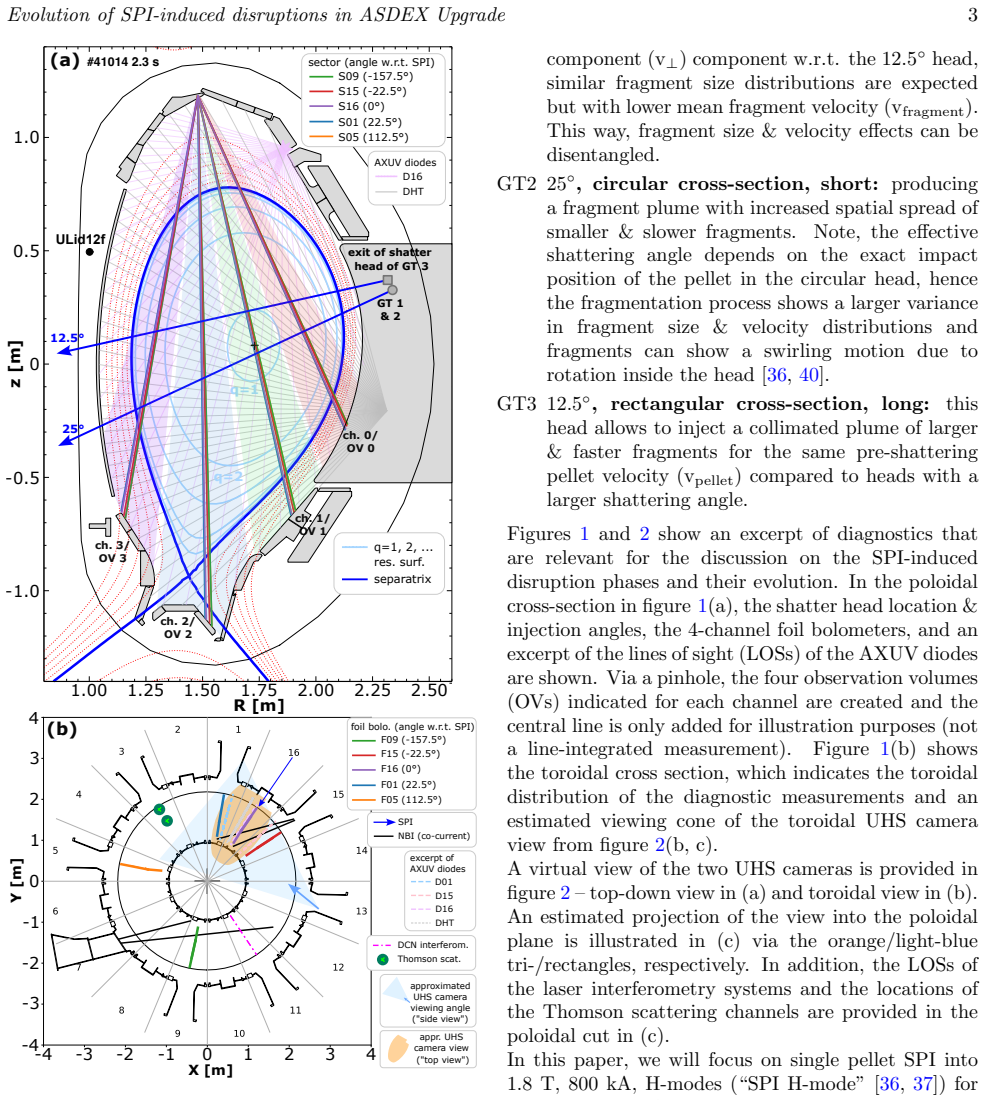

Figure 1. Figure 1: Poloidal (a) and toroidal (b) cross section [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

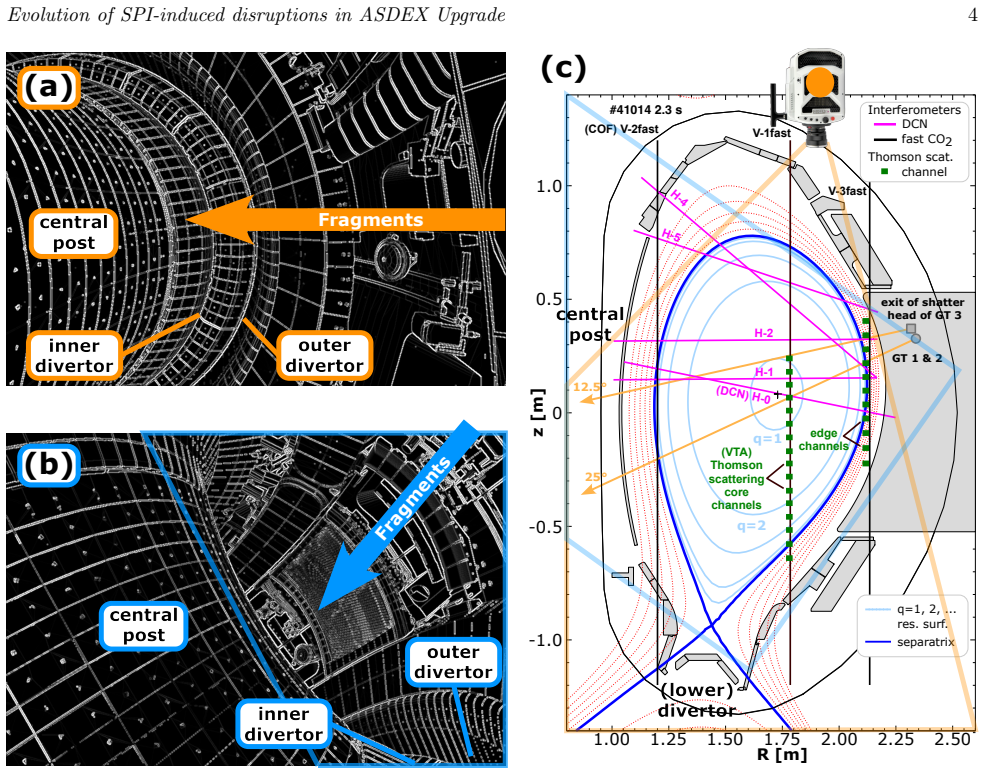

Figure 2. Figure 2: Virtual reconstruction of the top-down (a) and toroidal (b) views of the UHS cameras used to analyse [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

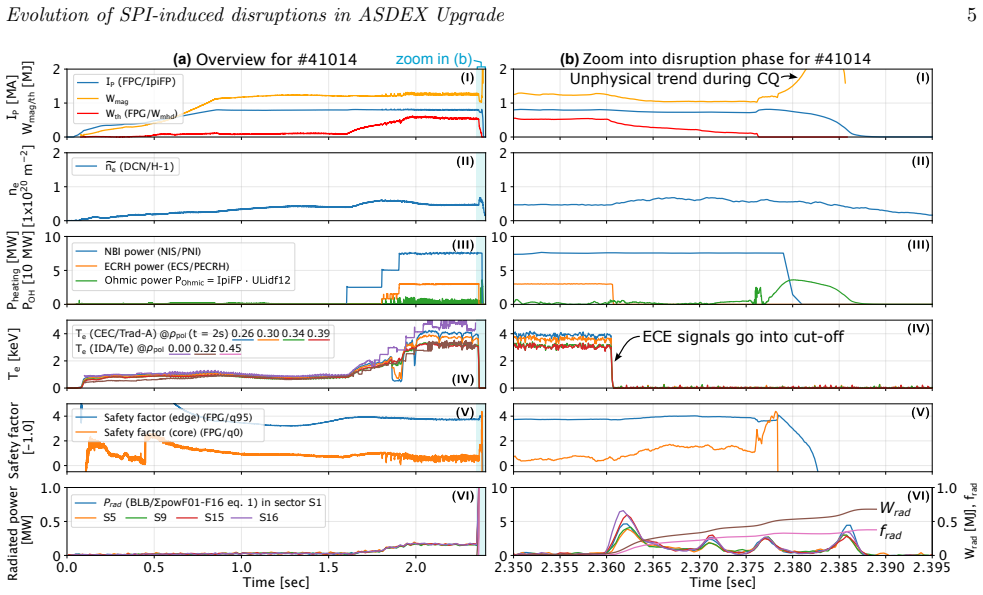

Figure 3. Figure 3: Scenario overview for the reference discharge #41014 of the SPI H-mode: 100% D [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

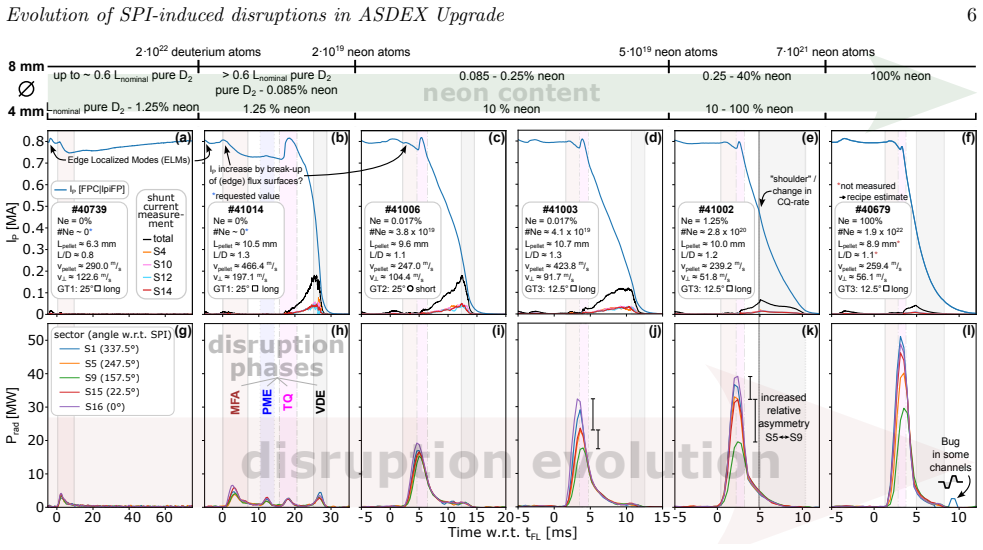

Figure 4. Figure 4: Overview over the evolution of disruption behaviors from 100% D [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

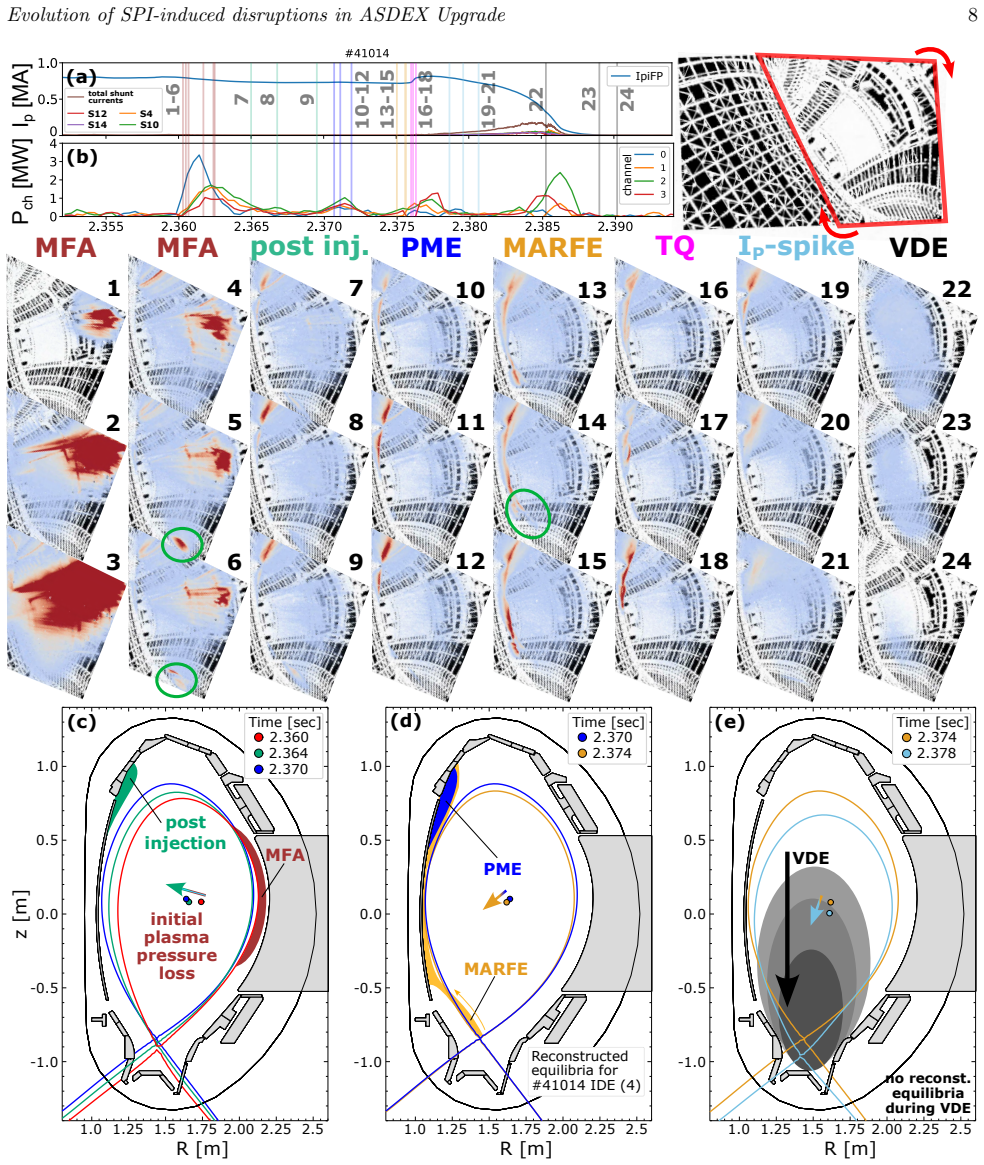

Figure 5. Figure 5: Images taken from the fast camera recordings of the disruption during the different disruption phases [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

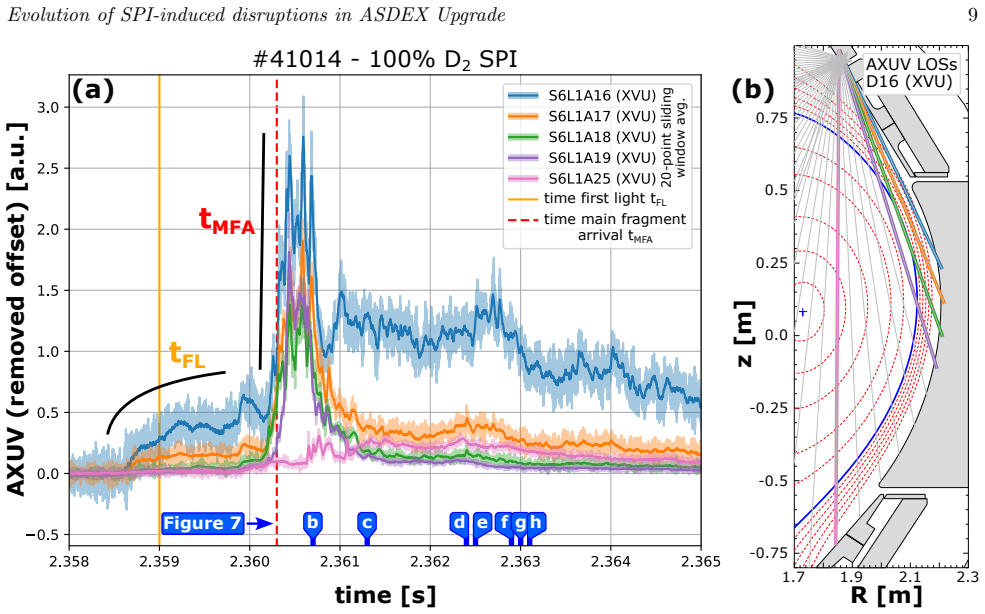

Figure 6. Figure 6: In (a), the AXUV signals with a 20-point average in dark is given. The first increase in the edge AXUV [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

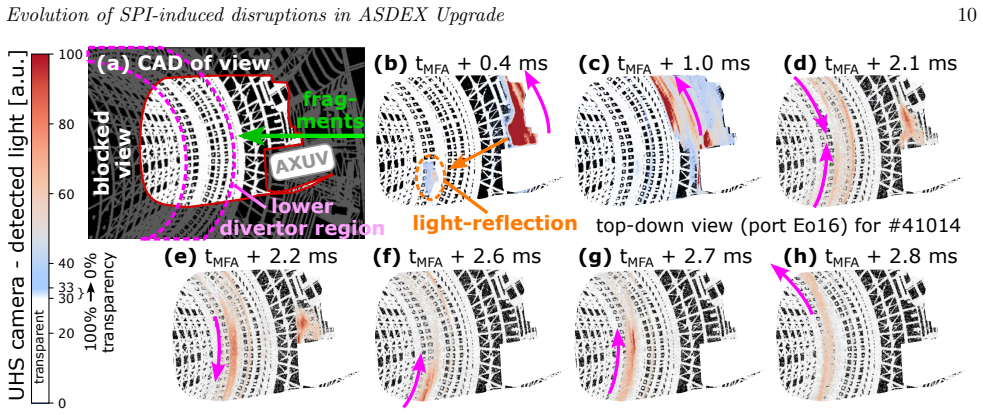

Figure 7. Figure 7: Top-down view on the main fragment arrival with a fast camera for discharge #41014. The colour [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The plasma movement event in discharge #41014: (a) [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9

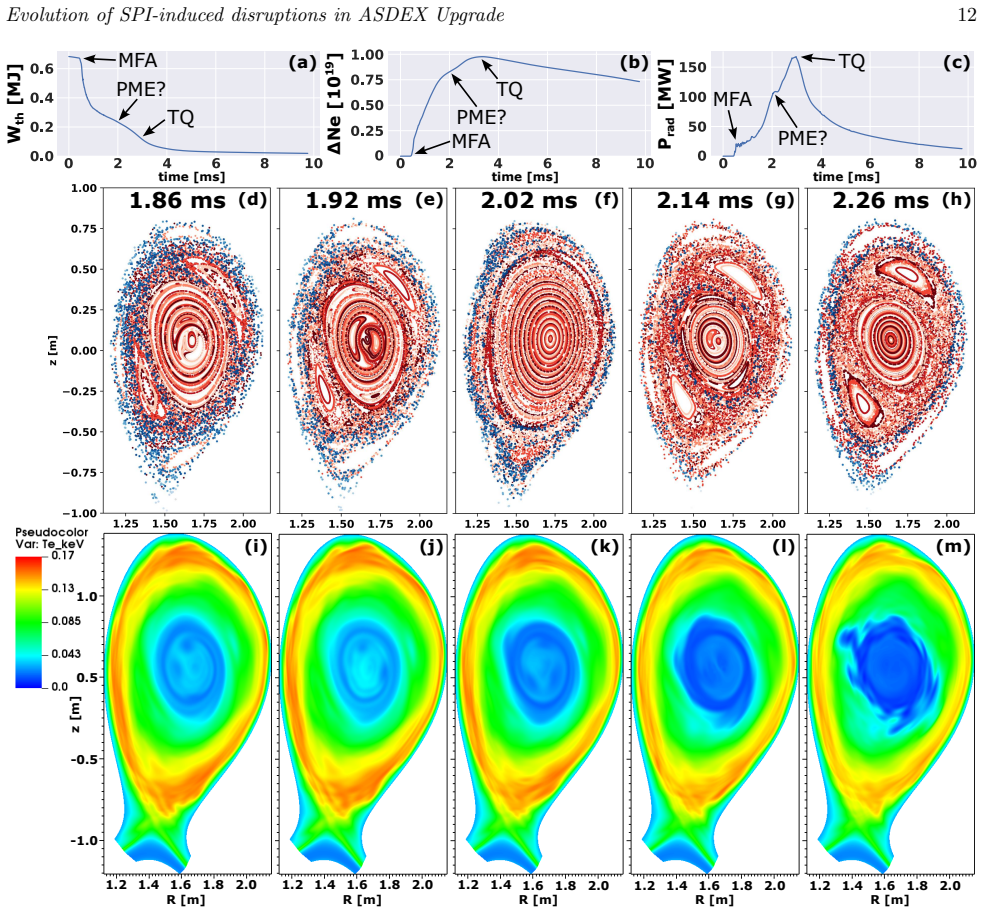

Figure 9. Figure 9: (1, 1) kink mode that occurs in the JOREK simulations after a f [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10

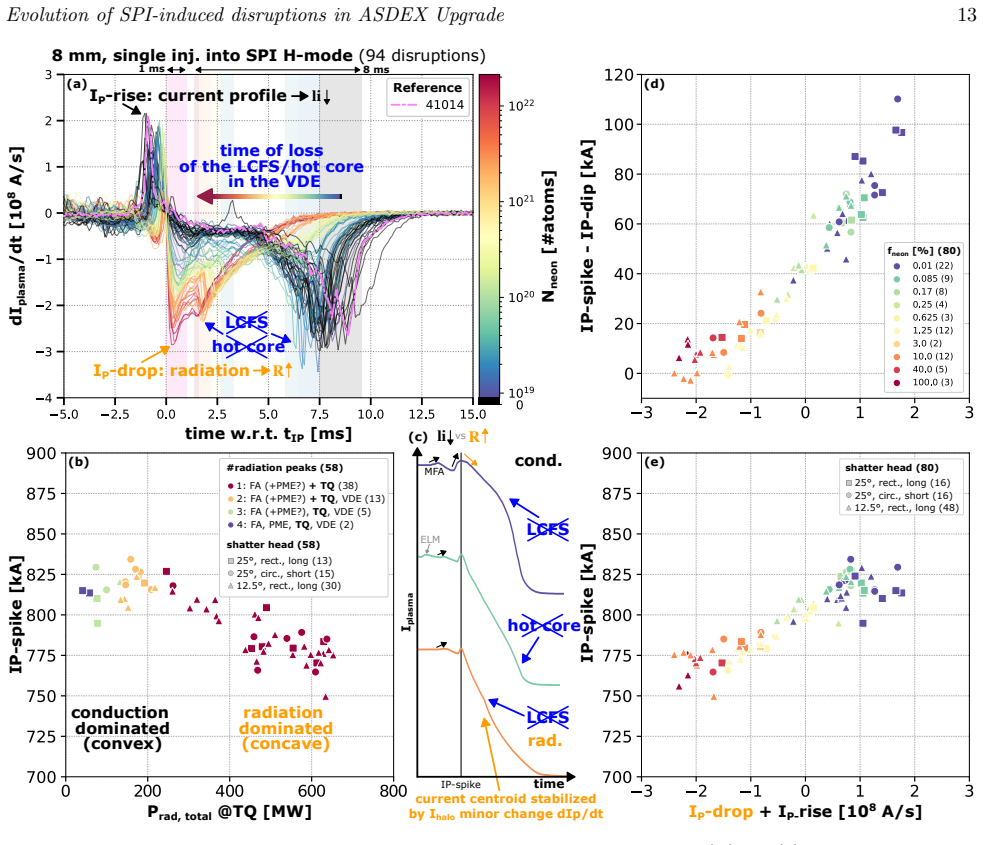

Figure 10. Figure 10: IP-spike height changes due to competing [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗
Figure 11

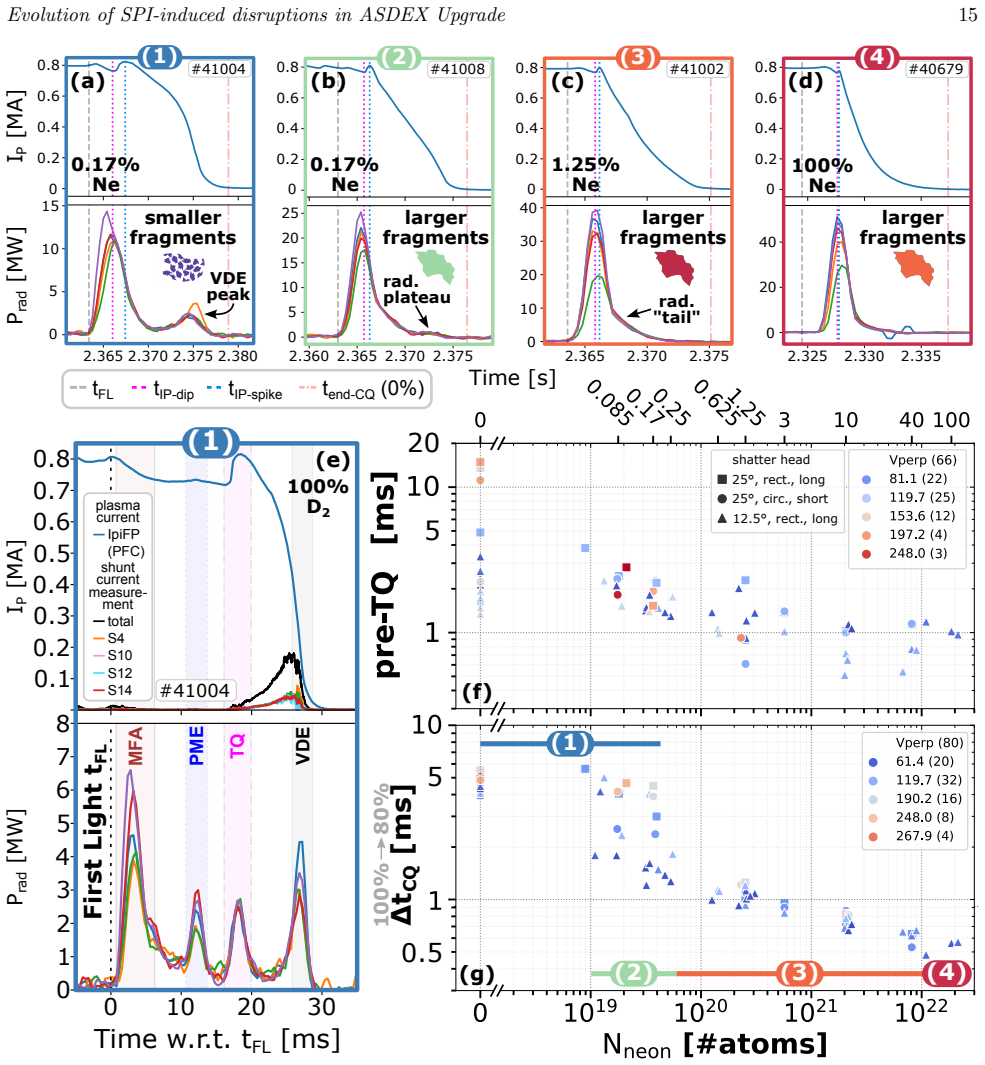

Figure 11. Figure 11: Evolution of the disruption dynamics with increasing amount of assimilated neon content. From (1) [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12

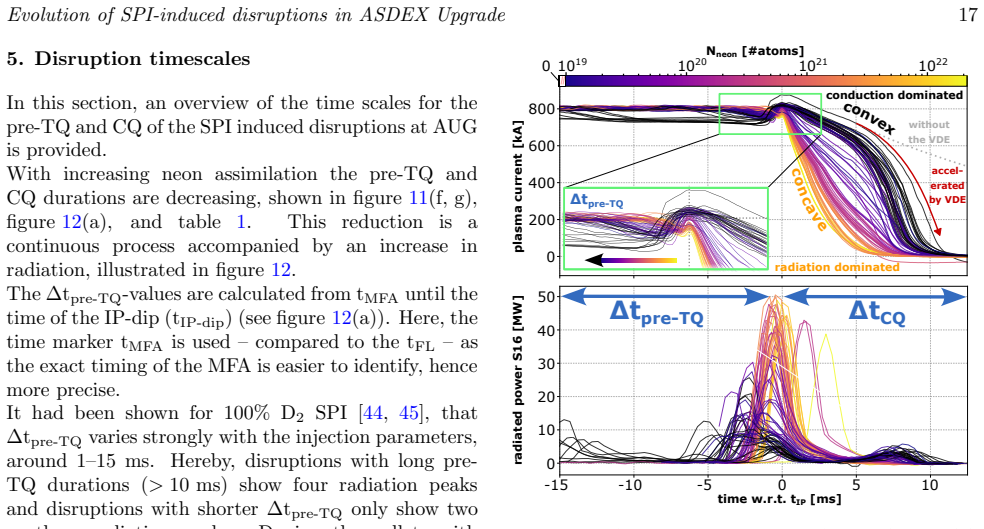

Figure 12. Figure 12: Continuous reduction of pre-TQ and CQ durations with increasing neon content, hence peak radiation. The (a) plasma current and (b) radiated power in S16 are shown aligned with respect to the IP￾spike. The transition from convex to linear and finally concave CQ shapes is observed in this continuous disruption evolution. the mean fragment size does not change significantly anymore, whereas the mean vfragmen… view at source ↗
Figure 13
Figure 13. Figure 13: The pre-TQ duration as a function of the [PITH_FULL_IMAGE:figures/full_fig_p018_13.png] view at source ↗
read the original abstract

Disruptions are a major concern for future fusion reactors based on the tokamak principle. To ensure machine protection, the thermal loads and vessel forces that arise during disruptions have to be mitigated reliably. For the ITER disruption mitigation system (DMS), the shattered pellet injection (SPI) technology has been selected. It can provide a prompt delivery of the injection material into the plasma core, with the mitigation efficiency depending on fragment size and velocity. A highly flexible SPI system was built and installed at the tokamak ASDEX Upgrade (AUG) to aid the finalization process of the ITER DMS and provide crucial input for modeling. The SPI-induced disruptions in the 2022 AUG experiments follow a typical chain of events, which are discussed in this paper: The first light, main fragment arrival, plasma movement event, MARFE, thermal quench/plasma current spike, current quench, and vertical displacement event phase. Depending on the injection parameters, these phases may vary significantly or some might not be present at all. In this paper, we will focus on the characterization of these disruption phases and figures of merit for the mitigation efficiency, depending on the SPI configuration. With increasing amount of assimilated neon in the plasma - primarily influenced by the neon content in the pellet but also the shattering parameters - the disruptions exhibit different behaviors. This disruption evolution seems to be a continuous process, with the most prominent feature being the changing disruption time scales and plasma current time trace shape during the CQ from convex (poorly or unmitigated) $\rightarrow$ concave (well mitigated/radiation dominated). Depending on the injection, pre-TQ durations between 15 - 0.5 ms and early CQ durations ($\Delta \textrm{t}_\textrm{CQ}^{100 \rightarrow 80}$) between 13.3 - 8.2 ms had been achieved at AUG.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports experimental observations of shattered pellet injection (SPI) induced disruptions in ASDEX Upgrade during 2022 campaigns. It describes a typical sequence of disruption phases (first light, main fragment arrival, plasma movement, MARFE, thermal quench/current spike, current quench, vertical displacement) and claims that these phases vary with SPI parameters. The central claim is that disruption evolution is a continuous process driven primarily by increasing assimilated neon (set by pellet neon content and shattering parameters), with the key signature being a change in the plasma current time trace during the current quench (CQ) from convex (poorly mitigated) to concave (radiation-dominated), accompanied by pre-TQ durations of 15–0.5 ms and early CQ durations (Δt_CQ^{100→80}) of 13.3–8.2 ms.

Significance. If the neon-assimilation dependence and continuous-process framing are robustly demonstrated with adequate controls, the work supplies important empirical input for ITER DMS design by mapping SPI configuration to mitigation metrics in a present-day tokamak. The reported time-scale ranges and phase characterization are directly usable for model validation.

major comments (2)
  1. [Abstract and §4] Abstract and §4 (results on CQ evolution): the claim that the convex-to-concave CQ transition and overall disruption evolution are 'primarily' driven by assimilated neon is not secured by the presented data. The abstract states that neon content and shattering parameters are varied together to achieve different neon levels, yet no regression controls, partial-correlation analysis, or explicit decoupling of fragment-size/velocity distributions from neon assimilation are described. Without such isolation, the 'primarily neon' attribution and 'continuous process' interpretation remain vulnerable to confounding by uncontrolled variables (plasma shape, impurity mix, diagnostic timing).
  2. [§3 and §5] §3 (experimental setup) and §5 (figures of merit): no quantitative neon-assimilation diagnostic (e.g., integrated bolometry or spectroscopy) or error bars on the reported time scales are referenced when asserting the continuous evolution. The pre-TQ and Δt_CQ ranges are given as achieved values, but the statistical basis for treating the sequence as a single continuous parameter space rather than discrete regimes is not shown.
minor comments (2)
  1. [Abstract] Notation: the symbol Δt_CQ^{100→80} is introduced without an explicit definition of the 100 % and 80 % current levels or the precise time window used.
  2. [Figures in §4] Figure clarity: time traces in the CQ phase figures would benefit from overlaid reference unmitigated cases and explicit indication of the convex/concave classification criteria.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript on SPI-induced disruptions in ASDEX Upgrade. We address each major comment point by point below, indicating where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract and §4] Abstract and §4 (results on CQ evolution): the claim that the convex-to-concave CQ transition and overall disruption evolution are 'primarily' driven by assimilated neon is not secured by the presented data. The abstract states that neon content and shattering parameters are varied together to achieve different neon levels, yet no regression controls, partial-correlation analysis, or explicit decoupling of fragment-size/velocity distributions from neon assimilation are described. Without such isolation, the 'primarily neon' attribution and 'continuous process' interpretation remain vulnerable to confounding by uncontrolled variables (plasma shape, impurity mix, diagnostic timing).

    Authors: We agree that the manuscript does not include formal regression analysis, partial correlations, or explicit decoupling of neon assimilation from fragment size/velocity effects. The experimental design primarily varied pellet neon content while using shattering to modulate assimilation, with other plasma parameters held as constant as possible across the scan. The continuous CQ shape change is presented as an observed correlation with these settings. We will revise the abstract and §4 to replace 'primarily' with 'primarily influenced by' and add explicit discussion of experimental controls on plasma shape and impurity mix, while acknowledging that full statistical isolation was not performed. revision: partial

  2. Referee: [§3 and §5] §3 (experimental setup) and §5 (figures of merit): no quantitative neon-assimilation diagnostic (e.g., integrated bolometry or spectroscopy) or error bars on the reported time scales are referenced when asserting the continuous evolution. The pre-TQ and Δt_CQ ranges are given as achieved values, but the statistical basis for treating the sequence as a single continuous parameter space rather than discrete regimes is not shown.

    Authors: Neon assimilation levels are inferred from the known neon content of the pellets and the shattering parameters rather than from a direct quantitative diagnostic such as integrated bolometry or spectroscopy, which was not available for this dataset. We will update §3 and §5 to state this explicitly, include error bars on the pre-TQ and Δt_CQ values derived from diagnostic timing and shot-to-shot variation, and add a correlation plot or discussion in §5 demonstrating how the observed time scales vary continuously with the injection parameters to justify the continuous-process framing. revision: yes

Circularity Check

0 steps flagged

No significant circularity; purely observational characterization

full rationale

The manuscript reports experimental observations of SPI-induced disruption phases in ASDEX Upgrade, including timing of events such as first light, fragment arrival, MARFE, TQ, CQ, and VDE, together with qualitative trends in CQ current-trace shape (convex to concave) as a function of assimilated neon. No equations, derivations, fitted parameters, or uniqueness theorems are invoked; the central statements are direct descriptions of measured time traces and parameter correlations. Because the work contains no claimed predictive chain that reduces to its own inputs by construction, no self-definitional, fitted-input, or self-citation load-bearing steps exist. The analysis is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an experimental characterization study. No free parameters are fitted to derive a theoretical result, no new axioms are introduced, and no new physical entities are postulated.

pith-pipeline@v0.9.0 · 5943 in / 1137 out tokens · 91195 ms · 2026-05-10T19:03:32.300440+00:00 · methodology
