Rotatable Antenna Enabled Multi-Cell Mixed Near-Field and Far-Field Communications
Pith reviewed 2026-05-10 19:06 UTC · model grok-4.3
The pith
Rotatable antennas at each base station reduce inter-cell interference between near-field and far-field users in multi-cell networks.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In a multi-cell system where each base station uses a rotatable antenna array to serve both near-field and far-field users, jointly optimizing the array rotation angles together with the transmit beamformers yields a closed-form reduction in rotation-aware inter-cell mixed-field interference via the Fresnel integrals for the single-user case, and an efficient double-layer optimizer (semidefinite relaxation plus particle-swarm search) for the multi-user case, both of which raise the achievable network sum rate.
What carries the argument
The rotation angle of each rotatable antenna array, which reshapes the effective channel responses to suppress inter-cell mixed near-field and far-field interference while remaining inside the admissible rotation range.
If this is right
- For single-user cells the rotation-aware interference admits an exact closed-form expression in Fresnel integrals that decreases with appropriate rotation.
- Rotation therefore provides an independent lever that substantially raises achievable sum rate by mitigating inter-cell mixed-field interference.
- The double-layer algorithm (inner semidefinite relaxation plus successive convex approximation for beamforming, outer particle-swarm search for rotations) converges to a high-quality solution for the general multi-user setting.
- Network-wide sum-rate maximization is feasible under per-base-station power limits and bounded array rotation angles.
Where Pith is reading between the lines
- If the closed-form interference expression holds, optimal rotations could be tabulated offline for known user geometries and applied with minimal real-time computation.
- The same rotation mechanism may also help in single-cell scenarios by further suppressing residual intra-cell mixed-field interference.
- Hardware designs that allow continuous or fine-grained rotation would be needed to realize the predicted gains at scale.
Load-bearing premise
The Fresnel-integral model for mixed near-field and far-field channels remains accurate in deployment and rotation angles can be chosen without regard to hardware latency, mutual coupling, or imperfect channel knowledge.
What would settle it
Deploy a small multi-cell testbed with one near-field and one far-field user per cell, measure the actual inter-cell interference power as a function of base-station rotation angle, and check whether the measured values follow the closed-form Fresnel-integral expression derived in the paper.

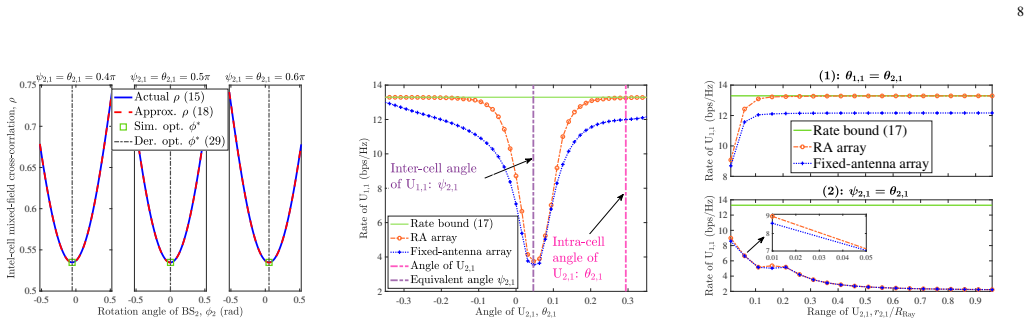

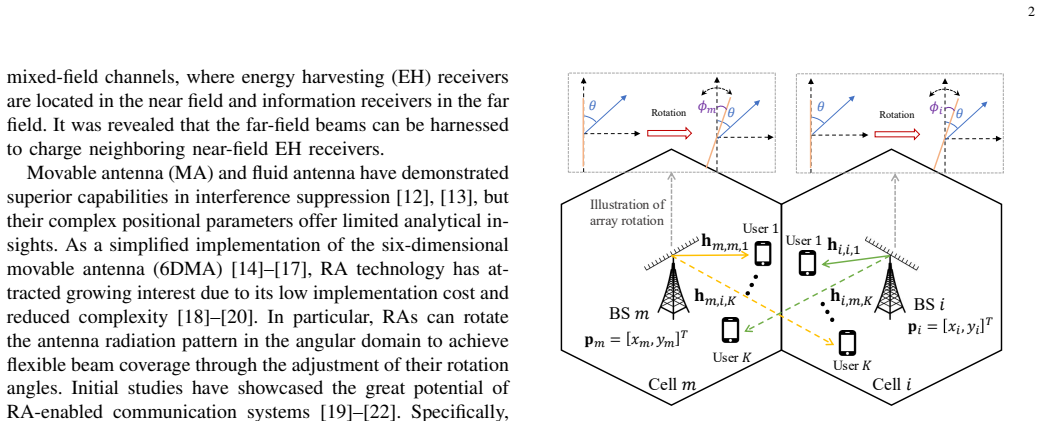

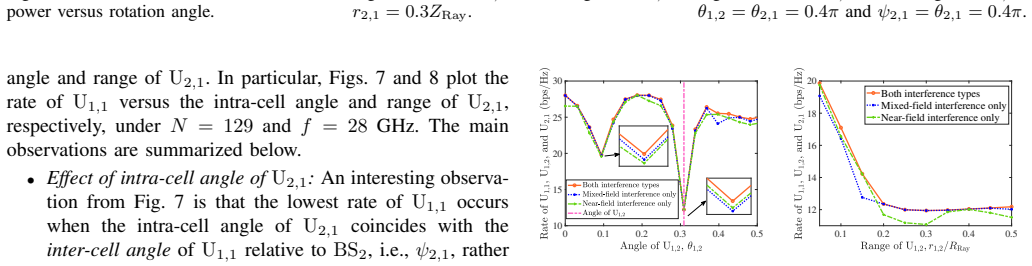

Figures

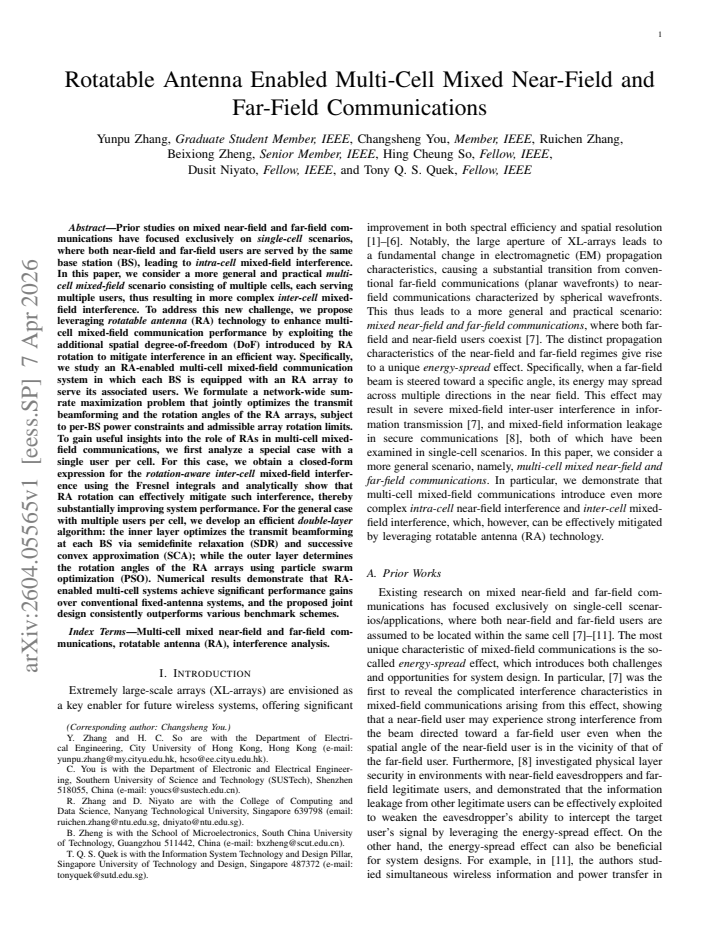

read the original abstract
Prior studies on mixed near-field and far-field communications have focused exclusively on single-cell scenarios, where both near-field and far-field users are served by the same base station (BS), leading to intra-cell mixed-field interference. In this paper, we consider a more general and practical multi-cell mixed-field scenario consisting of multiple cells, each serving multiple users, thus resulting in more complex inter-cell mixed-field interference. To address this new challenge, we propose leveraging rotatable antenna (RA) technology to enhance multi-cell mixed-field communication performance by exploiting the additional spatial degree-of-freedom introduced by RA rotation to mitigate interference in an efficient way. Specifically, we study an RA-enabled multi-cell mixed-field communication system in which each BS is equipped with an RA array to serve its associated users. We formulate a network-wide sum-rate maximization problem that jointly optimizes the transmit beamforming and the rotation angles of the RA arrays, subject to per-BS power constraints and admissible array rotation limits. To gain useful insights into the role of RAs in multi-cell mixed-field communications, we first analyze a special case with a single user per cell. For this case, we obtain a closed-form expression for the rotation-aware inter-cell mixed-field interference using the Fresnel integrals and analytically show that RA rotation can effectively mitigate such interference, thereby substantially improving system performance. For the general case with multiple users per cell, we develop an efficient double-layer algorithm: the inner layer optimizes the transmit beamforming at each BS via semidefinite relaxation and successive convex approximation; while the outer layer determines the rotation angles of the RA arrays using particle swarm optimization.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript studies rotatable-antenna (RA) arrays in a multi-cell mixed near-field/far-field setting. For the single-user-per-cell special case it derives a closed-form expression for rotation-aware inter-cell interference via Fresnel integrals and analytically shows that RA rotation mitigates this interference. For the general multi-user case it proposes a double-layer algorithm that uses semidefinite relaxation and successive convex approximation for beamforming in the inner layer and particle-swarm optimization for rotation angles in the outer layer, with the objective of maximizing network sum-rate subject to per-BS power and rotation constraints.
Significance. If the Fresnel-based derivation remains valid under rotation, the work supplies the first analytical treatment of inter-cell mixed-field interference and demonstrates that an additional spatial degree of freedom (array rotation) can be exploited for its mitigation. The closed-form result for the special case and the reproducible double-layer algorithmic framework constitute concrete strengths that could guide practical 6G deployments with large arrays operating across near- and far-field regimes.
major comments (1)
- [Special-case analysis (single user per cell)] Special-case analysis: the closed-form interference expression is obtained by approximating the spherical-wave phase across RA elements as quadratic in the element index, yielding Fresnel integrals C(x) and S(x). Rotation reorients the array and therefore changes the effective element coordinates relative to inter-cell users, modifying both the linear and quadratic coefficients in the phase expansion. The manuscript does not re-derive the Fresnel approximation or bound its error for the rotated geometry; if admissible rotations move the geometry outside the paraxial regime, the analytical claim that rotation mitigates interference rests on an unverified identity.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback and positive evaluation of our manuscript. We address the major comment on the special-case analysis as follows.
read point-by-point responses
-
Referee: [Special-case analysis (single user per cell)] Special-case analysis: the closed-form interference expression is obtained by approximating the spherical-wave phase across RA elements as quadratic in the element index, yielding Fresnel integrals C(x) and S(x). Rotation reorients the array and therefore changes the effective element coordinates relative to inter-cell users, modifying both the linear and quadratic coefficients in the phase expansion. The manuscript does not re-derive the Fresnel approximation or bound its error for the rotated geometry; if admissible rotations move the geometry outside the paraxial regime, the analytical claim that rotation mitigates interference rests on an unverified identity.
Authors: We appreciate the referee's careful reading and the identification of this potential gap in the presentation. In the manuscript, the closed-form expression for the inter-cell interference is derived by incorporating the rotation angle into the effective positions of the array elements, which affects the phase terms. However, the Fresnel integral approximation itself was detailed for the unrotated case, with the rotation effect applied subsequently. To strengthen the analysis, we will revise the paper to provide a full re-derivation of the quadratic phase approximation and Fresnel integrals explicitly accounting for the rotated array geometry. Furthermore, we will add a discussion or bound on the approximation error to confirm that the paraxial assumption holds for the considered rotation ranges and system parameters, ensuring the validity of our analytical results on interference mitigation. revision: yes
Circularity Check
No circularity: Fresnel closed-form is direct derivation from quadratic phase model
full rationale
The central analytical result is a closed-form interference expression obtained by substituting the standard Fresnel-integral identities into the quadratic phase expansion of the spherical-wave channel model. This step is a standard mathematical reduction (integral of exp(j a k^2) yields C(x) and S(x)) and does not define the target quantity in terms of itself or fit parameters to the performance metric being analyzed. The subsequent claim that rotation mitigates interference follows by differentiating or evaluating the closed-form with respect to the rotation angle; the angle appears explicitly in the linear and quadratic coefficients of the phase, so the mitigation is a consequence of the geometry rather than an input. The general-case algorithm applies off-the-shelf SDR/SCA and PSO to the sum-rate objective; neither layer is defined circularly by the other. No self-citation is invoked to justify the Fresnel step or to declare uniqueness of the RA choice. The derivation chain is therefore self-contained against external Fresnel identities and standard optimization theory.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Near-field propagation is accurately captured by the Fresnel-integral approximation for the given array geometry and distances.
- domain assumption The semidefinite relaxation and successive convex approximation yield sufficiently tight solutions for the beamforming subproblem.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
ρ(ψi,k, θi,m, ri,m, ϕi)≈G(γ(1)i,k,m, γ(2)i,m) with Fresnel C,S integrals
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
A tutorial on near-field XL- MIMO communications toward 6G,
H. Lu, Y . Zeng, C. You, Y . Han, J. Zhang, Z. Wang, Z. Dong, S. Jin, C.- X. Wang, T. Jiang, X. You, and R. Zhang, “A tutorial on near-field XL- MIMO communications toward 6G,”IEEE Commun. Surv. Tut., vol. 26, no. 4, pp. 2213–2257, 4th Quart., 2024
work page 2024
-
[2]
Near- field communications: A tutorial review,
Y . Liu, Z. Wang, J. Xu, C. Ouyang, X. Mu, and R. Schober, “Near- field communications: A tutorial review,”IEEE Open J. Commun. Soc., vol. 4, pp. 1999–2049, Aug. 2023
work page 1999
-
[3]
Near-field communications for 6G: Fundamentals, challenges, potentials, and future directions,
M. Cui, Z. Wu, Y . Lu, X. Wei, and L. Dai, “Near-field communications for 6G: Fundamentals, challenges, potentials, and future directions,” IEEE Commun. Mag., vol. 61, no. 1, pp. 40–46, Jan. 2023
work page 2023
-
[4]
Next generation advanced transceiver technologies for 6G and beyond,
C. Youet al., “Next generation advanced transceiver technologies for 6G and beyond,”IEEE J. Sel. Areas Commun., vol. 43, no. 3, pp. 582–627, Mar. 2025
work page 2025
-
[5]
Unified far-field and near-field in holographic MIMO: A wavenumber-domain perspective,
Y . Chen, X. Guo, G. Zhou, S. Jin, D. W. K. Ng, and Z. Wang, “Unified far-field and near-field in holographic MIMO: A wavenumber-domain perspective,”IEEE Commun. Mag., vol. 63, no. 1, pp. 30–36, Jan. 2025
work page 2025
-
[6]
Rotatable antennas for near-field integrated sensing and communication,
Y . Zhang, H. C. So, D. Niyato, and C. Masouros, “Rotatable antennas for near-field integrated sensing and communication,”IEEE Trans. Wireless Commun., vol. 25, pp. 10 986–11 001, 2026
work page 2026
-
[7]
Y . Zhang, C. You, L. Chen, and B. Zheng, “Mixed near- and far- field communications for extremely large-scale array: An interference perspective,”IEEE Commun. Lett., vol. 27, no. 9, pp. 2496–2500, Sep. 2023
work page 2023
-
[8]
Physical-layer security in mixed near-field and far-field communication systems,
T. Liu, C. You, C. Zhou, Y . Zhang, S. Gong, H. Liu, and G. Zhang, “Physical-layer security in mixed near-field and far-field communication systems,”IEEE Trans. Cognit. Commun. Netw., vol. 12, pp. 4045–4059, 2026
work page 2026
-
[9]
Resource allocation in cooperative mid- band/THz networks in the presence of mobility,
M. A. Saeidi and H. Tabassum, “Resource allocation in cooperative mid- band/THz networks in the presence of mobility,”IEEE Trans. Wireless Commun., vol. 25, pp. 5046–5062, 2026
work page 2026
-
[10]
Scalable FAS: A new paradigm for array signal processing,
T. Wuet al., “Scalable FAS: A new paradigm for array signal process- ing,”arXiv preprint arXiv:2508.10831, 2025
-
[11]
SWIPT in mixed near- and far-field channels: Joint beam scheduling and power allocation,
Y . Zhang and C. You, “SWIPT in mixed near- and far-field channels: Joint beam scheduling and power allocation,”IEEE J. Sel. Areas Commun., vol. 42, no. 6, pp. 1583–1597, Jun. 2024
work page 2024
-
[12]
Movable-antenna array enhanced beam- forming: Achieving full array gain with null steering,
L. Zhu, W. Ma, and R. Zhang, “Movable-antenna array enhanced beam- forming: Achieving full array gain with null steering,”IEEE Commun. Lett., vol. 27, no. 12, pp. 3340–3344, Dec. 2023
work page 2023
-
[13]
Fluid antenna multiple access,
K.-K. Wong and K.-F. Tong, “Fluid antenna multiple access,”IEEE Trans. Commun., vol. 21, no. 7, pp. 4801–4815, Jul. 2022
work page 2022
-
[14]
X. Shaoet al., “A tutorial on six-dimensional movable antenna for 6G networks: Synergizing positionable and rotatable antennas,”IEEE Commun. Surv. Tut., vol. 28, pp. 3666–3709, 2026
work page 2026
-
[15]
6D movable antenna based on user distribution: Modeling and optimization,
X. Shao, Q. Jiang, and R. Zhang, “6D movable antenna based on user distribution: Modeling and optimization,”IEEE Trans. Wireless Commun., vol. 24, no. 1, pp. 355–370, Jan. 2025. 15
work page 2025
-
[16]
6D movable antenna enhanced wireless network via discrete position and rotation optimiza- tion,
X. Shao, R. Zhang, Q. Jiang, and R. Schober, “6D movable antenna enhanced wireless network via discrete position and rotation optimiza- tion,”IEEE J. Sel. Areas Commun., vol. 43, no. 3, pp. 674–687, Mar. 2025
work page 2025
-
[17]
X. Shao, R. Zhang, Q. Jiang, J. Park, T. Q. S. Quek, and R. Schober, “Distributed channel estimation and optimization for 6D movable antenna: Unveiling directional sparsity,”IEEE J. Sel. Topics Signal Process., vol. 19, no. 2, pp. 349–365, Mar. 2025
work page 2025
-
[18]
Rotatable antenna enabled wireless communication and sensing: Opportunities and challenges,
B. Zheng, T. Ma, C. You, J. Tang, R. Schober, and R. Zhang, “Rotatable antenna enabled wireless communication and sensing: Opportunities and challenges,”IEEE Wireless Commun., early access, 2025
work page 2025
-
[19]
Rotatable antenna enabled wireless communication: Modeling and optimization,
B. Zheng, Q. Wu, T. Ma, and R. Zhang, “Rotatable antenna enabled wireless communication: Modeling and optimization,”IEEE Trans. Commun., early access, 2026
work page 2026
-
[20]
Ro- tatable antenna-enabled secure wireless communication,
L. Dai, B. Zheng, Q. Wu, C. You, R. Schober, and R. Zhang, “Ro- tatable antenna-enabled secure wireless communication,”IEEE Wireless Commun. Lett., vol. 14, no. 11, pp. 3440–3444, Nov. 2025
work page 2025
-
[21]
Rotatable antennas for integrated sensing and communications,
C. Zhou, C. You, B. Zheng, X. Shao, and R. Zhang, “Rotatable antennas for integrated sensing and communications,”IEEE Wireless Commun. Lett., vol. 14, no. 9, pp. 2838–2842, Sep. 2025
work page 2025
-
[22]
Rotatable array- enabled multi-BS cooperative ISAC transmit beampattern design,
K. Qu, H. Li, C. Sun, W. Zhang, S. Guo, and H. Zhang, “Rotatable array- enabled multi-BS cooperative ISAC transmit beampattern design,”IEEE Trans. Veh. Technol., vol. 74, no. 9, pp. 14 775–14 780, Sep. 2025
work page 2025
-
[23]
Y . Zhang, C. You, H. C. So, D. Niyato, and Y . C. Eldar, “Rotatable antenna aided mixed near-field and far-field communications in the upper mid-band: Interference analysis and joint optimization,”arXiv preprint arXiv:2509.04865, 2025
-
[24]
Near-field wideband beamforming for extremely large antenna arrays,
M. Cui and L. Dai, “Near-field wideband beamforming for extremely large antenna arrays,”IEEE Trans. Wireless Commun., vol. 23, no. 10, pp. 13 110–13 124, Oct. 2024
work page 2024
-
[25]
Interference-aware precoding and user selection for multi- cell near-field XL-MIMO systems,
D. P ´erez-Ad´an, J. P. Gonz ´alez-Coma, F. J. L ´opez-Mart´ınez, and L. Castedo, “Interference-aware precoding and user selection for multi- cell near-field XL-MIMO systems,”IEEE Wireless Commun. Lett., vol. 14, no. 5, pp. 1396–1400, May 2025
work page 2025
-
[26]
Multicell MIMO communications relying on intelligent reflecting surfaces,
C. Pan, H. Ren, K. Wang, W. Xu, M. Elkashlan, A. Nallanathan, and L. Hanzo, “Multicell MIMO communications relying on intelligent reflecting surfaces,”IEEE Trans. Wireless Commun., vol. 19, no. 8, pp. 5218–5233, Aug. 2020
work page 2020
-
[27]
Movable-antenna position optimization: A new evolutionary framework,
Y . Zhang, C. You, and H. Cheung So, “Movable-antenna position optimization: A new evolutionary framework,”IEEE Trans. Wireless Commun., vol. 25, pp. 5216–5231, 2026
work page 2026
-
[28]
Joint active and passive beamforming design for IRS-aided radar-communication,
M. Hua, Q. Wu, C. He, S. Ma, and W. Chen, “Joint active and passive beamforming design for IRS-aided radar-communication,”IEEE Trans. Wireless Commun., vol. 22, no. 4, pp. 2278–2294, Apr. 2023
work page 2023
-
[29]
Hybrid-field channel estimation for extremely large-scale massive MIMO system,
Z. Hu, C. Chen, Y . Jin, L. Zhou, and Q. Wei, “Hybrid-field channel estimation for extremely large-scale massive MIMO system,”IEEE Commun. Lett., vol. 27, no. 1, pp. 303–307, Jan. 2023
work page 2023
-
[30]
Fast near-field beam training for extremely large-scale array,
Y . Zhang, X. Wu, and C. You, “Fast near-field beam training for extremely large-scale array,”IEEE Wireless Commun. Lett., vol. 11, no. 12, pp. 2625–2629, Dec. 2022
work page 2022
-
[31]
Near-field beam training: Joint angle and range estimation with DFT codebook,
X. Wu, C. You, J. Li, and Y . Zhang, “Near-field beam training: Joint angle and range estimation with DFT codebook,”IEEE Trans. Wireless Commun., vol. 23, no. 9, pp. 11 890–11 903, Sep. 2024
work page 2024
-
[32]
Channel estimation for extremely large-scale MIMO: Far-field or near-field?
M. Cui and L. Dai, “Channel estimation for extremely large-scale MIMO: Far-field or near-field?”IEEE Trans. Commun., vol. 70, no. 4, pp. 2663–2677, Apr. 2022
work page 2022
-
[33]
Efficient channel estimation for rotatable antenna-enabled wireless communication,
X. Xiong, B. Zheng, W. Wu, X. Shao, L. Dai, M.-M. Zhao, and J. Tang, “Efficient channel estimation for rotatable antenna-enabled wireless communication,”IEEE Wireless Commun. Lett., vol. 14, no. 11, pp. 3719–3723, Nov. 2025
work page 2025
-
[34]
Performance analysis and low-complexity beamforming design for near-field physical layer security,
Y . Zhang, Y . Fang, C. You, Y .-J. Angela Zhang, and H. Cheung So, “Performance analysis and low-complexity beamforming design for near-field physical layer security,”IEEE Trans. Commun., vol. 74, pp. 781–796, 2026
work page 2026
-
[35]
Distributed multicell beamforming with limited intercell coordination,
Y . Huang, G. Zheng, M. Bengtsson, K.-K. Wong, L. Yang, and B. Ottersten, “Distributed multicell beamforming with limited intercell coordination,”IEEE Trans. Signal Process, vol. 59, no. 2, pp. 728–738, Feb. 2011
work page 2011
-
[36]
Absorptive RIS-assisted near-field covert communication with fluid antenna systems,
J. Li, L. Yang, C. You, I. Ahmad, P. S. Bithas, M. D. Renzo, and D. Niyato, “Absorptive RIS-assisted near-field covert communication with fluid antenna systems,”IEEE J. Sel. Areas Commun., vol. 44, pp. 2052–2070, 2026
work page 2052
-
[37]
Movable-antenna enabled cell-free networks,
H. Wei, W. Wang, W. Ni, C. Zhang, and Y . Huang, “Movable-antenna enabled cell-free networks,”IEEE Trans. Veh. Technol., early access, 2025
work page 2025
