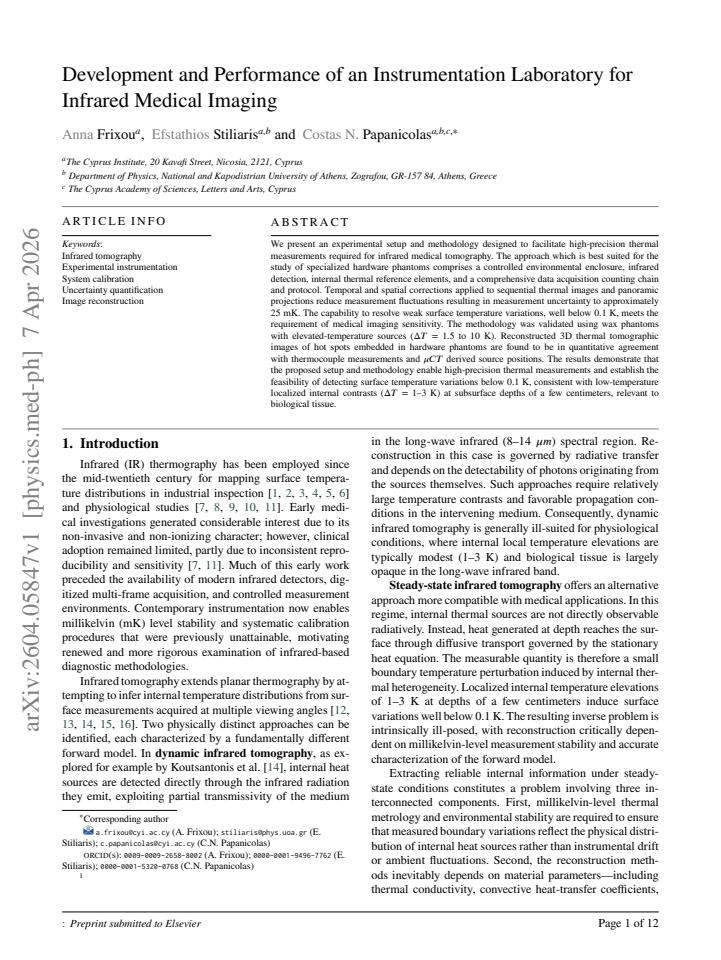

Development and Performance of an Instrumentation Laboratory for Infrared Medical Imaging

Anna Frixou , Efstathios Stiliaris , Costas N. Papanicolas
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:30 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords infrared medical imagingthermal tomographyhigh-precision measurementswax phantomstemperature resolutioninstrumentation laboratorydata correction protocols
0
0 comments X

The pith

An infrared imaging laboratory setup detects surface temperature variations below 0.1 K after applying corrections to reduce uncertainty to 25 mK.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the development of an experimental setup for high-precision infrared thermal measurements aimed at medical tomography applications. It includes a controlled enclosure, infrared detector, reference elements, and protocols for data acquisition and image corrections. These corrections for temporal and spatial effects lower measurement fluctuations to an uncertainty of about 25 mK. This precision enables resolution of weak temperature changes well below 0.1 K, which aligns with the sensitivity needed to detect internal temperature contrasts in biological tissues. Validation through tests on wax phantoms with known hot spots confirms the approach by matching results from other measurement techniques.

Core claim

The authors establish an instrumentation laboratory and methodology for infrared medical imaging that achieves approximately 25 mK uncertainty in thermal measurements. Sequential thermal images and panoramic projections receive temporal and spatial corrections to minimize fluctuations. When applied to wax phantoms containing elevated-temperature sources with contrasts from 1.5 to 10 K, the reconstructed 3D tomographic images quantitatively match thermocouple readings and micro-CT positions of the sources. This demonstrates the feasibility of detecting surface variations below 0.1 K, which corresponds to the expected signals from low-temperature internal contrasts at subsurface depths in the

What carries the argument

Controlled environmental enclosure with internal thermal reference elements and data acquisition chain applying temporal and spatial corrections to sequential thermal images and panoramic projections.

If this is right

  • The setup enables high-precision thermal measurements for specialized hardware phantoms.
  • Weak surface temperature variations below 0.1 K become resolvable to meet medical imaging sensitivity needs.
  • Reconstructed 3D thermal images of embedded sources agree quantitatively with thermocouple and micro-CT data.
  • The approach establishes feasibility for detecting low-temperature internal contrasts at subsurface depths relevant to biological tissue.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If validated on living tissue, the method could support non-invasive detection of subsurface temperature anomalies in clinical settings.
  • The correction protocols might extend to improve stability in other precision thermal imaging applications.
  • Refining phantom compositions could test broader applicability across different tissue types and depths.

Load-bearing premise

The wax phantoms with embedded elevated-temperature sources accurately represent the thermal behavior and contrast levels expected in biological tissues for infrared imaging purposes.

What would settle it

Direct measurements on actual biological tissue samples with known subsurface temperature contrasts of 1-3 K showing that surface variations fall outside the detectable range below 0.1 K or fail to match phantom-based tomographic reconstructions.

Figures

Figures reproduced from arXiv: 2604.05847 by Anna Frixou, Costas N. Papanicolas, Efstathios Stiliaris.

Figure 1
Figure 1. Figure 1: Experimental setup for the study of hardware phantoms in infrared tomography. The acrylic enclosure stabilizes the local thermal environment by suppressing convective air currents and reducing radiative exchange with the surrounding laboratory. Heat-generating electronics are located outside the enclosure; a water-filled container, the left wall of the enclosure opposite to the camera provides a radiativel… view at source ↗
Figure 2
Figure 2. Figure 2: Optical and thermal images of the phantom and reference elements, including temperature-controlled resistors and the Π-shaped surface. The temperature scale shown is in Degrees °C. The resistors provide stable references for temporal drift correction, while the Π-surface enables spatial non-uniformity correction, allowing independent temporal and spatial calibration. The thermal image is displayed using a … view at source ↗
Figure 3
Figure 3. Figure 3: Air temperature evolution inside the enclosure during a typical acquisition interval (∼20 minutes). The observed linear drift is used to correct slow temporal variations in the projection data [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

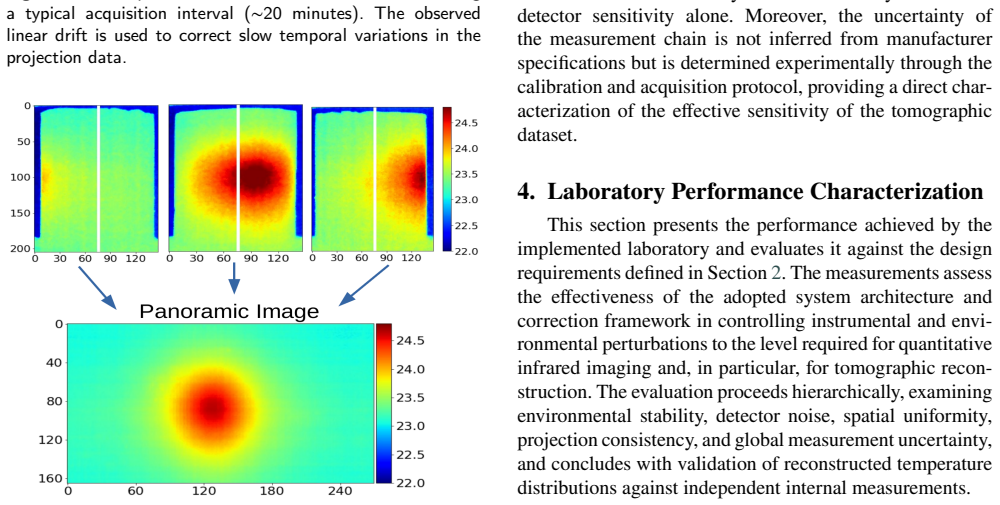

Figure 4. Figure 4: Construction of panoramic projection data from sequential thermal images. At each projection angle, narrow strips corresponding to the front surface of the phantom are extracted and concatenated to form a panoramic dataset. This procedure converts surface temperature measurements into a geometrically consistent representation suitable for tomographic inversion. The thermal images are displayed using a fixe… view at source ↗
Figure 5

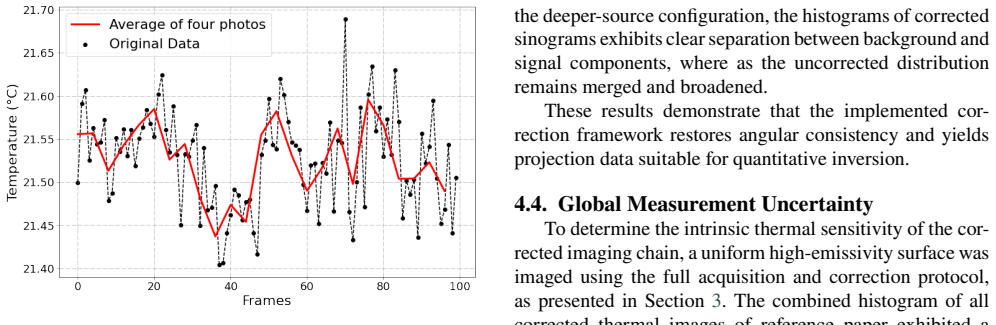

Figure 5. Figure 5: Temporal stability of the thermal image of a uniform phantom. The black curve shows the mean temperature of a central 100-pixel region across successive frames. Frame aver￾aging of four images (red curve) reduces stochastic detector fluctuations from ∼ 300 mK to ∼ 150 mK. 4.2. Spatial Non-Uniformity and Correction Even under uniform environmental thermal conditions, infrared images exhibit pixel-to-pixel v… view at source ↗
Figure 6
Figure 6. Figure 6: Effect of temporal and spatial correction on a uniform temperature distribution. Top: raw thermal images. Middle: after temporal correction. Bottom: after combined temporal and spatial correction. The right panels show the corresponding pixel temperature histograms, compared with that of the derived panoramic image ( [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Thermal sinograms and corresponding pixel tempera￾ture distributions for wax phantoms containing embedded heat sources at Δ𝑇 = 1.5 ◦C. Left: uncorrected data. Right: after temporal and spatial correction. Top: shallow source (0.8 cm depth). Bottom: deep source (3.3 cm depth). The thermal images are displayed using a fixed temperature scale [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: (a) Three-dimensional temperature distribution reconstructed using the AMIAS /RISE inversion framework from projection data with two embedded resistive sources (Δ𝑇 = 10 ◦C). (b) CT image of the phantom [30] with overlaid 2D slices at the resistor level from CT and infrared tomography. The positions of the resistors and thermocouple cables are indicated by white dots demonstrating agreement between CT and t… view at source ↗
read the original abstract

We present an experimental setup and methodology designed to facilitate high-precision thermal measurements required for infrared medical tomography. The approach which is best suited for the study of specialized hardware phantoms comprises a controlled environmental enclosure, infrared detection, internal thermal reference elements, and a comprehensive data acquisition counting chain and protocol. Temporal and spatial corrections applied to sequential thermal images and panoramic projections reduce measurement fluctuations resulting in measurement uncertainty to approximately 25~mK. The capability to resolve weak surface temperature variations, well below 0.1~K, meets the requirement of medical imaging sensitivity. The methodology was validated using wax phantoms with elevated-temperature sources ($\Delta T$ = 1.5 to 10~K). Reconstructed 3D thermal tomographic images of hot spots embedded in hardware phantoms are found to be in quantitative agreement with thermocouple measurements and $\mu CT$ derived source positions. The results demonstrate that the proposed setup and methodology enable high-precision thermal measurements and establish the feasibility of detecting surface temperature variations below 0.1 K, consistent with low-temperature localized internal contrasts ($\Delta T =$ 1-3 K) at subsurface depths of a few centimeters, relevant to biological tissue.
