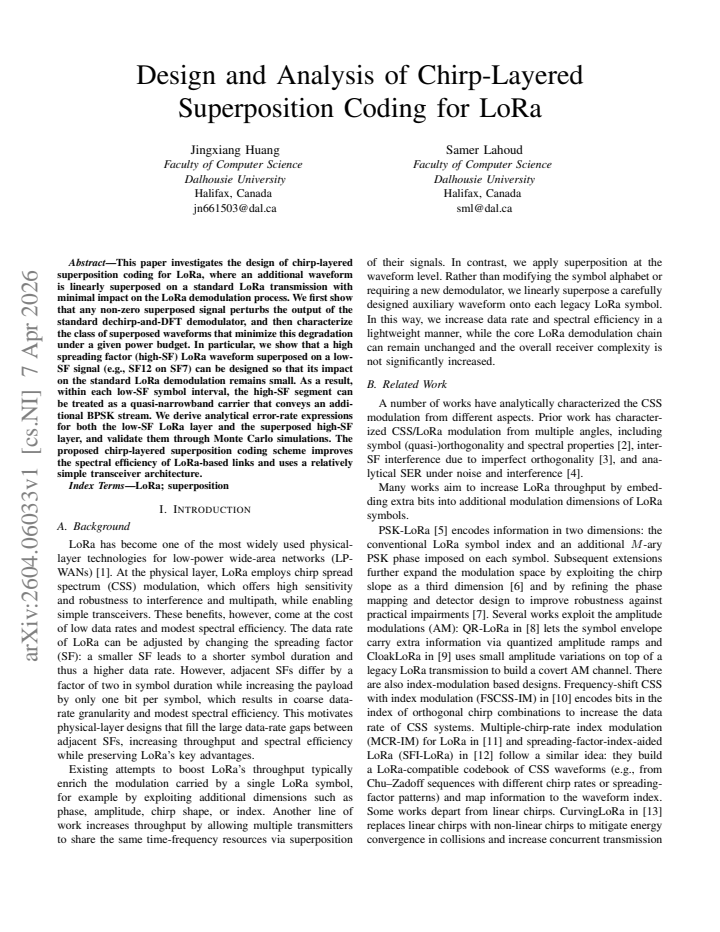

Design and Analysis of Chirp-Layered Superposition Coding for LoRa

Jingxiang Huang; Samer Lahoud

arxiv: 2604.06033 · v1 · submitted 2026-04-07 · 💻 cs.NI · eess.SP

Design and Analysis of Chirp-Layered Superposition Coding for LoRa

Jingxiang Huang , Samer Lahoud This is my paper

Pith reviewed 2026-05-10 18:34 UTC · model grok-4.3

classification 💻 cs.NI eess.SP

keywords LoRachirp superpositionspreading factorBPSKspectral efficiencyerror rate analysisdechirp demodulationwireless modulation

0 comments

The pith

A high-SF LoRa chirp superposed on a low-SF signal carries an extra BPSK stream while keeping standard demodulation degradation small.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that any non-zero superposed signal perturbs the standard LoRa dechirp-and-DFT demodulator, but a specific class of high-SF waveforms can be designed under a power budget to keep this perturbation minimal. Within each low-SF symbol interval the high-SF segment then functions as a quasi-narrowband carrier that conveys an additional BPSK stream. Analytical error-rate formulas are derived for both the original LoRa layer and the superposed layer, and these formulas are confirmed by Monte Carlo simulation. The result raises the spectral efficiency of LoRa links using a relatively simple transceiver structure.

Core claim

A high spreading factor LoRa waveform can be linearly superposed on a low-SF LoRa signal so that its effect on the standard demodulator stays small; the high-SF segment inside each low-SF symbol interval can therefore be treated as a quasi-narrowband carrier that carries an extra BPSK stream, with closed-form error-rate expressions obtained for both layers.

What carries the argument

Chirp-layered superposition coding: a high-SF LoRa chirp linearly added to a low-SF signal and treated as a quasi-narrowband carrier for an additional BPSK stream.

Load-bearing premise

The superposed high-SF waveform can be treated as a quasi-narrowband carrier inside each low-SF symbol interval without significant time-varying interference or synchronization mismatch that would invalidate the analytical error-rate expressions.

What would settle it

Compare measured bit-error rate of a standard low-SF LoRa demodulator against the analytical prediction when an equal-power high-SF BPSK stream is superposed; a statistically significant deviation from the predicted curve would falsify the claim of minimal impact.

Figures

Figures reproduced from arXiv: 2604.06033 by Jingxiang Huang, Samer Lahoud.

**Figure 2.** Figure 2: Modulation and demodulation of proposed scheme. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 4.** Figure 4: Simulated SER of SF7 symbols with one SF12 super [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

**Figure 3.** Figure 3: Feasible region of baseline SNR γ and LHR κ. Colors indicate which of the low-SF and high-SF constraints are satisfied, and the solid curve marks the boundary where both constraints hold. IV. SIMULATION RESULTS We now compare the analytical SER and BER expression in (30) and (37) with simulation results for a SF7 symbol in the presence of one SF12 superposed waveform. In all experiments, the SF7 and SF12 s… view at source ↗

**Figure 5.** Figure 5: Simulated SER of SF7 symbols with one SF12 super [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

**Figure 6.** Figure 6: Simulated BER of SF12 waveform as a function of [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

read the original abstract

This paper investigates the design of chirp-layered superposition coding for LoRa, where an additional waveform is linearly superposed on a standard LoRa transmission with minimal impact on the LoRa demodulation process. We first show that any non-zero superposed signal perturbs the output of the standard dechirp-and-DFT demodulator, and then characterize the class of superposed waveforms that minimize this degradation under a given power budget. In particular, we show that a high spreading factor (high-SF) LoRa waveform superposed on a low-SF signal (e.g., SF12 on SF7) can be designed so that its impact on the standard LoRa demodulation remains small. As a result, within each low-SF symbol interval, the high-SF segment can be treated as a quasi-narrowband carrier that conveys an additional BPSK stream. We derive analytical error-rate expressions for both the low-SF LoRa layer and the superposed high-SF layer, and validate them through Monte Carlo simulations. The proposed chirp-layered superposition coding scheme improves the spectral efficiency of LoRa-based links and uses a relatively simple transceiver architecture.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper layers a high-SF chirp on a low-SF LoRa signal to add an extra BPSK stream with limited demodulator impact, but the closed-form rates rest on a quasi-narrowband assumption that ignores realistic frequency and timing offsets.

read the letter

The paper's main result is a waveform design that superposes a high spreading-factor LoRa chirp onto a low-SF transmission so the standard dechirp-and-DFT receiver sees only small extra leakage. Within each low-SF symbol the added signal can then be read as a quasi-narrowband tone carrying one extra BPSK bit. They characterize the minimal-degradation superposed waveforms under a power limit and give closed-form error-rate expressions for both layers, checked against Monte Carlo runs that match when synchronization is perfect. This is more specific than earlier LoRa superposition papers because it starts from the DFT properties of chirps rather than treating the added signal as unstructured noise. The transceiver description stays simple and the analysis is explicit enough to reproduce from the given steps. The soft spot is the handling of carrier-frequency offset and timing slip. After low-SF dechirping the high-SF residual still has a nonzero chirp rate, so even a few percent CFO or a fraction of a symbol timing error turns the interferer into a sweeping tone whose bin leakage is not captured by the additive-noise model used for the error rates. The reported simulations appear to assume zero offset and perfect alignment, which makes the formulas look better than they will in unsynchronized IoT links where small drifts are routine. Adding a bound on tolerable CFO or a set of offset-inclusive simulations would make the claim more solid. The work is aimed at people who design or simulate physical-layer extensions for LoRa in dense deployments. A reader who wants concrete waveform rules and error expressions to plug into a link budget would get direct value. It deserves peer review because the derivations are grounded and the idea is narrow enough that referees can focus on the impairment analysis rather than broad claims.

Referee Report

1 major / 1 minor

Summary. The manuscript presents a chirp-layered superposition coding technique for LoRa, demonstrating that a high-SF LoRa chirp can be superimposed on a low-SF transmission (e.g., SF12 on SF7) such that its effect on the standard dechirp-and-DFT demodulator is minimized. This allows the high-SF component to be treated as a quasi-narrowband carrier conveying an extra BPSK stream per low-SF symbol. Analytical expressions for the bit error rates of both the primary LoRa layer and the superimposed layer are derived and validated through Monte Carlo simulations, claiming improved spectral efficiency with a simple transceiver design.

Significance. If the quasi-narrowband approximation and the derived error-rate expressions hold under practical conditions, the work could meaningfully increase the data rate of LoRa links without hardware changes at the receiver. The characterization of minimal-degradation waveforms from DFT principles and the provision of closed-form BER expressions are positive features that go beyond purely empirical studies.

major comments (1)

[Error-rate analysis and Monte Carlo validation sections] The analytical BER expressions and their validation rely on the assumption of perfect synchronization and zero carrier frequency offset. Given that the residual chirp rate after low-SF dechirping is nonzero, small CFO or timing offsets would produce a linearly sweeping interferer whose DFT leakage is not captured by the additive white Gaussian noise model used. No analysis or bounds on the tolerable CFO/timing error range are provided, which is load-bearing for the claim that the expressions are accurate and useful.

minor comments (1)

[Abstract and introduction] The claim of a 'relatively simple transceiver architecture' would benefit from a brief complexity comparison or block diagram to substantiate it.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback. The major comment highlights an important practical consideration for the error-rate analysis, which we address below.

read point-by-point responses

Referee: [Error-rate analysis and Monte Carlo validation sections] The analytical BER expressions and their validation rely on the assumption of perfect synchronization and zero carrier frequency offset. Given that the residual chirp rate after low-SF dechirping is nonzero, small CFO or timing offsets would produce a linearly sweeping interferer whose DFT leakage is not captured by the additive white Gaussian noise model used. No analysis or bounds on the tolerable CFO/timing error range are provided, which is load-bearing for the claim that the expressions are accurate and useful.

Authors: We agree that the closed-form BER expressions and Monte Carlo results are derived under perfect synchronization and zero CFO, which isolates the deterministic interference from the superposed high-SF chirp after dechirping. The nonzero residual chirp rate indeed implies that small offsets produce a sweeping interferer whose bin leakage is not modeled by the static AWGN term. This is a valid point regarding the practical applicability of the expressions. In the revised manuscript we will add a new subsection deriving first-order bounds on CFO and timing error. The analysis will quantify the additional phase accumulation and resulting DFT leakage, showing the range of offsets (relative to the low-SF symbol duration) for which the quasi-narrowband approximation and the original BER formulas remain accurate to within a stated margin. Additional simulations with realistic offset values will be included to validate the bounds. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation proceeds from DFT perturbation analysis to waveform class and closed-form error rates without reduction to fitted inputs or self-citations.

full rationale

The paper's chain begins with an explicit perturbation analysis of the dechirp-and-DFT demodulator under any superposed signal, then identifies the minimizing waveform class under a power constraint by direct characterization (high-SF chirp on low-SF symbol treated as quasi-narrowband). Analytical BER expressions for both layers are stated to follow from this characterization and standard decision statistics; Monte Carlo validation is used only for confirmation, not for parameter fitting or re-derivation. No self-citation is invoked as load-bearing, no ansatz is smuggled, and no quantity is renamed or defined in terms of its own output. The central claims therefore remain independent of the results they produce.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The scheme rests on standard signal-processing assumptions about perfect symbol timing and frequency synchronization plus the linearity of the dechirp-and-DFT operation; no new physical entities are postulated and no parameters appear to be fitted beyond the usual noise variance.

axioms (2)

standard math The dechirp-and-DFT demodulator output is exactly the DFT of the product of the received signal with the reference down-chirp.
Invoked when stating that any non-zero superposed signal perturbs the DFT peak.
domain assumption Inside one low-SF symbol the high-SF chirp behaves as a constant-frequency tone.
Used to treat the superposed layer as a quasi-narrowband BPSK carrier.

pith-pipeline@v0.9.0 · 5503 in / 1562 out tokens · 46408 ms · 2026-05-10T18:34:23.722555+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Lemma 3 (Uniform Allocation Minimizes Worst-Case Per-Bin Energy) and Lemma 4 (High-SF Waveform Seen by a Low-SF Demodulator) derive flat |U[k]| ≈ 1/√(N_l |p|) via stationary-phase approximation on quadratic phase ϕ_k(n).
IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Effective SNR model and BER Q(√(2 γ_h)) expressions treat high-SF segment as additive white noise after low-SF cancellation.

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

18 extracted references · 18 canonical work pages

[1]

SX1276/77/78/79 - LoRa® datasheet

Semtech Corporation. SX1276/77/78/79 - LoRa® datasheet. https:// www.semtech.com/products/wireless-rf/lora-transceivers/sx1276, 2016. [Online; accessed 07-Feb-2025]

work page 2016
[2]

On the lora modulation for iot: Waveform properties and spectral analysis.IEEE Internet of Things Journal, 6(5):8463–8470, October 2019

Marco Chiani and Ahmed Elzanaty. On the lora modulation for iot: Waveform properties and spectral analysis.IEEE Internet of Things Journal, 6(5):8463–8470, October 2019

work page 2019
[3]

Impact of lora imperfect orthogonality: Analysis of link-level performance.IEEE Communications Letters, 22(4):796–799, 2018

Daniele Croce, Michele Gucciardo, Stefano Mangione, Giuseppe San- taromita, and Ilenia Tinnirello. Impact of lora imperfect orthogonality: Analysis of link-level performance.IEEE Communications Letters, 22(4):796–799, 2018

work page 2018
[4]

On the error rate of the lora modulation with interference.IEEE Transactions on Wireless Communications, 19(2):1292–1304, 2020

Orion Afisiadis, Matthieu Cotting, Andreas Burg, and Alexios Balatsoukas-Stimming. On the error rate of the lora modulation with interference.IEEE Transactions on Wireless Communications, 19(2):1292–1304, 2020

work page 2020
[5]

A novel mod- ulation for iot: Psk-lora

Roberto Bomfin, Marwa Chafii, and Gerhard Fettweis. A novel mod- ulation for iot: Psk-lora. In2019 IEEE 89th Vehicular Technology Conference (VTC2019-Spring), pages 1–5, 2019

work page 2019
[6]

Ssk-based psk-lora modulation for iot communications.IEEE Open Journal of the Communications Society, 4:1487–1498, 2023

Quantao Yu, Dongxuan He, Zhiping Lu, and Hua Wang. Ssk-based psk-lora modulation for iot communications.IEEE Open Journal of the Communications Society, 4:1487–1498, 2023

work page 2023
[7]

Gulfo Monsalve, and Marwa Chafii

Ali Waqar Azim, Jorge L. Gulfo Monsalve, and Marwa Chafii. Enhanced psk-lora.IEEE Wireless Communications Letters, 11(3):612–616, 2022

work page 2022
[8]

Toward high bit rate lora transmission via joint frequency- amplitude modulation.Electronics, 14(13), 2025

Gupeng Tang, Zhidan Zhao, Chengxin Zhang, Jiaqi Wu, Nan Jing, and Lin Wang. Toward high bit rate lora transmission via joint frequency- amplitude modulation.Electronics, 14(13), 2025

work page 2025
[9]

Cloaklora: A covert channel over lora phy
