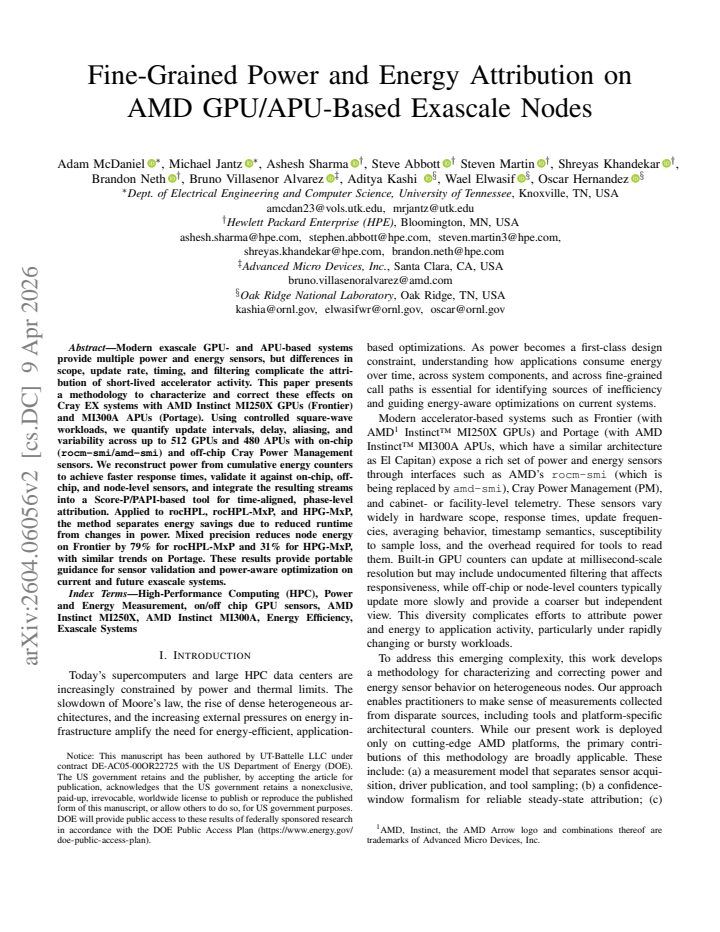

Fine-Grained Power and Energy Attribution on AMD GPU/APU-Based Exascale Nodes

Adam McDaniel , Michael Jantz , Ashesh Sharma , Steve Abbott , Steven Martin , Shreyas Khandekar , Brandon Neth , Bruno Villasenor Alvarez
show 3 more authors
Aditya Kashi Wael Elwasif Oscar Hernandez
This is my paper

Pith reviewed 2026-05-10 18:37 UTC · model grok-4.3

classification 💻 cs.DC cs.AR
keywords power attributionenergy measurementexascale computingAMD GPUssensor characterizationmixed precisionperformance profilingCray EX systems
0
0 comments X

The pith

A methodology using square-wave workloads reconstructs power from energy counters for accurate attribution on AMD exascale GPU nodes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a methodology for fine-grained power and energy attribution on AMD GPU and APU based exascale systems. Sensors on these machines have varying update rates, delays, and filtering that obscure short activity periods. Using square wave test workloads, the authors measure and correct for these issues by reconstructing power from energy counters. This corrected data is then used in a profiling tool to analyze benchmarks. The results show large energy reductions from mixed precision, with the method distinguishing whether savings come from faster execution or lower power use.

Core claim

Modern exascale systems with AMD Instinct GPUs and APUs provide multiple power sensors whose differences in scope, update rate, timing, and filtering complicate attribution of short-lived activity. A methodology using controlled square-wave workloads quantifies these effects across hundreds of devices, enables reconstruction of power from cumulative energy counters for faster response, validates against on-chip and off-chip sensors, and integrates the streams into a Score-P/PAPI tool for phase-level attribution. When applied to linear algebra benchmarks, this separates energy savings due to reduced runtime from changes in power draw, demonstrating that mixed precision reduces node energy by

What carries the argument

Square-wave workload characterization of sensor timing and reconstruction of power from cumulative energy counters

Load-bearing premise

Controlled square-wave workloads sufficiently capture the timing, aliasing, and variability effects that occur in real, irregular HPC application workloads.

What would settle it

If the reconstructed power from energy counters fails to match high-resolution measurements during the execution of irregular, non-square-wave HPC applications, the method's accuracy for general use would be refuted.

Figures

Figures reproduced from arXiv: 2604.06056 by Adam McDaniel, Aditya Kashi, Ashesh Sharma, Brandon Neth, Bruno Villasenor Alvarez, Michael Jantz, Oscar Hernandez, Shreyas Khandekar, Steve Abbott, Steven Martin, Wael Elwasif.

Figure 1
Figure 1. Figure 1: Three asynchronous stages for sensor production, driver [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

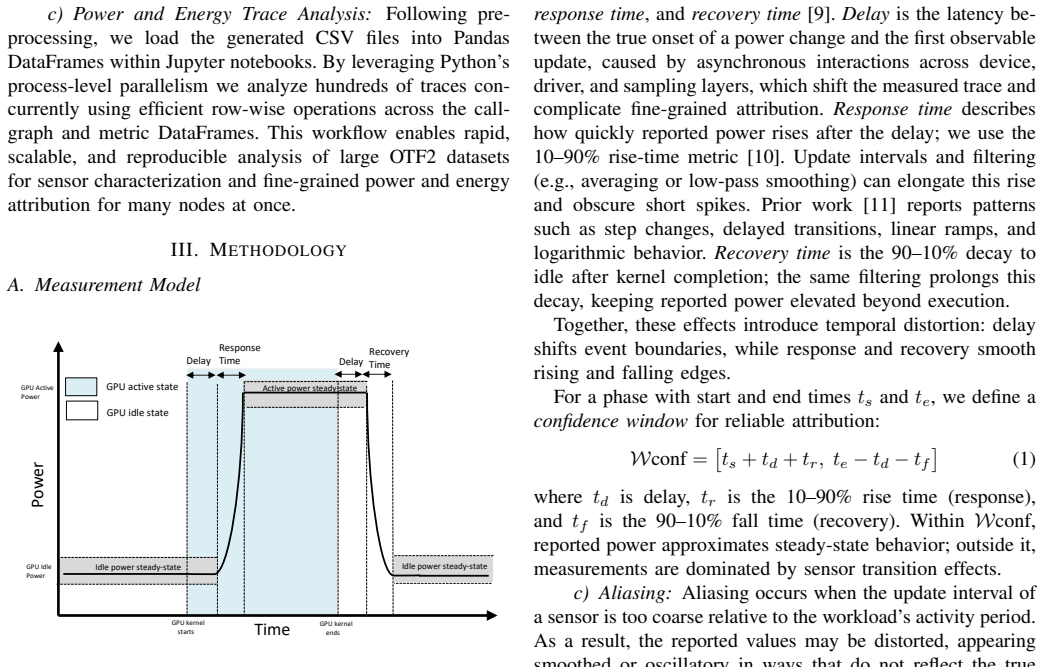

Figure 2. Figure 2: GPU power sensor behavior during a kernel execution. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of sampling effects: (a) signal captured [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Update-interval and timestamp-delta behavior measured across 128 nodes on Frontier (left column, 512 AMD Instinct [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Delay, response, and recovery behavior for AMD Instinct™ MI250X (left) and AMD Instinct™ MI300A (right) under [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Median impact of aliasing on power state transition [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

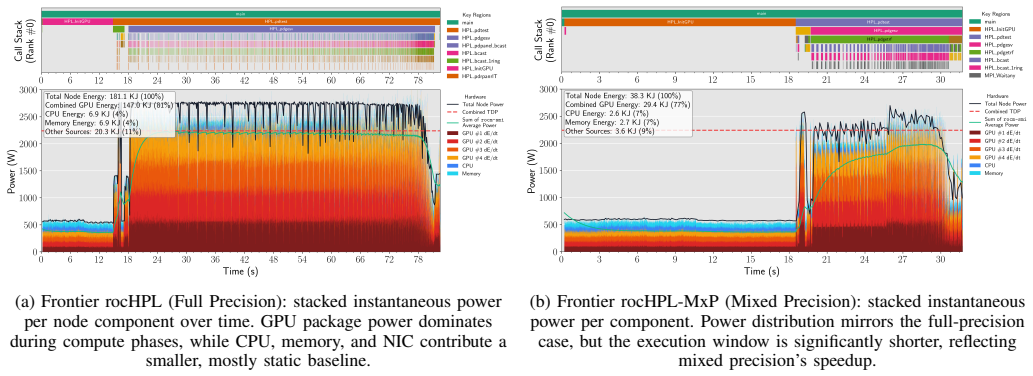

Figure 7. Figure 7: Frontier (AMD Instinct MI250x) rocHPL and rocHPL-MxP: side-by-side comparison of stacked instantaneous power. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
