Finite-time contact in fluid-elastic structure interaction: Navier-slip coupling condition
Pith reviewed 2026-05-10 18:34 UTC · model grok-4.3
The pith
Weak solutions to the Navier-slip fluid-elastic tube model reach contact in finite time under sufficient pressure drop.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that weak solutions of the fluid-structure interaction problem exist and that, for a sufficiently large pressure drop across the channel, there exists a finite time at which the compliant upper boundary meets the lower rigid boundary. The proof proceeds by first obtaining weak solutions, then deriving additional spatial regularity on the elastic displacement that allows control of the distance to contact, and finally showing that this distance reaches zero in finite time under the pressure condition. This directly addresses and overcomes the no-collision paradox from the corresponding no-slip analysis.
What carries the argument
The Navier-slip coupling condition at the deformable interface, which permits tangential velocity discontinuities between fluid and structure, together with the derived hidden spatial regularity of the elastic displacement that controls the gap to contact.
If this is right
- The model is validated for capturing near-contact dynamics in fluid-elastic tubes.
- Finite-time contact becomes provable once the no-slip condition is relaxed to Navier-slip.
- Weak solutions can be continued up to the moment of contact rather than stopping earlier.
- The pressure-drop threshold supplies a concrete criterion that guarantees collapse occurs while the solution remains valid.
Where Pith is reading between the lines
- Navier-slip may be the physically appropriate interface condition for modeling tubes that undergo contact in biological or engineering applications.
- The regularity technique used to control the gap could be adapted to prove contact in related FSI problems with other slip or friction conditions.
- Numerical schemes for this system should be designed to handle the finite-time singularity at contact rather than assuming solutions remain separated for all time.
Load-bearing premise
The imposed pressure drop stays large enough to force collapse before the weak solution ceases to exist or before unmodeled effects such as contact forces intervene.
What would settle it
An explicit weak solution or numerical computation in which the gap between boundaries approaches zero only as time tends to infinity, even when the pressure drop is held above the stated threshold, would disprove the finite-time contact claim.
Figures

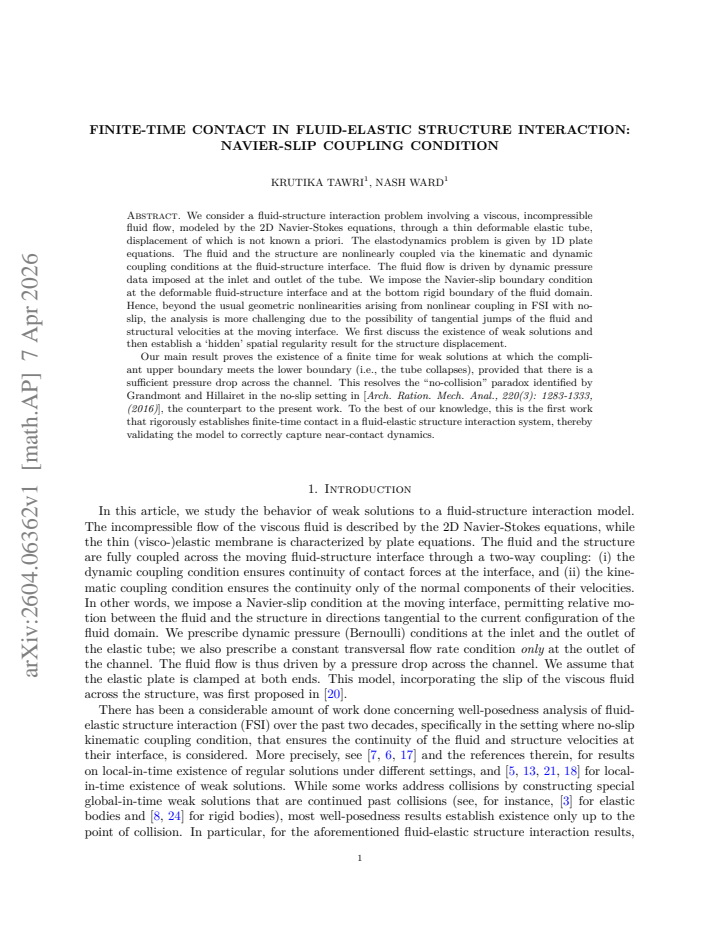

read the original abstract
We consider a fluid-structure interaction problem involving a viscous, incompressible fluid flow, modeled by the 2D Navier-Stokes equations, through a thin deformable elastic tube, displacement of which is not known a priori. The elastodynamics problem is given by 1D plate equations. The fluid and the structure are nonlinearly coupled via the kinematic and dynamic coupling conditions at the fluid-structure interface. The fluid flow is driven by dynamic pressure data imposed at the inlet and outlet of the tube. We impose the Navier-slip boundary condition at the deformable fluid-structure interface and at the bottom rigid boundary of the fluid domain. Hence, beyond the usual geometric nonlinearities arising from nonlinear coupling in FSI with no-slip, the analysis is more challenging due to the possibility of tangential jumps of the fluid and structural velocities at the moving interface. We first discuss the existence of weak solutions and then establish a `hidden' spatial regularity result for the structure displacement. Our main result proves the existence of a finite time for weak solutions at which the compliant upper boundary meets the lower boundary (i.e., the tube collapses), provided that there is a sufficient pressure drop across the channel. This resolves the ''no-collision'' paradox identified by Grandmont and Hillairet in the no-slip setting in [Arch. Ration. Mech. Anal., 220(3): 1283-1333, (2016)], the counterpart to the present work. To the best of our knowledge, this is the first work that rigorously establishes finite-time contact in a fluid-elastic structure interaction system, thereby validating the model to correctly capture near-contact dynamics.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript establishes existence of weak solutions to a 2D incompressible Navier-Stokes fluid coupled to a 1D elastic plate structure via nonlinear kinematic/dynamic conditions and Navier-slip boundary conditions at the moving interface and rigid bottom. It derives a hidden spatial regularity result for the structure displacement and proves that, for a sufficiently large imposed pressure drop, the weak solutions reach a finite time at which the upper boundary contacts the lower boundary (tube collapse). This resolves the no-collision paradox known from the no-slip case.
Significance. If the central claims hold, the work supplies the first rigorous existence proof of finite-time contact in a fluid-elastic structure interaction system. By replacing no-slip with Navier-slip, it circumvents the no-collision obstruction identified in prior literature and thereby validates the model for near-contact regimes. The combination of weak-solution existence, hidden regularity, and explicit contact-time result constitutes a substantive advance for mathematical analysis of FSI problems with possible tangential velocity discontinuities.
major comments (2)
- [Main theorem (finite-time contact)] Main result on finite-time contact: the statement that contact occurs 'provided that there is a sufficient pressure drop' does not supply an explicit quantitative lower bound on ΔP in terms of the constants appearing in the energy estimates or the hidden-regularity bounds. Without such a comparison, it remains unclear whether the contact time T* is guaranteed to lie strictly before the maximal existence time T_max of the constructed weak solution.
- [Hidden regularity result] Hidden regularity section: the passage from the weak formulation to the additional spatial regularity for the plate displacement relies on testing with specific test functions that exploit the Navier-slip condition; the precise integration-by-parts identities and the control of the tangential jump terms should be verified to ensure they close without additional assumptions on the pressure data.
minor comments (1)
- [Abstract] The abstract refers to 'dynamic pressure data' imposed at inlet and outlet; the manuscript should clarify whether these data are time-dependent or constant and how their regularity enters the existence and contact-time arguments.
Simulated Author's Rebuttal
We thank the referee for their thorough review and valuable suggestions. We address the major comments point by point below, indicating where revisions will be made to the manuscript.
read point-by-point responses
-
Referee: Main result on finite-time contact: the statement that contact occurs 'provided that there is a sufficient pressure drop' does not supply an explicit quantitative lower bound on ΔP in terms of the constants appearing in the energy estimates or the hidden-regularity bounds. Without such a comparison, it remains unclear whether the contact time T* is guaranteed to lie strictly before the maximal existence time T_max of the constructed weak solution.
Authors: We appreciate this observation. In our proof, we first derive a priori bounds independent of the contact time, then construct T* explicitly as a function of the initial energy, the hidden regularity constants, and ΔP. We then choose ΔP large enough so that T* is smaller than the time at which the energy bounds would blow up or the maximal time. While the lower bound on ΔP is not given as a closed-form expression with all constants expanded, its existence and dependence are clear from the estimates. We will add a remark in the revised manuscript explicitly stating the dependence of the threshold ΔP on the constants from the energy and regularity estimates to clarify that T* < T_max. revision: partial
-
Referee: Hidden regularity section: the passage from the weak formulation to the additional spatial regularity for the plate displacement relies on testing with specific test functions that exploit the Navier-slip condition; the precise integration-by-parts identities and the control of the tangential jump terms should be verified to ensure they close without additional assumptions on the pressure data.
Authors: We thank the referee for this suggestion. The hidden regularity is obtained by choosing test functions in the weak form that correspond to the structure equation tested against the displacement, using the Navier-slip to handle the interface terms. The integration by parts is justified by the available regularity (fluid velocity in L^2(0,T; H^1), pressure in L^2, structure in appropriate spaces), and the tangential jump is controlled by the slip length parameter without requiring extra assumptions on the pressure beyond the given data. We will expand the proof in the hidden regularity section with more detailed steps for the integration-by-parts and term estimates to make this verification explicit. revision: yes
Circularity Check
No circularity: standard PDE existence proof with external citation
full rationale
The derivation establishes weak solution existence for the Navier-Stokes/plate FSI system with Navier-slip conditions, followed by a hidden regularity result and then finite-time contact under a sufficient pressure drop hypothesis. This chain relies on standard energy estimates, compactness arguments, and an external reference to the no-collision result of Grandmont-Hillairet (different authors). No step reduces by construction to its own inputs: there are no fitted parameters renamed as predictions, no self-definitional quantities, no load-bearing self-citations, and no ansatz smuggled via prior work by the same authors. The 'sufficient pressure drop' is an explicit hypothesis in the main theorem rather than a derived quantity that loops back to the conclusion.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Existence of weak solutions to the 2D Navier-Stokes / 1D plate FSI system with Navier-slip coupling
- domain assumption Hidden spatial regularity of the structure displacement
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Our main result proves the existence of a finite time for weak solutions at which the compliant upper boundary meets the lower boundary ... provided that there is a sufficient pressure drop across the channel.
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
- [1]
-
[2]
E. Burman, M Fernández, S. Frei, and F. Gerosa. A mechanically consistent model for fluid-structure interactions with contact including seepage.Comput. Methods Appl. Mech. Engrg., 392:Paper No. 114637, 28, 2022
work page 2022
-
[3]
J. Casanova, C. Grandmont, and M. Hillairet. On an existence theory for a fluid-beam problem encompassing possible contacts.J. Éc. polytech. Math., 8:933–971, 2021
work page 2021
- [4]
-
[5]
A. Chambolle, B. Desjardins, M. J. Esteban, and C. Grandmont. Existence of weak solutions for the unsteady interaction of a viscous fluid with an elastic plate.J. Math. Fluid Mech., 7(3):368–404, 2005
work page 2005
-
[6]
C. H. A. Cheng and S. Shkoller. The interaction of the 3D Navier-Stokes equations with a moving nonlinear Koiter elastic shell.SIAM J. Math. Anal., 42(3):1094–1155, 2010
work page 2010
-
[7]
D.CoutandandS.Shkoller.TheinteractionbetweenquasilinearelastodynamicsandtheNavier-Stokesequations. Arch. Ration. Mech. Anal., 179(3):303–352, 2006
work page 2006
- [8]
-
[9]
G. P. Galdi.An introduction to the mathematical theory of the Navier-Stokes equations. Springer Monographs in Mathematics. Springer, New York, second edition, 2011. Steady-state problems
work page 2011
-
[10]
D. Gérard-Varet and M. Hillairet. Computation of the drag force on a sphere close to a wall: the roughness issue.ESAIM Math. Model. Numer. Anal., 46(5):1201–1224, 2012
work page 2012
-
[11]
D. Gérard-Varet and M. Hillairet. Existence of weak solutions up to collision for viscous fluid-solid systems with slip.Comm. Pure Appl. Math., 67(12):2022–2075, 2014
work page 2022
-
[12]
The influence of boundary conditions on the contact problem in a 3D Navier-Stokes flow.J
David Gérard-Varet, Matthieu Hillairet, and Chao Wang. The influence of boundary conditions on the contact problem in a 3D Navier-Stokes flow.J. Math. Pures Appl. (9), 103(1):1–38, 2015. FINITE-TIME CONTACT: NA VIER-SLIP 33
work page 2015
- [13]
-
[14]
C. Grandmont and M. Hillairet. Existence of global strong solutions to a beam–fluid interaction system.Arch. Ration. Mech. Anal., 220(3):1283–1333, 2016
work page 2016
-
[15]
G. Gravina, S. Schwarzacher, O. Souček, and K. Tůma. Contactless rebound of elastic bodies in a viscous incompressible fluid.J. Fluid Mech., 942:Paper No. A34, 46, 2022
work page 2022
-
[16]
J. G. Heywood, R. Rannacher, and S. Turek. Artificial boundaries and flux and pressure conditions for the incompressible Navier-Stokes equations.Internat. J. Numer. Methods Fluids, 22(5):325–352, 1996
work page 1996
-
[17]
I. Kukavica, A. Tuffaha, and M. Ziane. Strong solutions for a fluid structure interaction system.Adv. Differential Equations, 15(3-4):231–254, 2010
work page 2010
-
[18]
D. Lengeler and M. Ružička. Weak solutions for an incompressible Newtonian fluid interacting with a Koiter type shell.Arch. Ration. Mech. Anal., 211(1):205–255, 2014
work page 2014
-
[19]
C. Mindrilˇ a and A. Roy. Existence of weak solutions for incompressible fluid-koiter shell interactions with navier slip boundary condition, 2026. arXiv:2602.20016
-
[20]
B. Muha and S. Čanić. Existence of a weak solution to a fluid-elastic structure interaction problem with the Navier slip boundary condition.J. Differential Equations, 260(12):8550–8589, 2016
work page 2016
-
[21]
B. Muha and S. Čanić. Existence of a weak solution to a nonlinear fluid-structure interaction problem modeling the flow of an incompressible, viscous fluid in a cylinder with deformable walls.Arch. Ration. Mech. Anal., 207(3):919–968, 2013
work page 2013
-
[22]
B. Muha and S. Čanić. A generalization of the Aubin-Lions-Simon compactness lemma for problems on moving domains.J. Differential Equations, 266(12):8370–8418, 2019
work page 2019
-
[23]
J. Neustupa and P Penel. A weak solvability of the Navier-Stokes equation with Navier’s boundary condition around a ball striking the wall. InAdvances in mathematical fluid mechanics, pages 385–407. Springer, Berlin, 2010
work page 2010
-
[24]
J. A. San Martín, V. Starovoitov, and M. Tucsnak. Global weak solutions for the two-dimensional motion of several rigid bodies in an incompressible viscous fluid.Arch. Ration. Mech. Anal., 161(2):113–147, 2002
work page 2002
-
[25]
G. Sperone. Homogenization of the steady-state Navier-Stokes equations with prescribed flux rate or pressure drop in a perforated pipe.J. Differential Equations, 375:1–29, 2023
work page 2023
-
[26]
V. Starovoitov. Behavior of a rigid body in an incompressible viscous fluid near a boundary. InFree boundary problems (Trento, 2002), volume 147 ofInternat. Ser. Numer. Math., pages 313–327. Birkhäuser, Basel, 2004
work page 2002
-
[27]
K. Tawri. A stochastic fluid-structure interaction problem with the Navier-slip boundary condition.SIAM J. Math. Anal., 56(6):7508–7544, 2024
work page 2024
- [28]
-
[29]
S. Čanić, B. Muha, and K. Tawri. Existence and regularity results for a nonlinear fluid-structure interaction problem with three-dimensional structural displacement.to appear in SIAM J. Math. Anal., 2026. preprint at arXiv:2409.06939. 1 Department of Applied Mathematics, University of W ashington, W A, USA. Email address:ktawri@uw.edu (Krutika Tawri), Nas...
