arxiv: 2604.06519 · v1 · submitted 2026-04-07 · 💻 cs.CE

Multiscale topology optimization of compressible and nearly incompressible anisotropic hyperelastic structures using physics-augmented neural networks

Asghar A. Jadoon , Aryan Tyagi , L. River Spencer , Reese E. Jones , Manuel K. Rausch , Ryan Alberdi , D. Thomas Seidl , Jan N. Fuhg This is my paper

Pith reviewed 2026-05-10 17:54 UTC · model grok-4.3

classification 💻 cs.CE
keywords multiscaleoptimizationanisotropicneuraltopologyhyperelasticmaterialmicroscale
0
0 comments X

The pith

Physics-augmented neural networks enable simultaneous optimization of macroscale material distribution and microscale descriptors for hyperelastic structures in nonlinear finite strain.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a concurrent multiscale topology optimization framework for compressible and nearly incompressible anisotropic hyperelastic structures. It uses physics-augmented neural networks as surrogate constitutive models that are trained to enforce physical principles like convexity and material symmetry. The approach allows optimizing both the macroscale material layout and the microscale descriptors at once in a nonlinear finite strain setting, which was previously limited by the cost of repeatedly solving microscale problems.

Core claim

By constructing input-specific neural networks with invariant-based representations and structural tensors, physics-augmented neural networks accurately represent homogenized anisotropic hyperelastic responses while ensuring thermodynamic consistency and numerical stability. These networks replace the microscale boundary value problem and supply stresses and consistent tangent moduli through analytical derivatives, making large-scale multiscale optimizations tractable, as demonstrated on transversely isotropic, cubic anisotropic, and nearly incompressible isotropic microstructures.

What carries the argument

Input-specific neural networks within physics-augmented architectures that use invariants and structural tensors to enforce key physical constraints during training and evaluation.

Load-bearing premise

The input-specific neural networks maintain sufficient accuracy, convexity, and thermodynamic consistency during the optimization iterations without introducing instabilities.

What would settle it

Compare the optimized material distributions and performance metrics obtained from the PANN-based method against those from a direct FE2 simulation on a representative benchmark problem to check for significant differences in the final designs.

Figures

Figures reproduced from arXiv: 2604.06519 by Aryan Tyagi, Asghar A. Jadoon, D. Thomas Seidl, Jan N. Fuhg, L. River Spencer, Manuel K. Rausch, Reese E. Jones, Ryan Alberdi.

Figure 1
Figure 1. Figure 1: Overview of the proposed multiscale topology optimization framework. The bottom panel illustrates the of [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Fiber-reinforced representative volume element (RVE) exhibiting transverse isotropy (left), training loss [PITH_FULL_IMAGE:figures/full_fig_p018_2.png] view at source ↗
Figure 3

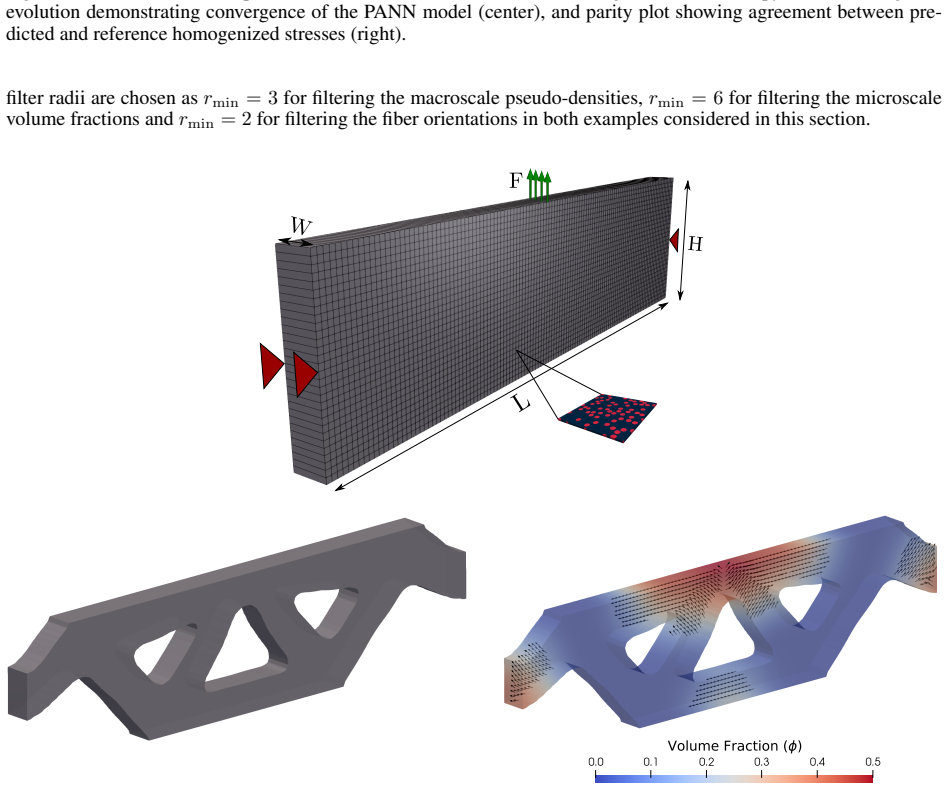

Figure 3. Figure 3: Topology Optimization results for the anisotropic, simply-supported beam. The preferred fiber directions in [PITH_FULL_IMAGE:figures/full_fig_p018_3.png] view at source ↗
Figure 4

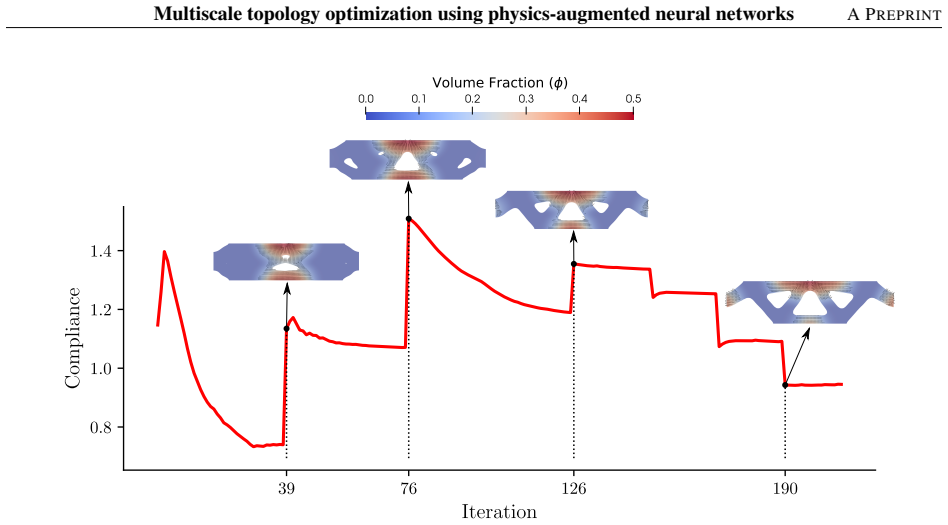

Figure 4. Figure 4: Compliance convergence for the simply supported beam with topology snapshots shown at iterations 39, 76, [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 5

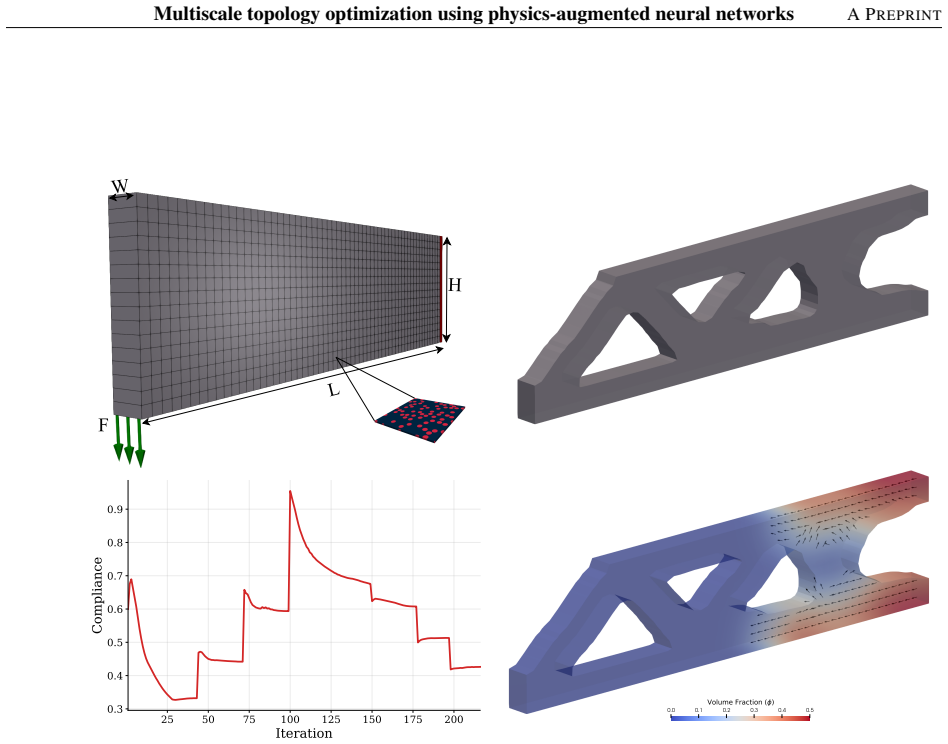

Figure 5. Figure 5: Topology Optimization results for the anisotropic cantilever beam. [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗
Figure 6

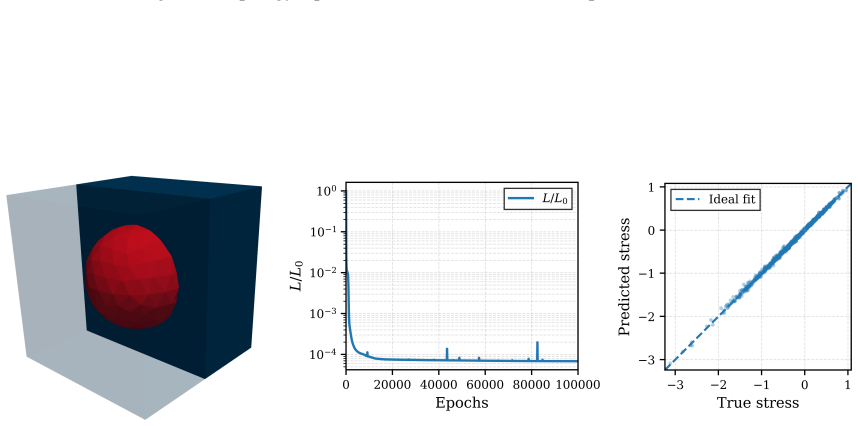

Figure 6. Figure 6: Representative volume element (RVE) with a spherical inclusion exhibiting cubic anisotropy (left), training [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Topology optimization results for the compressible case with a cubic-anisotropic RVE. The problem setup, [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Representative volume element (RVE) with randomly distributed inclusions exhibiting isotropic and nearly [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Topology optimization results for the nearly incompressible isotropic case. The problem setup and compli [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗
read the original abstract

Multiscale topology optimization (TO) of hyperelastic materials remains computationally prohibitive due to the repeated solution of microscale boundary value problems. In this work, we present a concurrent multiscale topology optimization framework that overcomes this limitation by leveraging physics-augmented neural networks (PANNs) as surrogate constitutive models. The proposed approach enables the simultaneous optimization of macroscale material distribution and microscale descriptors, within a unified nonlinear finite strain setting. The surrogate models are constructed using input-specific neural networks (ISNNs) that enforce key physical principles directly within the architecture, including convexity and material symmetry through invariant-based representations and structural tensors. This ensures thermodynamic consistency and numerical stability while accurately representing homogenized anisotropic hyperelastic responses. The trained PANNs replace the microscale boundary value problem and provide efficient evaluations of stresses and consistent tangent moduli using analytical first and second derivatives of the neural network, enabling tractable large-scale multiscale optimization. The framework is demonstrated on representative microstructures exhibiting transversely isotropic, cubic anisotropic, and nearly incompressible isotropic behavior. The results show that the proposed method captures complex multiscale interactions and enables physically meaningful spatial tailoring of material properties, while significantly reducing computational cost compared to classical FE$^2$ approaches. These findings establish PANNs as a powerful tool for high-fidelity multiscale topology optimization of nonlinear anisotropic materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes a concurrent multiscale topology optimization framework for compressible and nearly incompressible anisotropic hyperelastic structures under finite strains. Physics-augmented neural networks (PANNs) based on input-specific neural networks serve as surrogates for microscale boundary value problems, with invariants and structural tensors enforcing convexity, material symmetry, and thermodynamic consistency. Analytical first and second derivatives of the networks supply stresses and consistent tangents, enabling simultaneous optimization of macroscale material distribution and microscale descriptors. Demonstrations on transversely isotropic, cubic, and nearly incompressible cases claim to capture multiscale interactions while reducing cost relative to classical FE² approaches.

Significance. If the accuracy and stability of the PANN surrogates hold across optimization trajectories, the work would meaningfully advance tractable multiscale topology optimization for nonlinear anisotropic materials by replacing repeated microscale solves with physics-consistent, differentiable surrogates. The architecture's direct embedding of convexity and symmetry constraints, together with the provision of analytical derivatives, is a concrete strength that supports numerical stability in large-scale problems.

major comments (1)
  1. Abstract: the central claim that the trained PANNs 'maintain sufficient accuracy, convexity, and thermodynamic consistency throughout the optimization iterations' and 'significantly reduc[e] computational cost' rests on demonstrations whose quantitative support is not described. No error metrics (e.g., stress or energy errors versus direct FE²), side-by-side comparisons of final topologies or objective values, or stability indicators (e.g., convergence rates or non-physical designs) are reported, leaving the load-bearing assertion of surrogate fidelity during concurrent macro-micro optimization unverified.
minor comments (2)
  1. The precise definition of 'input-specific neural networks' and how training data are sampled across the joint space of strains and microscale descriptors should be clarified to allow readers to assess coverage of regimes encountered during optimization.
  2. Notation for the structural tensors and invariant sets used to enforce material symmetry could be consolidated in a single table or appendix for easier cross-reference with the network architecture.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thoughtful review and for recognizing the potential of our concurrent multiscale topology optimization framework using physics-augmented neural networks. We address the single major comment below and will incorporate revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: Abstract: the central claim that the trained PANNs 'maintain sufficient accuracy, convexity, and thermodynamic consistency throughout the optimization iterations' and 'significantly reduc[e] computational cost' rests on demonstrations whose quantitative support is not described. No error metrics (e.g., stress or energy errors versus direct FE²), side-by-side comparisons of final topologies or objective values, or stability indicators (e.g., convergence rates or non-physical designs) are reported, leaving the load-bearing assertion of surrogate fidelity during concurrent macro-micro optimization unverified.

    Authors: We appreciate this observation. The current manuscript presents visual results of optimized topologies, objective histories, and deformed configurations for the transversely isotropic, cubic, and nearly incompressible cases, along with qualitative indications that the optimization proceeds stably without non-physical artifacts. However, we acknowledge that explicit quantitative error metrics (such as relative L2 errors in stress and strain energy between PANN predictions and direct FE² evaluations at sampled optimization steps) and direct side-by-side numerical comparisons of final objective values are not tabulated or plotted. In the revised version we will add these quantitative assessments in the numerical results section, including error evolution plots during optimization, tabulated objective values for PANN versus reference FE² runs on selected problems, and convergence-rate indicators. These additions will directly support the abstract claims without altering the overall conclusions. revision: yes

Circularity Check

0 steps flagged

No circularity; PANN surrogates trained on independent microscale data and used directly in optimization

full rationale

The paper trains input-specific neural networks (ISNNs) within the PANN framework on data from separate microscale boundary value problems for representative microstructures. These networks enforce convexity and symmetry via invariants and structural tensors in their architecture, then replace the microscale BVP during concurrent macro/micro topology optimization by supplying stresses and consistent tangents via analytical derivatives. This is a standard surrogate workflow: training data is generated independently via FE homogenization, and the optimization loop consumes the network outputs without any fitted parameter being redefined as a prediction or any load-bearing step reducing to self-citation. The abstract and framework description present the method as a computational replacement for repeated FE² solves, with numerical demonstrations on transversely isotropic, cubic, and nearly incompressible cases serving as validation rather than a closed derivation. No self-definitional loop, fitted-input prediction, or ansatz smuggled via citation appears in the central claim.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on fitted neural network parameters learned from microscale simulations plus the domain assumption that invariant-based architectures can faithfully surrogate homogenized responses without degrading optimization quality.

free parameters (1)
  • Neural network weights and biases
    Fitted during training to microscale simulation data to approximate the homogenized constitutive law and its derivatives.
axioms (1)
  • domain assumption Homogenized anisotropic hyperelastic responses admit accurate representation by invariant-based neural networks that enforce convexity, material symmetry via structural tensors, and thermodynamic consistency.
    Invoked to justify replacing the microscale BVP with the PANN surrogate while preserving numerical stability in the optimization.

pith-pipeline@v0.9.0 · 5576 in / 1386 out tokens · 39309 ms · 2026-05-10T17:54:05.225251+00:00 · methodology
