arxiv: 2604.06668 · v1 · submitted 2026-04-08 · 💻 cs.AR · cs.DC

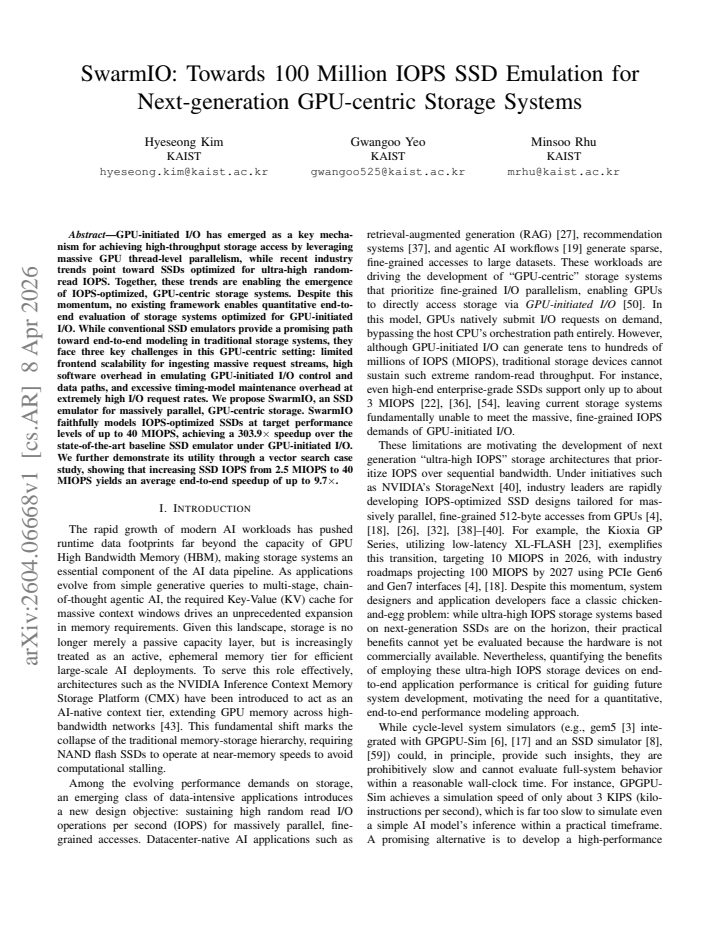

SwarmIO: Towards 100 Million IOPS SSD Emulation for Next-generation GPU-centric Storage Systems

Hyeseong Kim , Gwangoo Yeo , Minsoo Rhu This is my paper

Pith reviewed 2026-05-10 18:28 UTC · model grok-4.3

classification 💻 cs.AR cs.DC
keywords SSD emulatorGPU-initiated I/Ohigh IOPS storageGPU-centric systemsstorage performance modelingvector searchI/O emulation
0
0 comments X

The pith

SwarmIO models IOPS-optimized SSDs at up to 40 MIOPS with 303.9x speedup for GPU-centric storage.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

SwarmIO is proposed as an SSD emulator tailored for GPU-centric storage systems that use GPU-initiated I/O and target ultra-high random-read IOPS. Existing emulators struggle with ingesting massive request streams from GPUs, managing control and data paths with high software overhead, and maintaining timing models at extreme I/O rates. SwarmIO addresses these by achieving faithful modeling up to 40 million IOPS and a 303.9 times speedup over the prior best emulator. In a case study on vector search, scaling SSD IOPS from 2.5 to 40 MIOPS delivers average end-to-end speedups of up to 9.7 times.

Core claim

SwarmIO is an SSD emulator for massively parallel, GPU-centric storage that faithfully models IOPS-optimized SSDs at target performance levels of up to 40 MIOPS, achieving a 303.9x speedup over the state-of-the-art baseline SSD emulator under GPU-initiated I/O. It further demonstrates utility through a vector search case study showing that increasing SSD IOPS from 2.5 MIOPS to 40 MIOPS yields an average end-to-end speedup of up to 9.7x.

What carries the argument

SwarmIO emulator architecture that improves frontend scalability for massive request streams, reduces software overhead in emulating GPU-initiated I/O control and data paths, and lowers timing-model maintenance overhead at high request rates.

If this is right

  • End-to-end quantitative evaluation of IOPS-optimized GPU-centric storage systems is now possible without physical hardware.
  • Designers can measure the performance effects of scaling SSD IOPS from 2.5 MIOPS to 40 MIOPS in applications such as vector search.
  • The emulator supports exploration of next-generation storage architectures targeting even higher IOPS targets.
  • GPU storage system prototypes can be tested and iterated rapidly before hardware availability.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may extend to emulating other massively parallel I/O patterns in non-GPU accelerators.
  • Faster emulation cycles could accelerate hardware-software co-design for data-center GPU storage.
  • Observed application speedups imply that real SSD IOPS gains would produce multiplicative benefits in GPU workloads.
  • The title's reference to 100 million IOPS suggests the current 40 MIOPS target is an intermediate step toward higher rates.

Load-bearing premise

The timing models and overhead reductions in SwarmIO accurately capture real GPU-initiated I/O behavior at high request rates without introducing significant emulation artifacts or inaccuracies.

What would settle it

Direct comparison of SwarmIO's latency and throughput predictions against measurements from physical high-IOPS SSD hardware running identical GPU-initiated I/O workloads near 40 MIOPS would confirm or refute the model's fidelity.

Figures

Figures reproduced from arXiv: 2604.06668 by Gwangoo Yeo, Hyeseong Kim, Minsoo Rhu.

Figure 1
Figure 1. Figure 1: GPU-initiated I/O. of GPU-centric storage systems with GPU-initiated I/O. • We demonstrate, on real GPU systems, that SwarmIO scales to 40 MIOPS, achieving a 307.7× speedup over a state-of-the-art SSD emulation framework. • We enable end-to-end analysis of GPU-centric storage systems with future IOPS-optimized SSDs, and demon￾strate through a vector-search case study that increasing SSD IOPS from 2.5 MIOPS… view at source ↗
Figure 2
Figure 2. Figure 2: (a) High-level overview of NVMeVirt and (b) an [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Frontend throughput of NVMeVirt under CPU-centric [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Dynamic address mapping/unmapping overhead ( [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: (a) Average latency and (b) IOPS of NVMeVirt under [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: An example asynchronous, batched data transfer work [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Effect of SwarmIO’s asynchronous copy offloading on [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Effect of DSA’s batch size (BS) on (a) total worker throughput and (b) total dispatcher throughput across four service units instantiated on a single DSA device. 4 KB transfer as 64 I/O requests) and seek to maximize total worker IOPS up to this threshold. Effect of asynchronous and batched offloading. Fig￾ure 8(a) shows the benefits of SwarmIO’s asynchronous copy offloading by showing total worker IOPS as… view at source ↗
Figure 10
Figure 10. Figure 10: Sustained IOPS under (a) CPU-centric I/O (fio) and [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Average target completion latency from the timing [PITH_FULL_IMAGE:figures/full_fig_p009_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: Effect of SwarmIO’s optimizations on baseline [PITH_FULL_IMAGE:figures/full_fig_p010_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Effect of SwarmIO’s aggregated timing model updates [PITH_FULL_IMAGE:figures/full_fig_p010_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Sensitivity of SwarmIO’s sustained IOPS to (a) the [PITH_FULL_IMAGE:figures/full_fig_p011_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: End-to-end performance of on-disk CAGRA search [PITH_FULL_IMAGE:figures/full_fig_p012_16.png] view at source ↗
read the original abstract

GPU-initiated I/O has emerged as a key mechanism for achieving high-throughput storage access by leveraging massive GPU thread-level parallelism, while recent industry trends point toward SSDs optimized for ultra-high random-read IOPS. Together, these trends are enabling the emergence of IOPS-optimized, GPU-centric storage systems. Despite this momentum, no existing framework enables quantitative end-to-end evaluation of storage systems optimized for GPU-initiated I/O. While conventional SSD emulators provide a promising path toward end-to-end modeling in traditional storage systems, they face three key challenges in this GPU-centric setting: limited frontend scalability for ingesting massive request streams, high software overhead in emulating GPU-initiated I/O control and data paths, and excessive timing-model maintenance overhead at extremely high I/O request rates. We propose SwarmIO, an SSD emulator for massively parallel, GPU-centric storage. SwarmIO faithfully models IOPS-optimized SSDs at target performance levels of up to 40 MIOPS, achieving a 303.9x speedup over the state-of-the-art baseline SSD emulator under GPU-initiated I/O. We further demonstrate its utility through a vector search case study, showing that increasing SSD IOPS from 2.5 MIOPS to 40 MIOPS yields an average end-to-end speedup of up to 9.7x.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents SwarmIO, an SSD emulator for GPU-centric storage systems supporting GPU-initiated I/O. It identifies three limitations in prior emulators (frontend scalability for massive request streams, software overhead on GPU I/O paths, and timing-model maintenance at high rates) and claims to address them, enabling faithful modeling of IOPS-optimized SSDs up to 40 MIOPS. Key results include a 303.9x speedup over the state-of-the-art baseline emulator under GPU-initiated I/O and a vector-search case study showing up to 9.7x end-to-end speedup when scaling SSD IOPS from 2.5 MIOPS to 40 MIOPS.

Significance. If the timing models prove accurate, SwarmIO would be a significant contribution by enabling quantitative end-to-end evaluation of emerging GPU-centric storage architectures at performance levels (40+ MIOPS) that are currently impractical to prototype or simulate with existing tools. This could accelerate design exploration in high-performance computing and AI workloads that rely on massive parallel random-read I/O.

major comments (2)
  1. [Results/Evaluation section] Results/Evaluation section: The central claim that SwarmIO 'faithfully models' IOPS-optimized SSDs at up to 40 MIOPS (including flash channel contention and controller effects under massive GPU thread parallelism) is load-bearing for the reported 303.9x speedup and 9.7x case-study gain, yet the manuscript provides no direct validation against physical SSD hardware at target rates with GPU-initiated I/O. If comparisons are limited to other emulators, synthetic traces, or lower-rate regimes, the speedup figures may reflect model simplifications rather than real-system fidelity.
  2. [Abstract and §1] Abstract and §1: The assertion of 'no existing framework' for quantitative end-to-end evaluation of GPU-initiated I/O storage systems requires explicit comparison to the closest prior GPU-aware or high-IOPS emulators; without this, it is unclear whether SwarmIO's overhead reductions are incremental or fundamentally new.
minor comments (2)
  1. [Title and Abstract] The title references '100 Million IOPS' while all concrete claims and results target 40 MIOPS; clarifying the gap between aspirational and demonstrated performance would improve precision.
  2. [Figures/Tables] Figure and table captions should explicitly state whether error bars or confidence intervals are shown and what baseline configuration (e.g., number of GPU threads, request pattern) was used for the 303.9x measurement.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the constructive feedback on our manuscript. We address each major comment point by point below, proposing targeted revisions to strengthen the presentation of our contributions while maintaining accuracy.

read point-by-point responses

  1. Referee: [Results/Evaluation section] Results/Evaluation section: The central claim that SwarmIO 'faithfully models' IOPS-optimized SSDs at up to 40 MIOPS (including flash channel contention and controller effects under massive GPU thread parallelism) is load-bearing for the reported 303.9x speedup and 9.7x case-study gain, yet the manuscript provides no direct validation against physical SSD hardware at target rates with GPU-initiated I/O. If comparisons are limited to other emulators, synthetic traces, or lower-rate regimes, the speedup figures may reflect model simplifications rather than real-system fidelity.

    Authors: We acknowledge the value of direct hardware validation at target rates. Such validation is inherently limited because IOPS-optimized SSDs with native GPU-initiated I/O support at 40 MIOPS scale are emerging technologies not yet available for comprehensive end-to-end benchmarking. Our timing models are derived from commercial SSD datasheets, flash channel specifications, and controller behaviors documented in prior literature. We have performed validation against available lower-rate physical SSDs and synthetic traces that reproduce known contention effects. In revision, we will expand the evaluation section with additional details on model derivation, low-rate hardware comparisons, and an explicit limitations discussion on high-rate fidelity. This is a partial revision as we cannot fabricate unavailable hardware data. revision: partial

  2. Referee: [Abstract and §1] Abstract and §1: The assertion of 'no existing framework' for quantitative end-to-end evaluation of GPU-initiated I/O storage systems requires explicit comparison to the closest prior GPU-aware or high-IOPS emulators; without this, it is unclear whether SwarmIO's overhead reductions are incremental or fundamentally new.

    Authors: We will revise the abstract and Section 1 to include an explicit comparison to the closest prior emulators (both high-IOPS and any GPU-aware variants). Our claim centers on the absence of any framework that simultaneously supports GPU-initiated I/O, scales to 40+ MIOPS, and maintains low software overhead on the GPU path. We will add a table or paragraph differentiating SwarmIO from related work on these axes to clarify the novelty. revision: yes

Circularity Check

0 steps flagged

No circularity: performance claims are measured speedups against external baseline

full rationale

The paper's derivation chain consists of engineering solutions to three stated challenges (frontend scalability, GPU I/O path overhead, timing-model maintenance) followed by direct benchmarking of the resulting emulator against a state-of-the-art baseline. Reported figures (303.9x speedup, 9.7x end-to-end gain) are presented as empirical measurements on synthetic and case-study workloads, not as outputs of fitted parameters or self-referential equations. No self-definitional steps, fitted-input predictions, or load-bearing self-citations appear in the modeling or evaluation sections; the timing model is described as an implementation artifact whose accuracy is asserted via comparison to the external baseline rather than by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; SwarmIO is presented as an engineering artifact whose internal model details are not disclosed.
