Development of a Simple Stellarator using Tilted Circular Toroidal Field Coils

Ashit Kumar Nath , Yasuhiro Suzuki This is my paper

Pith reviewed 2026-05-10 17:31 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords stellaratortilted coilstoroidal field coilsrotational transformneoclassical transportalpha particle confinementmagnetic flux surfacescoil optimization
0
0 comments X

The pith

Tilting circular toroidal field coils and adding compensating poloidal coils produces a stellarator with nested flux surfaces, low neoclassical transport, and favorable alpha-particle confinement.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that rotational transform can be created in a stellarator simply by tilting circular toroidal field coils, with a pair of axisymmetric poloidal field coils added to cancel the resulting vertical field component. This combination forms a three-dimensional magnetic configuration whose vacuum field contains clear, nested flux surfaces, as verified by field-line tracing and equilibrium calculations. Partial optimization is performed by varying only the toroidal field coil radius and tilt angle, yielding a low neoclassical transport coefficient and collisionless guiding-center orbits that retain both thermal protons and 3.5 MeV alpha particles effectively. The resulting performance metrics in alpha confinement and the Gamma_C proxy are shown to approach those of fully optimized stellarators such as W7-X and LHD.

Core claim

The authors establish that a stellarator configuration assembled from tilted circular toroidal field coils compensated by axisymmetric poloidal field coils supports nested magnetic flux surfaces in the vacuum field. Partial optimization over toroidal field coil radius and tilt angle produces a low value of the neoclassical transport coefficient D11 together with favorable collisionless confinement of 100 eV protons and 3.5 MeV alpha particles, with alpha-particle retention and Gamma_C proxy values that compare well with those obtained in W7-X and LHD.

What carries the argument

The generation of rotational transform by tilting circular toroidal field coils, compensated by a pair of axisymmetric poloidal field coils, followed by optimization of coil radius and tilt angle to shape the vacuum magnetic field.

If this is right

  • Nested flux surfaces form and persist in the vacuum magnetic field.
  • The neoclassical transport coefficient D11 remains low after the partial optimization.
  • Guiding-center orbits of both 100 eV protons and 3.5 MeV alpha particles exhibit favorable confinement.
  • Alpha-particle confinement and Gamma_C proxy values approach those of fully optimized stellarators such as W7-X and LHD.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The use of only circular coils may reduce fabrication cost and complexity relative to stellarators that require non-planar or highly shaped coils.
  • Further extension of the optimization to include finite plasma beta and realistic coil error fields would be required to assess reactor relevance.
  • A small-scale experimental device could directly test whether the computed flux-surface quality and orbit confinement survive construction tolerances.

Load-bearing premise

That the vacuum-field properties obtained by varying only toroidal field coil radius and tilt angle will continue to produce low transport and good particle confinement once a plasma is introduced and finite-beta or error-field effects appear.

What would settle it

A physical coil set built to the reported radii and tilt angles whose measured particle loss rates for 3.5 MeV alphas or neoclassical transport coefficient substantially exceed the simulated values would falsify the claim of favorable confinement.

Figures

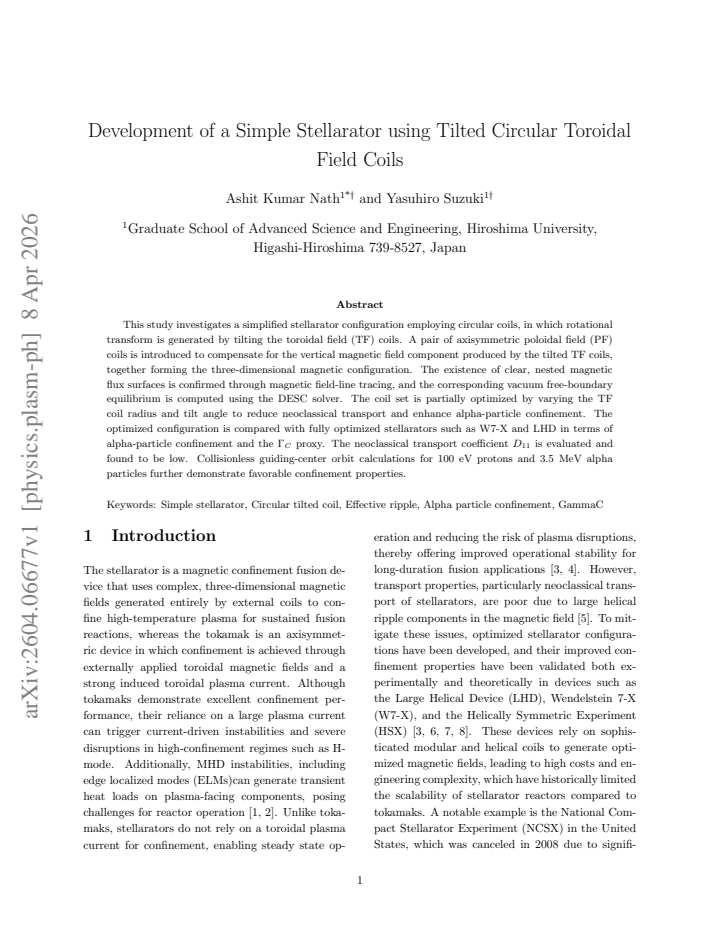

Figures reproduced from arXiv: 2604.06677 by Ashit Kumar Nath, Yasuhiro Suzuki.
