Symbol Error Analysis for Fluid Antenna Systems with One- and Two-Dimensional Modulation Schemes

Soumya P. Dash , George C. Alexandropoulos This is my paper

Pith reviewed 2026-05-10 18:06 UTC · model grok-4.3

classification 📡 eess.SP
keywords fluid antennasymbol error probabilityport selectionmaximal ratio combiningRayleigh fadingmodulation schemes
0
0 comments X

The pith

Fluid antenna receivers achieve exact closed-form symbol error rates by selecting and combining the best K out of N ports.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper analyzes symbol error probabilities in a fluid antenna system where a receiver with N ports selects the best K for detection using maximal-ratio combining. It derives optimal receivers and exact closed-form SEP expressions for several one- and two-dimensional modulation formats over Rayleigh fading channels. The analysis also supplies high-SNR asymptotic approximations. These expressions enable direct computation of error rates, showing how the number of ports, the selection size K, and SNR govern performance.

Core claim

The paper establishes novel exact closed-form expressions for the symbol error probabilities of a fluid antenna system employing one- and two-dimensional modulation schemes, where the receiver selects the K strongest ports out of N and applies maximal-ratio combining, along with corresponding asymptotic approximations at high signal-to-noise ratios.

What carries the argument

Order statistics on the port SNRs to obtain the distribution of the combined signal after selecting the K best ports and maximal-ratio combining.

If this is right

  • SEP decreases as K increases for fixed N and modulation.
  • Asymptotic approximations directly give the diversity order of the port-selection scheme.
  • The closed-forms allow parameter optimization of N and K for a target error rate.
  • Optimal symbol detectors are obtained separately for each of the four modulation families.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The closed-forms could support real-time selection of K in varying channels.
  • The same order-statistic approach might apply to spatially correlated ports.
  • Performance gains relative to fixed-antenna arrays could be quantified by reusing the expressions.

Load-bearing premise

The receiver has perfect instantaneous channel state information for every port so that it can always identify the true best K ports and perform ideal maximal-ratio combining.

What would settle it

Monte Carlo simulations with noisy channel estimates that cause imperfect port selection would produce SEP curves that deviate from the closed-form expressions.

Figures

Figures reproduced from arXiv: 2604.06852 by George C. Alexandropoulos, Soumya P. Dash.

Figure 1
Figure 1. Figure 1: SEP performance for various modulation schemes with [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
read the original abstract

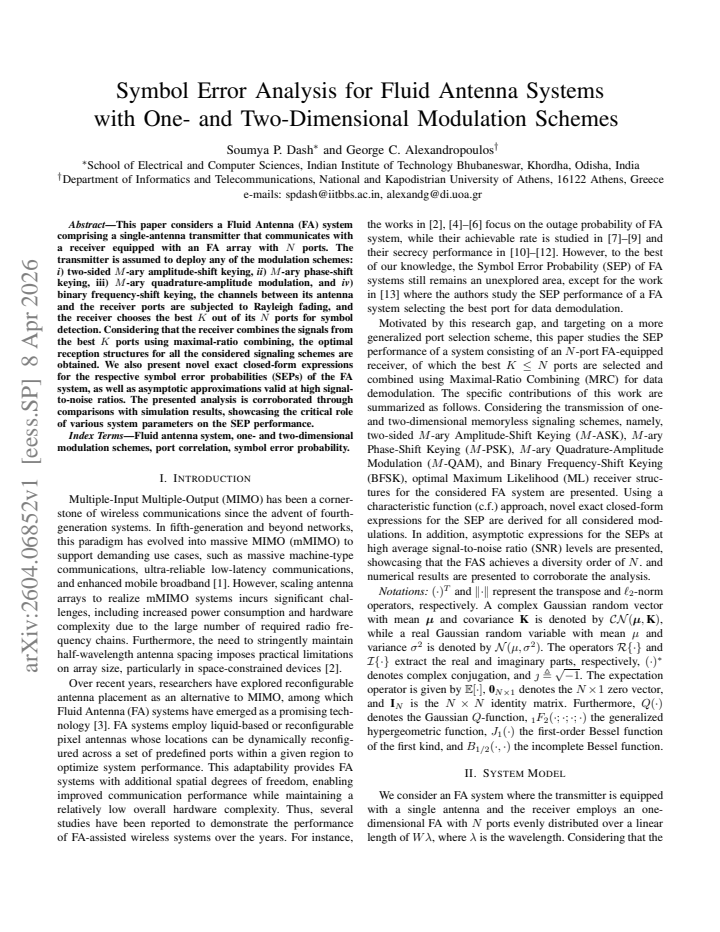

This paper considers a Fluid Antenna (FA) system comprising a single-antenna transmitter that communicates with a receiver equipped with an FA array with $N$ ports. The transmitter is assumed to deploy any of the modulation schemes: \textit{i}) two-sided $M$-ary amplitude-shift keying, \textit{ii}) $M$-ary phase-shift keying, iii) $M$-ary quadrature-amplitude modulation, and \textit{iv}) binary frequency-shift keying, the channels between its antenna and the receiver ports are subjected to Rayleigh fading, and the receiver chooses the best $K$ out of its $N$ ports for symbol detection. Considering that the receiver combines the signals from the best $K$ ports using maximal-ratio combining, the optimal reception structures for all the considered signaling schemes are obtained. We also present novel exact closed-form expressions for the respective symbol error probabilities (SEPs) of the FA system, as well as asymptotic approximations valid at high signal-to-noise ratios. The presented analysis is corroborated through comparisons with simulation results, showcasing the critical role of various system parameters on the SEP performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper analyzes a fluid antenna (FA) system with a single-antenna transmitter and an N-port FA receiver under Rayleigh fading. The receiver selects the best K ports out of N and applies maximal-ratio combining (MRC) for detection. For four modulation schemes—two-sided M-ary ASK, M-ary PSK, M-ary QAM, and binary FSK—it derives the optimal receivers and presents novel exact closed-form symbol error probability (SEP) expressions together with high-SNR asymptotic approximations. The results are corroborated by Monte Carlo simulations that illustrate the effects of system parameters such as N, K, and SNR.

Significance. If the closed-form derivations hold, the work supplies exact analytical SEP expressions for FA systems employing best-K port selection and MRC, which are useful for rapid performance evaluation and parameter optimization across multiple modulation formats. Credit is due for the use of standard order-statistics techniques on the combined SNR to obtain the exact expressions, the provision of high-SNR asymptotics, and the simulation-based validation that confirms the analysis.

minor comments (3)
  1. The simulation figures should include error bars or confidence intervals on the Monte Carlo points to allow quantitative assessment of agreement with the analytical curves, as noted in the abstract's validation claim.
  2. Clarify in the system model whether the port selection is performed with perfect instantaneous CSI for all N ports; while the assumption is stated, a brief remark on its practical implications would improve readability.
  3. Ensure that the notation for the ordered SNRs and the MRC weights is introduced consistently before the SEP integral derivations.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary of our manuscript and for acknowledging the significance of the derived exact closed-form SEP expressions and high-SNR approximations for fluid antenna systems with best-K port MRC across the considered modulation schemes. The recommendation for minor revision is noted, and we will incorporate appropriate improvements in the revised version.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper derives exact closed-form SEP expressions and high-SNR asymptotics for FA systems with Rayleigh fading, best-K port selection, and MRC for standard modulation schemes. These follow conventional order-statistics techniques on the combined SNR and standard integral forms for SEP, with simulation corroboration. No self-definitional reductions, fitted inputs renamed as predictions, or load-bearing self-citations appear in the derivation structure; the central results are independent of the model inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The analysis rests on the standard Rayleigh fading model and perfect CSI for port selection; no new entities are postulated and no parameters are fitted beyond the usual system variables (N, K, M, SNR).

axioms (2)
  • domain assumption Channels between transmitter and each receiver port experience independent Rayleigh fading.
    Stated in the abstract as the channel model for all ports.
  • domain assumption The receiver has perfect instantaneous knowledge of all port channels to select the best K and perform MRC.
    Implicit in the optimal reception structures and best-K selection described.
