pith. sign in

arxiv: 2604.06953 · v1 · submitted 2026-04-08 · ⚛️ physics.optics

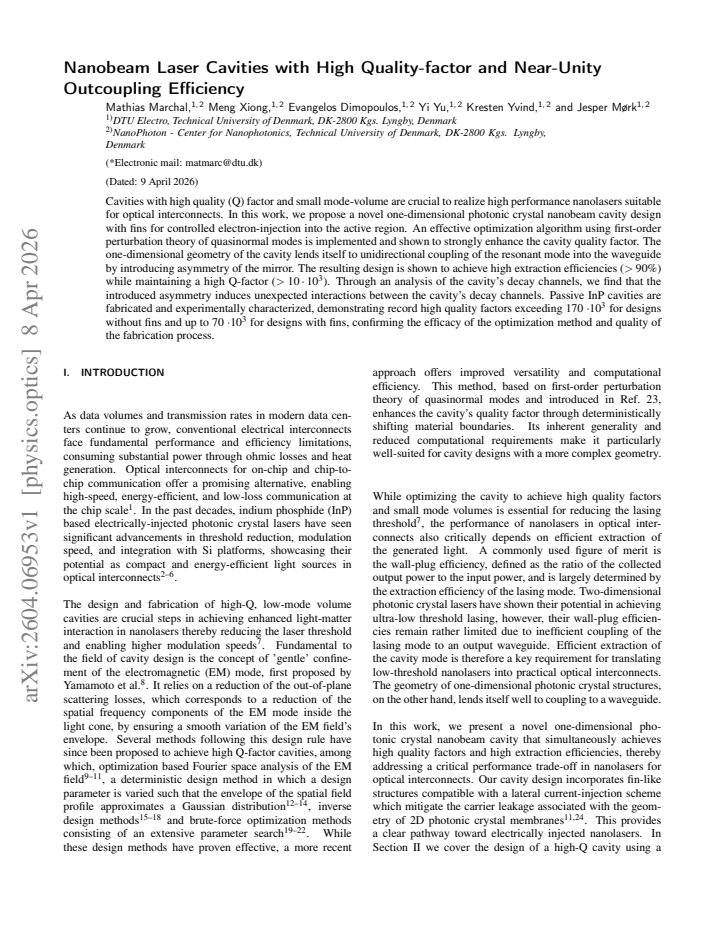

Nanobeam Laser Cavities with High Quality-factor and Near-Unity Outcoupling Efficiency

Mathias Marchal , Meng Xiong , Evangelos Dimopoulos , Yi Yu , Kresten Yvind , Jesper M{\o}rk This is my paper

Pith reviewed 2026-05-10 17:53 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords nanobeam cavityphotonic crystalquality factoroutcoupling efficiencyquasinormal modesperturbation theoryInP fabricationunidirectional coupling
0
0 comments X

The pith

Optimized asymmetric nanobeam cavities reach quality factors above 170,000 with over 90 percent unidirectional outcoupling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper designs one-dimensional photonic crystal nanobeam cavities that include fins to allow controlled electron injection into the active region. An optimization routine based on first-order perturbation theory of quasinormal modes is applied to increase the quality factor, while an asymmetric mirror layout directs the resonant mode into a single waveguide. Fabrication of passive indium-phosphide versions yields measured quality factors exceeding 170,000 without fins and 70,000 with fins, together with extraction efficiencies above 90 percent. A sympathetic reader would care because these numbers address the long-standing tension between high confinement and efficient light extraction in nanolasers intended for optical interconnects.

Core claim

A novel one-dimensional photonic crystal nanobeam cavity incorporating fins, optimized through first-order perturbation theory applied to quasinormal modes, and rendered asymmetric to produce unidirectional outcoupling, simultaneously attains quality factors greater than 10,000 and extraction efficiencies above 90 percent. Analysis of the cavity decay channels shows that the asymmetry creates previously unexpected interactions among those channels. Experimental realization in passive InP material confirms quality factors above 170,000 for finless designs and up to 70,000 for finned designs, thereby validating both the optimization procedure and the fabrication process.

What carries the argument

The first-order perturbation theory optimization of quasinormal modes, which systematically raises the cavity quality factor, together with the deliberate asymmetry in the mirror sections that converts the resonant mode into a unidirectional waveguide output exceeding 90 percent efficiency.

If this is right

  • High-quality-factor cavities with fins become practical for electron injection in nanolasers.
  • Unidirectional outcoupling above 90 percent is maintained while preserving quality factors above 10,000.
  • The same perturbation-theory optimizer can be reused on other one-dimensional photonic-crystal geometries.
  • Record quality factors in passive InP structures confirm both the design method and the fabrication quality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The design could be transferred to active InP or other III-V platforms to test whether the reported decay-channel interactions remain benign under electrical pumping.
  • Further rounds of the same optimization loop might push the quality factor even higher before fabrication limits are reached.
  • The fins-plus-asymmetry combination may simplify integration with on-chip waveguides in photonic integrated circuits.

Load-bearing premise

The first-order perturbation theory accurately predicts the quality-factor improvement and the introduced asymmetry produces unidirectional outcoupling above 90 percent without decay-channel interactions that degrade performance once the cavity is made active.

What would settle it

Fabrication and optical characterization of an active version of the optimized finned cavity that measures a quality factor well below 10,000 or an outcoupling efficiency below 90 percent would directly contradict the central claims.

Figures

Figures reproduced from arXiv: 2604.06953 by Evangelos Dimopoulos, Jesper M{\o}rk, Kresten Yvind, Mathias Marchal, Meng Xiong, Yi Yu.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Schematic of the butterfly-like nanobeam cavity design [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

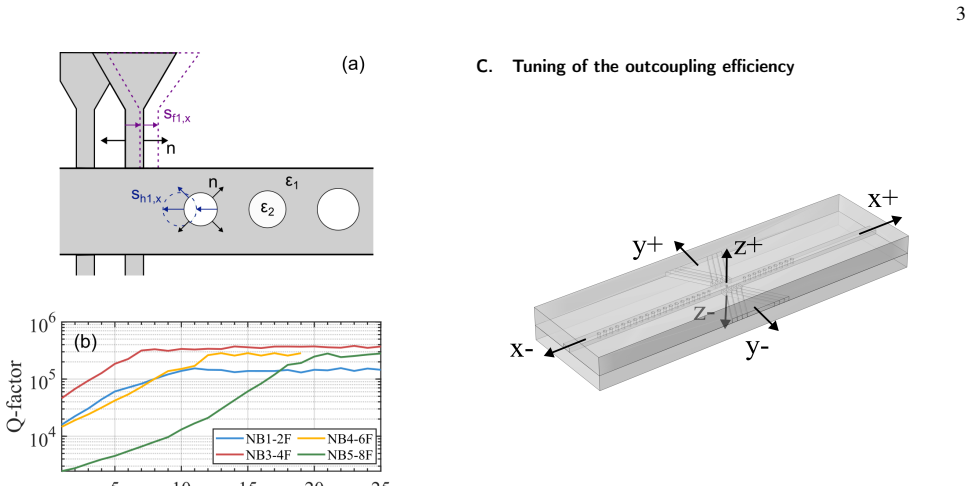

Figure 3. Figure 3: FIG. 3. Schematic of the cavity indicating the different decay chan [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 2

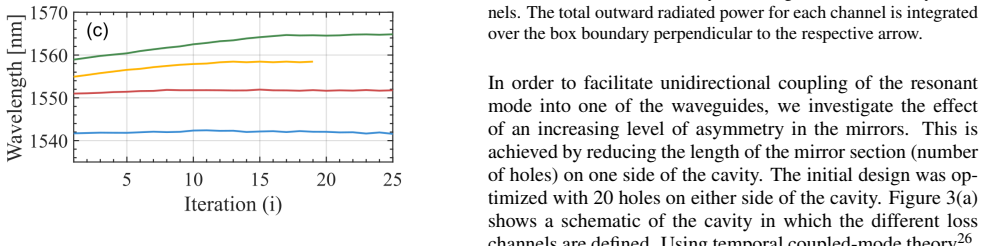

Figure 2. Figure 2: FIG. 2. a) Schematic of the central region of the cavity depicting [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

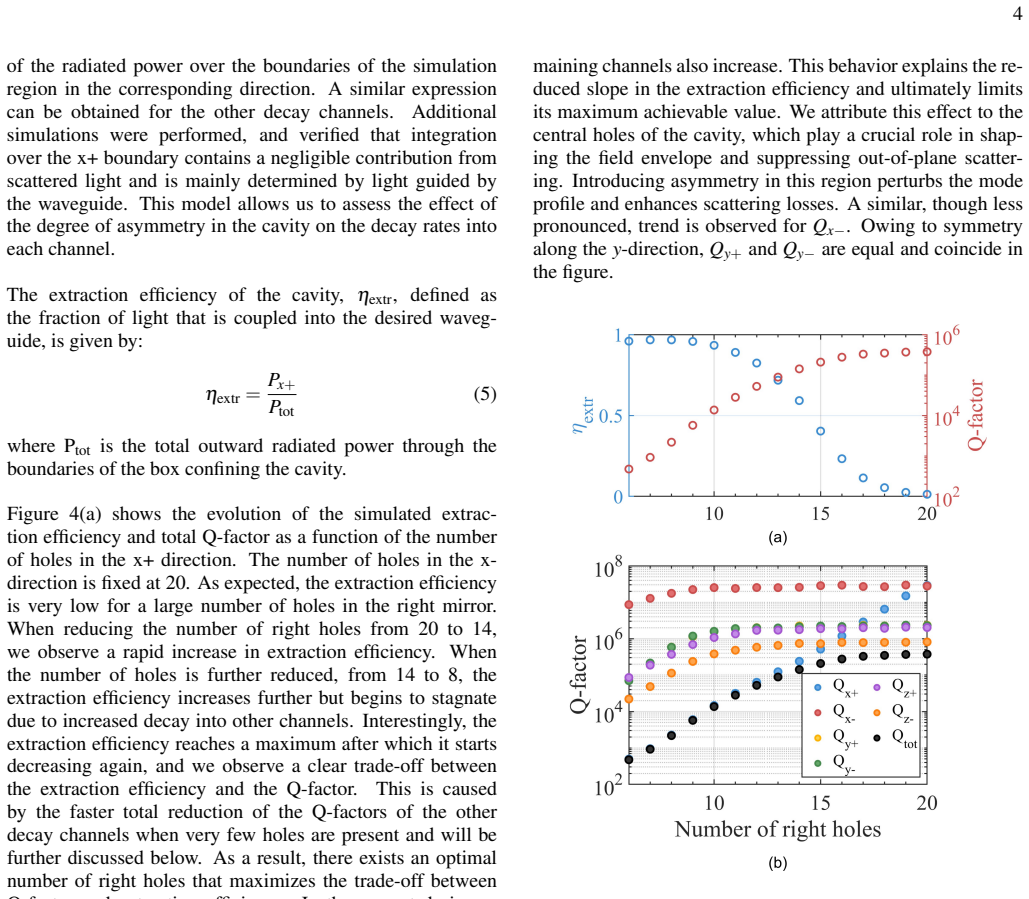

Figure 4. Figure 4: FIG. 4. a) The simulated extraction efficiency, [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

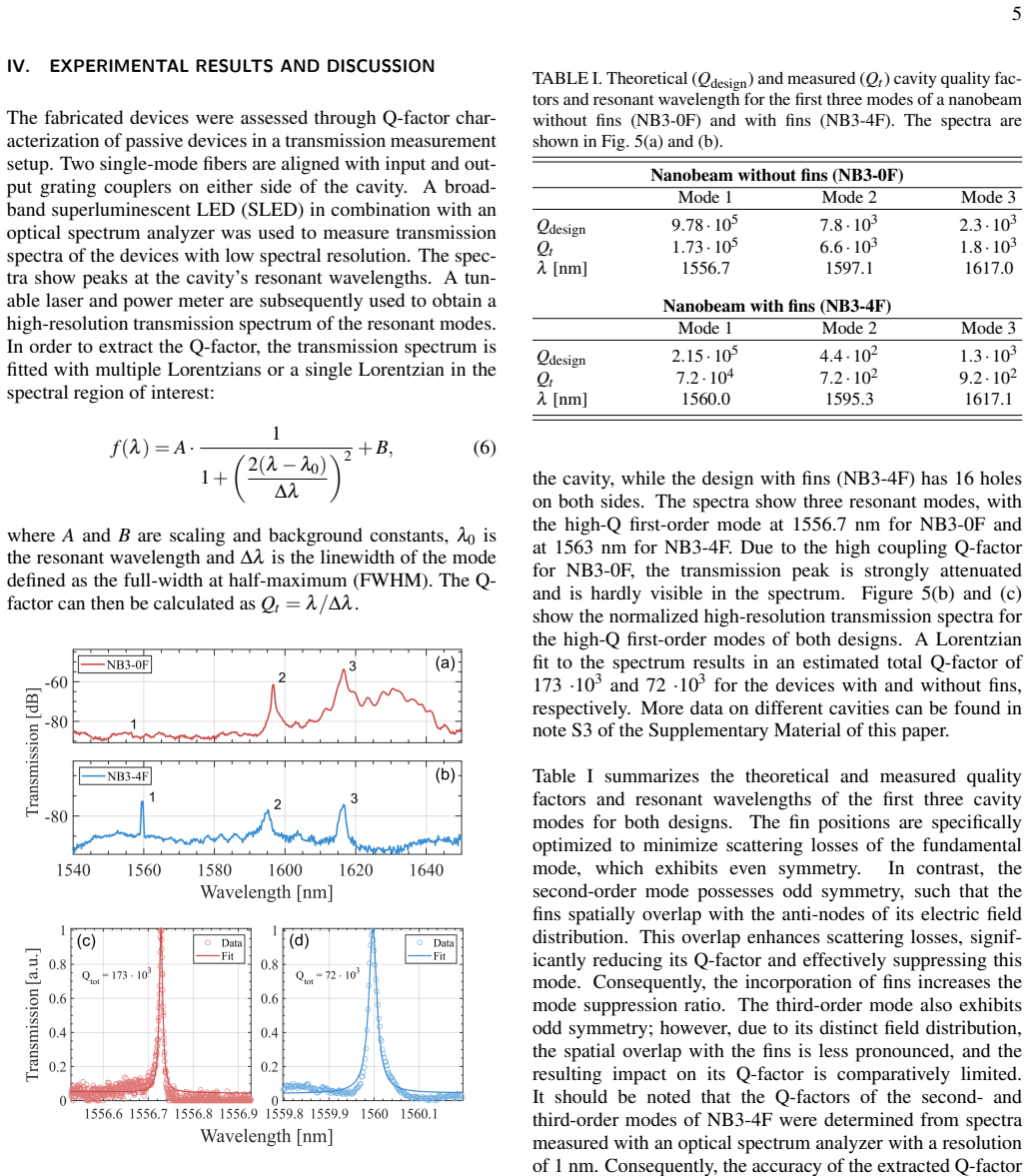

Figure 5. Figure 5: FIG. 5. Transmission spectrum for a symmetric NB3 cavity without [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

Cavities with high quality (Q) factor and small mode-volume are crucial to realize high performance nanolasers suitable for optical interconnects. In this work, we propose a novel one-dimensional photonic crystal nanobeam cavity design with fins for controlled electron-injection into the active region. An effective optimization algorithm using first-order perturbation theory of quasinormal modes is implemented and shown to strongly enhance the cavity quality factor. The one-dimensional geometry of the cavity lends itself to unidirectional coupling of the resonant mode into the waveguide by introducing asymmetry of the mirror. The resulting design is shown to achieve high extraction efficiencies ($ >90\% $) while maintaining a high Q-factor ($ > 10 \cdot 10^3$). Through an analysis of the cavity's decay channels, we find that the introduced asymmetry induces unexpected interactions between the cavity's decay channels. Passive InP cavities are fabricated and experimentally characterized, demonstrating record high quality factors exceeding $170 \cdot 10^3$ for designs without fins and up to $70 \cdot 10^3$ for designs with fins, confirming the efficacy of the optimization method and quality of the fabrication process.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes a 1D photonic crystal nanobeam cavity incorporating fins for carrier injection, optimized via first-order perturbation theory on quasinormal modes to achieve high Q, with mirror asymmetry introduced for unidirectional outcoupling exceeding 90% efficiency while keeping Q > 10k. Passive InP devices are fabricated and measured, reporting record Q values of >170k (no fins) and up to 70k (with fins).

Significance. The experimental demonstration of exceptionally high passive Q-factors validates the optimization approach and fabrication quality, representing a concrete advance for compact high-Q nanophotonic resonators. If the simulated outcoupling performance holds under experimental conditions, the design could enable efficient nanolasers for interconnects by combining high Q, small mode volume, and directional extraction in a single geometry.

major comments (3)
  1. [Outcoupling and decay-channel analysis] The central claim of near-unity (>90%) outcoupling efficiency via asymmetry is supported solely by numerical simulations of decay channels; no experimental measurements of extraction efficiency, waveguide coupling, directional power, or far-field patterns are reported for the fabricated devices (see abstract and outcoupling analysis sections).
  2. [Experimental results] All experimental results are limited to passive Q-factor characterization; the manuscript provides no data on active-device performance, carrier injection through the fins, or lasing behavior, leaving the laser-cavity application claims unvalidated (see experimental characterization section).
  3. [Optimization algorithm] The first-order perturbation optimization is stated to strongly enhance Q, yet the manuscript lacks explicit validation metrics such as direct comparison to unoptimized or full-wave FDTD results, sensitivity analysis to fabrication variations, or error bars on the reported Q values (see optimization method section).
minor comments (2)
  1. [Abstract] The abstract mentions 'unexpected interactions' between decay channels but provides no quantitative measure of their impact on Q or outcoupling; a brief numerical table or plot would improve clarity.
  2. [Figures] Figure captions and axis labels should explicitly distinguish simulated versus measured quantities to avoid reader confusion.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript. We address each major comment point by point below, providing clarifications on the scope of the work and indicating revisions made to the manuscript.

read point-by-point responses

  1. Referee: [Outcoupling and decay-channel analysis] The central claim of near-unity (>90%) outcoupling efficiency via asymmetry is supported solely by numerical simulations of decay channels; no experimental measurements of extraction efficiency, waveguide coupling, directional power, or far-field patterns are reported for the fabricated devices (see abstract and outcoupling analysis sections).

    Authors: We agree that direct experimental measurements of outcoupling efficiency would further strengthen the claims. The fabricated devices are passive InP structures, precluding measurements of lasing extraction or directional power in this study. The >90% efficiency is derived from comprehensive simulations of all decay channels, which also reveal the unexpected interactions induced by asymmetry. We have revised the outcoupling analysis section to include additional details on the simulation methodology and a discussion of experimental challenges for passive verification, while emphasizing that the passive Q results validate the underlying cavity design. revision: partial

  2. Referee: [Experimental results] All experimental results are limited to passive Q-factor characterization; the manuscript provides no data on active-device performance, carrier injection through the fins, or lasing behavior, leaving the laser-cavity application claims unvalidated (see experimental characterization section).

    Authors: The experimental results are intentionally limited to passive characterization to demonstrate the optimization efficacy and fabrication quality through record Q-factors. The manuscript does not claim experimental demonstration of lasing or carrier injection; these are proposed based on the design simulations, including fin-enabled injection and the high-Q unidirectional outcoupling. We have revised the introduction, abstract, and conclusions to more precisely state the demonstrated passive performance versus the simulated active-device potential, avoiding any overstatement of experimental validation for lasing. revision: partial

  3. Referee: [Optimization algorithm] The first-order perturbation optimization is stated to strongly enhance Q, yet the manuscript lacks explicit validation metrics such as direct comparison to unoptimized or full-wave FDTD results, sensitivity analysis to fabrication variations, or error bars on the reported Q values (see optimization method section).

    Authors: The optimization is validated by the achieved experimental Q values (up to 170k without fins), which substantially exceed literature values for similar unoptimized InP nanobeams. We have added explicit comparisons to unoptimized reference designs, a sensitivity analysis to fabrication tolerances (e.g., hole radius and position variations), and error bars on measured Q-factors (from Lorentzian fitting and device-to-device statistics) in the revised optimization and experimental sections. revision: yes

Circularity Check

0 steps flagged

No circularity; experimental Q-factor results are independent of the numerical optimization.

full rationale

The paper's load-bearing claims rest on fabrication and optical characterization of passive InP nanobeam cavities, reporting measured Q > 170k (no fins) and >70k (with fins). The first-order perturbation theory optimization of quasinormal modes is a standard numerical technique applied to design the geometry; it does not define the experimental outcomes or reduce to them by construction. No equations are shown that equate a fitted parameter to a 'prediction,' no self-citation chain justifies the central result, and the asymmetry-induced outcoupling (>90%) is presented only as a simulation result separate from the fabricated-device data. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work relies on standard photonic crystal theory and quasinormal mode perturbation methods from prior literature; no new entities are postulated. Free parameters are the geometric dimensions adjusted during optimization.

free parameters (1)
  • nanobeam hole positions and fin dimensions
    These are varied in the optimization algorithm to maximize Q and outcoupling.
axioms (1)
  • domain assumption First-order perturbation theory accurately predicts changes in quasinormal modes for small geometry adjustments
    Invoked to implement the effective optimization algorithm.

pith-pipeline@v0.9.0 · 5522 in / 1227 out tokens · 26025 ms · 2026-05-10T17:53:23.766829+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

26 extracted references · 26 canonical work pages

  1. [1]

    author author D. Miller ,\ title title Device requirements for optical interconnects to silicon chips , \ 10.1109/jproc.2009.2014298 journal journal Proceedings of the IEEE \ volume 97 ,\ pages 1166–1185 ( year 2009 ) NoStop

    work page doi:10.1109/jproc.2009.2014298 2009

  2. [2]

    Matsuo , author T

    author author S. Matsuo , author T. Sato , author K. Takeda , author A. Shinya , author K. Nozaki , author H. Taniyama , author M. Notomi , author K. Hasebe , \ and\ author T. Kakitsuka ,\ title title Ultralow operating energy electrically driven photonic crystal lasers , \ 10.1109/JSTQE.2013.2249048 journal journal IEEE Journal on Selected Topics in Quan...

    work page doi:10.1109/jstqe.2013.2249048 2013

  3. [3]

    Crosnier , author D

    author author G. Crosnier , author D. Sanchez , author S. Bouchoule , author P. Monnier , author G. Beaudoin , author I. Sagnes , author R. Raj , \ and\ author F. Raineri ,\ title title Hybrid indium phosphide-on-silicon nanolaser diode , \ 10.1038/nphoton.2017.56 journal journal Nature Photonics \ volume 11 ,\ pages 297--300 ( year 2017 ) NoStop

    work page doi:10.1038/nphoton.2017.56 2017

  4. [4]

    doi:10.1364/AOP.10.000567

    author author S. Matsuo \ and\ author T. Kakitsuka ,\ title title Low-operating-energy directly modulated lasers for short-distance optical interconnects , \ 10.1364/AOP.10.000567 journal journal Adv. Opt. Photon. \ volume 10 ,\ pages 567--643 ( year 2018 ) NoStop

    work page doi:10.1364/aop.10.000567 2018

  5. [5]

    Takeda , author T

    author author K. Takeda , author T. Tsurugaya , author T. Fujii , author A. Shinya , author Y. Maeda , author T. Tsuchizawa , author H. Nishi , author M. Notomi , author T. Kakitsuka , \ and\ author S. Matsuo ,\ title title Optical links on silicon photonic chips using ultralow-power consumption photonic-crystal lasers , \ 10.1364/oe.427843 journal journa...

    work page doi:10.1364/oe.427843 2021

  6. [6]

    Dimopoulos , author M

    author author E. Dimopoulos , author M. Xiong , author A. Sakanas , author A. Marchevsky , author G. Dong , author Y. Yu , author E. Semenova , author J. Mørk , \ and\ author K. Yvind ,\ title title Experimental demonstration of a nanolaser with a sub-µa threshold current , \ 10.1364/optica.488604 journal journal Optica \ volume 10 ,\ pages 973 ( year 202...

    work page doi:10.1364/optica.488604 2023

  7. [7]

    Mørk , author M

    author author J. Mørk , author M. Xiong , author K. Seegert , author M. Marchal , author G. Dong , author E. Dimopoulos , author E. Semenova , author K. Yvind , \ and\ author Y. Yu ,\ title title Nanostructured semiconductor lasers , \ 10.1109/JSTQE.2024.3483900 journal journal IEEE Journal of Selected Topics in Quantum Electronics \ volume 31 ,\ pages 1-...

    work page doi:10.1109/jstqe.2024.3483900 2024

  8. [8]

    Demonstration of conditional gate operation using superconducting charge qubits,

    author author T. Yamamoto , author Y. A. \ Pashkin , author O. Astaflev , author Y. Nakamura , \ and\ author J. S. \ Tsai ,\ title title High-q photonic nanocavity in a two-dimensional photonic crystal , \ 10.1038/nature02015 journal journal Nature \ volume 425 ,\ pages 941--944 ( year 2003 ) NoStop

    work page doi:10.1038/nature02015 2003

  9. [9]

    Srinivasan \ and\ author O

    author author K. Srinivasan \ and\ author O. Painter ,\ title title Momentum space design of high-q photonic crystal optical cavities , \ 10.1364/OE.10.000670 journal journal Opt. Express \ volume 10 ,\ pages 670--684 ( year 2002 ) NoStop

    work page doi:10.1364/oe.10.000670 2002

  10. [10]

    Akahane , author T

    author author Y. Akahane , author T. Asano , author B.-S. \ Song , \ and\ author S. Noda ,\ 10.1364/OA_License_v1#VOR title Fine-tuned high-q photonic-crystal nanocavity , \ type Tech. Rep. \ ( year 2005 ) NoStop

    work page doi:10.1364/oa_license_v1 2005

  11. [11]

    Dimopoulos , author A

    author author E. Dimopoulos , author A. Sakanas , author A. Marchevsky , author M. Xiong , author Y. Yu , author E. Semenova , author J. Mørk , \ and\ author K. Yvind ,\ title title Electrically-driven photonic crystal lasers with ultra-low threshold , \ 10.1002/lpor.202200109 journal journal Laser and Photonics Reviews \ volume 16 ( year 2022 ),\ 10.1002...

    work page doi:10.1002/lpor.202200109 2022

  12. [12]

    Quan \ and\ author M

    author author Q. Quan \ and\ author M. Loncar ,\ title title Deterministic design of wavelength scale, ultra-high q photonic crystal nanobeam cavities , \ 10.1364/OE.19.018529 journal journal Opt. Express \ volume 19 ,\ pages 18529--18542 ( year 2011 ) NoStop

    work page doi:10.1364/oe.19.018529 2011

  13. [13]

    Desiatov , author I

    author author B. Desiatov , author I. Goykhman , \ and\ author U. Levy ,\ title title Parabolic tapered photonic crystal cavity in silicon , \ 10.1063/1.3679659 journal journal Applied Physics Letters \ volume 100 ( year 2012 ),\ 10.1063/1.3679659 NoStop

    work page doi:10.1063/1.3679659 2012

  14. [14]

    Bazin , author R

    author author A. Bazin , author R. Raj , \ and\ author F. Raineri ,\ title title Design of silica encapsulated high-q photonic crystal nanobeam cavity , \ 10.1109/JLT.2013.2295267 journal journal Journal of Lightwave Technology \ volume 32 ,\ pages 952--958 ( year 2014 ) NoStop

    work page doi:10.1109/jlt.2013.2295267 2013

  15. [15]

    author author J. M. \ Geremia , author J. Williams , \ and\ author H. Mabuchi ,\ title title Inverse-problem approach to designing photonic crystals for cavity qed experiments , \ 10.1103/PhysRevE.66.066606 journal journal Phys. Rev. E \ volume 66 ,\ pages 066606 ( year 2002 ) NoStop

    work page doi:10.1103/physreve.66.066606 2002

  16. [16]

    Englund , author I

    author author D. Englund , author I. Fushman , \ and\ author J. Vuckovic ,\ title title General recipe for designing photonic crystal cavities , \ 10.1364/OPEX.13.005961 journal journal Opt. Express \ volume 13 ,\ pages 5961--5975 ( year 2005 ) NoStop

    work page doi:10.1364/opex.13.005961 2005

  17. [17]

    Minkov , author I

    author author M. Minkov , author I. A. D. \ Williamson , author L. C. \ Andreani , author D. Gerace , author B. Lou , author A. Y. \ Song , author T. W. \ Hughes , \ and\ author S. Fan ,\ title title Inverse design of photonic crystals through automatic differentiation , \ 10.1021/acsphotonics.0c00327 journal journal ACS Photonics \ volume 7 ,\ pages 1729...

    work page doi:10.1021/acsphotonics.0c00327 2020

  18. [18]

    author author R. E. \ Christiansen \ and\ author O. Sigmund ,\ title title Inverse design in photonics by topology optimization: tutorial , \ @noop journal journal Journal of the Optical Society of America B \ volume 38 ,\ pages 496--509 ( year 2021 ) NoStop

    work page 2021

  19. [19]

    author author B. S. \ Song , author S. Noda , author T. Asano , \ and\ author Y. Akahane ,\ title title Ultra-high-q photonic double-heterostructure nanocavity , \ 10.1038/nmat1320 journal journal Nature Materials \ volume 4 ,\ pages 207--210 ( year 2005 ) NoStop

    work page doi:10.1038/nmat1320 2005

  20. [20]

    Velha , author E

    author author P. Velha , author E. Picard , author T. Charvolin , author E. Hadji , author J. C. \ Rodier , author P. Lalanne , \ and\ author D. Peyrade ,\ title title Ultra-high q/v fabry-perot microcavity on soi substrate , \ 10.1364/OE.15.016090 journal journal Opt. Express \ volume 15 ,\ pages 16090--16096 ( year 2007 ) NoStop

    work page doi:10.1364/oe.15.016090 2007

  21. [21]

    Rifqi , author M

    author author A. Rifqi , author M. Zain , author N. P. \ Johnson , author M. Sorel , author R. M. \ De , \ and\ author L. Rue ,\ @noop title Ultra high quality factor one dimensional photonic crystal/photonic wire micro-cavities in silicon-on-insulator (soi) , \ type Tech. Rep. \ ( year 2008 ) NoStop

    work page 2008

  22. [22]

    author author P. B. \ Deotare , author M. W. \ McCutcheon , author I. W. \ Frank , author M. Khan , \ and\ author M. Lončar ,\ title title High quality factor photonic crystal nanobeam cavities , \ 10.1063/1.3107263 journal journal Applied Physics Letters \ volume 94 ( year 2009 ),\ 10.1063/1.3107263 NoStop

    work page doi:10.1063/1.3107263 2009

  23. [23]

    Granchi , author F

    author author N. Granchi , author F. Intonti , author M. Florescu , author P. D. \ García , author M. Gurioli , \ and\ author G. Arregui ,\ title title Q-factor optimization of modes in ordered and disordered photonic systems using non-hermitian perturbation theory , \ 10.1021/acsphotonics.3c00510 journal journal ACS Photonics \ volume 10 ,\ pages 2808--2...

    work page doi:10.1021/acsphotonics.3c00510 2023

  24. [24]

    Marchal , author E

    author author M. Marchal , author E. Dimopoulos , author K. Spiegelhauer , author N. Chatzaras , author M. Saldutti , author K. Yvind , author Y. Yu , \ and\ author J. Mørk ,\ title title Carrier transport in electrically-driven photonic crystal membrane lasers , \ https://doi.org/10.1002/lpor.202501579 journal journal Laser & Photonics Reviews \ volume n...

    work page doi:10.1002/lpor.202501579

  25. [25]

    author author P. T. \ Kristensen , author K. Herrmann , author F. Intravaia , \ and\ author K. Busch ,\ title title Modeling electromagnetic resonators using quasinormal modes , \ 10.1364/aop.377940 journal journal Advances in Optics and Photonics \ volume 12 ,\ pages 612 ( year 2020 ) NoStop

    work page doi:10.1364/aop.377940 2020

  26. [26]

    author author J. D. \ Joannopoulos , author S. G. \ Johnson , author J. N. \ Winn , \ and\ author R. D. \ Meade ,\ http://ab-initio.mit.edu/book/ title Photonic Crystals: Molding the Flow of Light ,\ edition 2nd \ ed.\ ( publisher Princeton University Press ,\ address Princeton, NJ ,\ year 2008 ) NoStop

    work page 2008
