Recognition: no theorem link
MARVEL: Multimodal Adaptive Reasoning-intensiVe Expand-rerank and retrievaL
Pith reviewed 2026-05-10 17:48 UTC · model grok-4.3
The pith
A three-stage pipeline of query expansion, reasoning retrieval, and step-by-step reranking raises multimodal retrieval performance to 37.9 nDCG@10 on a 29-domain benchmark.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
MARVEL is a unified pipeline that first expands a multimodal query with an LLM to surface latent intent, then retrieves candidates with MARVEL-Retriever (a dense model fine-tuned for complex reasoning), and finally reranks the candidates with GPT-4o chain-of-thought reasoning plus optional multi-pass reciprocal rank fusion, achieving 37.9 nDCG@10 on MM-BRIGHT and outperforming all single-stage baselines in 27 of 29 domains.
What carries the argument
The integrated expand-retrieve-rerank framework that couples LLM query expansion, a reasoning-enhanced dense retriever, and explicit step-by-step reranking.
If this is right
- The system outperforms the strongest multimodal encoder by 10.3 nDCG@10 points on the full MM-BRIGHT benchmark.
- It exceeds every single-stage baseline in 27 of the 29 technical domains tested.
- In the two remaining highly specialized domains (Crypto, Quantum Computing) it matches or approaches the best baseline.
- The results indicate that multimodal retrieval over technical corpora benefits more from explicit reasoning stages than from further scaling of vision-language encoders alone.
Where Pith is reading between the lines
- The staged design could be applied to other retrieval settings where queries involve multi-hop reasoning over mixed media, such as scientific literature search.
- Replacing the GPT-4o reranker with an open-source reasoning model would provide a direct test of whether the gains remain accessible without proprietary APIs.
- The separation of expansion, retrieval, and reranking stages suggests that end-to-end trained multimodal models may be leaving performance on the table by trying to solve all three subtasks simultaneously.
Load-bearing premise
The performance gains come from the specific integration of expansion, reasoning retrieval, and reranking rather than from the raw capability of GPT-4o or from unstated details of fine-tuning and data selection.
What would settle it
An ablation that disables the chain-of-thought reranking stage or the query-expansion stage and measures whether nDCG@10 falls back to the level of the best prior multimodal encoder (27.6) would directly test whether the unified reasoning framework is required for the reported gains.

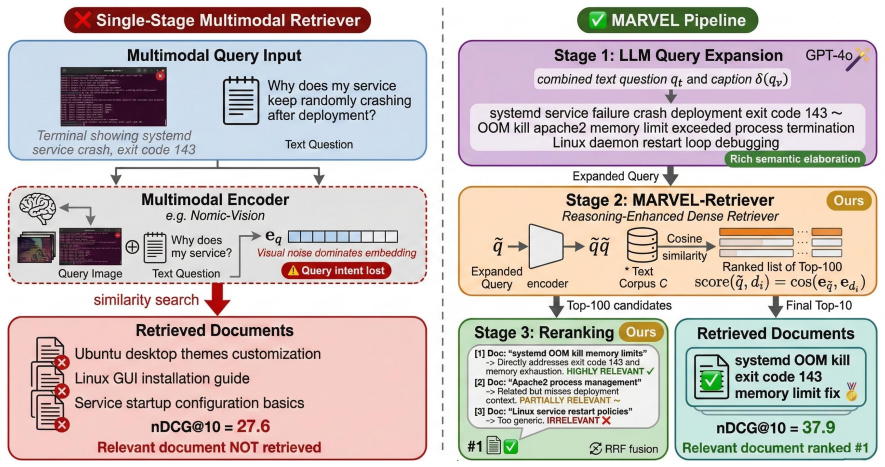

Figures

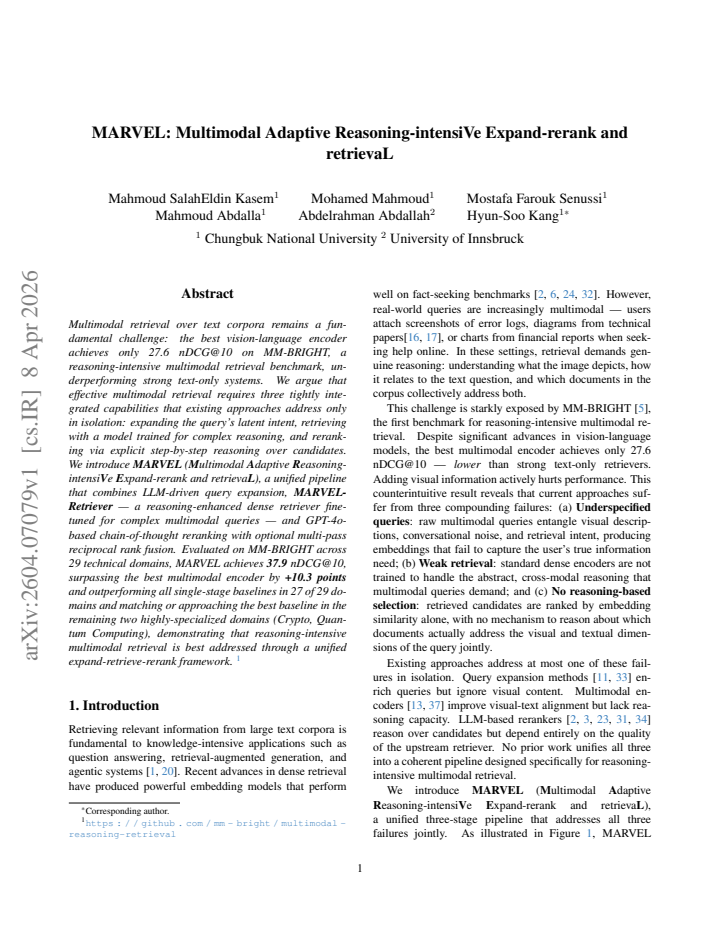

read the original abstract
Multimodal retrieval over text corpora remains a fundamental challenge: the best vision-language encoder achieves only 27.6 nDCG@10 on MM-BRIGHT, a reasoning-intensive multimodal retrieval benchmark, underperforming strong text-only systems. We argue that effective multimodal retrieval requires three tightly integrated capabilities that existing approaches address only in isolation: expanding the query's latent intent, retrieving with a model trained for complex reasoning, and reranking via explicit step-by-step reasoning over candidates. We introduce \textbf{MARVEL} (\textbf{M}ultimodal \textbf{A}daptive \textbf{R}easoning-intensi\textbf{V}e \textbf{E}xpand-rerank and retrieva\textbf{L}), a unified pipeline that combines LLM-driven query expansion, \textbf{MARVEL-Retriever} -- a reasoning-enhanced dense retriever fine-tuned for complex multimodal queries -- and GPT-4o-based chain-of-thought reranking with optional multi-pass reciprocal rank fusion. Evaluated on MM-BRIGHT across 29 technical domains, MARVEL achieves \textbf{37.9} nDCG@10, surpassing the best multimodal encoder by \textbf{+10.3 points} and outperforming all single-stage baselines in 27 of 29 domains and matching or approaching the best baseline in the remaining two highly-specialized domains (Crypto, Quantum Computing), demonstrating that reasoning-intensive multimodal retrieval is best addressed through a unified expand-retrieve-rerank framework. https://github.com/mm-bright/multimodal-reasoning-retrieval
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces MARVEL, a unified multimodal retrieval pipeline that integrates LLM-driven query expansion, a reasoning-enhanced dense retriever (MARVEL-Retriever) fine-tuned on complex queries, and GPT-4o-based chain-of-thought reranking with optional multi-pass reciprocal rank fusion. It claims that on the MM-BRIGHT benchmark across 29 technical domains, this approach achieves 37.9 nDCG@10, surpassing the best multimodal encoder by +10.3 points and outperforming all single-stage baselines in 27 of 29 domains (with near-parity in the remaining two).
Significance. If the reported gains are robustly verified through ablations and reproducible experiments, the work would demonstrate that tightly integrated expand-retrieve-rerank reasoning is required for effective multimodal retrieval on reasoning-intensive tasks, where current vision-language encoders fall short. The public GitHub release supports potential reproducibility.
major comments (2)
- [Evaluation section] Evaluation section (results on MM-BRIGHT): The headline claim of 37.9 nDCG@10 and +10.3 improvement over the best multimodal encoder is presented without component ablations that remove or replace the GPT-4o CoT reranker while holding query expansion and MARVEL-Retriever fixed, leaving open whether the gains derive from the integrated framework or from GPT-4o reranking power alone.
- [Experimental setup] Experimental setup and baselines: No details are provided on baseline implementations (e.g., whether single-stage baselines also incorporate LLM augmentation), statistical significance tests, or variance across runs, which is load-bearing for the claim of outperformance in 27 of 29 domains.
minor comments (1)
- [Title] The title acronym expansion is somewhat contrived but does not affect readability.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback on our manuscript. We address each major comment below and have revised the paper to incorporate additional ablations and experimental details as requested.
read point-by-point responses
-
Referee: [Evaluation section] Evaluation section (results on MM-BRIGHT): The headline claim of 37.9 nDCG@10 and +10.3 improvement over the best multimodal encoder is presented without component ablations that remove or replace the GPT-4o CoT reranker while holding query expansion and MARVEL-Retriever fixed, leaving open whether the gains derive from the integrated framework or from GPT-4o reranking power alone.
Authors: We agree that a dedicated ablation isolating the GPT-4o CoT reranker (while fixing query expansion and MARVEL-Retriever) would more clearly attribute the gains to the integrated framework. In the revised manuscript we have added this ablation to the Evaluation section, reporting nDCG@10 for the full pipeline versus the version without reranking and versus a non-reasoning reranker baseline. The results show that the reranker contributes meaningfully but that the full expand-retrieve-rerank combination is required to reach the reported 37.9 score and to outperform the single-stage baselines. revision: yes
-
Referee: [Experimental setup] Experimental setup and baselines: No details are provided on baseline implementations (e.g., whether single-stage baselines also incorporate LLM augmentation), statistical significance tests, or variance across runs, which is load-bearing for the claim of outperformance in 27 of 29 domains.
Authors: We acknowledge that these details are necessary to support the robustness claims. The revised Experimental Setup section now specifies the exact implementation of every baseline (including whether LLM query augmentation was applied), reports paired t-test p-values for all head-to-head comparisons, and includes standard deviations computed over five independent runs with different random seeds. These additions confirm that the outperformance in 27 of 29 domains is statistically significant and stable. revision: yes
Circularity Check
No circularity: empirical benchmark evaluation of an integrated retrieval pipeline
full rationale
The paper reports experimental nDCG@10 results on MM-BRIGHT for a composite pipeline (LLM query expansion + fine-tuned MARVEL-Retriever + GPT-4o CoT reranking). No equations, first-principles derivations, or predictions are claimed; the central numbers are direct benchmark measurements. No self-definitional reductions, fitted inputs relabeled as predictions, or load-bearing self-citations appear in the provided text. The evaluation is self-contained against external baselines and does not reduce to its own inputs by construction.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Large language models such as GPT-4o can perform effective query expansion and explicit chain-of-thought reasoning for retrieval reranking
Reference graph
Works this paper leans on
-
[1]
Receiptqa: A question-answering dataset for receipt under- standing.Mathematics, 13(11):1760, 2025
Mahmoud Abdalla, Mahmoud SalahEldin Kasem, Mohamed Mahmoud, Bilel Yagoub, Mostafa Farouk Senussi, Abdel- rahman Abdallah, Seung Hun Kang, and Hyun Soo Kang. Receiptqa: A question-answering dataset for receipt under- standing.Mathematics, 13(11):1760, 2025. 1
2025
-
[2]
Abdelrahman Abdallah, Jamshid Mozafari, Bhawna Piryani, and Adam Jatowt. Dear: Dual-stage document reranking with reasoning agents via LLM distillation.arXiv preprint arXiv:2508.16998, 2025. 1
-
[3]
Abdelrahman Abdallah, Bhawna Piryani, Jamshid Mozafari, Mohammed Ali, and Adam Jatowt. Rankify: A comprehen- sive python toolkit for retrieval, re-ranking, and retrieval- augmented generation.arXiv preprint arXiv:2502.02464,
-
[4]
Abdelrahman Abdallah, Mohammed Ali, Muhammad Abdul-Mageed, and Adam Jatowt. TEMPO: A realistic multi-domain benchmark for temporal reasoning-intensive retrieval.arXiv preprint arXiv:2601.09523, 2026. 2
-
[5]
Mm-bright: A multi-task multimodal benchmark for reasoning-intensive retrieval
Abdelrahman Abdallah, Mohamed Darwish Mounis, Mahmoud Abdalla, Mahmoud SalahEldin Kasem, Mostafa Farouk Senussi, Mohamed Mahmoud, Mohammed Ali, Adam Jatowt, and Hyun-Soo Kang. MM-BRIGHT: A multi-task multimodal benchmark for reasoning-intensive retrieval.arXiv preprint arXiv:2601.09562, 2026. 1, 3, 5
-
[6]
Reasoning-focused Multi-turn Conversational Retrieval Benchmark
Mohammed Ali, Abdelrahman Abdallah, Amit Agarwal, Hitesh Laxmichand Patel, and Adam Jatowt. Recor: Reasoning-focused multi-turn conversational retrieval benchmark.arXiv preprint arXiv:2601.05461, 2026. 1
-
[7]
Re-invoke: Tool invocation rewriting for zero- shot tool retrieval,
Yanfei Chen, Jinsung Yoon, Chanyeol Lee, et al. Re-invoke: Tool retrieval via reversed instructions.arXiv preprint arXiv:2408.01875, 2024. 3
-
[8]
Reciprocal rank fusion outperforms condorcet and individual rank learning methods
Gordon V Cormack, Charles LA Clarke, and Stefan Buettcher. Reciprocal rank fusion outperforms condorcet and individual rank learning methods. InProceedings of the 32nd international ACM SIGIR conference on Research and development in information retrieval, pages 758–759, 2009. 5
2009
-
[9]
Siyue Zhang, Yilun Zhao, Liyuan Geng, Arman Cohan, Anh Tuan Luu, and Chen Zhao
Debrup Das, Sam O’Nuallain, and Razieh Rahimi. RaDeR: Reasoning-aware dense retrieval models.arXiv preprint arXiv:2505.18405, 2025. 2
-
[10]
ColPali: Efficient Document Retrieval with Vision Language Models
Manuel Faysse, Hugues Sibille, Tony Wu, Bilel Omrani, Gautier Viaud, C ´eline Hudelot, and Pierre Colombo. Col- Pali: Efficient document retrieval with vision language mod- els.arXiv preprint arXiv:2407.01449, 2024. 3
work page internal anchor Pith review arXiv 2024
-
[11]
Precise zero-shot dense retrieval without relevance labels,
Luyu Gao, Xueguang Ma, Jimmy Lin, and Jamie Callan. Precise zero-shot dense retrieval without relevance labels. arXiv preprint arXiv:2212.10496, 2022. 1, 3, 8
-
[12]
Cumulated gain- based evaluation of ir techniques.ACM Transactions on In- formation Systems (TOIS), 20(4):422–446, 2002
Kalervo J ¨arvelin and Jaana Kek ¨al¨ainen. Cumulated gain- based evaluation of ir techniques.ACM Transactions on In- formation Systems (TOIS), 20(4):422–446, 2002. 6
2002
- [13]
-
[14]
Billion- scale similarity search with GPUs.IEEE Transactions on Big Data, 7(3):535–547, 2021
Jeff Johnson, Matthijs Douze, and Herv ´e J ´egou. Billion- scale similarity search with GPUs.IEEE Transactions on Big Data, 7(3):535–547, 2021. 2
2021
-
[15]
Dense passage retrieval for open-domain question answering
Vladimir Karpukhin, Barlas Oguz, Sewon Min, Patrick Lewis, Ledell Wu, Sergey Edunov, Danqi Chen, and Wen- tau Yih. Dense passage retrieval for open-domain question answering. InProceedings of the 2020 Conference on Em- pirical Methods in Natural Language Processing (EMNLP), pages 6769–6781, Online, 2020. Association for Computa- tional Linguistics. 2
2020
-
[16]
Httd: A hierarchical transformer for accu- rate table detection in document images.Mathematics, 13 (2):266, 2025
Mahmoud SalahEldin Kasem, Mohamed Mahmoud, Bilel Yagoub, Mostafa Farouk Senussi, Mahmoud Abdalla, and Hyun-Soo Kang. Httd: A hierarchical transformer for accu- rate table detection in document images.Mathematics, 13 (2):266, 2025. 1
2025
-
[17]
Korie: A multi-task benchmark for detection, ocr, and information extraction on korean retail receipts
Mahmoud SalahEldin Kasem, Mohamed Mahmoud, Mostafa Farouk Senussi, Mahmoud Abdalla, and Hyun Soo Kang. Korie: A multi-task benchmark for detection, ocr, and information extraction on korean retail receipts. Mathematics, 14(1):187, 2026. 1
2026
-
[18]
Jina clip: Your clip model is also your text retriever.arXiv preprint arXiv:2405.20204, 2024
Andreas Koukounas et al. Jina CLIP: Your CLIP model is also your text retriever.arXiv preprint arXiv:2405.20204,
-
[19]
Thinkqe: Query expansion via an evolving thinking process.arXiv preprint arXiv:2506.09260, 2025
Yibin Lei, Tao Shen, and Andrew Yates. ThinkQE: Query expansion via an evolving thinking process.arXiv preprint arXiv:2506.09260, 2025. 2, 3, 8
-
[20]
Retrieval-augmented gener- ation for knowledge-intensive NLP tasks
Patrick Lewis, Ethan Perez, Aleksandra Piktus, Fabio Petroni, Vladimir Karpukhin, Naman Goyal, Heinrich K¨uttler, Mike Lewis, Wen-tau Yih, Tim Rockt¨aschel, Sebas- tian Riedel, and Douwe Kiela. Retrieval-augmented gener- ation for knowledge-intensive NLP tasks. InAdvances in Neural Information Processing Systems, pages 9459–9474,
-
[21]
arXiv preprint arXiv:2508.07995 , year=
Dingkun Long et al. DIVER: A multi-stage approach for reasoning-intensive information retrieval.arXiv preprint arXiv:2508.07995, 2025. 3
-
[22]
Unifying multimodal retrieval via document screenshot embedding.arXiv preprint arXiv:2406.11251,
Xueguang Ma, Jimmy Lin, Minghan Zhang, and Sheng- Chieh Lin. Unifying multimodal retrieval via document screenshot embedding.arXiv preprint arXiv:2406.11251,
-
[23]
How good are llm-based rerankers? an empirical analysis of state-of-the-art reranking models
Abdelrahman Abdallah Bhawna Piryani Jamshid Mozafari and Mohammed Ali Adam Jatowt. How good are llm-based rerankers? an empirical analysis of state-of-the-art reranking models. 2025. 1
2025
-
[24]
MTEB: Massive text embedding benchmark
Niklas Muennighoff, Nouamane Tazi, Loic Magne, and Nils Reimers. MTEB: Massive text embedding benchmark. In Proceedings of the 17th Conference of the European Chap- ter of the Association for Computational Linguistics, pages 2014–2037, Dubrovnik, Croatia, 2023. Association for Com- putational Linguistics. 1, 2
2014
-
[25]
Zach Nussbaum, John X. Morris, Brandon Duderstadt, and Andriy Mulyar. Nomic embed: Training a reproducible long context text embedder.arXiv preprint arXiv:2402.01613,
-
[26]
Learning transferable visual 9 models from natural language supervision
Alec Radford, Jong Wook Kim, Chris Hallacy, Aditya Ramesh, Gabriel Goh, Sandhini Agarwal, Girish Sastry, Amanda Askell, Pamela Mishkin, Jack Clark, Gretchen Krueger, and Ilya Sutskever. Learning transferable visual 9 models from natural language supervision. InProceedings of the 38th International Conference on Machine Learning, pages 8748–8763. PMLR, 2021. 2, 6
2021
-
[27]
Sentence-BERT: Sen- tence embeddings using Siamese BERT-networks
Nils Reimers and Iryna Gurevych. Sentence-BERT: Sen- tence embeddings using Siamese BERT-networks. InPro- ceedings of the 2019 Conference on Empirical Methods in Natural Language Processing and the 9th International Joint Conference on Natural Language Processing (EMNLP- IJCNLP), pages 3982–3992, Hong Kong, China, 2019. As- sociation for Computational Lin...
2019
-
[28]
Robertson and Hugo Zaragoza
Stephen E. Robertson and Hugo Zaragoza. The probabilistic relevance framework: BM25 and beyond.Foundations and Trends in Information Retrieval, 3(4):333–389, 2009. 3
2009
-
[29]
Reasonir: Training retrievers for reasoning tasks.arXiv preprint arXiv:2504.20595,
Rulin Shao, Rui Qiao, Varsha Kishore, Niklas Muennighoff, Xi Victoria Lin, Daniela Rus, Bryan Kian Hsiang Low, Se- won Min, Wen-tau Yih, Pang Wei Koh, and Luke Zettle- moyer. ReasonIR: Training retrievers for reasoning tasks. arXiv preprint arXiv:2504.20595, 2025. 2
-
[30]
Hongjin Su, Howard Yen, Mengzhou Xia, Weijia Shi, Niklas Muennighoff, Han-yu Wang, Haisu Liu, Quan Shi, Zachary S. Siegel, Michael Tang, Ruoxi Sun, Jinsung Yoon, Sercan ¨O. Arik, Danqi Chen, and Tao Yu. BRIGHT: A real- istic and challenging benchmark for reasoning-intensive re- trieval.arXiv preprint arXiv:2407.12883, 2024. 2
-
[31]
Is ChatGPT good at search? Investigating large language models as re-ranking agents,
Weiwei Sun, Lingyong Yan, Xinyu Ma, Shuaiqiang Wang, Pengjie Ren, Zhumin Chen, Dawei Yin, and Zhaochun Ren. Is ChatGPT good at search? investigating large language models as re-ranking agents.arXiv preprint arXiv:2304.09542, 2023. 1, 3
-
[32]
BEIR: A heterogeneous benchmark for zero-shot evaluation of information retrieval models
Nandan Thakur, Nils Reimers, Andreas R ¨uckl´e, Abhishek Srivastava, and Iryna Gurevych. BEIR: A heterogeneous benchmark for zero-shot evaluation of information retrieval models. InProceedings of the Neural Information Process- ing Systems Track on Datasets and Benchmarks 1 (NeurIPS Datasets and Benchmarks 2021), 2021. 1, 2
2021
-
[33]
Query2doc: Query expansion with large language models
Liang Wang, Nan Yang, and Furu Wei. Query2doc: Query expansion with large language models.arXiv preprint arXiv:2303.07678, 2023. 1, 2, 3, 8
-
[34]
Rank1: Test-time compute for reranking in information retrieval.arXiv preprint arXiv:2502.18418,
Orion Weller et al. Rank1: Test-time compute for reranking. arXiv preprint arXiv:2502.18418, 2025. 1, 3
-
[35]
Visrag: Vision-based retrieval-augmented generation on multi-modality documents
Shi Yu, Chaoyue Tang, Bokai Xu, Junbo Cui, Junhao Ran, Yukun Yan, Zhenghao Liu, Shuo Wang, Xu Han, Zhiyuan Liu, and Maosong Sun. VisRAG: Vision-based retrieval- augmented generation on multi-modality documents.arXiv preprint arXiv:2410.10594, 2024. 3
-
[36]
Sigmoid loss for language image pre-training, 2023
Xiaohua Zhai, Basil Mustafa, Alexander Kolesnikov, and Lucas Beyer. Sigmoid loss for language image pre-training. arXiv preprint arXiv:2303.15343, 2023. 2, 6
-
[37]
GME: Improving Universal Multimodal Retrieval by Multimodal LLMs
Xin Zhang, Yanzhao Zhang, Wen Xie, Mingxin Li, Ziqi Dai, Dingkun Long, Pengjun Xie, Meishan Zhang, Wenjie Li, and Min Zhang. GME: Improving universal multimodal retrieval by multimodal LLMs.arXiv preprint arXiv:2412.16855,
work page internal anchor Pith review arXiv
-
[38]
Megapairs: Massive data synthesis for universal multi- modal retrieval
Junjie Zhou, Yongping Xiong, Zheng Liu, Ze Liu, Shitao Xiao, Yueze Wang, Bo Zhao, Chen Jason Zhang, and Defu Lian. Megapairs: Massive data synthesis for universal multi- modal retrieval. InProceedings of the 63rd Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 19076–19095, 2025. 6
2025
-
[39]
Rank-r1: Enhancing reasoning in llm-based document rerankers via reinforcement learning, 2025
Shengyao Zhuang, Xueguang Ma, Bevan Koopman, Jimmy Lin, and Guido Zuccon. Rank-R1: Enhancing reasoning in llm-based document rerankers via reinforcement learning. arXiv preprint arXiv:2503.06034, 2025. 3 10
