Radio-Frequency Inverse Rendering for Wireless Environment Modeling

Fuhai Wang , Zihan Jin , Lehang Wang , Xuehui Dong , Tiebin Mi , Robert Caiming Qiu , Zenan ling

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:11 UTC · model grok-4.3

classification 📡 eess.SP

keywords radio frequencyinverse renderingGaussian splattingwireless modelingradar cross-sectionsignal strength predictionscene editing

0 comments

The pith

A radio-frequency rendering method decouples emission, geometry, and materials to support editable wireless models and multiple prediction tasks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a framework that treats radio-frequency scenes like visual scenes in rendering but keeps the physical emission, surface shapes, and material responses separate. Prior approaches mixed these elements together, which made it hard to change the scene or adjust the wireless setup without rebuilding the whole model. By placing an RF-specific scattering function inside a Gaussian splatting representation and tracing rays through it, the method can handle three different radio tasks with the same underlying structure. Experiments show clear gains on each task compared with entangled baselines. If the separation works reliably, it opens the door to treating wireless environments as editable, queryable models rather than fixed black boxes.

Core claim

The central claim is that an RF inverse rendering framework, built by embedding an RF-aware bidirectional scattering distribution function into the Gaussian splatting paradigm as an RF rendering equation, can explicitly separate RF emission from geometry and material electromagnetic properties; each Gaussian primitive carries surface normals, material parameters, and roughness, which a customized ray-tracing scheme then uses to synthesize RF signals, allowing the same model to perform radar cross-section synthesis, received signal strength indicator prediction, and wireless scene editing.

What carries the argument

An RF-aware bidirectional scattering distribution function placed inside Gaussian splatting and driven by a customized ray-tracing scheme.

If this is right

The same trained representation can generate radar cross-section patterns for objects by varying incident angles and materials without retraining.
Received signal strength at any receiver location can be computed directly from the decoupled geometry and material attributes.
Changing the position, shape, or material of any surface in the scene updates all downstream RF predictions without rebuilding the model.
Wireless system parameters such as transmitter placement or antenna orientation can be optimized by querying the explicit physical attributes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The decoupled structure could support hybrid models that combine radio data with visible-light images for joint environment reconstruction.
Real-time updates to the Gaussian primitives might enable dynamic wireless scene modeling for moving objects or changing materials.
The same separation of concerns could be tested on other wave phenomena such as acoustic propagation or light transport in participating media.

Load-bearing premise

The assumption that giving Gaussian primitives physical surface normals, electromagnetic material parameters, and roughness values, then tracing rays through them, will reproduce real radio propagation without large systematic errors.

What would settle it

A side-by-side comparison of the model's predicted received signal strength values against calibrated measurements taken in a known indoor room with documented wall materials and exact transmitter-receiver locations.

Figures

Figures reproduced from arXiv: 2604.07086 by Fuhai Wang, Lehang Wang, Robert Caiming Qiu, Tiebin Mi, Xuehui Dong, Zenan ling, Zihan Jin.

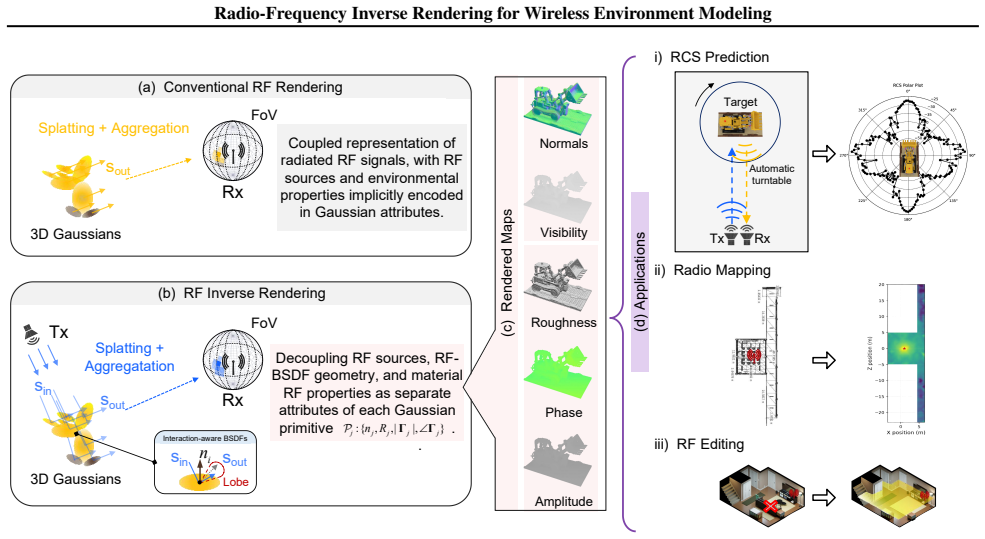

**Figure 1.** Figure 1: RF Inverse Rendering. (a) Classical RF rendering and (b) the proposed RF inverse rendering. Inverse rendering enables decoupled RF attribute rendering (c) and broader applications (d). 3. Preliminaries This section reviews NeRF and 3DGS as neural volumetric representations for wireless channel modeling. NeRF-based Channel Modeling. To model radio radiance fields, NeRF-based methods (Zhao et al., 2023; Luo… view at source ↗

**Figure 2.** Figure 2: Overview of system workflow for each Gaussian primitive, and an optimization strategy tailored for RF-aware physically based rendering is devised, as detailed in the Appendix E. Specifically, the hybrid logic in (1) is extended to synthesize the scene’s depth map D and normal map N as follows: {D, N } = X i∈N αiTi{di , ni} where di denotes the z-depth coordinate of the i-th Gaussian in the view space. By … view at source ↗

**Figure 4.** Figure 4: Frequency-Aware Attribute Modulation Network (FAM). We present a novel approach that employs attribute control together with a deformation MLP to modulate the frequency-dependent behavior of 3D Gaussians. The transformed primitives are then rendered into broadband radio signals. During the RF rendering stage, the RF-aware attributes {α, R, |Γ|, ∠Γ} are optimized through inverse rendering of the observed RF… view at source ↗

**Figure 6.** Figure 6: The reconstructed wideband RCS results. accomplished via a deformable RF attributes MLP, which adaptively modulates the Gaussian attributes to capture frequency-dependent variations. The prediction results are shown in [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

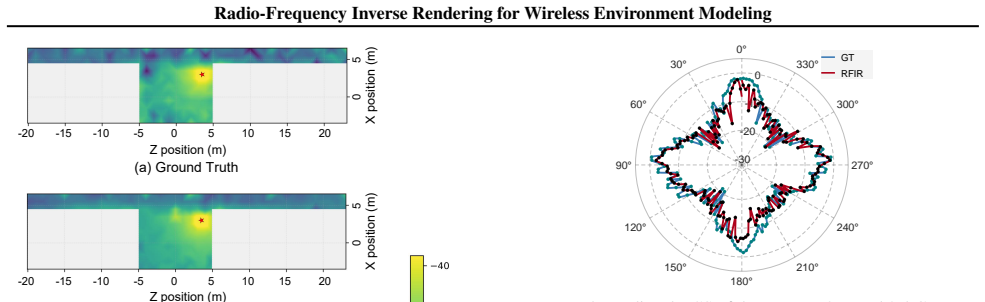

**Figure 8.** Figure 8: Predicted RCS of the target at 3 m and 2.4 GHz. m, 4.5 m, and 5 m, and test on unseen data at 3 m. As shown in [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

**Figure 7.** Figure 7: Predicted radio map of the classroom. characterize wireless scattering in complex environments. In addition, the customized architecture flexibly captures signal propagation under diverse LoS and NLoS conditions, allowing more precise modeling of RF interactions. 5.3. Case Study III: System Reconfiguration A reconfigurable wireless system enables dynamic optimization of wireless environments via signal re… view at source ↗

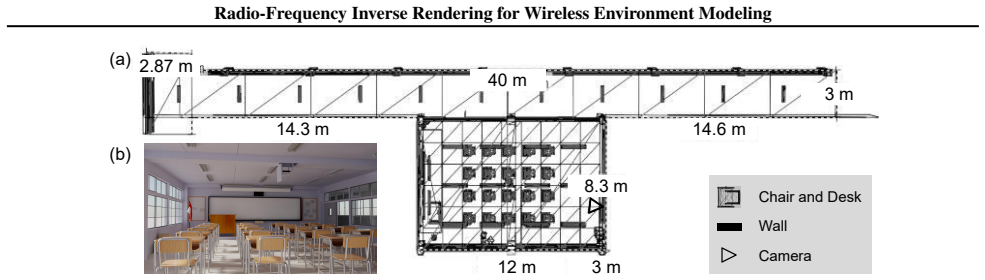

**Figure 9.** Figure 9: 3D classroom models for simulation purposes. We provide (a) the classroom dimensions along with (b) an image captured by the camera. 明德厚学求是创新华中科技大学电子信息与通信学院 (a) Rendered magnitude of the (c) Rendered roughness reflection coefficient (b) Rendered phase of the reflection coefficient [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗

**Figure 10.** Figure 10: Visualization of the rendered (a) magnitude and (b) phase of the reflection coefficient, as well as the rendered (c) roughness maps, obtained via inverse rendering of the classroom scene. H. Physics-Guided LoS/NLoS Signal Mixing. We decompose the LoS/NLoS signal synthesis into a direct LoS component and a scattered NLoS component rendered by RFIR. Specifically, the signal propagation process is modeled in… view at source ↗

read the original abstract

Neural rendering paradigms have recently emerged as powerful tools for radio frequency (RF). However, by entangling RF sources with scene geometry and material properties, existing approaches limit downstream manipulation of scene geometry, wireless system configuration, and RF reasoning. To address this, we propose a physically grounded RF inverse rendering (RFIR) framework that explicitly decouples RF emission, geometry, and material electromagnetic properties. Our key insight is an RF-aware bidirectional scattering distribution function, embedded into the Gaussian splatting paradigm as an RF rendering equation. Each Gaussian primitive is endowed with intrinsic physical attributes, including surface normals, material electromagnetic parameters, and roughness, and leveraged by a customized ray-tracing scheme to represent RF signal synthesis. The proposed RFIR generalizes three typical RF tasks: radar cross-section synthesis, received signal strength indicator prediction, and wireless scene editability. Experiments demonstrate significant performance advantages, underscoring the potential for wireless world modeling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

RFIR embeds an RF-aware BSDF in Gaussian splatting to decouple geometry and materials for RCS, RSSI, and scene editing tasks, but the ray-tracing fidelity for real EM effects is the open question.

read the letter

The main thing to know is that this paper takes Gaussian splatting and adds a custom RF-aware BSDF so each primitive carries normals, electromagnetic parameters, and roughness, then runs a tailored ray-tracer to synthesize signals. That decoupling is the explicit goal and it is applied to three tasks: radar cross-section synthesis, received signal strength prediction, and wireless scene editing. The abstract reports performance gains over prior entangled neural methods, which is the practical hook. What the work does cleanly is identify the manipulation limits of existing RF neural renderers and sketch a single framework that supports independent changes to geometry or materials. That is a reasonable step forward if the implementation delivers. The soft spot sits in the physics. Standard Gaussian splatting approximations tend to drop coherent effects like diffraction, interference, and phase accumulation that dominate at RF wavelengths, and the stress-test note flags exactly this gap. Without side-by-side results against full-wave solvers or anechoic measurements, the claimed advantages could reflect rendering shortcuts rather than accurate propagation. The abstract does not give equations or error bars, so it is hard to judge how much of the reported edge survives real validation. This paper is for the small group already working on neural methods for wireless environment modeling and sensing. A reader who wants editable RF scenes and is willing to test the physical claims themselves will get the most out of it. It is not yet ready for broad adoption, but the idea is distinct enough and the tasks are concrete enough that it deserves a serious referee to check the ray-tracing details and the experimental controls. I would send it to peer review rather than desk-reject.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes RFIR, a physically grounded inverse rendering framework for radio-frequency signals that decouples emission, geometry, and material electromagnetic properties. It embeds an RF-aware bidirectional scattering distribution function (BSDF) into the Gaussian splatting paradigm, endows each Gaussian primitive with surface normals, material EM parameters, and roughness, and employs a customized ray-tracing scheme to synthesize RF signals. The framework is claimed to generalize to three tasks—radar cross-section synthesis, received signal strength indicator prediction, and wireless scene editability—with experiments showing significant performance advantages.

Significance. If the RF rendering equation and Gaussian-based ray tracing prove physically faithful, the work could enable more interpretable and editable wireless world models, moving beyond entangled neural representations and supporting downstream manipulation of geometry, materials, and system configurations.

major comments (2)

[Abstract / RF rendering equation] The abstract asserts that the RF-aware BSDF and customized ray-tracing scheme yield accurate RF signal synthesis, yet the approach inherits standard Gaussian splatting approximations that omit coherent wave effects (phase, diffraction at wavelength-scale features, higher-order scattering). Without explicit comparison to full-wave solvers (e.g., FDTD or MoM) or anechoic measurements in the experiments, it is unclear whether reported performance gains reflect physical fidelity or rendering heuristics.
[Method (Gaussian attribute assignment) / Experiments] The central generalization claim (RCS synthesis, RSSI prediction, scene editability) rests on the assumption that assigning intrinsic physical attributes to Gaussian primitives produces parameter-free or physically consistent predictions. If material EM parameters and roughness are fitted per scene, the performance advantages may reduce to data-driven fitting rather than the claimed physical decoupling; this needs to be clarified with ablation on parameter count and cross-validation.

minor comments (2)

[Abstract] The term 'RF-aware bidirectional scattering distribution function' is introduced without a concise definition or reference to standard BSDF formulations in graphics or prior RF scattering models.
[Method] Notation for material electromagnetic parameters (permittivity, permeability, conductivity) and roughness should be standardized with a table or explicit equations to avoid ambiguity when readers compare to conventional EM literature.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our RFIR framework. We address each major comment below with clarifications on the physical approximations and the role of optimized attributes, while committing to revisions where appropriate.

read point-by-point responses

Referee: [Abstract / RF rendering equation] The abstract asserts that the RF-aware BSDF and customized ray-tracing scheme yield accurate RF signal synthesis, yet the approach inherits standard Gaussian splatting approximations that omit coherent wave effects (phase, diffraction at wavelength-scale features, higher-order scattering). Without explicit comparison to full-wave solvers (e.g., FDTD or MoM) or anechoic measurements in the experiments, it is unclear whether reported performance gains reflect physical fidelity or rendering heuristics.

Authors: We acknowledge that the RF rendering equation inherits ray-tracing approximations from Gaussian splatting and does not model coherent wave phenomena such as phase interference, diffraction at sub-wavelength scales, or higher-order scattering. These omissions are deliberate for computational efficiency in the targeted high-frequency regimes of our tasks. The RF-aware BSDF provides physical grounding by incorporating material electromagnetic parameters, but we agree that the abstract could better qualify the approximation level. No direct FDTD or anechoic comparisons are present because the work prioritizes inverse rendering scalability over full-wave validation; we will revise the abstract and discussion sections to explicitly state the validity range of the approximations and note this as a limitation. revision: partial
Referee: [Method (Gaussian attribute assignment) / Experiments] The central generalization claim (RCS synthesis, RSSI prediction, scene editability) rests on the assumption that assigning intrinsic physical attributes to Gaussian primitives produces parameter-free or physically consistent predictions. If material EM parameters and roughness are fitted per scene, the performance advantages may reduce to data-driven fitting rather than the claimed physical decoupling; this needs to be clarified with ablation on parameter count and cross-validation.

Authors: The material EM parameters and roughness are optimized per scene during inverse rendering to fit observed signals, but they are constrained to physically interpretable ranges and directly represent quantities such as permittivity and conductivity. This structure enables the claimed decoupling, as demonstrated by the scene editability results where attribute modifications yield consistent RF changes without retraining. The approach is not parameter-free, but the physical parameterization supports generalization across tasks. We agree that further evidence is warranted and will add an ablation on the number of optimized parameters together with cross-scene validation experiments in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: framework proposal with independent empirical validation

full rationale

The paper introduces RFIR as a new decoupling of emission/geometry/materials via an RF-aware BSDF inside Gaussian splatting and a custom ray-tracer. No equations or self-citations are shown that reduce any claimed prediction (RCS synthesis, RSSI, scene editing) back to the fitted parameters by construction. The three-task generalization and performance claims rest on experiments rather than definitional identity or load-bearing self-citation chains. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The approach introduces new entities and assumptions about physical attribute assignment to Gaussians, with several free parameters for materials that are central to the decoupling claim.

free parameters (2)

material electromagnetic parameters
Assigned to each Gaussian primitive; likely fitted or optimized during inverse rendering.
roughness
Intrinsic physical attribute per Gaussian, used in RF rendering.

axioms (2)

domain assumption RF signal synthesis can be represented via ray-tracing on Gaussian primitives with physical attributes
Core to the customized ray-tracing scheme in the RF rendering equation.
domain assumption Gaussian splatting paradigm can be extended to RF without losing physical grounding
Embedded as RF rendering equation.

invented entities (1)

RF-aware bidirectional scattering distribution function (BSDF) no independent evidence
purpose: To model the scattering of RF signals based on material properties
Introduced as the key insight for the framework; no external evidence provided in abstract.
