arxiv: 2604.07103 · v1 · submitted 2026-04-08 · 🧮 math.NA · cs.NA· physics.flu-dyn

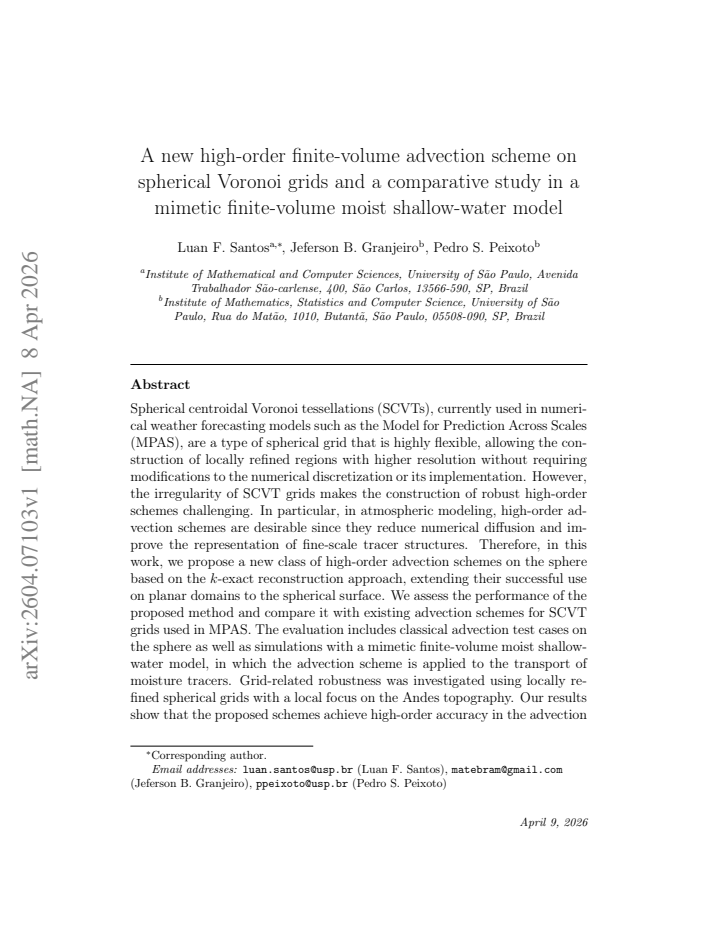

A new high-order finite-volume advection scheme on spherical Voronoi grids and a comparative study in a mimetic finite-volume moist shallow-water model

Luan F. Santos , Jeferson B. Granjeiro , Pedro S. Peixoto This is my paper

Pith reviewed 2026-05-10 17:28 UTC · model grok-4.3

classification 🧮 math.NA cs.NAphysics.flu-dyn
keywords high-order advectionspherical Voronoi gridsk-exact reconstructionfinite-volume methodmoist shallow-water modeltracer transportnumerical weather predictiongrid robustness
0
0 comments X

The pith

k-exact reconstruction extends high-order advection schemes to irregular spherical Voronoi grids while preserving accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops new finite-volume advection schemes on spherical centroidal Voronoi tessellations by extending the k-exact reconstruction technique from flat domains to the sphere. It demonstrates through standard advection tests and a mimetic moist shallow-water model that the schemes reach their target high-order accuracy, remain largely insensitive to grid irregularity, and perform comparably to methods already used in models such as MPAS. The work matters because these grids permit local refinement for regional detail without changing the overall discretization, and higher-order advection reduces artificial smoothing of fine tracer features such as moisture. If the results hold, the limiting factor for robust variable-resolution atmospheric modeling becomes the shallow-water equations discretization rather than the choice of advection scheme.

Core claim

The proposed schemes based on k-exact reconstruction achieve high-order accuracy in classical spherical advection tests, exhibit little sensitivity to grid distortion on locally refined SCVTs, and produce results comparable to existing advection schemes when transporting moisture in a mimetic finite-volume moist shallow-water model. As a result, overall grid robustness with respect to irregularity is governed by the sensitivity of the shallow-water model discretization itself, independent of the advection scheme.

What carries the argument

The k-exact reconstruction approach, which builds high-degree polynomial approximations from cell averages on each spherical Voronoi cell to evaluate accurate interface fluxes for finite-volume advection.

If this is right

  • High-order accuracy holds on irregular and locally refined spherical grids, supporting flexible resolution in atmospheric models.
  • Reduced numerical diffusion improves preservation of fine-scale moisture structures during transport.
  • Advection-scheme choice does not determine the overall robustness to grid irregularity in the moist shallow-water model.
  • The new schemes yield performance similar to current MPAS methods, making them interchangeable for variable-resolution forecasts.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may enable adaptive mesh refinement in global spherical models without requiring separate advection code for refined patches.
  • Extending the same reconstruction to full three-dimensional nonhydrostatic dynamical cores could be tested next to check behavior under realistic vertical motions.
  • Because the advection step itself is no longer the bottleneck, future gains in model robustness would come from improving the mimetic finite-volume treatment of the shallow-water equations.

Load-bearing premise

That the k-exact reconstruction approach can be extended to spherical Voronoi tessellations while preserving high-order accuracy and stability on highly irregular and locally refined grids.

What would settle it

An advection test on a highly distorted SCVT grid in which the measured convergence rate falls below the design order or the scheme produces instability.

Figures

Figures reproduced from arXiv: 2604.07103 by Jeferson B. Granjeiro, Luan F. Santos, Pedro S. Peixoto.

Figure 1
Figure 1. Figure 1: Illustration of SCVT grids used in this work. (a) Spherical grid composed of [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of the stencils using first-level neighbors (a) and first- and second￾level neighbors (b), used to construct the reconstruction polynomials. The reconstruction polynomial is then written as ϕ R i (x, y) = c0 + c1x + c2y + c3x 2 + c4xy + c5y 2 , (14) with coefficients {cm} determined by enforcing ϕ R i (xk, yk) = ϕk , k ∈ Si , (15) where (xk, yk) are the projected coordinates of the control vol… view at source ↗
Figure 3
Figure 3. Figure 3: Initial condition for the zonal wind test case: a Gaussian hill centered at [PITH_FULL_IMAGE:figures/full_fig_p020_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: L∞ errors (a) and convergence rates (b) for the advection of a Gaussian hill under a zonal wind, computed with OG (solid) and SG (dashed) schemes on quasi-uniform SCVT grids (levels 2-7) without flux limiting. Line colors indicate the nominal order of accuracy. The Gaussian hill is initially centered at latitude and longitude (0, 0) (Figure 3a) [PITH_FULL_IMAGE:figures/full_fig_p021_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: L2 errors (a) and convergence rates (b) for the advection of a Gaussian hill under a zonal wind, computed with OG (solid) and SG (dashed) schemes on quasi-uniform SCVT grids (levels 2-7) with flux limiting. Line colors indicate the nominal order of accuracy. The Gaussian hill is initially centered at latitude and longitude (0, 0) (Figure 3a). The L2 errors and convergence rates on the quasi-uniform SCVT gr… view at source ↗
Figure 6
Figure 6. Figure 6: L2 error convergence without (a) and with flux limiting (b) for the advection of a Gaussian hill under a zonal wind, computed with OG (solid) and SG (dashed) schemes on variable-resolution SCVT grids (levels 2-7). Line colors indicate the nominal order of accuracy. The Gaussian hill is initially centered at latitude and longitude 7π 18 , − π 12  , located over the Andes (Figure 3b). Next, we repeat the te… view at source ↗
Figure 7
Figure 7. Figure 7: Time evolution of the L∞ error for the advection of a Gaussian hill under a zonal wind over 5 time units, without (a) and with (b) flux limiting, computed using OG (solid) and SG (dashed) schemes on level 7 variable-resolution SCVT grid. Line colors indicate the nominal order of accuracy. The Gaussian hill is initially centered at latitude and longitude 7π 18 , − π 12  , located over the Andes (Figure 3b)… view at source ↗
Figure 8
Figure 8. Figure 8: Initial condition for the deformational flow test case: two Gaussian hills on (a) [PITH_FULL_IMAGE:figures/full_fig_p024_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: L∞ errors (a) and convergence rates (b) for the advection of two Gaussian hills under a deformational flow velocity field, computed with OG (solid) and SG (dashed) schemes on quasi-uniform SCVT grids (levels 2-7) without flux limiting. Line colors indi￾cate the nominal order of accuracy. The initial condition is shown in Figure 8a [PITH_FULL_IMAGE:figures/full_fig_p025_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: L2 errors (a) and convergence rates (b) for the advection of two Gaussian hills under a deformational flow velocity field, computed with OG (solid) and SG (dashed) schemes on variable-resolution SCVT grids (levels 2-7) with flux limiting. Line colors indicate the nominal order of accuracy. The initial condition is shown in Figure 8a. this behavior is not observed here [PITH_FULL_IMAGE:figures/full_fig_p0… view at source ↗
Figure 11
Figure 11. Figure 11: L∞ error convergence without (a) and with flux limiting (b) for the advection of a Gaussian hill under a deformational flow velocity field, computed with OG (solid) and SG (dashed) schemes on variable-resolution SCVT grids (levels 2-7). Line colors indicate the nominal order of accuracy. The initial condition is shown in Figure 8b. We again use variable-resolution grids to assess the sensitivity of each s… view at source ↗
Figure 12
Figure 12. Figure 12: Slotted cylinder advection under the deformational flow velocity field on a [PITH_FULL_IMAGE:figures/full_fig_p027_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Slotted cylinder advection under the deformational flow velocity field on a [PITH_FULL_IMAGE:figures/full_fig_p028_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Slotted cylinder advection under the deformational flow velocity field on a [PITH_FULL_IMAGE:figures/full_fig_p029_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: L2 error convergence for the moist shallow-water model in the moist steady geostrophic test case from Zerroukat and Allen [37], considering 12 days of simulation. Results are shown for simulations with flux limiting applied to the fluid depth field, using the OG (solid lines) and SG (dashed lines) schemes on quasi-uniform SCVT grids (levels 2-7). Line colors indicate the nominal order of accuracy. From [… view at source ↗
Figure 16
Figure 16. Figure 16: Spatial distribution of the errors for the cloud water field at the uniform SCVT [PITH_FULL_IMAGE:figures/full_fig_p033_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: L2 error convergence for the moist shallow-water model in the moist steady geostrophic test case from Zerroukat and Allen [37], considering 12 days of simulation. Results are shown for simulations with flux limiting applied to the fluid depth field, using the OG (solid lines) and SG (dashed lines) schemes on variable-resolution SCVT grids (levels 2-7). Line colors indicate the nominal order of accuracy. t… view at source ↗
Figure 18
Figure 18. Figure 18: Cloud field in the Southern Hemisphere at day 7 for the moist shallow-water [PITH_FULL_IMAGE:figures/full_fig_p035_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: As in Fig. 18, but for the Andes topography–based refined SCVT grid. [PITH_FULL_IMAGE:figures/full_fig_p036_19.png] view at source ↗
read the original abstract

Spherical centroidal Voronoi tessellations (SCVTs), currently used in numerical weather forecasting models such as the Model for Prediction Across Scales (MPAS), are a type of spherical grid that is highly flexible, allowing the construction of locally refined regions with higher resolution without requiring modifications to the numerical discretization or its implementation. However, the irregularity of SCVT grids makes the construction of robust high-order schemes challenging. In particular, in atmospheric modeling, high-order advection schemes are desirable since they reduce numerical diffusion and improve the representation of fine-scale tracer structures. Therefore, in this work, we propose a new class of high-order advection schemes on the sphere based on the $k$-exact reconstruction approach, extending their successful use on planar domains to the spherical surface. We assess the performance of the proposed method and compare it with existing advection schemes for SCVT grids used in MPAS. The evaluation includes classical advection test cases on the sphere as well as simulations with a mimetic finite-volume moist shallow-water model, in which the advection scheme is applied to the transport of moisture tracers. Grid-related robustness was investigated using locally refined spherical grids with a local focus on the Andes topography. Our results show that the proposed schemes achieve high-order accuracy in the advection tests, exhibit little sensitivity to grid distortion, and produce comparable results to existing schemes in the moist shallow-water model. Overall, grid robustness is therefore limited to the sensitivity of the discretization of the shallow-water model, irrespective of the advection scheme.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper claims to introduce a new class of high-order advection schemes on spherical centroidal Voronoi tessellations (SCVTs) by extending the k-exact reconstruction approach from planar domains. These schemes are tested on classical spherical advection cases and embedded in a mimetic finite-volume moist shallow-water model for moisture transport. Using locally refined SCVT grids with an Andes topography focus, the authors report that the schemes attain high-order accuracy, exhibit little sensitivity to grid distortion, and produce results comparable to existing MPAS schemes. The final claim is that overall grid robustness is governed by the shallow-water discretization rather than the advection scheme choice.

Significance. If the numerical results hold under scrutiny, the work is significant for numerical weather prediction and geophysical fluid dynamics. SCVT grids enable flexible local refinement in models like MPAS without altering the core discretization, but their irregularity has hindered high-order advection. Demonstrating a robust k-exact extension with low distortion sensitivity and practical performance in moist tests could reduce numerical diffusion for fine-scale tracers. The comparative study and topography-focused robustness tests provide actionable insights for model developers.

major comments (3)
  1. [Abstract] Abstract: The assertion that the schemes 'achieve high-order accuracy in the advection tests' is not accompanied by any quantitative convergence rates, error norms (L1/L2/L∞), or observed orders versus resolution. This quantitative support is load-bearing for the central claim and must appear in the results section with explicit tables or figures.
  2. [Method description] Method (reconstruction procedure): No truncation-error analysis or proof is supplied showing that the polynomial reproduction property of k-exact reconstruction is preserved under the spherical metric and non-planar Voronoi cell geometry. If the moment-fitting step implicitly assumes local planarity, formal high-order accuracy may degrade on highly irregular or refined SCVTs; the observed 'little sensitivity to grid distortion' then risks being test-specific rather than general.
  3. [Numerical results] Moist shallow-water experiments: The statement that 'grid robustness is therefore limited to the sensitivity of the discretization of the shallow-water model, irrespective of the advection scheme' requires explicit quantification (e.g., norm differences between schemes versus model variations) to substantiate independence; comparable results alone do not establish the claim.
minor comments (2)
  1. [Method] Notation for the spherical reconstruction basis and weight computation should be defined more explicitly, perhaps with an equation for the local polynomial fit on the sphere.
  2. [Introduction] Add references to prior k-exact implementations on unstructured planar grids to contextualize the spherical extension.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough and constructive review of our manuscript. We have carefully addressed each major comment below and revised the manuscript to incorporate the suggested improvements where possible.

read point-by-point responses

  1. Referee: The assertion that the schemes 'achieve high-order accuracy in the advection tests' is not accompanied by any quantitative convergence rates, error norms (L1/L2/L∞), or observed orders versus resolution. This quantitative support is load-bearing for the central claim and must appear in the results section with explicit tables or figures.

    Authors: We agree that explicit quantitative support strengthens the central claim. Although convergence behavior was demonstrated via plots in the original results section, we have added a dedicated table in the revised results section that reports L1, L2, and L∞ error norms together with the observed orders of accuracy across successive resolutions for the advection test cases. The abstract has also been updated to reference these observed orders. revision: yes

  2. Referee: No truncation-error analysis or proof is supplied showing that the polynomial reproduction property of k-exact reconstruction is preserved under the spherical metric and non-planar Voronoi cell geometry. If the moment-fitting step implicitly assumes local planarity, formal high-order accuracy may degrade on highly irregular or refined SCVTs; the observed 'little sensitivity to grid distortion' then risks being test-specific rather than general.

    Authors: The referee correctly identifies the absence of a formal truncation-error analysis. The reconstruction is performed in local tangent planes with geodesic distances used to compute moments, thereby incorporating the spherical metric. We have added a new paragraph in the methods section that derives the leading-order error terms under the local-planarity approximation and shows that the polynomial reproduction property is retained to the design order. While a complete a priori analysis for arbitrary SCVTs lies outside the present scope, the added discussion and the consistent high-order convergence observed on both uniform and highly distorted refined grids provide evidence that the behavior is not test-specific. revision: partial

  3. Referee: The statement that 'grid robustness is therefore limited to the sensitivity of the discretization of the shallow-water model, irrespective of the advection scheme' requires explicit quantification (e.g., norm differences between schemes versus model variations) to substantiate independence; comparable results alone do not establish the claim.

    Authors: We accept that the original claim rested on qualitative comparison. In the revised manuscript we have inserted a quantitative comparison: a table of L2-norm differences in the moisture fields obtained when swapping advection schemes versus the differences obtained when varying the shallow-water discretization parameters (time-step size and explicit diffusion coefficient). The tabulated values confirm that scheme-to-scheme differences remain smaller than those induced by changes to the underlying shallow-water discretization, thereby supporting the stated conclusion. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on independent numerical validation

full rationale

The paper extends the established k-exact reconstruction technique from planar domains to spherical Voronoi grids and demonstrates high-order accuracy plus low distortion sensitivity solely through numerical advection tests and moist shallow-water simulations on independent benchmark cases. No load-bearing step reduces by construction to a fitted parameter, self-citation chain, or renamed input; the central results are externally falsifiable via the reported test outcomes and comparisons with existing MPAS schemes.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The claim relies on the mathematical extension of k-exact reconstruction to spherical surfaces and empirical validation through numerical experiments on standard test cases and the moist shallow-water model.

free parameters (1)
  • reconstruction order k
    The order of the polynomial reconstruction is a user-chosen parameter determining the accuracy level of the scheme.
axioms (1)
  • domain assumption Spherical geometry and Voronoi cell metrics can be incorporated into the k-exact reconstruction without loss of formal order of accuracy
    This is the key extension assumed when moving from planar to spherical domains.
