A Study of the Circular Pursuit Dynamics using Bifurcation Theoretic Computational Approach

Kavita Shekhawat , Nandan K Sinha This is my paper

Pith reviewed 2026-05-10 17:12 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords circular pursuitbifurcation theoryguidance lawspursuer-target engagementrelative kinematicsplanar dynamicsnumerical continuationspeed dynamics
0
0 comments X

The pith

A bifurcation theory based numerical approach studies circular pursuit guidance and derives engagement laws for two speed cases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a mathematical model of a pursuer chasing a target that travels in a circle and applies bifurcation theory to analyze the resulting dynamics computationally. It examines one case with fixed pursuer speed and a second case that includes basic speed changes limited by available force. The method produces analytical equilibria and simulation trajectories that show how pursuit paths organize under relative position and orientation feedback. A reader would care because the technique offers a systematic way to identify stable engagement behaviors without solving the full time-dependent equations directly.

Core claim

The authors derive the planar kinematics equations for the pursuer-target system, then use a bifurcation-theoretic numerical continuation to locate and classify equilibrium solutions and their stability as parameters such as target speed or pursuer force limits vary. Analytical and simulation results for the constant-speed case and the speed-dynamics case illustrate how the approach yields guidance insights directly from the bifurcation diagram.

What carries the argument

Bifurcation-theoretic numerical continuation applied to the relative-position-and-orientation-driven pursuer model.

If this is right

  • Guidance laws emerge directly from the locations and stability types of the computed bifurcation points.
  • Inclusion of speed dynamics produces qualitatively different equilibrium sets than the constant-speed model.
  • The numerical method handles the nonlinear relative kinematics without requiring closed-form solutions.
  • Planar results supply baseline behaviors that can be checked against more detailed vehicle models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same continuation technique could be applied to non-circular target paths or to three-dimensional engagements.
  • Parameter regions identified as unstable may correspond to practical collision-avoidance or escape maneuvers.
  • Linking bifurcation diagrams to real sensor noise would test whether the predicted stable paths remain observable.

Load-bearing premise

The target follows a perfect circle at constant speed and the pursuer responds only to planar relative position and heading.

What would settle it

A set of high-fidelity simulations in which the observed pursuer trajectories diverge from the branches predicted by the bifurcation diagrams when the same initial conditions and parameter values are used.

Figures

Figures reproduced from arXiv: 2604.09065 by Kavita Shekhawat, Nandan K Sinha.

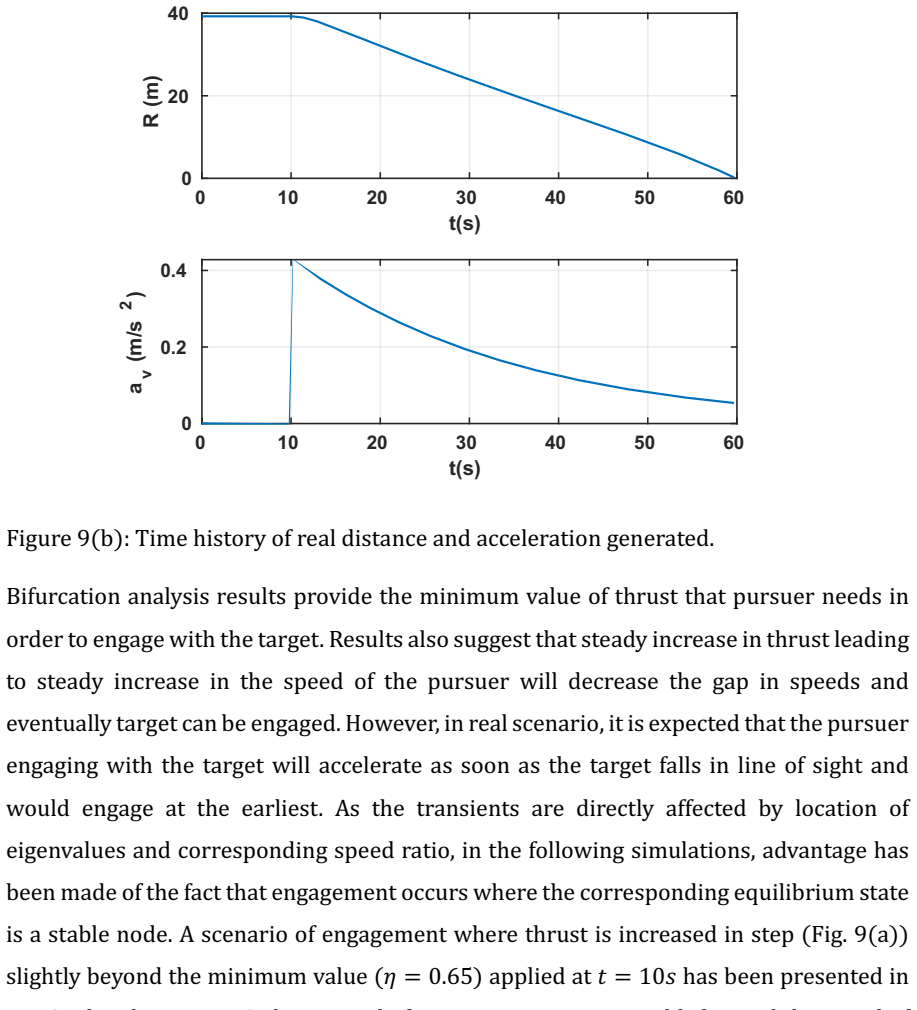

Figure 9
Figure 9. Figure 9: (b): Time history of real distance and acceleration generated. Bifurcation analysis results provide the minimum value of thrust that pursuer needs in order to engage with the target. Results also suggest that steady increase in thrust leading to steady increase in the speed of the pursuer will decrease the gap in speeds and eventually target can be engaged. However, in real scenario, it is expected that th… view at source ↗
read the original abstract

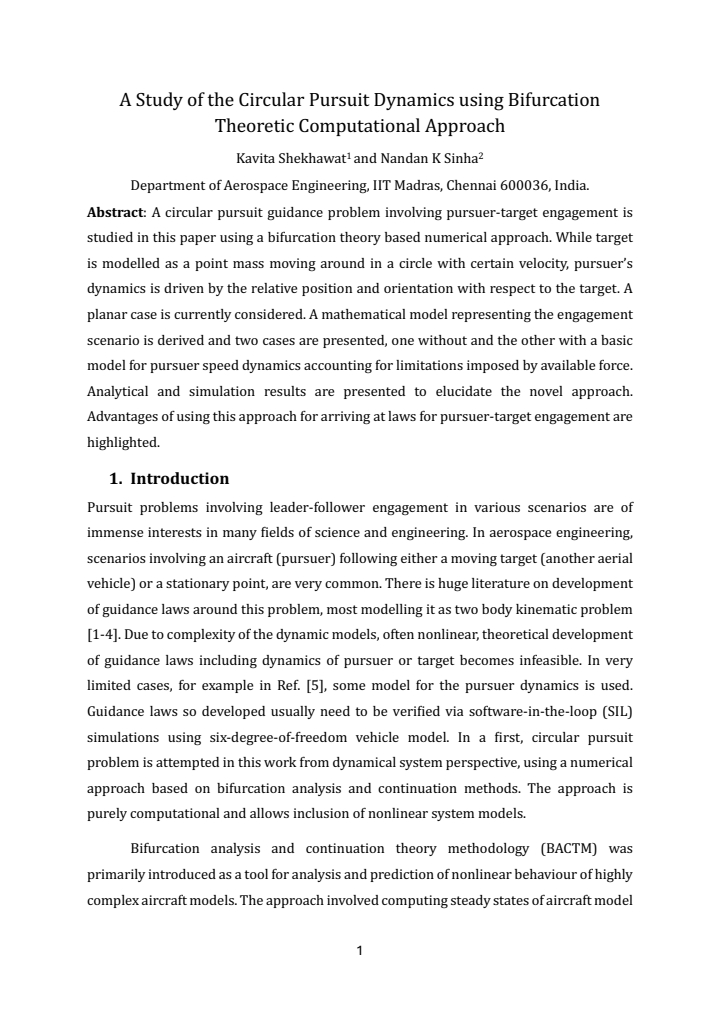

A circular pursuit guidance problem involving pursuer-target engagement is studied in this paper using a bifurcation theory based numerical approach. While target is modeled as a point mass moving around in a circle with certain velocity, pursuer dynamics is driven by the relative position and orientation with respect to the target. A planar case is currently considered. A mathematical model representing the engagement scenario is derived and two cases are presented, one without and the other with a basic model for pursuer speed dynamics accounting for limitations imposed by available force. Analytical and simulation results are presented to elucidate the novel approach. Advantages of using this approach for arriving at laws for pursuer-target engagement are highlighted.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. This paper studies the circular pursuit guidance problem using a bifurcation theory based numerical approach. The target is modeled as a point mass moving in a circle at constant velocity, while the pursuer's dynamics are based on relative position and orientation in the planar case. A mathematical model is derived, and two cases are analyzed: one without speed dynamics and one with a basic model for pursuer speed accounting for force limitations. Analytical and simulation results are presented to demonstrate the approach and its advantages in deriving engagement laws.

Significance. The proposed computational approach using bifurcation theory offers potential advantages in analyzing the dynamics of pursuer-target engagement, particularly in revealing qualitative behaviors through phase portraits and simulations. By providing both analytical derivations and numerical results for the constant speed and variable speed cases, the manuscript contributes a novel perspective to guidance law development. If the results are robust, this method could complement traditional analytical techniques in missile guidance and pursuit-evasion problems.

minor comments (2)
  1. The abstract is somewhat vague on the specific outcomes of the two cases studied; including a brief mention of key insights from the bifurcation analysis would improve reader engagement.
  2. The manuscript would benefit from a dedicated section or subsection comparing the bifurcation approach to existing methods in pursuit guidance to better highlight its advantages.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of our work on applying bifurcation theory to circular pursuit guidance problems and for recommending minor revision. We appreciate the recognition of the potential advantages of our computational approach in revealing qualitative behaviors for both constant-speed and variable-speed pursuer cases.

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The paper first derives the planar pursuer-target engagement kinematics from relative position and orientation states with the target constrained to a fixed circular trajectory; this is a standard kinematic reduction with no fitted parameters or self-referential definitions. Bifurcation analysis is then applied to the resulting autonomous dynamical system in two variants (constant speed and with basic speed dynamics). Analytical equilibria, phase portraits, and forward simulations are produced directly from these equations. No load-bearing step reduces by construction to a prior fit, self-citation, or ansatz imported from the authors' own work; the central results remain independent of the paper's own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; the model presumably rests on standard planar kinematics and point-mass assumptions common to pursuit-evasion studies.

pith-pipeline@v0.9.0 · 5406 in / 1169 out tokens · 58193 ms · 2026-05-10T17:12:05.779906+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

14 extracted references · 14 canonical work pages

  1. [1]

    Unmanned Aerial Vehicle Guidance for an All-Aspect Approach to a Stationary Point

    Ghosh, S., Yakimenko, O.A., Davis, D.T ., and Chung, T .H., “Unmanned Aerial Vehicle Guidance for an All-Aspect Approach to a Stationary Point” , Journal of Guidance, Control and Dynamics, Vol. 40, No. 11, 2017, pp. 2871-2888. https://doi.org/10.2514/1.G002614

    work page doi:10.2514/1.g002614 2017

  2. [2]

    Nonsingular Terminal Sliding Mode Guidance with Impact Angle Constraints

    Kumar , S.R., Rao, S., and Ghose, D., “Nonsingular Terminal Sliding Mode Guidance with Impact Angle Constraints” , Journal of Guidance, Control and Dynamics, Vol. 37, No. 4, 2014, pp. 1114-1130. https://doi.org/10.2514/1.62737

    work page doi:10.2514/1.62737 2014

  3. [3]

    Target Tracking and Prosecution Using Look-Angle Bifurcation

    Anjaly, P ., and Ratnoo, A., “Target Tracking and Prosecution Using Look-Angle Bifurcation” , Journal of Guidance Control and Dynamics, Vol. 43, No. 3, 2020, pp. 589-598. https://doi.org/10.2514/1.G004634

    work page doi:10.2514/1.g004634 2020

  4. [4]

    Standoff Target Tracking Using Line-of-Sight Distance Bifurcation

    Srinivasu, N., and Ratnoo, A., “Standoff Target Tracking Using Line-of-Sight Distance Bifurcation” , Journal of Guidance Control and Dynamics, Vol. 45, No. 10, 2022, pp. 1934-1945. https://doi.org/10.2514/1.G006781

    work page doi:10.2514/1.g006781 2022

  5. [5]

    Guidance and control laws for vehicle pathkeeping along curved trajectories

    Paupolias, F . A., “Guidance and control laws for vehicle pathkeeping along curved trajectories” , Applied Ocean Research 14 (1992), 291-302. https://doi.org/10.1016/0141-1187(92)90033-G

    work page doi:10.1016/0141-1187(92)90033-g 1992

  6. [6]

    Numerical Continuation and Bifurcation Analysis in Aircraft Design: an Industrial Perspective

    Sharma, S., Coetzee, E.B., Lowenberg, M.H., Neild, S.A., and Krauskopf, B., “Numerical Continuation and Bifurcation Analysis in Aircraft Design: an Industrial Perspective” , Phil. Trans. R. Soc. A Math Phy Eng Sci (2015) 373(2051):20140406. http://doi.org/10.1098/rsta.2014.0406

    work page doi:10.1098/rsta.2014.0406 2015

  7. [7]

    Level Flight Trim and Stability Analysis using using Extended Bifurcation and Continuation Procedure

    Ananthkrishnan, N., and Sinha, N.K., “Level Flight Trim and Stability Analysis using using Extended Bifurcation and Continuation Procedure” , Journal of Guidance Control and Dynamics, Vol. 24, No. 6, 2001, pp. 1225-1228. https://doi.org/10.2514/2.4839

    work page doi:10.2514/2.4839 2001

  8. [8]

    Application of bifurcation methods to nonlinear Llight dynamics problems,

    Goman, M. G., Zagaynov, G.I., and Khramtsovsky, A.V ., “ Application of bifurcation methods to nonlinear Llight dynamics problems,” Progress in Aerospace Sciences, Vol. 33, No. 9-10, 1997, pp. 539-586. https://doi.org/10.1016/S0376-0421(97)00001-8

    work page doi:10.1016/s0376-0421(97)00001-8 1997

  9. [9]

    Use of Bifurcation and Continuation Methods for Aircraft Trim and Stability Analysis – A State-of-the-art

    Paranjape, A., Sinha, N., and Ananthkrishnan, N., “Use of Bifurcation and Continuation Methods for Aircraft Trim and Stability Analysis – A State-of-the-art” , 19 AIAA 2007-1051, 45th AIAA Aerospace Science Meeting and Exhibit, January 8-11, 2007, Reno, Nevada, USA. https://doi.org/10.2514/6.2007-1051

    work page doi:10.2514/6.2007-1051 2007

  10. [10]

    Frequency-Domain Bifurcation Analysis of a Nonlinear Flight Dynamics Model

    Nguyen, Duc H., Lowenberg, M.H., and Neild, S.A., “Frequency-Domain Bifurcation Analysis of a Nonlinear Flight Dynamics Model” , Journal of Guidance, Control and Dynamics, Vol. 44, No. 1, 2021, pp. 138-150. https://doi.org/10.2514/1.G005197

    work page doi:10.2514/1.g005197 2021

  11. [11]

    Nonlinear Dynamics and Chaos with Applications to Physics, Biology, Chemistry, and Engineering

    Steven H. Strogatz, “Nonlinear Dynamics and Chaos with Applications to Physics, Biology, Chemistry, and Engineering” , Chapter 7, Westview Press, 2000, USA. https://www.stevenstrogatz.com/books/nonlinear-dynamics-and-chaos-with-applications-to-physics-biology-chemistry-and-engineering

    work page 2000

  12. [12]

    MATCONT: A MATLAB Package for Numerical Bifurcation Analysis of ODEs,

    Dhooge, A., Govaerts, W ., and Kuznetsov, Y .A., “MATCONT: A MATLAB Package for Numerical Bifurcation Analysis of ODEs,” ACM Transactions on Mathematical Software, Vol. 29, No. 2, 2003, pp. 141-164

    work page 2003

  13. [13]

    https://doi.org/10.1201/b15956

    work page doi:10.1201/b15956

  14. [14]

    1995-2003

    Polking, John, C., pplane. 1995-2003. https://math.rice.edu/~polking/odesoft/dfpp.html

    work page 1995
