A GPU-enhanced workflow for non-Fourier SENSE reconstruction

Samuel Bianchi , Klaas P. Pruessmann
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:19 UTC · model grok-4.3

classification 📡 eess.IV
keywords non-Fourier SENSEGPU reconstructionspiral trajectoryB0 off-resonancecoil sensitivityMRI image reconstructionundersampled data
0
0 comments X

The pith

A GPU implementation makes non-Fourier SENSE reconstruction feasible for long-readout spiral MRI data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a workflow for mapping coil sensitivities and B0 off-resonance fields to support non-Fourier SENSE reconstruction in MRI. This reconstruction method is necessary when data from spiral trajectories with long readouts and B0 effects cannot be handled by standard FFT-based methods. An implementation optimized for GPU execution is provided and tested on 2D and 3D spiral datasets with readouts up to 71.5 milliseconds and undersampling up to factor 7. The work shows that runtimes become practical with GPU acceleration and emphasizes correct stopping to avoid artifacts. All components are released as open code.

Core claim

The authors provide an efficient GPU implementation of non-Fourier SENSE that incorporates full signal models for sensitivities and B0, achieving high performance on spiral data with extended readout durations and high acceleration factors, with practical runtimes and robust mapping workflow.

What carries the argument

The non-Fourier SENSE iterative reconstruction algorithm, accelerated on GPU via selective use of the FFT, supported by a pipeline for accurate coil sensitivity and B0 field mapping.

If this is right

  • Reconstruction of highly undersampled spiral data with long readouts becomes computationally viable.
  • GPU acceleration significantly reduces the time needed compared to CPU-only versions.
  • Careful choice of stopping criteria is required to maintain image quality without introducing artifacts.
  • Open availability of the code allows direct use and adaptation in other research settings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar workflows could be adapted for other non-Cartesian k-space trajectories.
  • Real-time or online reconstruction pipelines might benefit from this GPU approach.
  • Further optimizations could target even longer readouts or higher dimensions.

Load-bearing premise

The non-Fourier signal model along with the calculated sensitivity and B0 maps must faithfully capture the actual physical signal acquisition so the solver yields clean images.

What would settle it

If reconstructed images from the 2D or 3D spiral test datasets exhibit uncorrectable artifacts even at optimal stopping points, or if they deviate substantially from known reference reconstructions, the performance claim would be undermined.

Figures

Figures reproduced from arXiv: 2604.09233 by Klaas P. Pruessmann, Samuel Bianchi.

Figure 1

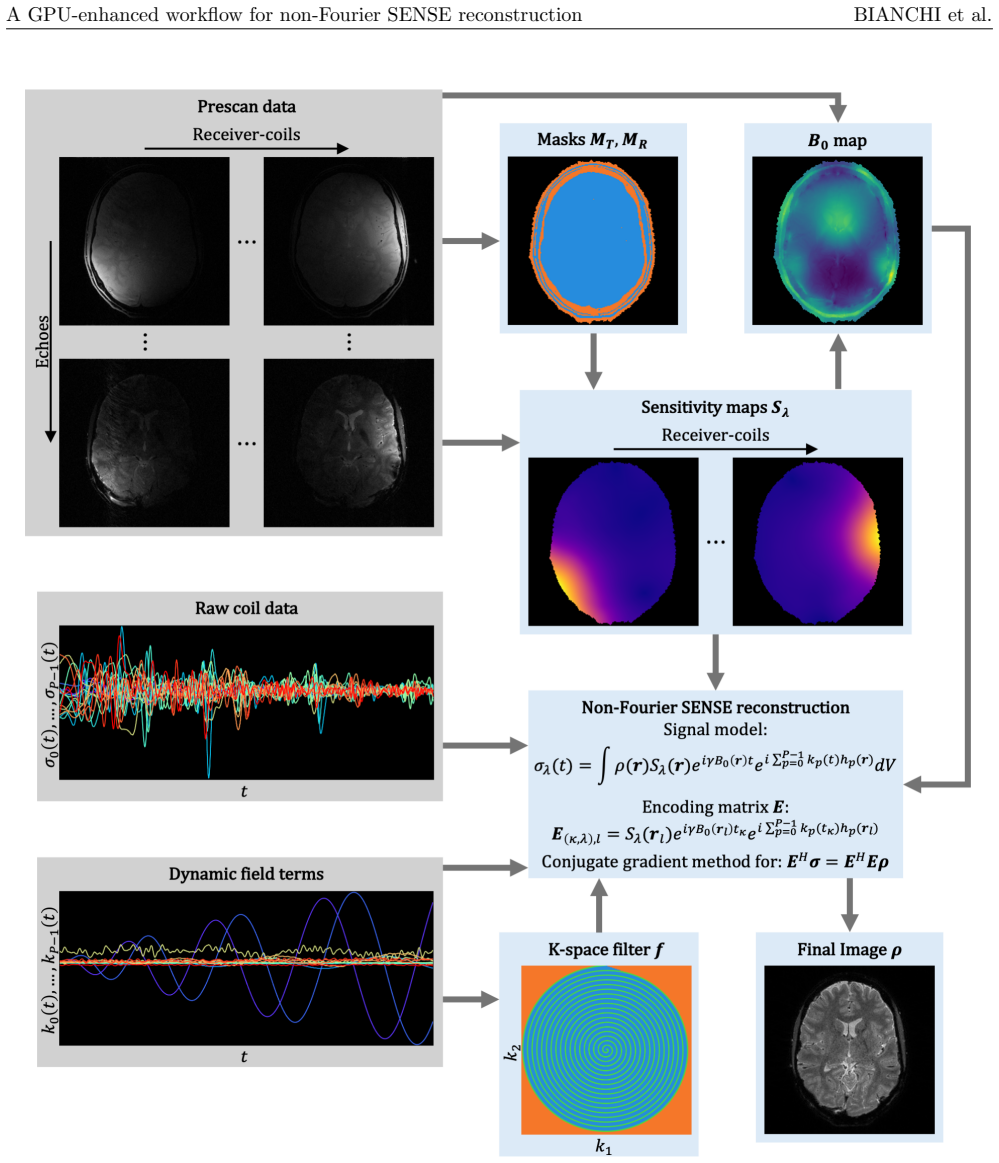

Figure 1. Figure 1: Overview of all the necessary data and processing steps for non-Fourier SENSE reconstruction. Prescan data are used to compute a trusted mask (MT , blue) and a reconstruction mask (MR, red). The trusted mask contains all voxels with a sufficiently high signal-to-noise ratio (SNR) to compute sensitivity maps Sλ, and the reconstruction mask contains all voxels where signal sources (spins) may have been prese… view at source ↗
Figure 2
Figure 2. Figure 2: Top-left: Non-Fourier SENSE reconstruction if enough memory for all arrays is available. Top-right: Column-major non-Fourier SENSE reconstruction if not enough memory for the matrix P is available. All other arrays are expected to fit into memory. Bottom-left: Descriptive information for both algorithms. Bottom-right: Necessary adaptions of the column-major non-Fourier SENSE reconstruction for an implement… view at source ↗
Figure 3
Figure 3. Figure 3: Single-shot 2D spiral images. FOV: 219x219x36mm, Resolution: 1x1x2mm, Slice gap: 0mm, R = 2, 3, 4, 5, 6, TE = 30ms, TAq = 71.5ms, 47.7ms, 35.8ms, 28.7ms, 24ms, Number of CG iterations: 7, 13, 16, 26, 46. Reference images from a spin-warp scan are shown at the bottom row for comparison. 23 / 31 [PITH_FULL_IMAGE:figures/full_fig_p024_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: 3D T-Hex spiral images. FOV: 219x219x36mm, Resolution: 1x1x2mm, R = 3, 4, 5, 6, 7, TE = 30ms, TR = 250ms, TAq = 67.1ms, 58.2ms, 52.1ms, 47.6ms, 44.1ms, Number of CG iterations: 47, 37, 46, 50, 56. Reference images from a spin-warp scan are shown at the bottom row for comparison. 24 / 31 [PITH_FULL_IMAGE:figures/full_fig_p025_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Influence of higher-order field terms on non-Fourier SENSE reconstruction. Top row: Re￾construction results when using field terms up to 3rd-order for the 2D and 3D spiral datasets. Bottom row: Equivalent results when using field terms up to 1st-order. 25 / 31 [PITH_FULL_IMAGE:figures/full_fig_p026_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Top row: L-curves (250 CG iterations) for the reconstruction of 1 slice of the 2D spiral dataset and the reconstruction of the 3D spiral dataset. Arrows indicate in which direction the L-curve is traversed over the CG iterations. Crosses indicate when visual inspection suggest good image quality. Middle row: Evolution of SSIM, for both datasets, over 250 CG iterations. The reference image shown on the bott… view at source ↗
Figure 7
Figure 7. Figure 7: Influence of sensitivity map (Sλ) -processing on non-Fourier SENSE reconstruction. Top row: Sensitivity maps of all 16 receiver coils and reconstruction examples after using the suggested smoothing and extrapolation algorithm. Bottom row: Equivalent examples computed without applying the suggested smoothing and extrapolation algorithm. Magnitude and phase of the reconstructed images are shown and compared … view at source ↗
Figure 8
Figure 8. Figure 8: Influence of B0 map-processing on non-Fourier SENSE reconstruction. Top row: B0 maps and reconstruction examples after using the suggested smoothing and extrapolation algorithm. Second row: Equivalent examples computed without any processing of the B0 map. Third row: Equivalent examples computed after smoothing the B0 map with a Gaussian filter. Bottom row: Equivalent exam￾ples computed after removing nois… view at source ↗
Figure 9
Figure 9. Figure 9: Influence of the reconstruction mask (MR) on non-Fourier SENSE reconstruction. For the examples shown, MR, computed as suggested, was shrinked to coincide with the trusted mask (MT ), dilated, and expanded to cover the full field of view (FOV). The corresponding masks are displayed in the left column. The sensitivity maps (Sλ) and B0 maps were computed accordingly and are presented in the second and third … view at source ↗
Figure 10
Figure 10. Figure 10: Influence of the k-space filter (f) on non-Fourier SENSE reconstruction. Left side: Unfiltered k-space content of the reconstructed image. Right side, top row: K-space filter and reconstruction examples after using the suggested computation method. Second row: Equivalent examples computed after dilating the suggested k-space filter. Third row: Equivalent examples computed when not applying the kspace filt… view at source ↗
read the original abstract

Purpose: Image reconstruction in challenging scenarios requires accurate characterisations of coil sensitivity profiles, local off-resonances (B0) and effective encoding fields. Reconstruction methods utilising all of this information rely on signal models that are not compatible with the classical Fourier/k-space interpretation of the coil data. Hence, the FFT and related techniques are no more applicable, rendering image reconstruction computationally demanding. Methods: This article contains a workflow for accurate sensitivity and B0 mapping as well as other required processing steps. An implementation of non-Fourier SENSE reconstruction is provide that is well suited for execution on a GPU using the FFT. Important practical aspects like stopping criteria and sources of image artifacts are analyzed and documented. Results: Highly performant image reconstruction could be demonstrated on a 2D and 3D spiral dataset. These datasets contain trajectories featuring readout durations up to 71.5ms and undersampling factors up to R = 7. Running the reconstruction on a GPU greatly boosts reconstruction speed. Stopping the reconstruction at the right moment is crucial for image quality. All methods included in this article are available in a public code repository. Conclusion: The provided implementation of non-Fourier SENSE reconstruction is highly performant. When it is executed on GPU, runtimes reach a duration feasible in practice. The presented workflow ensures robust and accurate computation of coil sensitive profiles and off-resonance maps.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes a complete workflow for non-Fourier SENSE MRI reconstruction, including methods for computing coil sensitivity profiles and B0 off-resonance maps, an iterative solver implementation optimized for GPU execution via FFT, analysis of stopping criteria and artifact sources, and demonstration on 2D and 3D spiral k-space trajectories with readout durations up to 71.5 ms and acceleration factors up to R=7. The code is made publicly available.

Significance. If the results hold, this work provides a practical, GPU-accelerated solution for high-performance image reconstruction in challenging non-Cartesian MRI scenarios where standard FFT-based methods fail. The public code repository is a strength, enabling reproducibility and further development. The analysis of practical aspects like stopping criteria adds value for users.

major comments (2)
  1. [Abstract and Results] Abstract and Results: The claims of 'highly performant' reconstruction and 'robust and accurate' mapping are not supported by quantitative error metrics (e.g., RMSE or SSIM relative to a reference image), direct comparisons to alternative reconstructions, or numerical runtime benchmarks with and without GPU acceleration.
  2. [Methods] Methods: No explicit description or validation (e.g., phantom-based checks or consistency metrics) is given for the accuracy of the computed sensitivity profiles and B0 maps, which is central to the assumption that the non-Fourier signal model accurately describes the acquisition.
minor comments (2)
  1. [Abstract] The abstract would benefit from inclusion of at least one concrete runtime or speedup value to quantify the GPU advantage.
  2. [Figures] Figure legends and dataset descriptions could be expanded to clarify the exact spiral trajectories, coil counts, and field strengths used in the demonstrations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and recommendation for minor revision. We address each major comment below, indicating the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract and Results] Abstract and Results: The claims of 'highly performant' reconstruction and 'robust and accurate' mapping are not supported by quantitative error metrics (e.g., RMSE or SSIM relative to a reference image), direct comparisons to alternative reconstructions, or numerical runtime benchmarks with and without GPU acceleration.

    Authors: We agree that quantitative metrics would provide stronger support for the performance claims. The current results emphasize practical demonstration on challenging long-readout spiral data with high acceleration. In the revision we will add runtime benchmarks (GPU versus CPU) and error metrics such as RMSE or SSIM against a reference reconstruction where a suitable reference is available from the datasets, along with brief comparisons to alternative reconstruction approaches. revision: yes

  2. Referee: [Methods] Methods: No explicit description or validation (e.g., phantom-based checks or consistency metrics) is given for the accuracy of the computed sensitivity profiles and B0 maps, which is central to the assumption that the non-Fourier signal model accurately describes the acquisition.

    Authors: The Methods section outlines the sensitivity and B0 mapping workflow using established techniques, but we acknowledge that additional explicit description and validation would improve clarity. We will expand the description of these steps and incorporate consistency metrics or cross-validation checks on the provided in vivo datasets to better substantiate map accuracy. revision: yes

Circularity Check

0 steps flagged

No significant circularity in implementation workflow

full rationale

The paper is an engineering and implementation description of a GPU-accelerated non-Fourier SENSE workflow, including sensitivity/B0 mapping, iterative solver details, stopping criteria, and artifact analysis. It demonstrates feasible runtimes and image quality on provided 2D/3D spiral datasets (readouts to 71.5 ms, R=7) via public code, but makes no first-principles derivations, predictions, or uniqueness claims that reduce by construction to quantities fitted from the same data. All load-bearing steps are explicit processing choices and empirical checks external to any self-referential loop; the model-accuracy assumption is the standard one for such reconstructions and is addressed by documented validation rather than by definition.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is an engineering implementation that relies on established MRI forward models and numerical optimization rather than introducing new theory or fitted constants.

axioms (1)
  • domain assumption The non-Fourier signal model accurately captures coil sensitivities, B0 offsets, and encoding fields in the acquired data
    Invoked throughout the reconstruction workflow and GPU implementation description.
