Commissioning measurements for a very cold neutron interferometer based on nanodiamond-polymer composite gratings

Roxana H. Ackermann , Sonja Falmbigl , Elhoucine Hadden , Alexia Dubois Leprou , Hanno Filter-Pieler , Tobias Jenke , J\"urgen Klepp , Christian Pruner
show 2 more authors
Yasuo Tomita Martin Fally
This is my paper

Pith reviewed 2026-05-10 17:17 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords very cold neutronsnanodiamond-polymer compositeneutron interferometryholographic gratingsdiffraction efficiencybeam splitterstriple-Laue interferometer
0
0 comments X

The pith

Nanodiamond-polymer composite gratings serve as viable beam splitters and mirrors for very cold neutron interferometers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that holographic nanodiamond-polymer composite gratings can diffract very cold neutrons with sufficient efficiency and angular selectivity to act as the mirrors and beam splitters in a triple-Laue interferometer. It presents optical and neutron characterization data along with the first assembly and operation of such an interferometer at a beamline, including practical layout details for ongoing use. A sympathetic reader would see this as establishing a new hardware path for precision neutron phase measurements at very low energies, where neutron wavelengths are longer and certain interaction effects may be more accessible.

Core claim

The authors establish through commissioning measurements that nanodiamond-polymer composite gratings provide sufficient diffraction efficiency and angular selectivity under very cold neutron conditions to enable the construction and operation of a triple-Laue interferometer, with practical considerations for long-term use at a beamline.

What carries the argument

Holographic nanodiamond-polymer composite gratings used as diffractive mirrors and beam splitters in a triple-Laue (LLL) geometry for very cold neutrons.

If this is right

  • The gratings can be integrated into working VCN interferometers for phase shift measurements.
  • Refinements in grating fabrication offer a direct route to higher performance.
  • Precision neutron phase measurements become feasible in the very cold regime.
  • The described interferometer layout supports reliable long-term beamline operation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Longer de Broglie wavelengths of very cold neutrons could increase phase sensitivity in future measurements compared with thermal neutrons.
  • The same composite grating approach may extend to other neutron optical components such as lenses or monochromators.
  • Continuous monitoring of grating stability under flux would be required to confirm sustained interferometer contrast over weeks or months.

Load-bearing premise

The composite gratings maintain their diffraction properties without significant degradation over time when exposed to the neutron beam and environmental conditions at the beamline.

What would settle it

Failure to observe clear interference fringes with measurable contrast when the three gratings are aligned in the LLL configuration under very cold neutron illumination would falsify the claim of viability for interferometer operation.

Figures

Figures reproduced from arXiv: 2604.09312 by Alexia Dubois Leprou, Christian Pruner, Elhoucine Hadden, Hanno Filter-Pieler, J\"urgen Klepp, Martin Fally, Roxana H. Ackermann, Sonja Falmbigl, Tobias Jenke, Yasuo Tomita.

Figure 1
Figure 1. Figure 1: FIG. 1. Temporal grating buildup dynamics during holographic recording for G [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

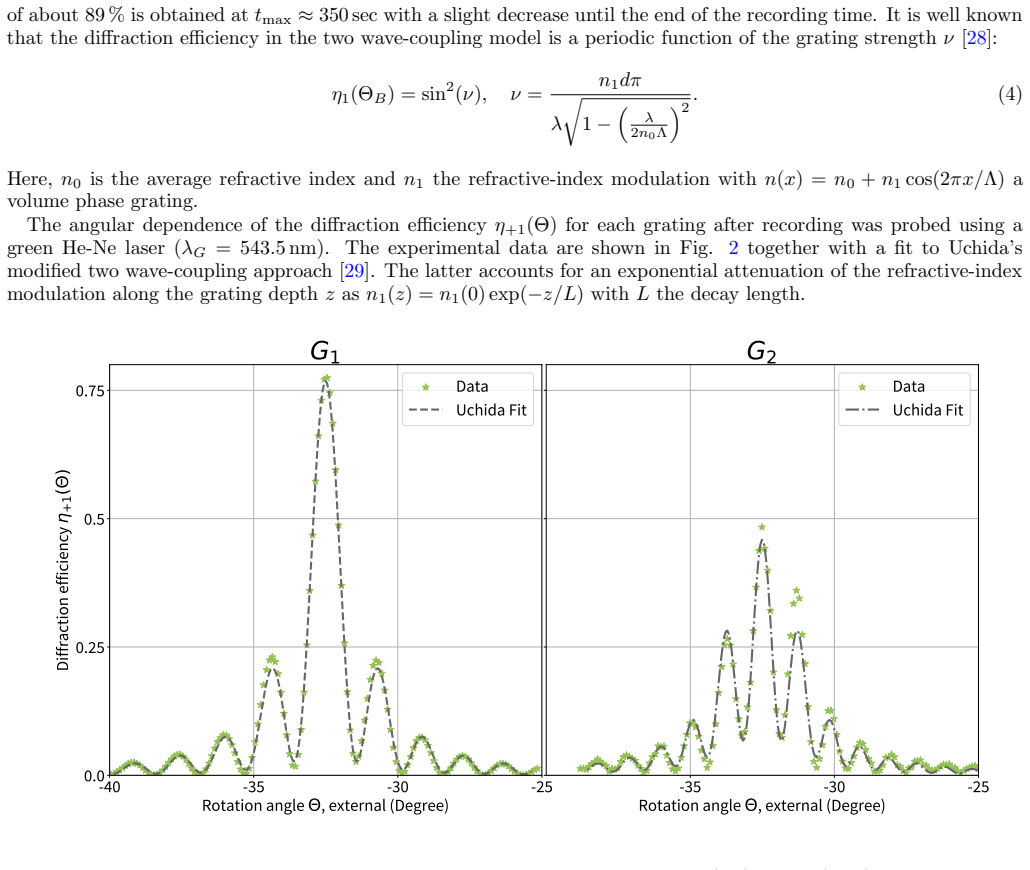

Figure 2. Figure 2: FIG. 2. Angular dependence of the diffraction efficiency for interferometer gratings G [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

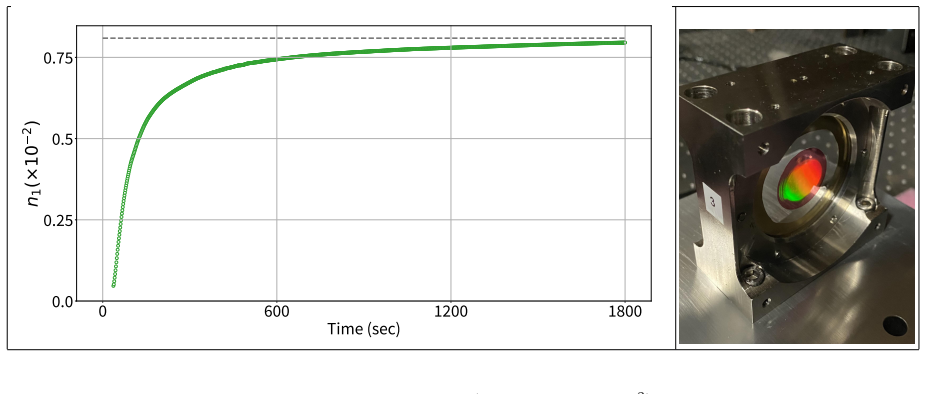

Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

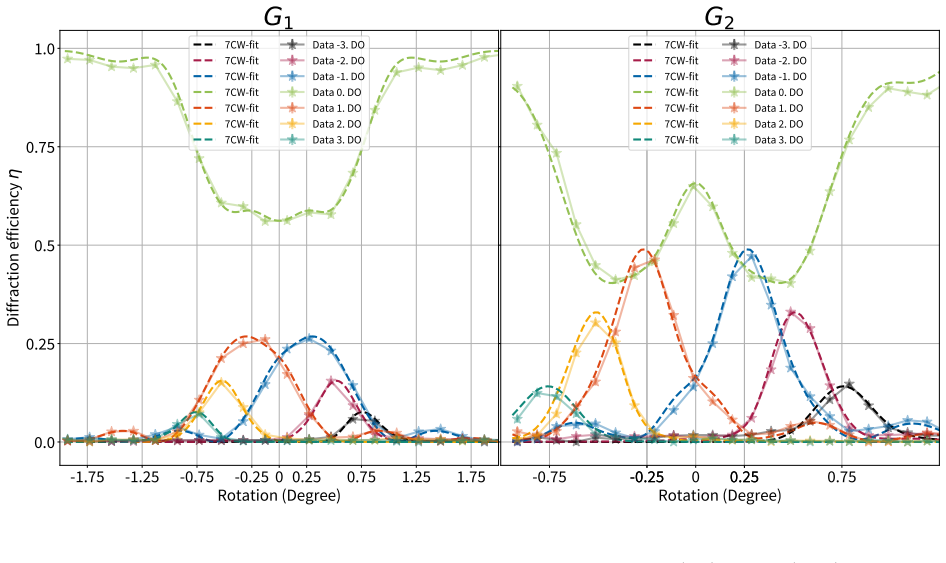

Figure 4. Figure 4: FIG. 4. Angular dependence of the diffraction efficiency for interferometer gratings G [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

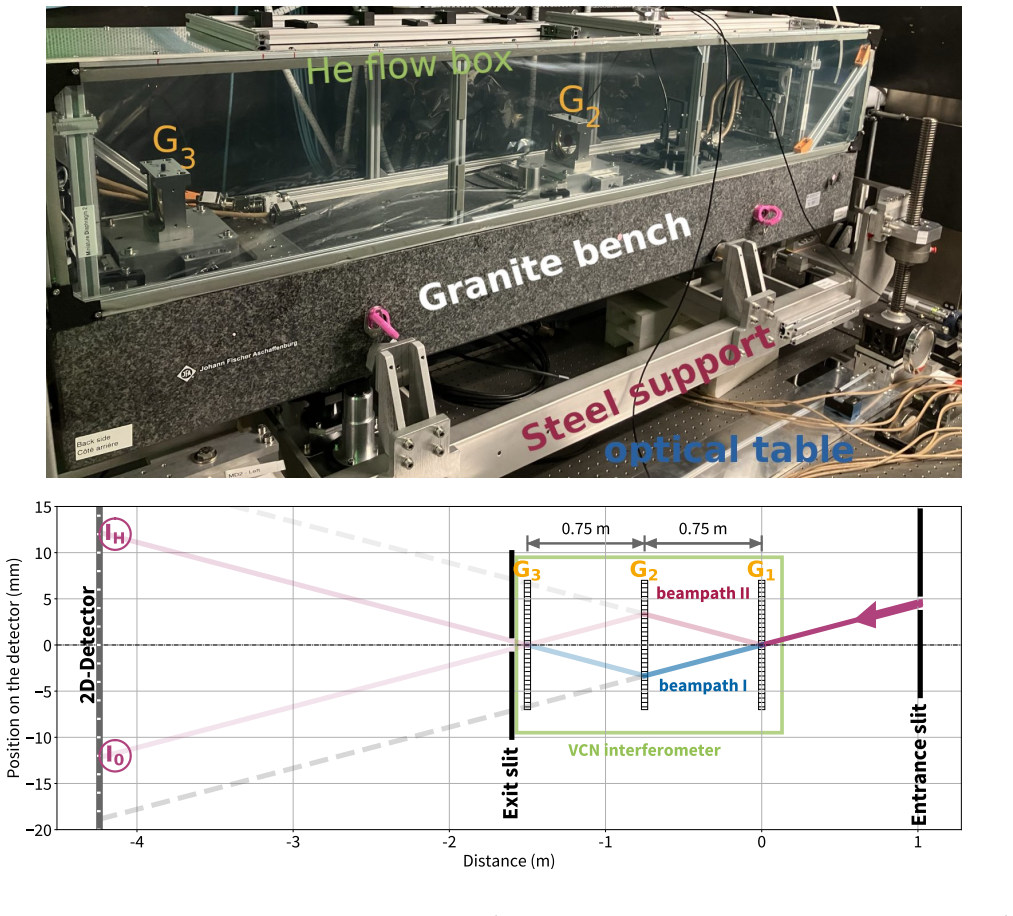

Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

Over the past decade, holographic nanodiamond-polymer composite gratings have been developed and optimized as high-efficiency diffractive elements for very cold neutrons (VCN), for use as mirrors and beam splitters in a triple-Laue (LLL) interferometer. We report their optical characterization and, crucially, their neutron-optical performance, including diffraction efficiency and angular selectivity under VCN conditions. We further demonstrate their integration into a VCN interferometer. The layout of the interferometer and its first implementation at the beamline are described, highlighting practical considerations for long-term operation. We discuss avenues for performance improvement, in particular grating fabrication refinements. These results establish nanodiamond-polymer composite gratings as viable components for VCN interferometry and pave a way toward precision neutron phase measurements in the very cold regime.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports commissioning measurements for a very cold neutron (VCN) triple-Laue (LLL) interferometer based on holographic nanodiamond-polymer composite gratings. It presents optical and neutron characterization results including diffraction efficiency and angular selectivity, describes the interferometer layout and its initial beamline implementation, and discusses practical considerations for long-term operation along with fabrication refinements for performance improvement.

Significance. If the reported performance holds under sustained conditions, this work would establish these composite gratings as viable diffractive elements for VCN interferometry, enabling new precision phase measurements in a regime inaccessible to conventional materials. The direct experimental integration into a functional interferometer layout is a concrete advance with clear implications for neutron optics.

major comments (1)
  1. [Discussion of practical considerations for long-term operation] The central viability claim for interferometer components rests on reliable long-term performance, yet the section discussing practical considerations for long-term operation provides only qualitative remarks without quantitative data on efficiency, selectivity, or coherence degradation after extended VCN exposure. This omission leaves the weakest assumption untested and directly undercuts the assertion that the gratings 'establish' sustained viability.
minor comments (2)
  1. Tabulate the measured diffraction efficiencies and angular selectivities with uncertainties and beam parameters for direct comparison to prior work.
  2. [Interferometer layout and implementation] Clarify the exact beamline facility and VCN wavelength range used in the first implementation to aid reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive evaluation of the significance of our commissioning measurements and for the constructive feedback on the long-term performance discussion. We address the major comment below and will revise the manuscript to better contextualize our results.

read point-by-point responses

  1. Referee: The central viability claim for interferometer components rests on reliable long-term performance, yet the section discussing practical considerations for long-term operation provides only qualitative remarks without quantitative data on efficiency, selectivity, or coherence degradation after extended VCN exposure. This omission leaves the weakest assumption untested and directly undercuts the assertion that the gratings 'establish' sustained viability.

    Authors: We agree that quantitative long-term exposure data would provide stronger support for claims of sustained viability. As this work reports initial commissioning measurements of a newly implemented interferometer at the beamline, extended VCN exposure data on efficiency, angular selectivity, and coherence degradation is not yet available. The practical considerations section is based on prior material characterizations of nanodiamond-polymer composites (including radiation hardness) rather than new long-term neutron tests. In the revised manuscript we will explicitly note this limitation, adjust the abstract and conclusions to describe the gratings as demonstrating 'initial viability' for VCN interferometry while 'paving the way' for sustained use, and add a forward-looking statement on planned long-term stability measurements. These textual revisions will address the concern directly. revision: partial

Circularity Check

0 steps flagged

No circularity: direct experimental commissioning report

full rationale

The paper reports fabrication, optical/neutron characterization (diffraction efficiency, angular selectivity), and first implementation of nanodiamond-polymer gratings in an LLL VCN interferometer. All central claims rest on measured beamline data rather than any derivation, fitted parameter renamed as prediction, or self-citation chain. No equations, ansatzes, or uniqueness theorems appear; the work is self-contained empirical reporting with no load-bearing steps that reduce to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on empirical measurements of grating performance and interferometer functionality rather than theoretical derivation. No free parameters, axioms, or invented entities are introduced in the abstract.

pith-pipeline@v0.9.0 · 5474 in / 1156 out tokens · 59745 ms · 2026-05-10T17:17:45.894483+00:00 · methodology
