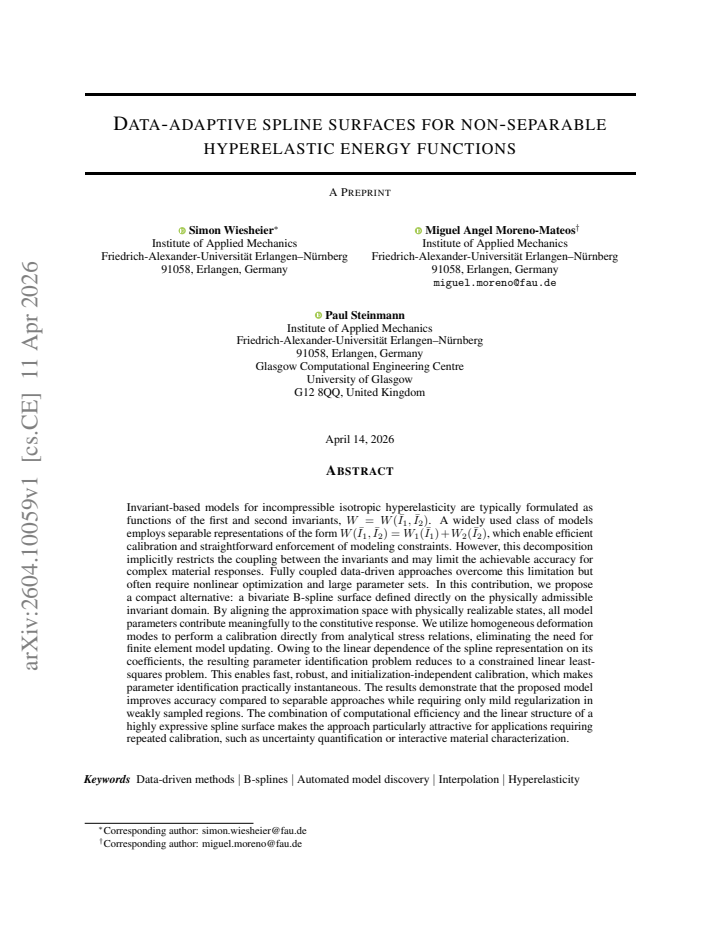

Data-adaptive spline surfaces for non-separable hyperelastic energy functions

Simon Wiesheier , Miguel Angel Moreno-Mateos , Paul Steinmann This is my paper

Pith reviewed 2026-05-10 16:10 UTC · model grok-4.3

classification 💻 cs.CE
keywords hyperelasticityB-spline surfacesnon-separable invariantsdata-driven constitutive modelinglinear least-squares calibrationincompressible isotropichomogeneous deformation
0
0 comments X

The pith

A bivariate B-spline surface on the invariant domain models non-separable hyperelastic energies with fast linear calibration from homogeneous deformations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes replacing the separable form of hyperelastic strain energy with a bivariate B-spline surface defined directly on the physically admissible domain of the first and second invariants. This surface captures arbitrary coupling between the invariants while keeping the representation compact. Because the energy depends linearly on the spline coefficients, fitting to stress data from simple homogeneous deformation tests reduces to a constrained linear least-squares problem that solves quickly without sensitivity to starting values. A sympathetic reader would care because the combination yields higher accuracy than separable models yet remains efficient enough for tasks that require many repeated calibrations.

Core claim

By aligning the approximation space of a bivariate B-spline surface with physically realizable states in the invariant domain, all model parameters contribute meaningfully to the constitutive response. Calibration proceeds directly from analytical stress relations obtained under homogeneous deformation modes, turning the parameter identification problem into a constrained linear least-squares task that is fast, robust, and independent of initialization. The resulting model improves accuracy over separable representations while requiring only mild regularization in sparsely sampled regions.

What carries the argument

The bivariate B-spline surface defined directly on the physically admissible invariant domain, which encodes the full non-separable dependence of the strain-energy function on the two invariants.

If this is right

  • The model achieves higher accuracy than separable representations for complex material responses.
  • Parameter identification reduces to a linear problem that solves practically instantaneously.
  • Only mild regularization is required in regions with sparse sampling.
  • The efficiency makes the approach suitable for applications requiring repeated calibration such as uncertainty quantification and interactive material characterization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The linear calibration could be embedded inside experimental control loops to update material parameters in real time during testing.
  • The same spline construction offers a practical middle path between restrictive analytical forms and heavy black-box models when constitutive data arrive incrementally.
  • Extensions to anisotropic hyperelasticity would require only a change in the underlying invariant set while preserving the linear fitting structure.

Load-bearing premise

Homogeneous deformation modes alone supply sufficient and representative data across the entire physically admissible invariant domain, and the spline surface can be aligned with realizable states so that all coefficients contribute meaningfully without introducing non-physical artifacts.

What would settle it

A withheld set of mixed-mode deformation tests on which the fitted spline produces stress errors larger than those of a calibrated separable model, or violates basic physical requirements such as positive definiteness of the tangent stiffness, would disprove the claimed accuracy and reliability gains.

Figures

Figures reproduced from arXiv: 2604.10059 by Miguel Angel Moreno-Mateos, Paul Steinmann, Simon Wiesheier.

Figure 1

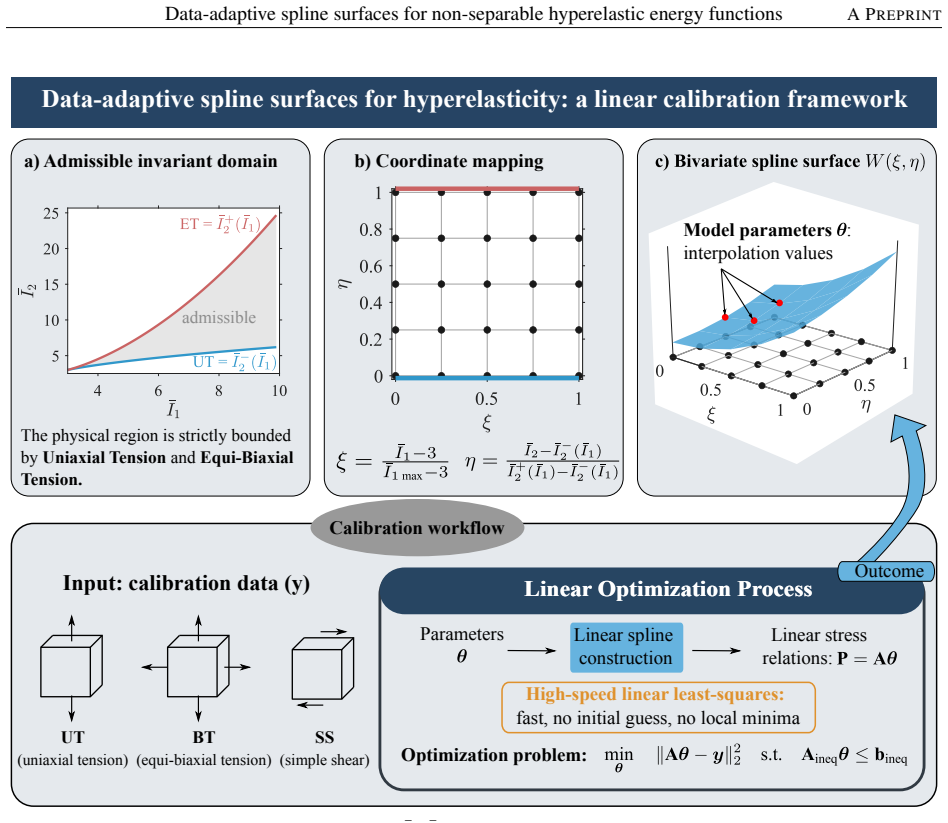

Figure 1. Figure 1: The admissible invariant domain (a) in the ( [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

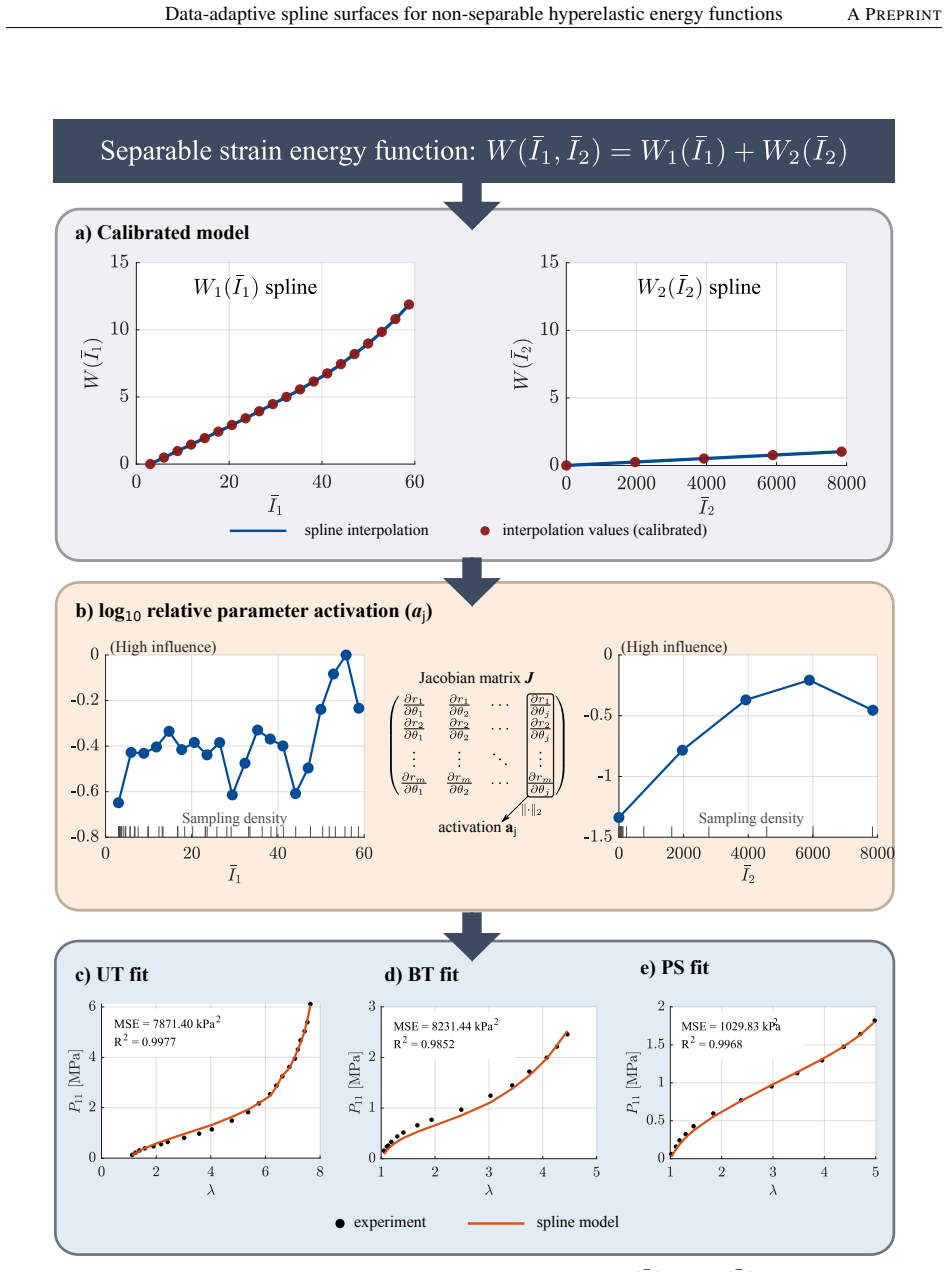

Figure 2. Figure 2: Results for the separable spline model. (a) Calibrated univariate splines [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3

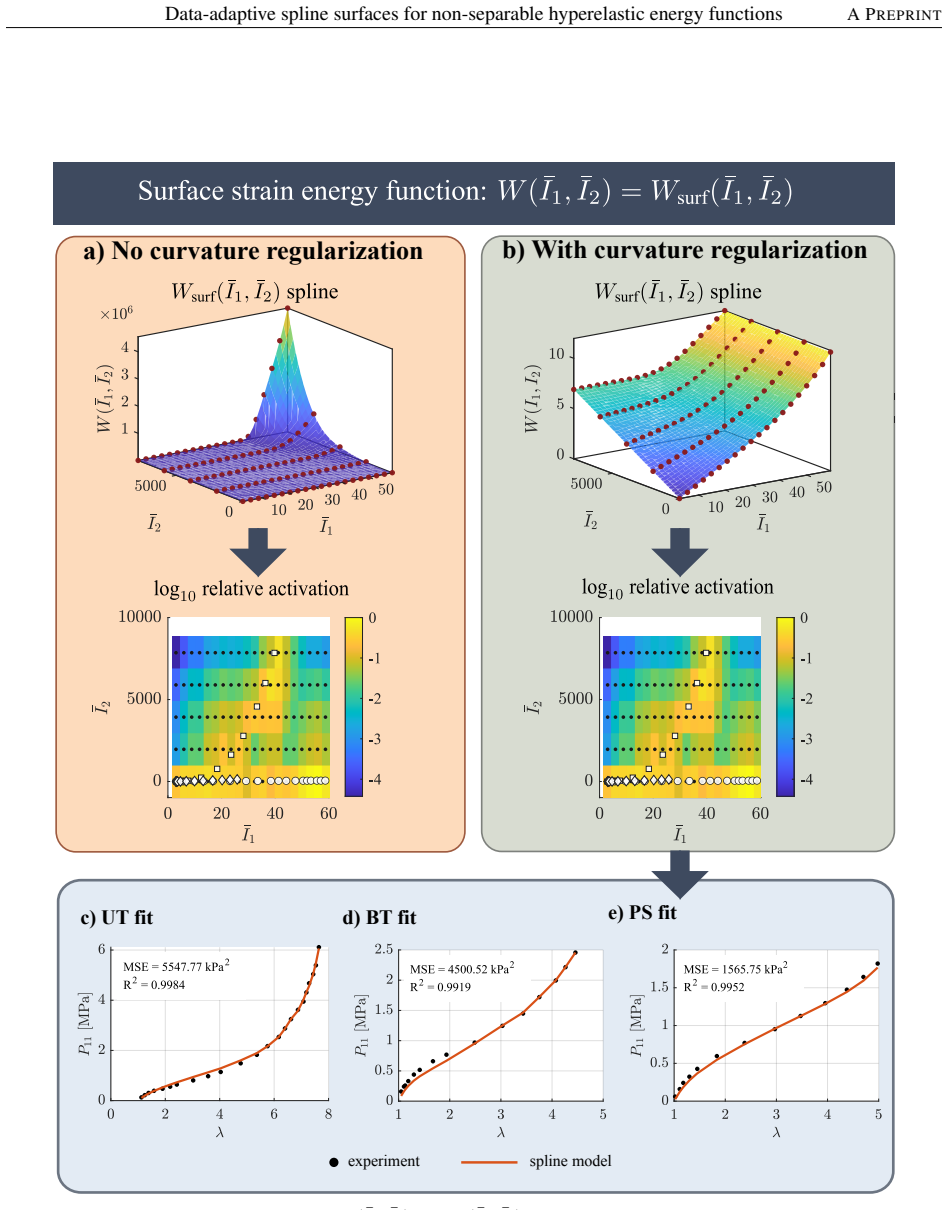

Figure 3. Figure 3: Results for the spline surface Wsurf(I¯1, I¯2) in the (I¯1, I¯2) space. (a) Calibration without curvature regularization. (b) Calibration with a mild curvature penalty. The heatmap shows the logarithmic relative parameter activation as defined in Equation (69). (c) Comparison of model predictions based on (b) with experimental Treloar data for the deformation modes UT, BT, and PS. 13 [PITH_FULL_IMAGE:figu… view at source ↗
Figure 4

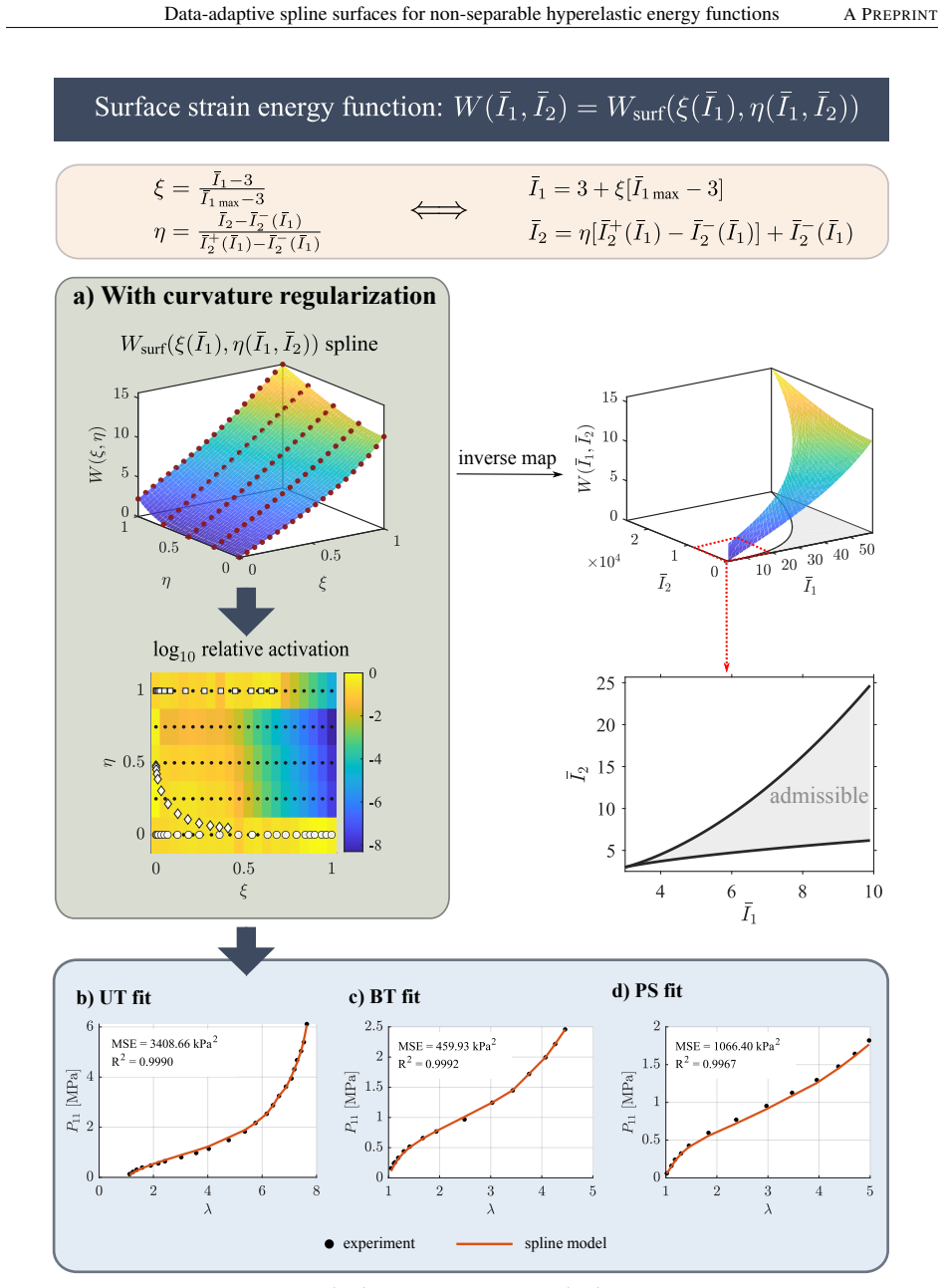

Figure 4. Figure 4: Results for the spline surface Wsurf(ξ, η) in normalized coordinates (ξ, η). (a) Calibrated spline surface together with the logarithmic relative parameter activation. The inverse mapping of the spline grid from (ξ, η) to (I¯1, I¯2) defines the same surface on the admissible invariant domain. (b) Comparison of model predictions based on (a) with experimental Treloar data for the deformation modes UT, BT, a… view at source ↗
Figure 5

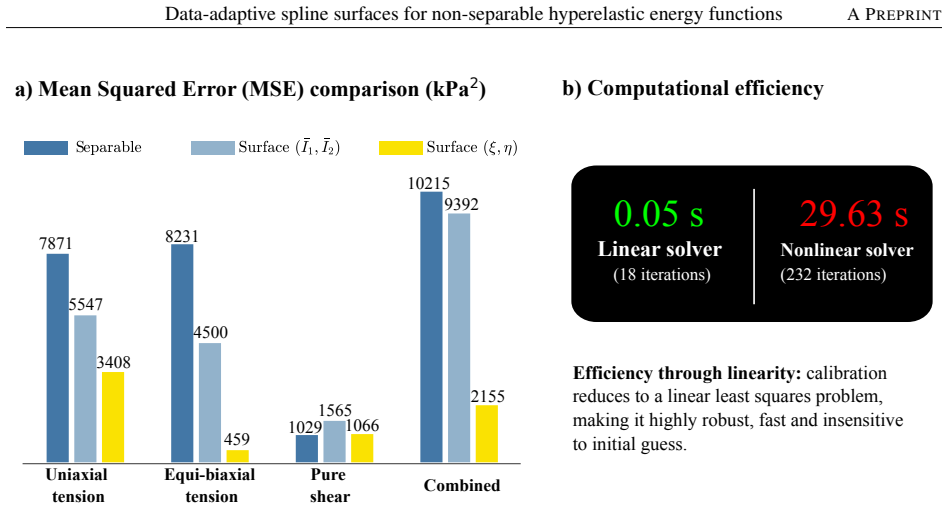

Figure 5. Figure 5: Quantitative evaluation of model accuracy and calibration time. (a) Mean squared error (MSE) for uniaxial tension, [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6

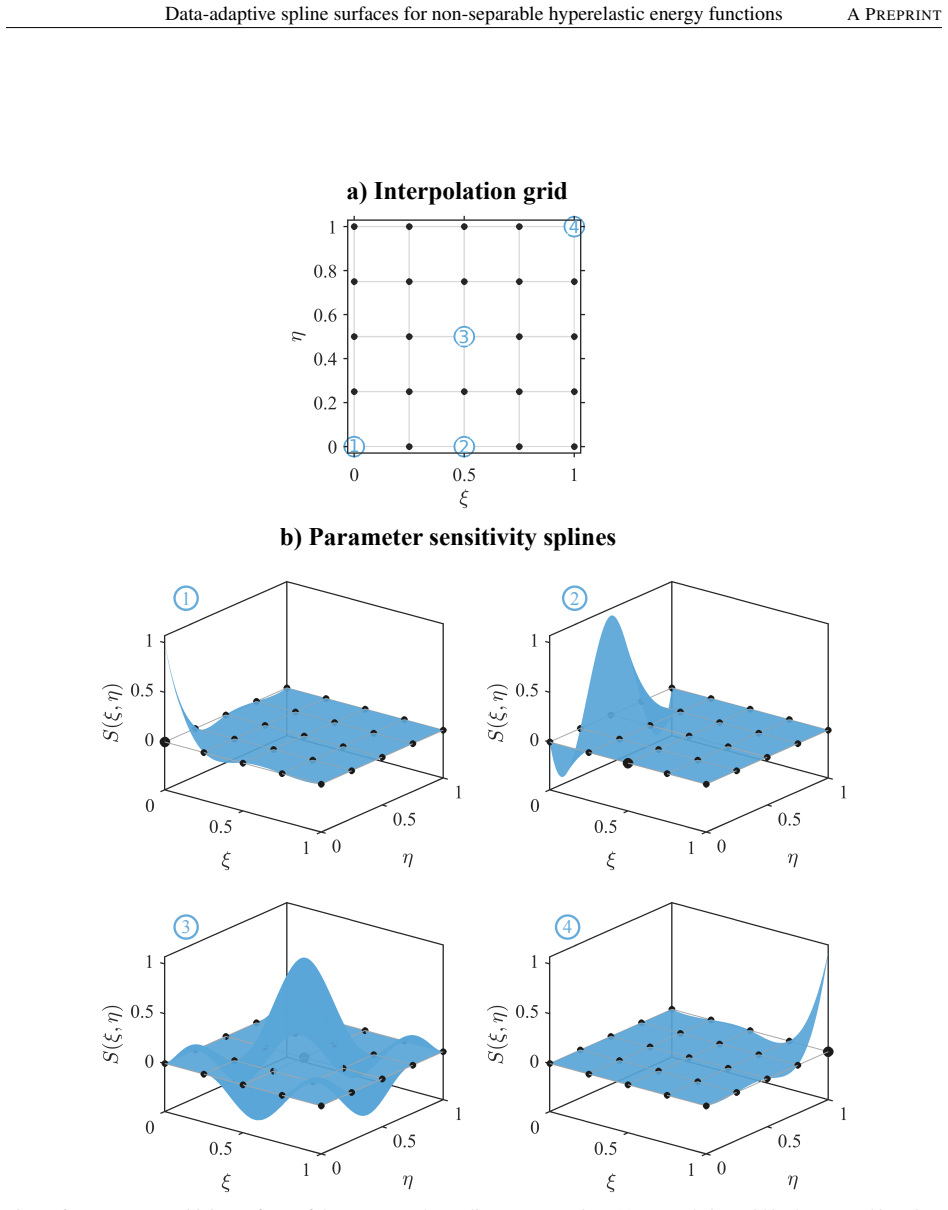

Figure 6. Figure 6: Parameter sensitivity surfaces of the tensor-product spline representation. (a) Interpolation grid in the mapped invariant [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7

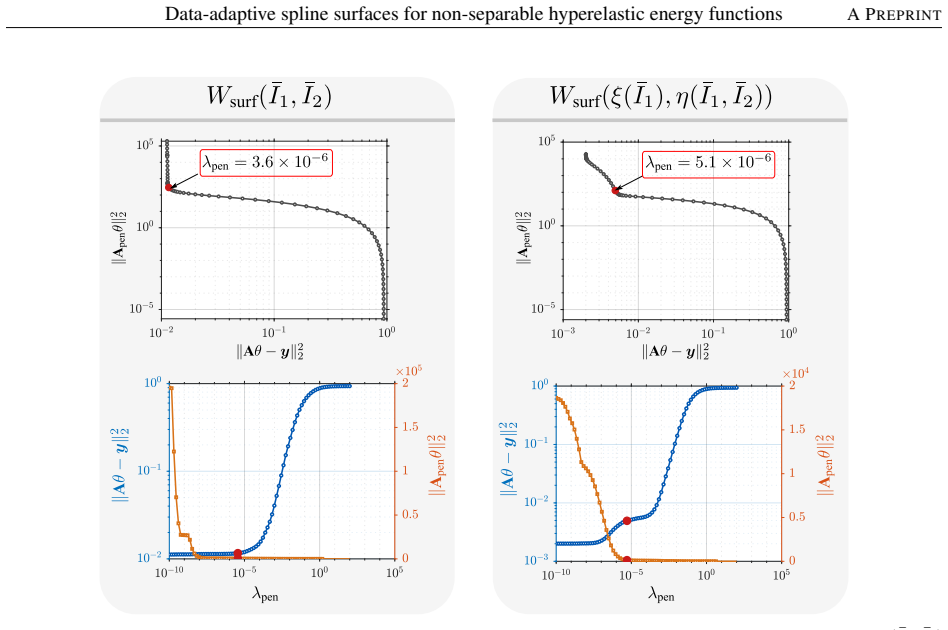

Figure 7. Figure 7: Automatic selection of the curvature regularization parameter [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
