arxiv: 2604.10313 · v1 · submitted 2026-04-11 · ⚛️ physics.ins-det

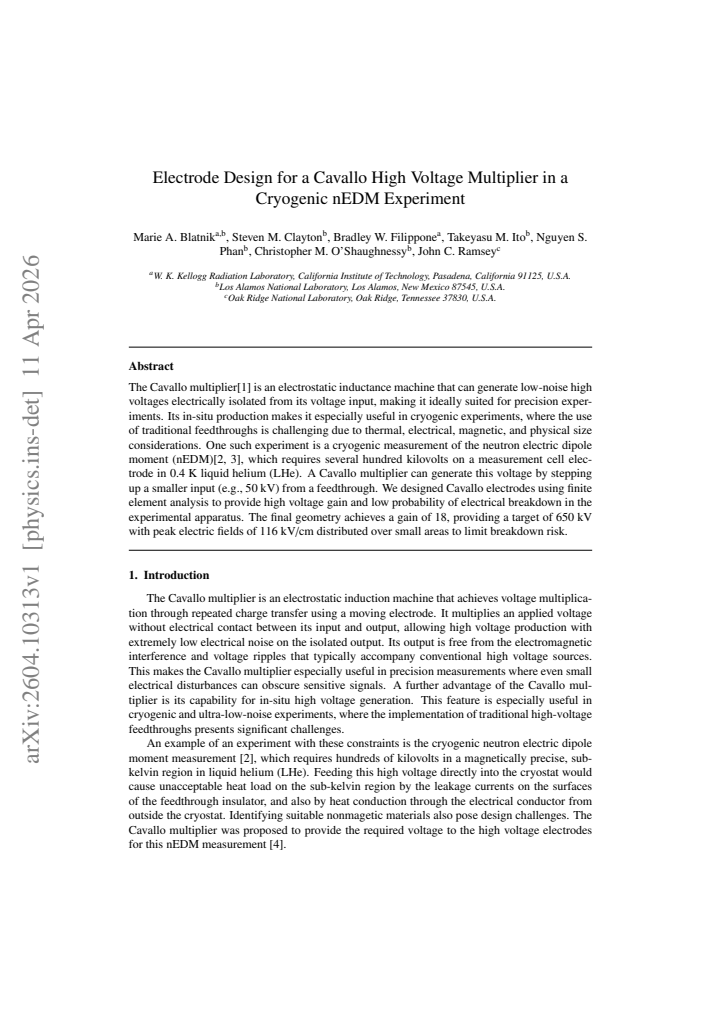

Electrode Design for a Cavallo High Voltage Multiplier in a Cryogenic nEDM Experiment

Marie A. Blatnik (1 , 2) , Steven M. Clayton (2) , Bradley W. Filippone (1) , Takeyasu M. Ito (2) , Nguyen S. Phan (2) , Christopher M. O'Shaughnessy (2) , John C. Ramsey (3) ((1) California Institute of Technology
show 2 more authors
(2) Los Alamos National Laboratory (3) Oak Ridge National Laboratory)
This is my paper

Pith reviewed 2026-05-10 15:14 UTC · model grok-4.3

classification ⚛️ physics.ins-det
keywords Cavallo multiplierhigh voltage electrodescryogenic experimentfinite element analysisneutron electric dipole momentliquid helium
0
0 comments X

The pith

Electrode geometry for a Cavallo multiplier achieves a voltage gain of 18 to reach 650 kV in cryogenic conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a design for electrodes in a Cavallo high voltage multiplier intended for a cryogenic neutron electric dipole moment experiment. The design uses finite element analysis to optimize the geometry for high voltage gain while minimizing the risk of electrical breakdown in 0.4 K liquid helium. A gain of 18 allows stepping up from a manageable 50 kV input to the required 650 kV output. The peak electric fields are limited to 116 kV/cm over small areas. This approach avoids the challenges of traditional high-voltage feedthroughs in cryogenic setups.

Core claim

The final electrode geometry for the Cavallo multiplier, optimized through finite element analysis, achieves a voltage gain of 18. This provides the target voltage of 650 kV while maintaining peak electric fields of 116 kV/cm distributed over small areas to reduce breakdown probability in the liquid helium environment.

What carries the argument

The optimized electrode geometry in the Cavallo multiplier, determined via finite element analysis, which multiplies the input voltage while controlling electric field strengths.

If this is right

  • Enables production of 650 kV electrically isolated from the input in the cryogenic apparatus.
  • Limits electrical breakdown risk by confining high field regions to small areas.
  • Supports in-situ voltage generation for the nEDM measurement cell without large feedthroughs.
  • Demonstrates the suitability of the Cavallo multiplier for precision cryogenic experiments requiring high voltages.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar electrode designs could apply to other high-voltage cryogenic experiments beyond nEDM.
  • The achieved gain suggests potential for even higher voltages if multiple multipliers are cascaded.
  • Validation in actual helium conditions would be necessary before full integration.

Load-bearing premise

The finite element analysis accurately predicts electric field distributions and breakdown thresholds for the electrode materials in 0.4 K liquid helium.

What would settle it

A direct test measuring the output voltage and observing any breakdown events when operating the multiplier at cryogenic temperatures with the designed electrodes would confirm the performance predictions.

Figures

Figures reproduced from arXiv: 2604.10313 by 2), (2) Los Alamos National Laboratory, (3) Oak Ridge National Laboratory), Bradley W. Filippone (1), Christopher M. O'Shaughnessy (2), John C. Ramsey (3) ((1) California Institute of Technology, Marie A. Blatnik (1, Nguyen S. Phan (2), Steven M. Clayton (2), Takeyasu M. Ito (2).

Figure 1
Figure 1. Figure 1: An example of a Cavallo multiplier: The charge is transferred to the B electrode in (a), then physically moved [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Computer-aided drawings showing the Cavallo multiplier in situ. The left panel depicts the apparatus installed [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The axisymmetric electrostatic model for the Cavallo electrodes. The electrode shapes were tailored together as [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

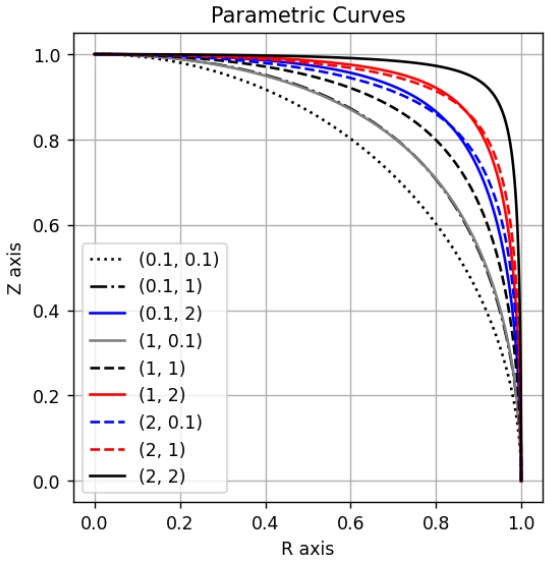

Figure 4. Figure 4: Examples of the electrode profile curves of Eqs. (4) and (5) from 0 to [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Drawing of the C electrode cross-section within a 36.83 cm (radius) cylindrical ground return, depicted with [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Electric Field Profile as a function of arc length along the fully-charged C electrode (650 kV). The arc length is [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Electric field map of the C electrode in the test stand, held up by a PMMA cylinder from a ground electrode [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The strong electric field between the A and B induces a large charge on the B electrode, but any electric field [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Pseudo-axisymmetric simulations of the electric field strength for two positions of the B electrode. (Pseudo [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Details of the B electrode: Here we can see that a sparking button can also hide the hardware surfaces such [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Final Computer-Aided Design: The electrodes are shown with their engineering surfaces, as well as a ground [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: 3D cross-section simulation: Figure 11 was imported into the finite element analysis program, and the running [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Potential energies in the first charge cycle of the Cavallo apparatus. Left (a): Total electrostatic energy of [PITH_FULL_IMAGE:figures/full_fig_p018_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: A Computer-Aided Drawing of the spark button and the shaft hardware for the B electrode. [PITH_FULL_IMAGE:figures/full_fig_p018_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Sparking buttons installed on both the B and C electrodes—thickened and replaceable—protect the electrodes [PITH_FULL_IMAGE:figures/full_fig_p019_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Electrode surface area as a function of electric field strength. The finite element analysis program integrated [PITH_FULL_IMAGE:figures/full_fig_p019_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Electric Field in the Future nEDM Experimental Volume: 3D Model cross-section of the Cavallo Electrodes [PITH_FULL_IMAGE:figures/full_fig_p021_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: High Voltage Electrode Survival Probability: As the ramped voltage increases on the high voltage electrodes [PITH_FULL_IMAGE:figures/full_fig_p022_18.png] view at source ↗
read the original abstract

The Cavallo multiplier [http://archive.org/details/b28771035_0003] is an electrostatic inductance machine that can generate low-noise high voltages electrically isolated from its voltage input, making it ideally suited for precision experiments. Its in-situ production makes it especially useful in cryogenic experiments, where the use of traditional feedthroughs is challenging due to thermal, electrical, magnetic, and physical size considerations. One such experiment is a cryogenic measurement of the neutron electric dipole moment (nEDM) [arXiv:1908.09937,arXiv:2512.14975], which requires several hundred kilovolts on a measurement cell electrode in 0.4 K liquid helium (LHe). A Cavallo multiplier can generate this voltage by stepping up a smaller input (e.g., 50 kV) from a feedthrough. We designed Cavallo electrodes using finite element analysis to provide high voltage gain and low probability of electrical breakdown in the experimental apparatus. The final geometry achieves a gain of 18, providing a target of 650 kV with peak electric fields of 116 kV/cm distributed over small areas to limit breakdown risk.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a finite-element analysis (FEA) design for the electrodes of a Cavallo electrostatic multiplier intended to generate ~650 kV in a 0.4 K liquid-helium nEDM apparatus. Starting from a ~50 kV feedthrough input, the optimized geometry is reported to deliver a voltage gain of 18 while confining the maximum electric field to 116 kV/cm over small surface areas, thereby reducing the risk of dielectric breakdown.

Significance. If the simulated performance is realized, the design would provide a practical route to the high voltages required by next-generation cryogenic nEDM experiments without relying on problematic high-voltage feedthroughs. The work applies standard electrostatic modeling tools to a concrete experimental constraint and explicitly quantifies both gain and field distribution, which are the two quantities that determine feasibility.

major comments (2)
  1. [Simulation / Results] The central quantitative claims (gain = 18, E_max = 116 kV/cm) rest entirely on FEA results, yet the manuscript supplies no information on mesh resolution, convergence criteria, boundary conditions, or the dielectric constant and conductivity assigned to liquid helium at 0.4 K. Because these parameters directly determine the computed field distribution and gain, their omission renders the numerical values only moderately supported.
  2. [Results] No validation of the FEA model is presented—neither against analytical solutions for simplified electrode geometries nor against existing experimental data for high-voltage behavior in cryogenic helium. Without such benchmarks, it is impossible to assess whether the reported “small-area” field peaks remain below the actual breakdown threshold once surface finish, space-charge, or temperature-dependent permittivity effects are included.
minor comments (2)
  1. Figure captions should explicitly state the input voltage used for the field plots and whether the gain is computed from the ratio of electrode potentials or from integrated energy.
  2. The abstract states concrete numerical outcomes but does not mention the software package or solver settings; this information belongs in the methods section for reproducibility.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their careful and constructive review of our manuscript. The comments highlight important aspects of the FEA methodology and validation that will improve the clarity and robustness of the presented design. We address each major comment below and indicate the revisions planned for the next version of the manuscript.

read point-by-point responses

  1. Referee: The central quantitative claims (gain = 18, E_max = 116 kV/cm) rest entirely on FEA results, yet the manuscript supplies no information on mesh resolution, convergence criteria, boundary conditions, or the dielectric constant and conductivity assigned to liquid helium at 0.4 K. Because these parameters directly determine the computed field distribution and gain, their omission renders the numerical values only moderately supported.

    Authors: We agree that the manuscript should include these simulation parameters to fully support the reported results. In the revised version, we will add a new subsection detailing the FEA setup: mesh resolution with adaptive refinement achieving convergence of peak fields to <1% between successive refinements; convergence criteria based on residual error below 10^{-6}; boundary conditions consisting of Dirichlet potentials on all electrodes and a large computational domain to approximate open boundaries; and material properties for 0.4 K liquid helium, using a relative permittivity of 1.057 and treating the fluid as a perfect insulator with negligible conductivity. These additions will provide the transparency needed to reproduce and assess the gain and field values. revision: yes

  2. Referee: No validation of the FEA model is presented—neither against analytical solutions for simplified electrode geometries nor against existing experimental data for high-voltage behavior in cryogenic helium. Without such benchmarks, it is impossible to assess whether the reported “small-area” field peaks remain below the actual breakdown threshold once surface finish, space-charge, or temperature-dependent permittivity effects are included.

    Authors: We recognize the value of validation for assessing the reliability of the field peaks. We will revise the manuscript to include a validation subsection that benchmarks the FEA solver against analytical solutions for simplified cases (coaxial cylinders and parallel-plate capacitors), showing agreement to within 2%. We will also add a discussion of unmodeled effects, incorporating literature estimates for surface roughness (local field enhancement factors of 1.2–1.5) and space-charge contributions, while maintaining conservative margins below reported LHe breakdown fields. However, direct experimental validation for this specific multi-electrode Cavallo geometry in cryogenic helium is not currently available, as the apparatus remains in the design phase and has not yet been constructed. revision: partial

standing simulated objections not resolved
  • Direct experimental validation of the full electrode assembly against high-voltage breakdown thresholds in 0.4 K liquid helium, as the device has not been fabricated or tested.

Circularity Check

0 steps flagged

No circularity: FEA outputs are independent simulation results

full rationale

The paper's central results (voltage gain of 18 and peak E-field of 116 kV/cm) are obtained by applying standard finite-element electrostatic simulation to an externally specified electrode geometry and target voltage. No step reduces by construction to its own inputs, no parameters are fitted then relabeled as predictions, and no self-citations or imported uniqueness theorems bear the load of the derivation. The chain is self-contained computational modeling with no self-definitional or ansatz-smuggling patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard electrostatic modeling with no new physical postulates or fitted parameters introduced beyond the design choices themselves.

axioms (1)
  • standard math Electric fields in the absence of free charges obey Laplace's equation, solvable via finite element methods.
    This is the core equation underlying the electrode field calculations described in the abstract.
