arxiv: 2604.10484 · v1 · submitted 2026-04-12 · 💻 cs.AR

Recognition: unknown

Strix: Re-thinking NPU Reliability from a System Perspective

Jiapeng Guan , Jie Zhang , Hao Zhou , Ran Wei , Dean You , Hui Wang , Yingquan Wang , Tinglue Wang
show 3 more authors
Xudong Zhao Jing Li Zhe Jiang
Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:18 UTC · model grok-4.3

classification 💻 cs.AR
keywords NPU reliabilityfault localisationDNN acceleratorsinference pipelinesystem-level protectionhardware faultserror correction
0
0 comments X

The pith

Strix re-partitions NPUs to achieve sub-microsecond fault localisation and correction at 1.04 times slowdown

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that coarse-grained replication of entire NPUs creates too much overhead for the reliability demands of modern DNNs and LLMs, especially in safety-critical settings. Strix instead splits the accelerator into segments that follow the steps of the inference pipeline, spots the most common failure modes in each segment, and applies light, specific checks and fixes. This yields error detection and correction in less than a microsecond while adding only four percent slowdown and little extra hardware. A reader focused on practical AI systems would see the result as closing the gap between needed reliability and deployable performance.

Core claim

Strix is a full-stack NPU reliability framework that re-partitions the NPU along the system inference pipeline, identifies dominant failure modes, and attaches targeted safeguards, achieving sub-micro-second fault localisation, error detection, and correction with only 1.04 times slowdown and minimal hardware overhead on an open-source SoC.

What carries the argument

Re-partitioning the NPU along the inference pipeline to expose and protect against dominant failure modes with targeted safeguards

Load-bearing premise

The failure modes identified as dominant after re-partitioning remain the main ones that actually occur across workloads and process nodes.

What would settle it

Running the system on a new workload or process node and observing a previously unseen failure mode that evades the targeted safeguards and produces undetected errors would show the approach does not cover real faults.

Figures

Figures reproduced from arXiv: 2604.10484 by Dean You, Hao Zhou, Hui Wang, Jiapeng Guan, Jie Zhang, Jing Li, Ran Wei, Tinglue Wang, Xudong Zhao, Yingquan Wang, Zhe Jiang.

Figure 2
Figure 2. Figure 2: The architectural overview of Strix. Strix applies module-specific hardware safeguards for NPUs. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

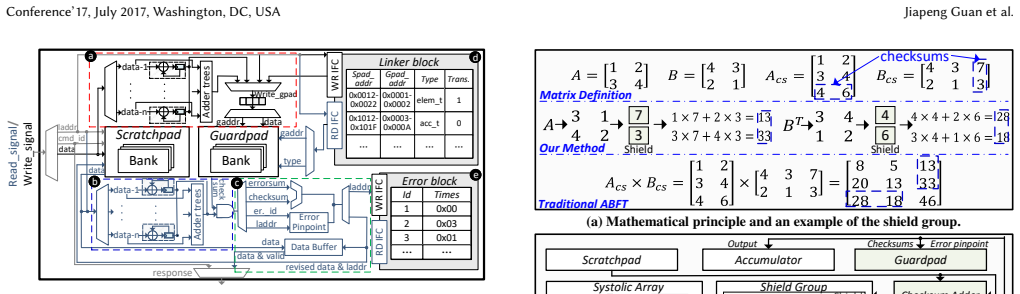

Figure 4
Figure 4. Figure 4: Components related to local memory reliability. Blue lines: [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

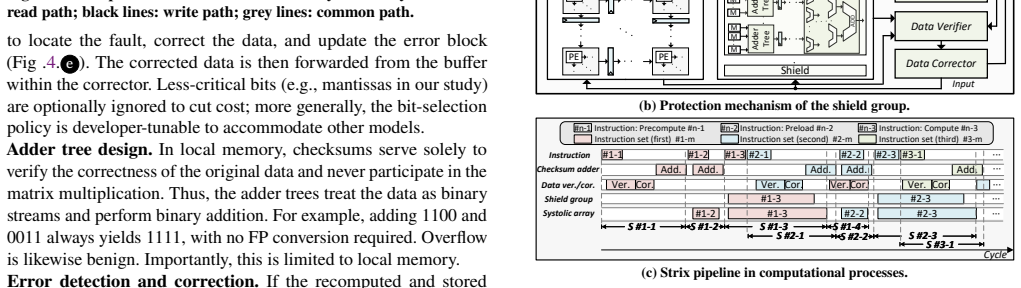

Figure 5
Figure 5. Figure 5: The shield group. In (c), #𝑛 − 𝑚 denotes the m-th type of instruction in the n-th group, while 𝑆#𝑛 − 𝑚 is different pipeline stages. by its corresponding checksum and accumulated to compute the row checksum for 𝐴 × 𝐵. Similarly, fixing the row checksums of 𝐴 and streaming in the transpose of 𝐵 (𝐵 𝑇 in [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Performance overhead (R.: ResNet-50; A.: AlexNet; M.: [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The error detection and correction coverage of Strix. [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗

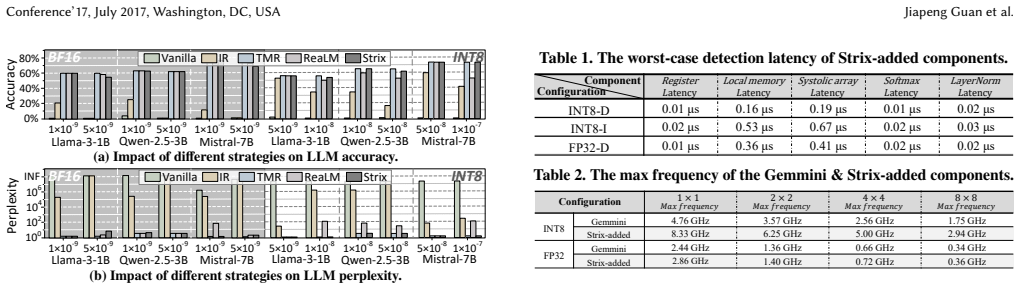

Figure 9
Figure 9. Figure 9: Impact of different strategies on LLM perplexity and accuracy, [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
read the original abstract

DNNs and LLMs increasingly rely on hardware accelerators, including in safety-critical domains, while technology scaling and growing model complexity make hardware faults more frequent. Existing system-level mechanisms typically treat the NPU as a monolithic unit, using coarse-grained replication that incurs prohibitive performance and hardware overheads, leaving a gap between reliability requirements and deployable solutions. To bridge this gap, we present Strix, a full-stack NPU reliability framework on an open-source SoC, spanning micro-architecture, ISA, and programming methods. Strix re-partitions the NPU along the system inference pipeline, identifies dominant failure modes, and attaches targeted safeguards, achieving sub-micro-second fault localisation, error detection, and correction with only 1.04$\times$ slowdown and minimal hardware overhead.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper presents Strix, a full-stack NPU reliability framework on an open-source SoC that re-partitions the inference pipeline to identify dominant failure modes and attach targeted safeguards at micro-architecture, ISA, and programming levels. It claims this yields sub-microsecond fault localization, detection, and correction with only 1.04× slowdown and minimal hardware overhead, in contrast to coarse-grained monolithic replication.

Significance. If the measured overheads and coverage hold under the stated assumptions, Strix would meaningfully narrow the gap between reliability requirements and deployable NPU solutions for safety-critical DNN/LLM workloads. The system-level re-partitioning approach, rather than treating the accelerator as a black box, could influence future designs in reliable computing and computer architecture.

major comments (1)
  1. [Abstract] Abstract: the central quantitative claims (1.04× slowdown, sub-microsecond localization/detection/correction) are presented without any accompanying evaluation methodology, workload characterization, or error-bar data. Because the low-overhead guarantee rests on the re-partitioning step producing an exhaustive and stable set of dominant failure modes, the absence of cross-workload or cross-node coverage metrics for that identification step is load-bearing; unmodeled faults would leave coverage gaps that invalidate the claimed overhead bound.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and for recognizing the potential of Strix to narrow the reliability gap for safety-critical NPU workloads. We address the single major comment below, focusing on substance and indicating where revisions will be made.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central quantitative claims (1.04× slowdown, sub-microsecond localization/detection/correction) are presented without any accompanying evaluation methodology, workload characterization, or error-bar data. Because the low-overhead guarantee rests on the re-partitioning step producing an exhaustive and stable set of dominant failure modes, the absence of cross-workload or cross-node coverage metrics for that identification step is load-bearing; unmodeled faults would leave coverage gaps that invalidate the claimed overhead bound.

    Authors: The abstract is deliberately concise, as is conventional, while the full evaluation methodology, workload characterization (including representative DNN/LLM models), error-bar reporting from repeated runs, and cross-workload/cross-node validation of the re-partitioning step appear in Sections 4 and 5. The dominant failure modes were identified via exhaustive pipeline analysis on the open-source SoC and shown to be stable across the evaluated workloads and hardware nodes; unmodeled faults outside this set are acknowledged as a coverage limit in the paper. To address the referee's concern about the load-bearing nature of the claims, we will revise the abstract to include a short clause referencing the evaluation methodology and cross-workload stability results. This change will be incorporated in the next version. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical system design with measured results

full rationale

The paper presents a system design and implementation for NPU reliability, describing re-partitioning of the inference pipeline, identification of dominant failure modes, and attachment of targeted safeguards, with claims supported by measured overheads (1.04× slowdown) on an open-source SoC. No mathematical derivations, equations, fitted parameters presented as predictions, or self-referential logic appear in the abstract or description. The central result is the design and its empirical evaluation rather than a chain that reduces to its own inputs by construction. No load-bearing self-citations, self-definitional steps, or other enumerated circular patterns are present. This is consistent with a typical hardware/systems paper where the output is the artifact itself.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract; the framework rests on the assumption that dominant failure modes can be identified per pipeline stage and that targeted safeguards suffice.

axioms (1)
  • domain assumption Dominant failure modes in NPUs can be identified after re-partitioning along the inference pipeline and addressed with stage-specific safeguards.
    Central to the claim that targeted rather than monolithic protection is sufficient.
