arxiv: 2604.10488 · v1 · submitted 2026-04-12 · ⚛️ physics.optics

Transmission-Mode Silicon-Rich Nitride Mie-Void Metasurfaces in the Visible

Oren Goldberg , Noa Mazurski , Uriel Levy This is my paper

Pith reviewed 2026-05-10 16:10 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords Mie-void metasurfacestransmission modesilicon-rich nitridestructural colorshybrid resonancesmetasurface encodingvisible spectrumvoid depth control
0
0 comments X

The pith

Mie-void metasurfaces achieve transmission-mode structural colors in the visible by hybridizing resonances in finite silicon-rich nitride films.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that subwavelength voids embedded in high-index media can produce spectrally selective responses in transmission, not only reflection, when implemented in silicon-rich nitride for the visible range. Replacing a semi-infinite host with a finite film on a substrate introduces slab-guided and Fabry-Perot contributions that couple to the localized void resonances. Rigorous simulations identify film thickness as the parameter driving the main spectral change and reveal avoided crossings between modes. Experiments then show that changing void depth generates transmission colors matching simulated spectra and chromaticity values. Patterning the depths across one device further produces arbitrary transmitted-light patterns and encoded images.

Core claim

Transmission-mode Mie-void metasurfaces are realized by embedding subwavelength voids in a finite silicon-rich nitride film on a substrate. The resulting optical response arises from hybridization between localized Mie-void resonances and slab-guided plus Fabry-Perot-like modes, with the dominant transformation occurring upon making the host finite rather than semi-infinite. Thickness-dependent dispersion maps display avoided crossings that confirm the coupled modal structure, while varying void depth produces tunable transmission spectra that agree with measurements and enable spatial encoding of images in transmitted light.

What carries the argument

Hybrid Mie-void resonances in a finite SRN film on a substrate, where the spectral transformation is driven primarily by the finite host thickness and tracked via avoided crossings in thickness-dependent maps.

If this is right

  • Transmissive spectral filtering becomes feasible with a single metasurface layer.
  • Image encoding and transmitted-light patterns can be implemented by spatially varying void depth.
  • Display-oriented photonic elements can operate directly in transmission without separate reflective components.
  • Film thickness serves as an independent design knob for tailoring the coupled modal response.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hybridization approach could be adapted to other high-index dielectrics to extend operation across additional wavelength bands.
  • Integrating these metasurfaces into existing transmission optics could reduce the need for bulk filters or color wheels.
  • Tuning both void depth and film thickness together might enable more complex spectral shapes than depth variation alone.

Load-bearing premise

The spectral features and color generation arise mainly from hybridization of the void resonances with slab-guided and Fabry-Perot modes introduced by the finite film geometry.

What would settle it

Dispersion maps for varying SRN film thicknesses would show no avoided crossings, or measured transmission spectra for different void depths would deviate systematically from simulations that include the hybrid modes.

read the original abstract

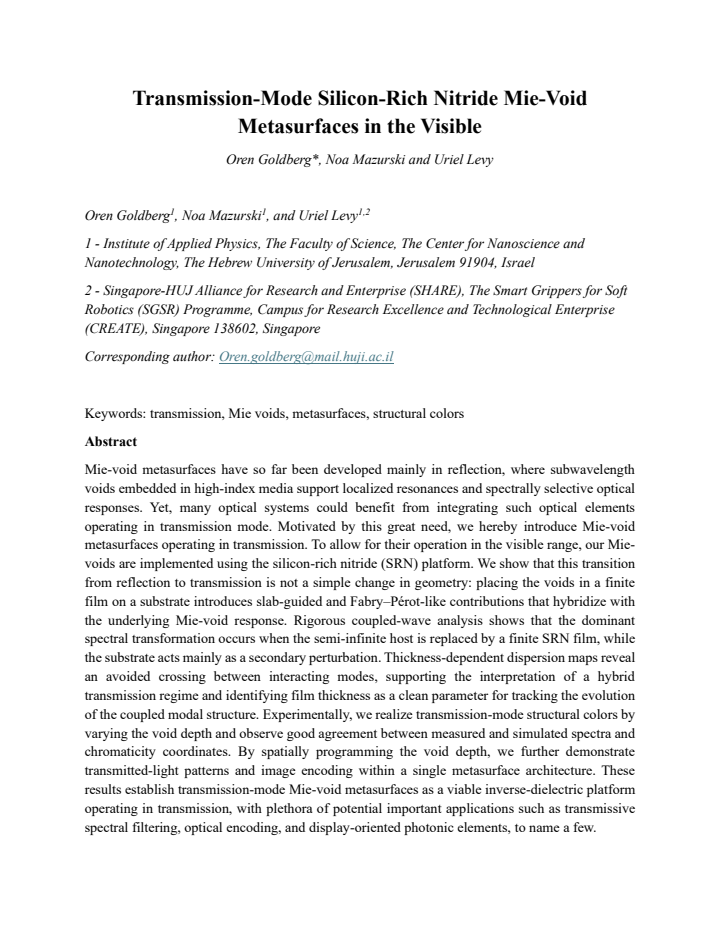

Mie-void metasurfaces have so far been developed mainly in reflection, where subwavelength voids embedded in high-index media support localized resonances and spectrally selective optical responses. Yet, many optical systems could benefit from integrating such optical elements operating in transmission mode. Motivated by this great need, we hereby introduce Mie-void metasurfaces operating in transmission. To allow for their operation in the visible range, our Mie-voids are implemented using the silicon-rich nitride (SRN) platform. We show that this transition from reflection to transmission is not a simple change in geometry: placing the voids in a finite film on a substrate introduces slab-guided and Fabry-Perot-like contributions that hybridize with the underlying Mie-void response. Rigorous coupled-wave analysis shows that the dominant spectral transformation occurs when the semi-infinite host is replaced by a finite SRN film, while the substrate acts mainly as a secondary perturbation. Thickness-dependent dispersion maps reveal an avoided crossing between interacting modes, supporting the interpretation of a hybrid transmission regime and identifying film thickness as a clean parameter for tracking the evolution of the coupled modal structure. Experimentally, we realize transmission-mode structural colors by varying the void depth and observe good agreement between measured and simulated spectra and chromaticity coordinates. By spatially programming the void depth, we further demonstrate transmitted-light patterns and image encoding within a single metasurface architecture. These results establish transmission-mode Mie-void metasurfaces as a viable inverse-dielectric platform operating in transmission, with plethora of potential important applications such as transmissive spectral filtering, optical encoding, and display-oriented photonic elements, to name a few.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces transmission-mode Mie-void metasurfaces realized in silicon-rich nitride (SRN) for visible wavelengths. It argues that embedding voids in a finite SRN film on a substrate hybridizes the underlying Mie-void resonances with slab-guided and Fabry-Perot-like modes, with RCWA simulations identifying the finite-film transition as the dominant spectral change and thickness-dependent dispersion maps showing avoided crossings. Experimentally, structural colors are produced by varying void depth, with reported agreement to simulations in spectra and chromaticity coordinates; spatial programming of void depth is further used to demonstrate transmitted-light patterns and image encoding within a single device.

Significance. If the experimental agreement holds under quantitative scrutiny, the work is significant for extending Mie-void metasurfaces to transmission, a geometry relevant to spectral filtering, optical encoding, and transmissive displays. The hybridization analysis supplies a concrete design handle (film thickness) and the SRN platform enables visible operation without metals. The spatial-patterning demonstration adds a practical route to multi-functional transmissive elements.

major comments (2)
  1. [Experimental results] The central experimental claim of 'good agreement' between measured and simulated spectra and chromaticity coordinates (abstract and experimental results) is presented without error bars, raw data, fabrication tolerances, or quantitative fit metrics such as RMS deviation or R² values. This information is load-bearing for assessing whether the hybrid-mode transmission regime is viable and reproducible.
  2. [Simulation and mode analysis] The assertion that the dominant spectral transformation arises from replacing the semi-infinite host with a finite SRN film (substrate acting only as secondary perturbation) relies on RCWA but lacks explicit decoupling simulations that vary film thickness while holding substrate index fixed versus the converse. Such controls would strengthen the hybridization interpretation and the avoided-crossing evidence.
minor comments (2)
  1. [Abstract] The abstract's closing sentence lists applications in vague terms ('plethora of potential important applications'); replacing this with two or three concrete, referenced use cases would improve precision.
  2. [Figures] Figure captions and axis labels should explicitly state whether simulated curves include the substrate or assume semi-infinite SRN, to avoid ambiguity when comparing to the experimental transmission data.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment and constructive comments on our manuscript. We address each major comment below and will revise the manuscript accordingly to incorporate the suggested improvements.

read point-by-point responses

  1. Referee: [Experimental results] The central experimental claim of 'good agreement' between measured and simulated spectra and chromaticity coordinates (abstract and experimental results) is presented without error bars, raw data, fabrication tolerances, or quantitative fit metrics such as RMS deviation or R² values. This information is load-bearing for assessing whether the hybrid-mode transmission regime is viable and reproducible.

    Authors: We agree that quantitative metrics and uncertainty details would strengthen the validation of the hybrid-mode regime. In the revised manuscript, we have added error bars to the experimental spectra based on repeated measurements across multiple sample locations. Fabrication tolerances (e.g., void depth variation of ±5 nm and film thickness uniformity) are now detailed in the Methods section. We also include RMS deviation (<0.05 normalized transmission) and R² values (>0.92) for spectral comparisons, plus chromaticity coordinate differences. Raw data will be made available in the supplementary information. These additions confirm the reproducibility and viability of the transmission-mode operation. revision: yes

  2. Referee: [Simulation and mode analysis] The assertion that the dominant spectral transformation arises from replacing the semi-infinite host with a finite SRN film (substrate acting only as secondary perturbation) relies on RCWA but lacks explicit decoupling simulations that vary film thickness while holding substrate index fixed versus the converse. Such controls would strengthen the hybridization interpretation and the avoided-crossing evidence.

    Authors: We thank the referee for this suggestion to provide clearer evidence for the hybridization. We have performed additional RCWA simulations that explicitly decouple the contributions: one series varies SRN film thickness while holding substrate index fixed at the semi-infinite value, and the converse varies substrate index at fixed thickness. These new results, now added to the revised manuscript, confirm that the primary spectral shifts and avoided crossings are driven by film thickness, with the substrate inducing only minor perturbations. This strengthens the mode analysis without changing our conclusions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on independent RCWA simulations and experiments

full rationale

The paper derives its central claims from rigorous coupled-wave analysis (RCWA) modeling of mode hybridization in finite SRN films versus semi-infinite hosts, supported by thickness-dependent avoided crossings in dispersion maps, and from direct experimental measurements of transmission spectra, chromaticity, and spatially patterned structural colors. These steps rely on standard numerical solvers and fabricated device characterization rather than parameter fitting renamed as prediction, self-definitional loops, or load-bearing self-citations. The hybridization interpretation is validated externally by the agreement between simulation and measurement, with no reduction of the reported results to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard nanophotonics assumptions about material properties and simulation accuracy rather than new postulates; no free parameters or invented entities are introduced beyond geometry design choices.

axioms (2)
  • domain assumption Rigorous coupled-wave analysis (RCWA) accurately captures the hybrid Mie, slab-guided, and Fabry-Perot modes in the finite SRN film geometry.
    Invoked to interpret the avoided crossings and dominant spectral transformation when moving from semi-infinite to finite host.
  • domain assumption Silicon-rich nitride has low absorption and suitable refractive index dispersion across the visible range for the intended resonances.
    Required to enable operation in the visible without the material limitations of other high-index platforms.
