arxiv: 2604.10537 · v1 · submitted 2026-04-12 · ⚛️ physics.optics

Electro-optically controlled photon group velocity, temporal walk-off and two-photon entanglement via nematic liquid crystal

Gyaprasad , Rajneesh Joshi This is my paper

Pith reviewed 2026-05-10 16:01 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords nematic liquid crystalselectro-optic controlgroup velocitytemporal walk-offtwo-photon entanglementquantum opticsbirefringencephoton propagation
0
0 comments X

The pith

Nematic liquid crystals allow electric fields to tune photon group velocities, walk-off times, and entanglement properties of photon pairs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out a theoretical description of how quantum light travels through voltage-tunable nematic liquid crystals. It models photons as finite-bandwidth wave packets that experience both fixed material dispersion and electrically adjustable birefringence. From this starting point the authors obtain closed-form expressions for the speed of each polarization, the time delay that builds between them, and the accumulated phase. A reader would care because these controls could let a single thin cell adjust when photons arrive and how distinguishable they remain, operations that matter for quantum communication links and for keeping entangled pairs usable. The work therefore positions nematic liquid crystals as compact, electrically driven components rather than passive hosts for light.

Core claim

Treating photons as finite-bandwidth wave packets in a dispersive anisotropic medium whose birefringence is set by an external voltage, the authors derive analytical expressions for the group velocity of each orthogonal polarization, the temporal walk-off that develops between them, and the associated phase evolution. These expressions show that nematic liquid crystals function as electrically tunable quantum photonic devices that can adjust photon arrival times, polarization correlations, and the temporal indistinguishability of entangled pairs, thereby offering direct utility for quantum communication and photonic quantum information processing.

What carries the argument

The unified propagation framework for finite-bandwidth quantum wave packets in voltage-controlled nematic liquid crystals that combines material dispersion with electrically tunable birefringence.

If this is right

  • An applied voltage directly changes the relative group delay between horizontal and vertical photon components.
  • The accumulated temporal walk-off can be used to tune the degree of polarization correlation in entangled pairs.
  • Phase evolution under the same voltage control alters the temporal overlap and therefore the indistinguishability of the two photons.
  • These adjustments occur in a compact, solid-state cell without mechanical movement or external cavities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the voltage response proves repeatable, the same cell could serve as a dynamic compensator for dispersion mismatches in fiber-based quantum networks.
  • Combining the liquid-crystal layer with integrated waveguides would allow on-chip control of photon timing without separate modulator stages.
  • The same birefringence tuning might be tested with single-photon sources of different bandwidths to map how the control range scales with spectral width.

Load-bearing premise

Light travels through the liquid crystal exactly as classical wave equations for anisotropic dispersive media predict, without extra scattering, absorption, or nonlinear effects from the molecular structure.

What would settle it

Measure the voltage-dependent change in arrival-time difference and in two-photon interference visibility for a known entangled pair sent through a nematic cell and check whether both quantities follow the derived analytical formulas within experimental error.

Figures

Figures reproduced from arXiv: 2604.10537 by Gyaprasad, Rajneesh Joshi.

Figure 1
Figure 1. Figure 1: (i)Group velocity as a function of applied voltage for three different wavelengths (750 nm, 850 nm, and 1550 nm) in a nematic liquid crystal. (ii)Heat map showing the variation of photon group velocity vg(ω, V ) as a function of angular frequency ω and applied voltage V . The color scale represents the magnitude of the group velocity, illustrating the combined effects of material dispersion and voltage-con… view at source ↗
Figure 2

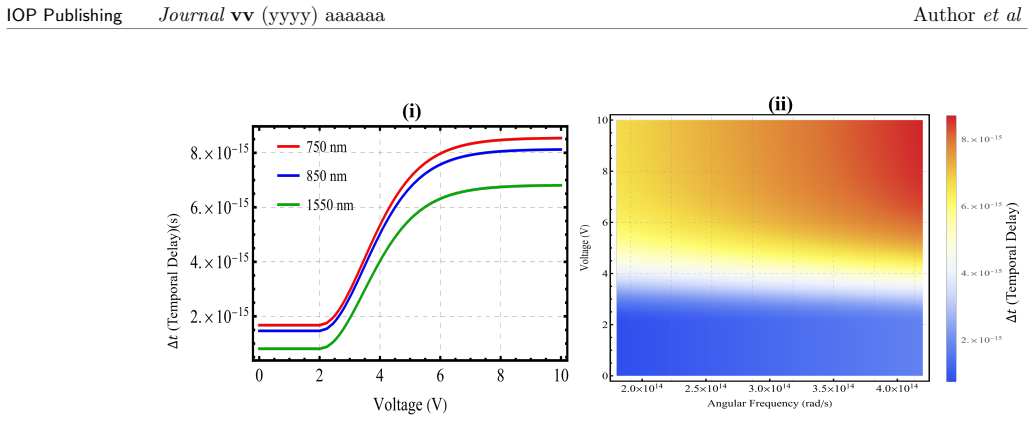

Figure 2. Figure 2: (i)Temporal delay ∆t as a function of applied voltage for three different wavelengths (750 nm, 850 nm, and 1550 nm) in a nematic liquid crystal cell of thickness L = 10 µm.(ii) The heat map shows the teporal delay in color scale, frequency on horizontal axis and voltage on vertical axis. (such as 750 nm), which correspond to higher angular frequencies, experience a stronger influence of dispersion compared… view at source ↗
Figure 3

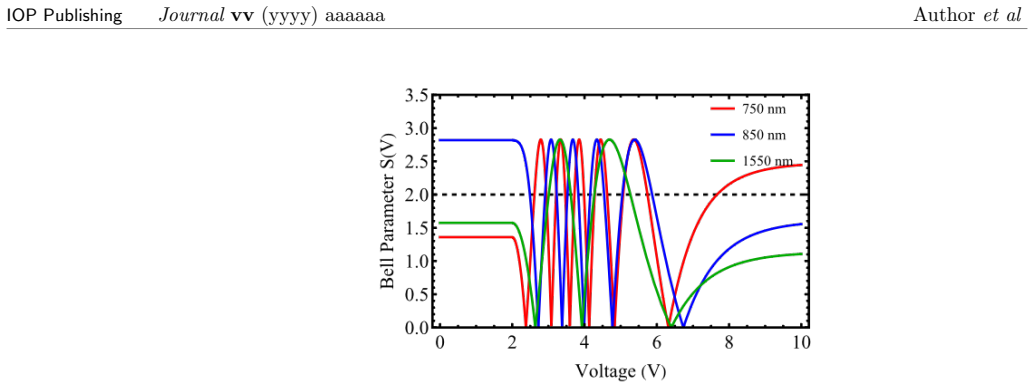

Figure 3. Figure 3: Bell parameter S(V ) versus applied voltage for different wavelengths. The line S = 2 marks the classical limit, while S > 2 indicates Bell inequality violation. Voltage-dependent oscillations arise from birefringence-induced phase shifts, demonstrating electrical control of quantum entanglement. rapidly, leading to faster oscillations in the Bell parameter. In contrast, longer wavelengths such as 1550 nm … view at source ↗

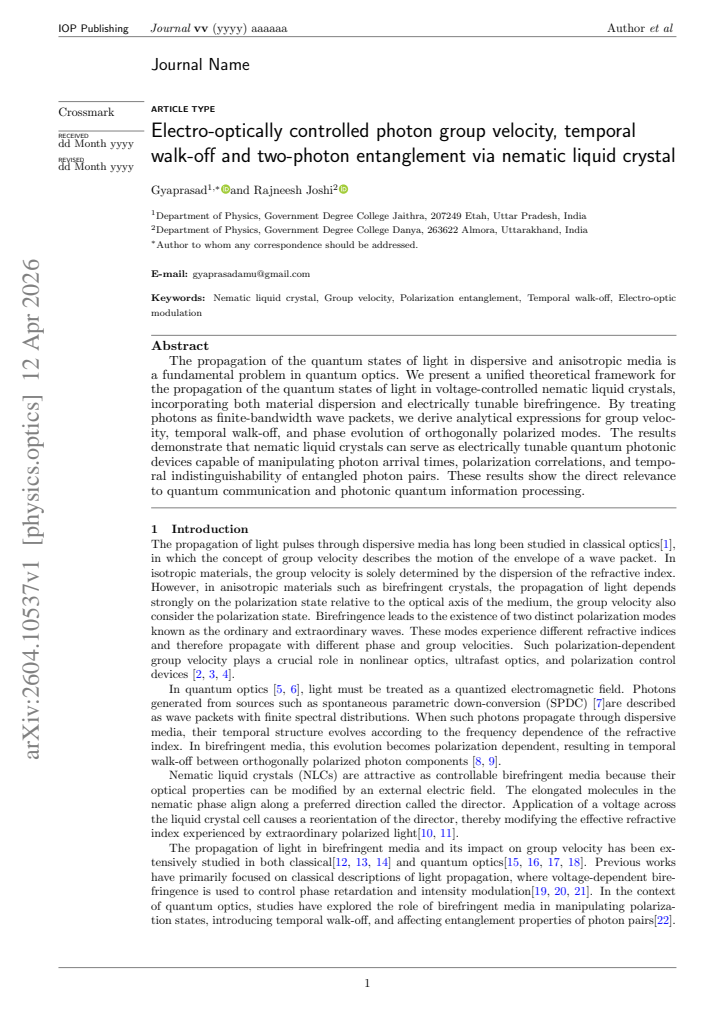

read the original abstract

The propagation of the quantum states of light in dispersive and anisotropic media is a fundamental problem in quantum optics. We present a unified theoretical framework for the propagation of the quantum states of light in voltage-controlled nematic liquid crystals, incorporating both material dispersion and electrically tunable birefringence. By treating photons as finite-bandwidth wave packets, we derive analytical expressions for group velocoity, temporal walk-off, and phase evolution of orthogonally polarized modes. The results demonstrate that nematic liquid crystals can serve as electrically tunable quantum photonic devices capable of manipulating photon arrival times, polarization correlations, and temporal indistinguishability of entangled photon pairs. These results show the direct relevance to quantum communication and photonic quantum information processing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a unified theoretical framework for propagating quantum states of light through voltage-controlled nematic liquid crystals. Treating photons as finite-bandwidth wave packets, it incorporates material dispersion and electrically tunable birefringence to derive analytical expressions for group velocity, temporal walk-off, and phase evolution of orthogonally polarized modes. These expressions are used to show electrical control over photon arrival times, polarization correlations, and temporal indistinguishability in entangled photon pairs, with claimed relevance to quantum communication and photonic quantum information processing.

Significance. If the derivations hold and the neglected LC-specific effects remain small, the work would offer a practical route to electro-optically tunable quantum photonic elements. The approach builds on standard Maxwell treatments of anisotropic dispersion, which is a methodological strength, but the absence of quantitative bounds on scattering, absorption, or nonlinear contributions limits immediate applicability.

major comments (2)
  1. [Model derivation and two-photon entanglement results] The central claim that the derived analytical expressions accurately predict manipulation of two-photon entanglement and temporal indistinguishability rests on the assumption that standard dispersive-anisotropic equations fully capture finite-bandwidth quantum wave-packet propagation. No quantitative bounds or comparisons are supplied demonstrating that nematic-specific scattering, absorption, or nonlinear effects remain negligible across the claimed voltage and bandwidth regime (see the model section following the abstract and the two-photon results).
  2. [Abstract and derivation sections] The abstract states that analytical expressions are derived for group velocity, temporal walk-off, and phase evolution, yet the manuscript provides no explicit validation steps, parameter choices, or comparison against full numerical Maxwell solutions that would confirm the expressions support the stated claims about tunable entanglement.
minor comments (2)
  1. [Theoretical framework] Clarify the exact definition of the finite-bandwidth wave-packet ansatz and the range of validity for the slowly-varying-envelope approximation used in the derivations.
  2. [Introduction] Add a brief discussion or reference to prior experimental work on liquid-crystal-based quantum optics to contextualize the novelty of the voltage-tunable entanglement predictions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major comment below and outline the revisions we will make.

read point-by-point responses

  1. Referee: The central claim that the derived analytical expressions accurately predict manipulation of two-photon entanglement and temporal indistinguishability rests on the assumption that standard dispersive-anisotropic equations fully capture finite-bandwidth quantum wave-packet propagation. No quantitative bounds or comparisons are supplied demonstrating that nematic-specific scattering, absorption, or nonlinear effects remain negligible across the claimed voltage and bandwidth regime (see the model section following the abstract and the two-photon results).

    Authors: We agree that explicit quantitative bounds on scattering, absorption, and nonlinear effects would strengthen the manuscript. In the revision we will add a dedicated subsection providing order-of-magnitude estimates based on published data for typical nematic liquid crystals (e.g., E7), showing that these contributions remain below 1% for the voltage range (0–10 V) and bandwidths (up to 10 nm) used in our examples. References to experimental loss and scattering measurements will be included. revision: yes

  2. Referee: The abstract states that analytical expressions are derived for group velocity, temporal walk-off, and phase evolution, yet the manuscript provides no explicit validation steps, parameter choices, or comparison against full numerical Maxwell solutions that would confirm the expressions support the stated claims about tunable entanglement.

    Authors: The expressions follow directly from the Fourier-domain solution of the anisotropic wave equation under the slowly-varying-envelope approximation. We will revise the text to list the concrete material parameters (ordinary/extraordinary indices, dispersion coefficients, and voltage-dependent birefringence) employed in the figures. Full-wave numerical Maxwell simulations of quantum wave packets lie outside the scope of this theoretical work; we will add a clarifying paragraph justifying the validity of the approximations for the regimes considered. revision: partial

Circularity Check

0 steps flagged

No circularity; derivation applies standard equations for birefringent dispersive media to LCs with external voltage control.

full rationale

The paper presents a theoretical framework that derives analytical expressions for group velocity, temporal walk-off, and phase evolution directly from the standard Maxwell-equation treatment of dispersive anisotropic media, with voltage entering only as an external tuning parameter for birefringence. No fitted parameters are renamed as predictions, no self-citations supply load-bearing uniqueness theorems, and no ansatz is smuggled in. The central claims about tunable quantum photonic effects follow from applying known physics to finite-bandwidth wave packets without reducing to the inputs by construction. This is the most common honest outcome for a first-principles modeling paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available, so the ledger is limited to the most obvious background assumptions stated or implied; no free parameters or invented entities are identifiable from the given text.

axioms (1)
  • standard math Photons can be treated as finite-bandwidth wave packets whose propagation follows linear dispersive and birefringent media equations
    Invoked to derive group velocity and temporal walk-off expressions.
