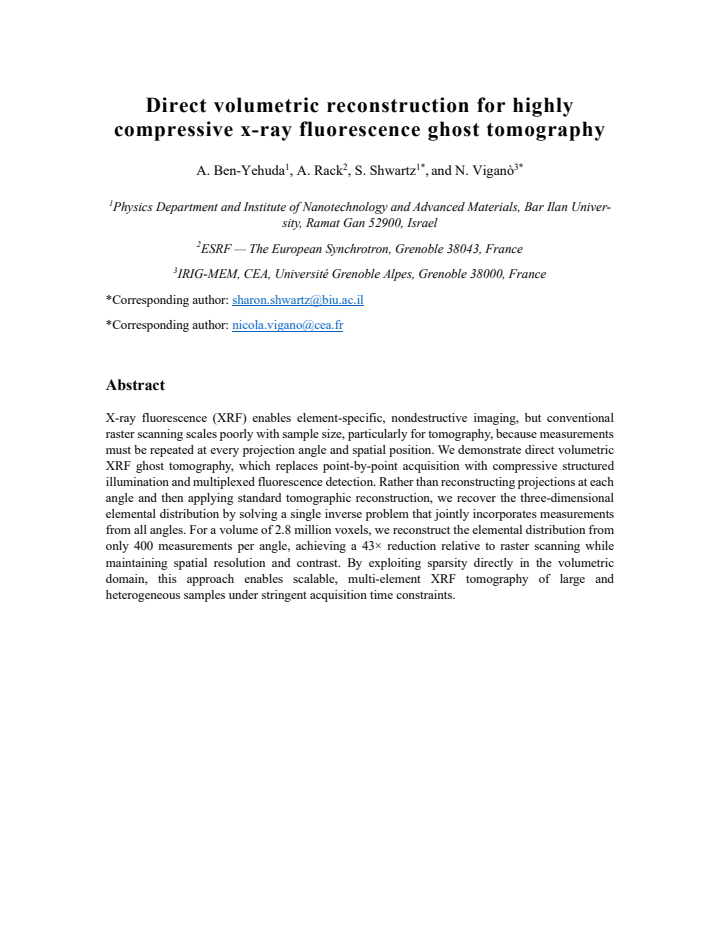

Direct volumetric reconstruction for highly compressive x-ray fluorescence ghost tomography

A. Ben-Yehuda , A. Rack , S. Shwartz , N. Vigan\`o

Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:45 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords x-ray fluorescenceghost tomographycompressive sensingvolumetric reconstructionelemental imagingstructured illuminationinverse problemtomography

0 comments

The pith

X-ray fluorescence tomography recovers full 3D elemental volumes from 400 measurements per angle by solving one joint inverse problem.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that XRF tomography no longer needs to acquire dense raster scans at every projection angle before performing reconstruction. Instead, compressive structured illumination and multiplexed detection feed into a single inverse problem that recovers the entire 3D elemental distribution at once. For a 2.8-million-voxel volume this yields a 43-fold reduction in total measurements while preserving spatial resolution and contrast. The approach works by treating the 3D object as the direct unknown and enforcing sparsity across the full volume rather than slice by slice. This matters for practical imaging because it removes the scaling barrier that has limited element-specific tomography to small or slowly changing samples.

Core claim

Direct volumetric XRF ghost tomography replaces point-by-point acquisition with compressive structured illumination and multiplexed fluorescence detection. Rather than reconstructing projections at each angle and then applying standard tomographic reconstruction, the three-dimensional elemental distribution is recovered by solving a single inverse problem that jointly incorporates measurements from all angles. For a volume of 2.8 million voxels the elemental distribution is reconstructed from only 400 measurements per angle, achieving a 43X reduction relative to raster scanning while maintaining spatial resolution and contrast.

What carries the argument

A single joint inverse problem that treats the full 3D elemental distribution as the unknown and incorporates all angular measurements simultaneously, exploiting 3D sparsity.

If this is right

Large heterogeneous samples become feasible for multi-element XRF tomography under tight acquisition-time budgets.
The same total measurement budget can be redistributed across more projection angles or more elements without increasing scan duration.
Radiation exposure or beam-time cost per 3D volume drops by the same factor as the measurement reduction.
In-situ or time-resolved studies of evolving samples become practical because each full 3D dataset requires far less integration time.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The method could be combined with limited-angle data or noisy detectors to further relax hardware requirements in laboratory settings.
Similar joint volumetric formulations might apply to other sparse tomographic modalities such as neutron or muon imaging where full angular sampling is expensive.
If the sparsity level varies with element or energy, adaptive measurement strategies could allocate photons where the object is least sparse.

Load-bearing premise

The three-dimensional elemental distributions must be sparse or compressible enough for the joint inverse problem to recover them stably from the highly under-sampled multiplexed data.

What would settle it

A controlled experiment on a sample whose elemental distribution is known to be dense and non-sparse, in which the joint reconstruction shows clear loss of resolution or contrast compared with conventional full raster scanning at the same total dose.

read the original abstract

X-ray fluorescence (XRF) enables element-specific, nondestructive imaging, but conventional raster scanning scales poorly with sample size, particularly for tomography, because measurements must be repeated at every projection angle and spatial position. We demonstrate direct volumetric XRF ghost tomography, which replaces point-by-point acquisition with compressive structured illumination and multiplexed fluorescence detection. Rather than reconstructing projections at each angle and then applying standard tomographic reconstruction, we recover the three-dimensional elemental distribution by solving a single inverse problem that jointly incorporates measurements from all angles. For a volume of 2.8 million voxels, we reconstruct the elemental distribution from only 400 measurements per angle, achieving a 43X reduction relative to raster scanning while maintaining spatial resolution and contrast. By exploiting sparsity directly in the volumetric domain, this approach enables scalable, multi-element XRF tomography of large and heterogeneous samples under stringent acquisition time constraints.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The joint inverse problem over the full volume and all angles is the actual novelty, but the 43X reduction claim depends on the 3D elemental distributions being sparse enough in practice.

read the letter

The paper's main contribution is treating XRF ghost tomography as one single inverse problem that reconstructs the entire 3D elemental volume directly from multiplexed measurements across angles. This skips the usual step of first making per-angle projections and then running standard tomography. For a 2.8 million voxel volume they report using only 400 measurements per angle, which they say gives a 43 times reduction compared with raster scanning while holding onto spatial resolution and contrast. That formulation looks different from the projection-then-reconstruct pipelines they cite, so the approach itself is new in this subfield.

Referee Report

2 major / 2 minor

Summary. The manuscript demonstrates direct volumetric XRF ghost tomography by replacing raster scanning with compressive structured illumination and multiplexed detection. It recovers the full 3D elemental distribution (2.8 million voxels) by solving one joint inverse problem across all projection angles rather than reconstructing 2D projections first, achieving a claimed 43X reduction to 400 measurements per angle while preserving spatial resolution and contrast through direct exploitation of volumetric sparsity.

Significance. If the sparsity assumption holds for the tested samples and the quantitative claims are validated, the work has clear significance for scaling element-specific tomography to large, heterogeneous specimens under tight time budgets. The direct volumetric formulation (avoiding sequential projection-then-tomography steps) is a methodological strength that could generalize to other compressive imaging modalities. No machine-checked proofs or fully reproducible code are mentioned, but the approach offers falsifiable predictions via the reported measurement reduction factor.

major comments (2)

[Abstract and reconstruction section] Abstract and reconstruction section: The 43X reduction and maintained resolution/contrast for 2.8M voxels from 400 measurements per angle rest on the 3D elemental distribution being sufficiently sparse (or compressible) in the direct voxel domain. No quantitative sparsity metric (e.g., fraction of non-zero voxels, l0 or l1 norm, or compressibility ratio) is reported for the experimental phantoms or samples, leaving the conditioning of the severely underdetermined joint inverse problem unverified.
[Results section] Results section: The claim that spatial resolution and contrast are maintained requires explicit baseline comparison to full raster scanning (including error bars, line profiles, or resolution metrics such as FWHM). Without these, the quantitative performance advantage cannot be assessed independently of the regularization choice.

minor comments (2)

[Methods] The notation for the forward model and regularization term should explicitly list all free parameters (including the sparsity threshold or regularization strength) in a single table or equation block for reproducibility.
[Figures] Figure captions should state the exact number of angles, the structured illumination patterns used, and the solver algorithm to allow direct replication of the 400-measurement protocol.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments. We address each major comment below and indicate planned revisions to strengthen the validation of our claims.

read point-by-point responses

Referee: [Abstract and reconstruction section] Abstract and reconstruction section: The 43X reduction and maintained resolution/contrast for 2.8M voxels from 400 measurements per angle rest on the 3D elemental distribution being sufficiently sparse (or compressible) in the direct voxel domain. No quantitative sparsity metric (e.g., fraction of non-zero voxels, l0 or l1 norm, or compressibility ratio) is reported for the experimental phantoms or samples, leaving the conditioning of the severely underdetermined joint inverse problem unverified.

Authors: We agree that explicit quantitative sparsity metrics would better substantiate the conditioning of the joint inverse problem. Although the manuscript relies on volumetric sparsity for the 43X reduction, we did not report numerical values in the original submission. In the revised manuscript we will add these metrics, including the fraction of non-zero voxels and l1-norm values computed on the reconstructed 3D elemental distributions for both the phantoms and the experimental samples. revision: yes
Referee: [Results section] Results section: The claim that spatial resolution and contrast are maintained requires explicit baseline comparison to full raster scanning (including error bars, line profiles, or resolution metrics such as FWHM). Without these, the quantitative performance advantage cannot be assessed independently of the regularization choice.

Authors: We concur that direct quantitative comparisons to full raster scanning are necessary to independently validate the maintained resolution and contrast. In the revised Results section we will include side-by-side reconstructions, line profiles through representative features, FWHM values for resolution targets, and contrast measurements with error bars for both the compressive and full raster-scanning cases. revision: yes

Circularity Check

0 steps flagged

No circularity: joint inverse problem is independent of its inputs

full rationale

The paper frames its core contribution as solving a single joint inverse problem that recovers the 3D elemental distribution directly from multiplexed measurements across angles, rather than reconstructing projections first. This is a standard compressive-sensing formulation whose stability depends on an external sample property (volumetric sparsity or compressibility) but does not define the result by construction or rename fitted parameters as predictions. No equations are shown that reduce the output to the input by algebraic identity, and the provided text contains no self-citations used as load-bearing uniqueness theorems or ansatzes. The 43X reduction claim is therefore presented as a consequence of the measurement scheme plus the sparsity assumption, not as a tautology internal to the derivation.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard compressive-sensing assumptions plus one domain-specific premise about volumetric sparsity; no new entities are introduced.

free parameters (1)

regularization strength or sparsity threshold
Likely required to stabilize the joint inverse problem solver but not quantified in the abstract.

axioms (1)

domain assumption The elemental distribution is sparse or compressible in the volumetric domain
Invoked to justify stable recovery from 400 measurements per angle instead of full raster data.
