L-PCN: A Point Cloud Accelerator Exploiting Spatial Locality through Octree-based Islandization

Yiming Gao , Jieming Yin , Yuxiang Wang , Xiangru Chen , Zhilei Chai , Bowen Jiang , Jiliang Zhang , Herman Lam
Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:24 UTC · model grok-4.3

classification 💻 cs.AR
keywords point cloud networksacceleratorspatial localityoctreeFPGAdata structuringfeature computationislandization
0
0 comments X

The pith

L-PCN partitions point clouds into octree islands to reuse overlapping subset data and cut repetitive feature operations in PCNs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Point cloud networks repeat many feature fetches and computations because the data structuring step gathers overlapping subsets of points. L-PCN adds an Islandization Unit that first builds an octree to group points into islands where subsets share strong spatial correlations, then applies hub-based scheduling to cache and reuse the repeated data inside each island. The unit plugs into existing PCN pipelines without altering their core steps. If the locality is real, this produces measured reductions in feature fetching of 55 to 94 percent and in computation of 45 to 81 percent. When added to prior accelerators on FPGA, it delivers 1.2x to 3.2x extra speedup across typical workloads.

Core claim

Octree-based Islandization partitions a point cloud so that point subsets inside the same island exhibit strong spatial correlation; Hub-based Scheduling then dynamically caches, updates, and reuses the repeated data within each island. Together these steps reduce feature fetching by 55.2 percent to 93.8 percent and feature computation by 45.4 percent to 80.6 percent during the full PCN process, and they deliver 1.2x to 3.2x additional speedup when the Islandization Unit is inserted as a plug-in into state-of-the-art PCN accelerators running on an Intel Arria 10 GX FPGA.

What carries the argument

The Islandization Unit, which performs Octree-based Islandization to create spatially correlated islands and Hub-based Scheduling to exploit intra-island data reuse.

If this is right

  • Existing PCN accelerators gain 1.2x to 3.2x speedup simply by adding the Islandization Unit as a plug-in.
  • Feature fetching and computation volumes drop by tens of percent without changing the underlying PCN algorithms.
  • The same island-level reuse pattern applies to common PCN tasks such as shape classification and part segmentation.
  • Hardware implementations on FPGA confirm that the theoretical savings appear in real execution time.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same octree partitioning could reduce off-chip memory traffic for PCN inference on bandwidth-limited edge hardware.
  • Similar explicit spatial grouping might help accelerators for other irregular spatial data such as meshes or graphs.
  • If island size and overlap statistics vary widely across datasets, a dynamic island-size tuner could further stabilize gains.
  • The approach highlights that data-structuring locality in point clouds is a first-class target for co-designed accelerators.

Load-bearing premise

The spatial locality created by overlapping point subsets in data structuring is both large enough and stable enough that the added partitioning and scheduling overhead never offsets the reported savings.

What would settle it

Run the Islandization Unit on a point-cloud workload whose gathered subsets show far less overlap than the tested cases and check whether measured speedup drops below 1.2x or whether partitioning time dominates total runtime.

Figures

Figures reproduced from arXiv: 2604.10716 by Bowen Jiang, Herman Lam, Jieming Yin, Jiliang Zhang, Xiangru Chen, Yiming Gao, Yuxiang Wang, Zhilei Chai.

Figure 1
Figure 1. Figure 1: Standard workflow and the two steps in the basic building block of [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

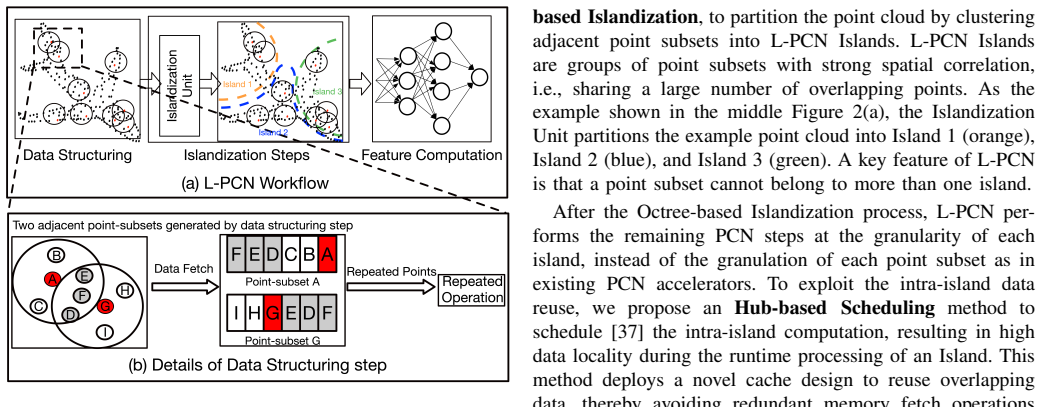

Figure 2. Figure 2: (a) L-PCN workflow: adding Islandization Steps to exploit spatial [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Details of the two steps in a basic PCN Building Block [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Detailed breakdown and overlap analysis of two major Set Ab [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

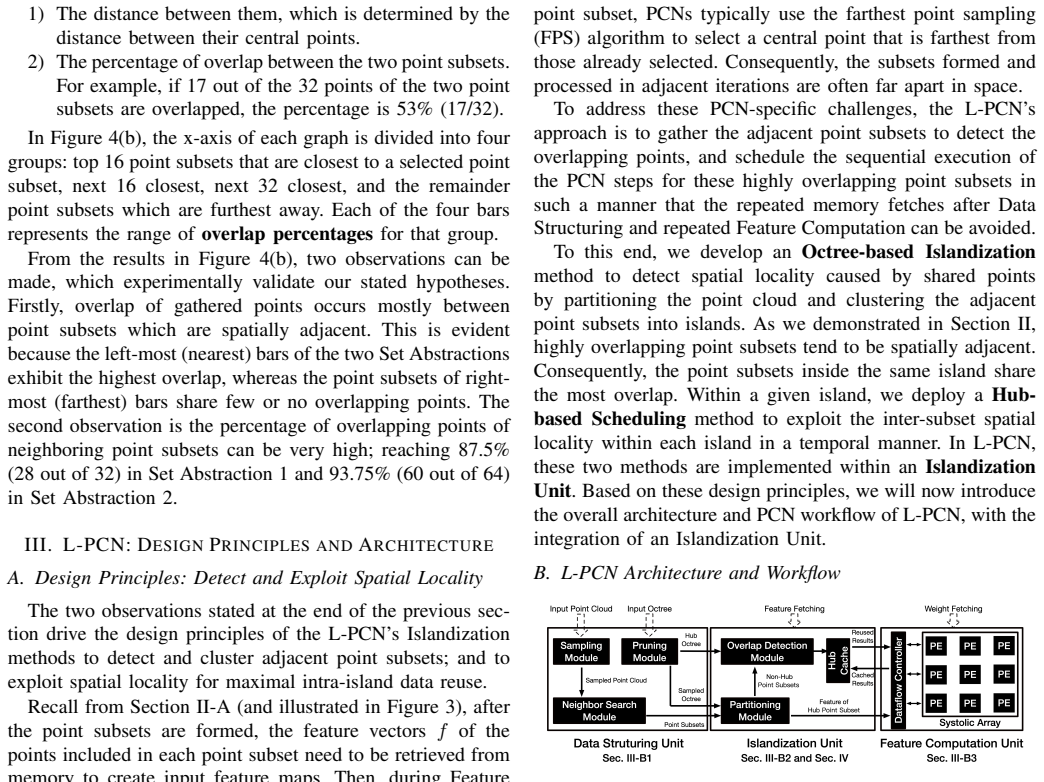

Figure 5
Figure 5. Figure 5: Overall architecture of L-PCN The general architecture of L-PCN is shown in [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

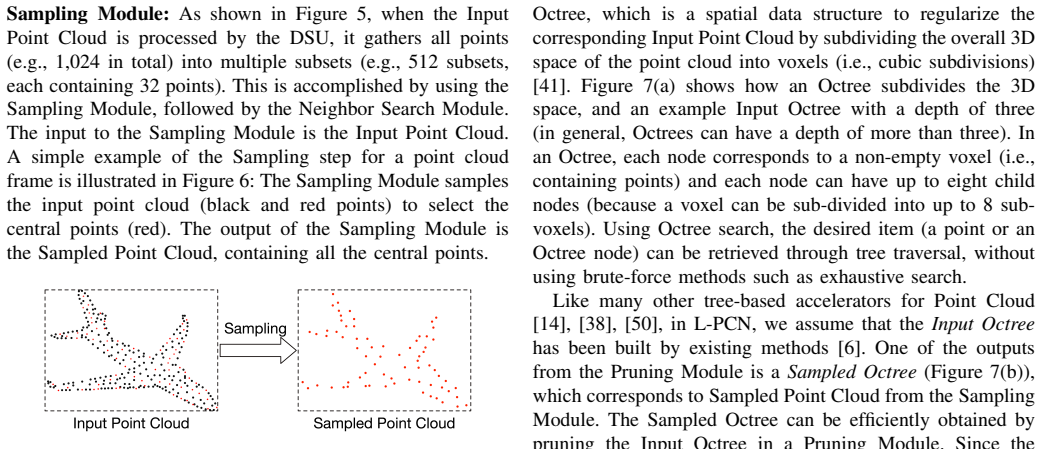

Figure 6
Figure 6. Figure 6: Input and output of Sampling Module. Neighbor Search Module: As in a standard PCN, after selecting the central points, the point subsets can be formed by searching the neighboring points around these central points. As shown in [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗

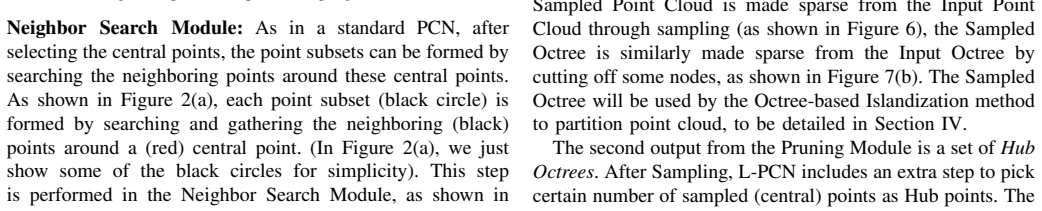

Figure 5
Figure 5. Figure 5: To calculate the distance and rank the nearest [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 8
Figure 8. Figure 8: L-PCN workflow with Islandization Unit. Between Point-subset A and [PITH_FULL_IMAGE:figures/full_fig_p005_8.png] view at source ↗
Figure 7
Figure 7. Figure 7: Detailed operations in Pruning Module. Pruning Module: The second input to the DSU is the Input Octree, which is a spatial data structure to regularize the corresponding Input Point Cloud by subdividing the overall 3D space of the point cloud into voxels (i.e., cubic subdivisions) [41] [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: (a) An example of picking five central points as Hub points (Hub P1 to Hub P5) from the Sampled Point Cloud. (b) Searching adjacent Octree nodes [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Workflow of Hub-based Scheduling. The remaining non-Hub point subsets are processed in a top-down order along the Island List, which naturally yields an inside-to-outside order within each island. As shown at the bottom of [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗
Figure 10
Figure 10. Figure 10: Architecture of Partitioning Module. The Partitioning Module first randomly picks a fixed number of points from sampled point cloud to serve as Hub points. As shown in [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Detailed architecture and workflow of the Overlap Detection Module [PITH_FULL_IMAGE:figures/full_fig_p008_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: L-PCN architecture with active dataflow. [PITH_FULL_IMAGE:figures/full_fig_p008_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Example of Data Reusing Method with overlap detection. In this [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Theoretical workload optimization [PITH_FULL_IMAGE:figures/full_fig_p010_15.png] view at source ↗
Figure 17
Figure 17. Figure 17: Feature Computation speedup of GDPCA, L-PCN, and Mesorasi. [PITH_FULL_IMAGE:figures/full_fig_p010_17.png] view at source ↗

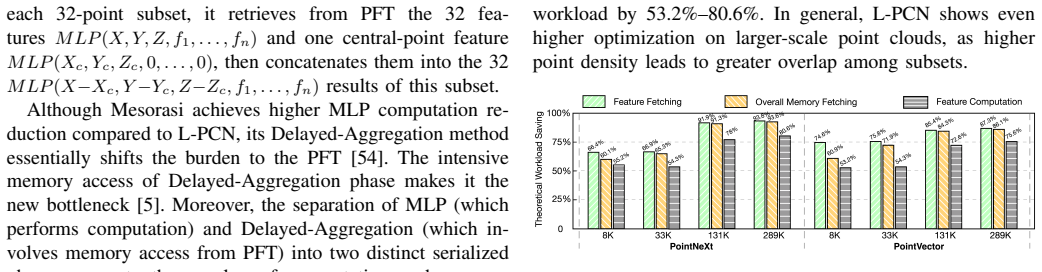

Figure 18
Figure 18. Figure 18: Theoretical workload optimization for PointNeXt and PointVector. [PITH_FULL_IMAGE:figures/full_fig_p011_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Performance Comparison of L-PCN prototype and FractalCloud. [PITH_FULL_IMAGE:figures/full_fig_p011_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Accuracy comparison among traditional method, L-PCN, and [PITH_FULL_IMAGE:figures/full_fig_p011_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Empirical analysis shows that non-overlapping (usually boundary) [PITH_FULL_IMAGE:figures/full_fig_p012_21.png] view at source ↗
Figure 23
Figure 23. Figure 23: Detailed specifications and area/power breakdown of the L-PCN [PITH_FULL_IMAGE:figures/full_fig_p012_23.png] view at source ↗

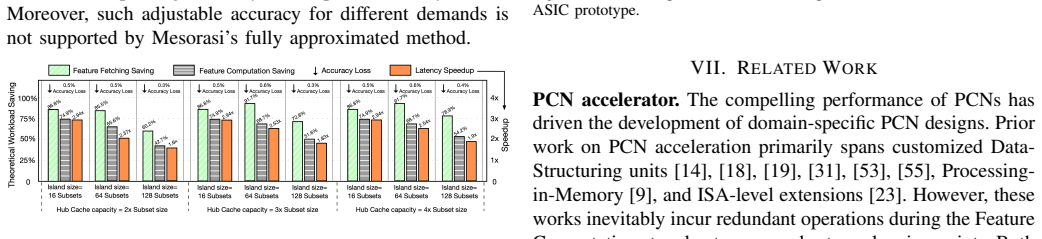

Figure 22
Figure 22. Figure 22: Sensitivity Study of Islandization hyperparameters [PITH_FULL_IMAGE:figures/full_fig_p012_22.png] view at source ↗
read the original abstract

Existing Point Cloud Networks (PCNs) have proven to achieve great success in many point cloud tasks such as object part segmentation, shape classification, and so on. The most popular point-based PCNs are usually composed of two sequential steps: Data Structuring (DS) and Feature Computation (FC). In this paper, we first describe an important characteristic of the PCN-specific DS step that has not been addressed in existing PCN accelerators: the spatial locality resulting from overlapping points of the gathered point subsets. Using algorithm-hardware co-design, L-PCN (Locality-aware PCN) proposes two novel techniques to exploit this characteristic to reduce the large amount of repetitive operations in the overall PCN. The first of which is a point cloud partitioning technique, Octree-based Islandization. Using Octree-based adjacency gathering, a point cloud is partitioned into islands in L-PCN, where the point subsets inside the same island exhibit a strong spatial correlation. After partitioning, L-PCN performs the rest of PCN steps at the granularity of islands. The second method of L-PCN is scheduling the intra-island computation with a Hub-based Scheduling to exploit the intra-island data reuse by dynamically caching, updating, and reusing the repeated data. The two methods are implemented in an Islandization Unit, which can be seamlessly integrated into standard PCN workflow. Our evaluation shows that based on our methods for exploiting spatial locality, L-PCN achieves a theoretical reduction in feature fetching ranging from 55.2% to 93.8% and in feature computation ranging from 45.4% to 80.6% during the PCN process. For experimentation, prototype L-PCN accelerators are implemented on the Intel Arria 10 GX FPGA. Experimental results prove that with the Islandization Unit as a plug-in, state-of-the-art PCN accelerators can achieve an additional speedup ranging from 1.2x to 3.2x.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript presents L-PCN, a locality-aware accelerator for point cloud networks (PCNs) consisting of data structuring (DS) and feature computation (FC) steps. It identifies spatial locality from overlapping point subsets in DS and proposes Octree-based Islandization to partition into correlated 'islands' and Hub-based Scheduling for intra-island reuse via dynamic caching. Implemented as a plug-in Islandization Unit, it claims theoretical reductions of 55.2%-93.8% in feature fetching and 45.4%-80.6% in feature computation, with FPGA experiments showing 1.2x-3.2x additional speedup on state-of-the-art PCN accelerators.

Significance. If the overheads of the proposed techniques prove smaller than the savings across typical workloads, this work could meaningfully advance hardware acceleration for PCNs by exploiting an under-addressed characteristic of the DS step. The co-design approach and plug-in compatibility with existing accelerators are positive aspects that could facilitate adoption. The FPGA implementation on Arria 10 GX provides a practical demonstration, though verification of net gains is needed.

major comments (3)
  1. [Abstract] Abstract: The ranges for theoretical reductions in feature fetching (55.2%-93.8%) and feature computation (45.4%-80.6%) are stated without derivation details, assumptions (e.g., overlap factors, point density, neighbor radius, or cache hit rates), or workload statistics. These percentages are load-bearing for the central claim that locality exploitation yields net gains.
  2. [Evaluation] Evaluation section: The reported speedups (1.2x-3.2x) lack a breakdown of execution time or resource usage for the Islandization Unit (octree construction, partitioning, hub scheduling, dynamic caching) versus the DS/FC savings. Without this, it cannot be verified that added costs do not offset benefits for varying point densities or PCN layers.
  3. [Evaluation] Evaluation section: Workload details (point cloud sizes, datasets, PCN layer counts), baseline accelerator descriptions, and error bars/variance on speedup measurements are absent. These omissions undermine assessment of the robustness of the claimed speedups.
minor comments (1)
  1. [Abstract] The abstract introduces the 'Islandization Unit' without a concise description of its integration point in the standard PCN workflow or a forward reference to the relevant figure or section.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and will incorporate revisions to provide the requested details and breakdowns, strengthening the presentation of our results.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The ranges for theoretical reductions in feature fetching (55.2%-93.8%) and feature computation (45.4%-80.6%) are stated without derivation details, assumptions (e.g., overlap factors, point density, neighbor radius, or cache hit rates), or workload statistics. These percentages are load-bearing for the central claim that locality exploitation yields net gains.

    Authors: We agree that the abstract would benefit from additional context on these ranges. The percentages are derived from an analytical model of point subset overlaps under octree-based partitioning, using standard PCN parameters (k-nearest neighbors with radius 0.2-0.5, point densities from ModelNet40 and ShapeNet, and cache hit rates based on intra-island correlation). In the revised version, we will add a concise derivation summary and key assumptions to the abstract while expanding the full formulas, workload statistics, and sensitivity analysis in Section 4 (Evaluation). revision: yes

  2. Referee: [Evaluation] Evaluation section: The reported speedups (1.2x-3.2x) lack a breakdown of execution time or resource usage for the Islandization Unit (octree construction, partitioning, hub scheduling, dynamic caching) versus the DS/FC savings. Without this, it cannot be verified that added costs do not offset benefits for varying point densities or PCN layers.

    Authors: This is a fair point for verifying net gains. The current manuscript reports aggregate speedups on the Arria 10 GX but does not isolate Islandization Unit overheads. We will revise the evaluation section to include a detailed breakdown: cycle counts and resource utilization (LUTs, DSPs, BRAMs) for octree construction, partitioning, and hub scheduling; net speedup after overhead subtraction; and results across varying point densities (1024-8192 points) and PCN layers. This will confirm that DS/FC savings exceed the added costs in the evaluated cases. revision: yes

  3. Referee: [Evaluation] Evaluation section: Workload details (point cloud sizes, datasets, PCN layer counts), baseline accelerator descriptions, and error bars/variance on speedup measurements are absent. These omissions undermine assessment of the robustness of the claimed speedups.

    Authors: We acknowledge these omissions limit robustness assessment. The revised evaluation will explicitly list: point cloud sizes and datasets (ModelNet40, ShapeNet with 1024-4096 points), PCN architectures and layer counts (PointNet, PointNet++, DGCNN), baseline accelerator configurations (e.g., prior FPGA designs from cited works), and error bars with standard deviation from 5-10 runs per configuration to demonstrate measurement variance and consistency. revision: yes

Circularity Check

0 steps flagged

No circularity: claims rest on proposed algorithms and direct FPGA measurements

full rationale

The paper introduces Octree-based Islandization and Hub-based Scheduling as algorithmic techniques to exploit spatial locality in the DS step of PCNs. The reported theoretical reductions (55.2%-93.8% fetching, 45.4%-80.6% computation) and measured speedups (1.2x-3.2x) are presented as outcomes of evaluation on FPGA prototypes with the Islandization Unit as a plug-in. No equations, fitted parameters, or self-citations are shown that reduce the central claims to tautological inputs by construction. The derivation chain is self-contained against external benchmarks (hardware implementation and workload measurements), with no load-bearing self-referential steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on one domain assumption about spatial locality in point gathering and introduces one new hardware component; no free parameters or additional invented entities are described in the abstract.

axioms (1)
  • domain assumption Point subsets gathered during PCN data structuring exhibit substantial spatial locality due to overlapping points.
    Described as an important unaddressed characteristic of the DS step.
invented entities (1)
  • Islandization Unit no independent evidence
    purpose: Seamless plug-in module that performs octree partitioning and hub scheduling inside existing PCN accelerators.
    New architectural component proposed to realize the two techniques.
