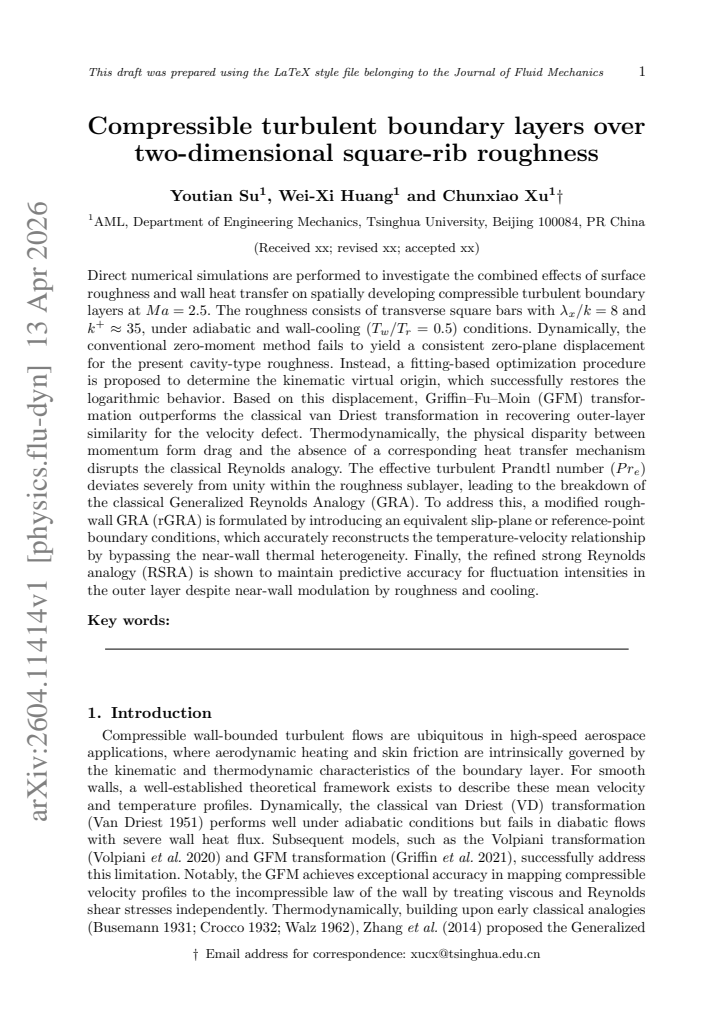

Compressible turbulent boundary layers over two-dimensional square-rib roughness

Youtian Su , Wei-Xi Huang , Chunxiao Xu This is my paper

Pith reviewed 2026-05-10 16:15 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords compressible turbulent boundary layersquare-rib roughnessgeneralized Reynolds analogyvirtual originwall heat transferturbulent Prandtl numberdirect numerical simulationReynolds analogy
0
0 comments X

The pith

A modified rough-wall generalized Reynolds analogy reconstructs the temperature-velocity relationship over square-rib roughness using equivalent slip-plane boundary conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Direct numerical simulations of Mach 2.5 turbulent boundary layers over square ribs show that roughness breaks the classical Reynolds analogy because form drag has no matching heat transfer mechanism. This causes the effective turbulent Prandtl number to deviate from unity inside the roughness sublayer. A fitting procedure locates a kinematic virtual origin that restores the logarithmic velocity profile and allows the Griffin-Fu-Moin transformation to recover outer-layer similarity. The central advance is a modified rough-wall generalized Reynolds analogy that imposes equivalent slip-plane boundary conditions to bypass near-wall thermal heterogeneity and recover the temperature-velocity relation.

Core claim

Direct numerical simulations at Mach 2.5 demonstrate that a fitting-based optimization procedure determines a kinematic virtual origin restoring logarithmic behavior in the velocity profiles over square-rib roughness. With this origin, the Griffin-Fu-Moin transformation recovers outer-layer similarity better than van Driest. Thermodynamically, the classical generalized Reynolds analogy breaks down due to the disparity between momentum drag and absent heat transfer, but a modified rough-wall GRA using equivalent slip-plane boundary conditions accurately reconstructs the temperature-velocity relationship by bypassing near-wall thermal heterogeneity.

What carries the argument

Modified rough-wall generalized Reynolds analogy (rGRA) with equivalent slip-plane or reference-point boundary conditions that bypass near-wall thermal heterogeneity.

If this is right

  • The fitting optimization yields a consistent kinematic virtual origin that restores the logarithmic velocity profile.
  • The Griffin-Fu-Moin transformation outperforms van Driest in recovering outer-layer similarity for the velocity defect.

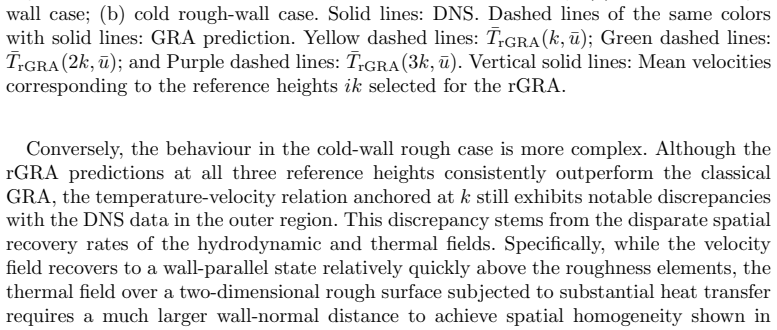

  • The modified rGRA accurately reconstructs the temperature-velocity relationship despite classical GRA breakdown.
  • The refined strong Reynolds analogy maintains accuracy for outer-layer fluctuation intensities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The slip-plane approach could be built into wall models for large-eddy simulations of high-speed rough-wall flows.
  • Momentum and thermal virtual origins must be treated separately when roughness and heat transfer are both present.
  • The method should be tested on three-dimensional roughness elements or a wider range of Mach numbers to check generality.

Load-bearing premise

The fitting-based optimization procedure determines a physically consistent kinematic virtual origin, and the equivalent slip-plane boundary conditions capture thermal effects without new inconsistencies in the roughness sublayer.

What would settle it

A new DNS run with changed roughness spacing or wall temperature ratio in which the rGRA-predicted temperature-velocity curve deviates from the simulated data would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.11414 by Chunxiao Xu, Wei-Xi Huang, Youtian Su.

Figure 1
Figure 1. Figure 1: Schematic of the computational domain configurations, comprising the [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Contours of Reynolds-averaged density in the rough-wall boundary layers: (a) [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Streamwise evolution of (a) boundary layer thickness [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Schematic of the two-dimensional rough-wall geometry and the decomposition [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Van Driest (VD) transformation of mean streamwise velocity profiles. Gray [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: GFM transformation of mean streamwise velocity profiles. Light gray lines: [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Evolution of (a) the inner-scaled zero-plane displacement [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 6
Figure 6. Figure 6: Upon correcting for this deficit, the adiabatic rough-wall profile exhibits an [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Velocity deficit curves: (a) VD transformation; (b) GFM transformation. [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Turbulent velocity fluctuations of smooth-wall cases scaled according to [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10

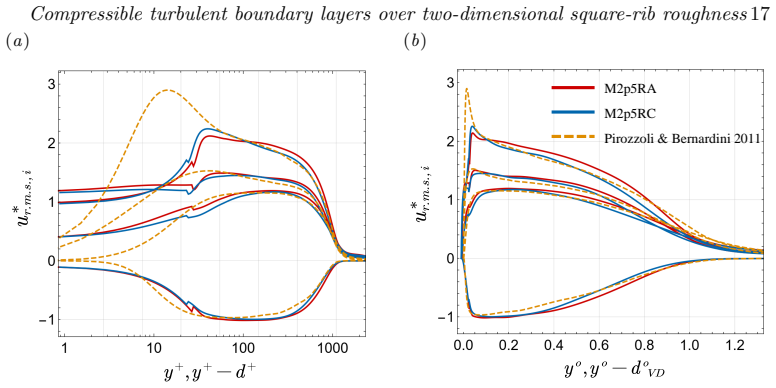

Figure 10. Figure 10: Turbulent velocity fluctuations scaled according to equation (3.2) as a function [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
